TPEF::RelocElement Class Reference

#include <RelocElement.hh>

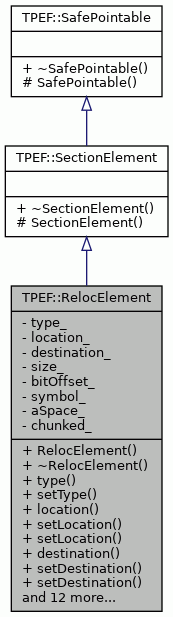

Inheritance diagram for TPEF::RelocElement:

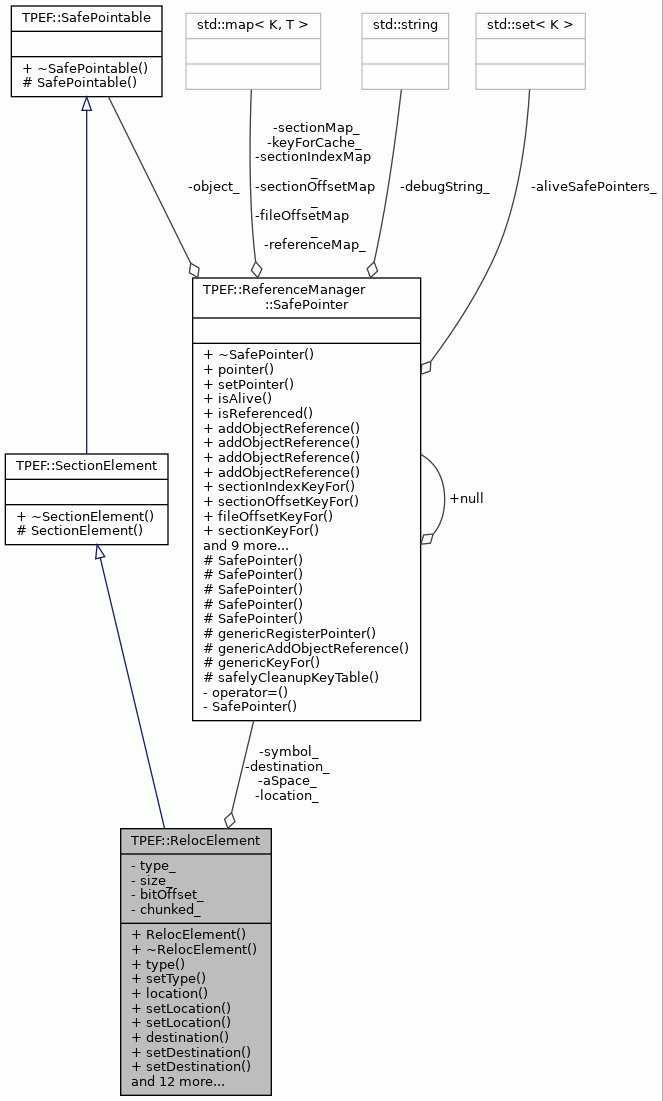

Collaboration diagram for TPEF::RelocElement:

Public Types
enum	RelocType { RT_NOREL = 0x00, RT_SELF = 0x01, RT_PAGE = 0x02, RT_PCREL = 0x03 }

Public Member Functions
	RelocElement ()
virtual	~RelocElement ()
RelocType	type () const
void	setType (RelocType aType)
SectionElement *	location () const
void	setLocation (SectionElement *aLocation)
void	setLocation (const ReferenceManager::SafePointer *aLocation)
SectionElement *	destination () const
void	setDestination (SectionElement *aDestination)
void	setDestination (const ReferenceManager::SafePointer *aDestination)
Byte	size () const
void	setSize (Byte aSize)
Byte	bitOffset () const
void	setBitOffset (Byte anOffset)
SymbolElement *	symbol () const
void	setSymbol (SymbolElement *aSymbol)
void	setSymbol (const ReferenceManager::SafePointer *aSymbol)
ASpaceElement *	aSpace () const
void	setASpace (ASpaceElement *anASpace)
void	setASpace (const ReferenceManager::SafePointer *anASpace)
bool	chunked () const
void	setChunked (bool isChunked)
Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()
Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Private Attributes
RelocType	type_
	The type of the relocation. More...
const ReferenceManager::SafePointer *	location_
	The element containing location to be relocated. More...
const ReferenceManager::SafePointer *	destination_
	The destination element of the location to be relocated. More...
Byte	size_
	Bit width of value(or chunk of value) to be relocated. More...
Byte	bitOffset_
	Bit offset where in whole value bits of this chunk should be. More...
const ReferenceManager::SafePointer *	symbol_
	The symbol of relocation. More...
const ReferenceManager::SafePointer *	aSpace_
	The address space of relocated element. More...
bool	chunked_
	Does relocation refer to chunked address. More...

Additional Inherited Members
Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()
Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Detailed Description

Relocation table entry.

Definition at line 51 of file RelocElement.hh.

Member Enumeration Documentation

RelocType

enum TPEF::RelocElement::RelocType

TPEF relocation types.

Enumerator
RT_NOREL	No relocation.
RT_SELF	Absolute address, relocate relative to address self.
RT_PAGE	Paged address, relocate page offset.
RT_PCREL	PC-relative, relocate only if displacement changes.

Definition at line 56 of file RelocElement.hh.

                   {
        RT_NOREL     = 0x00,   ///< No relocation
        RT_SELF      = 0x01,   ///< Absolute address, relocate relative to
                               ///< address self.
        RT_PAGE      = 0x02,   ///< Paged address, relocate page offset.
        RT_PCREL     = 0x03    ///< PC-relative, relocate only if
                               ///< displacement changes.
    };

Constructor & Destructor Documentation

RelocElement()

TPEF::RelocElement::RelocElement

(

)

Constructor.

Definition at line 46 of file RelocElement.cc.

                           :
    SectionElement(), type_(RT_NOREL), location_(&SafePointer::null),
    destination_(&SafePointer::null), size_(0), bitOffset_(0),
    symbol_(&SafePointer::null), aSpace_(&SafePointer::null),
    chunked_(false) {
}

~RelocElement()

TPEF::RelocElement::~RelocElement ( )

virtual

Destructor.

Definition at line 56 of file RelocElement.cc.

                            {
}

Member Function Documentation

aSpace()

ASpaceElement* TPEF::RelocElement::aSpace

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData(), TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::TPEFProgramFactory::createInstruction(), TTAProgram::TPEFProgramFactory::createTerminal(), TPEF::TPEFRelocSectionReader::finalize(), and TPEFDumper::section().

bitOffset()

Byte TPEF::RelocElement::bitOffset

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData().

chunked()

bool TPEF::RelocElement::chunked

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData().

destination()

SectionElement* TPEF::RelocElement::destination

(

)

const

Referenced by TTAProgram::TPEFProgramFactory::createDataMemories(), TPEF::AOutRelocationSectionReader::finalize(), CodeCompressorPlugin::initializeRelocations(), ProgramImageGenerator::relocTarget(), and TPEFDumper::section().

location()

SectionElement* TPEF::RelocElement::location

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData(), TTAProgram::TPEFProgramFactory::createDataMemories(), TPEF::TPEFRelocSectionReader::finalize(), TPEF::AOutRelocationSectionReader::finalize(), TPEF::TPEFTools::hasRelocation(), CodeCompressorPlugin::initializeRelocations(), TPEF::TPEFTools::initRelocationCache(), TPEF::TPEFTools::relocation(), ProgramImageGenerator::relocTarget(), and TPEFDumper::section().

setASpace() [1/2]

void TPEF::RelocElement::setASpace

(

ASpaceElement *

anASpace

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), TPEF::AOutRelocationSectionReader::finalize(), LabelManager::finalize(), and TPEF::TPEFRelocSectionReader::readData().

setASpace() [2/2]

void TPEF::RelocElement::setASpace

(

const ReferenceManager::SafePointer *

anASpace

)

setBitOffset()

void TPEF::RelocElement::setBitOffset

(

Byte

anOffset

)

Referenced by TPEF::TPEFRelocSectionReader::readData().

setChunked()

void TPEF::RelocElement::setChunked

(

bool

isChunked

)

Referenced by LabelManager::finalize(), and TPEF::TPEFRelocSectionReader::readData().

setDestination() [1/2]

void TPEF::RelocElement::setDestination

(

const ReferenceManager::SafePointer *

aDestination

)

setDestination() [2/2]

void TPEF::RelocElement::setDestination

(

SectionElement *

aDestination

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), TPEF::TPEFRelocSectionReader::finalize(), LabelManager::finalize(), and TPEF::AOutRelocationSectionReader::initializeRelocElement().

setLocation() [1/2]

void TPEF::RelocElement::setLocation

(

const ReferenceManager::SafePointer *

aLocation

)

setLocation() [2/2]

void TPEF::RelocElement::setLocation

(

SectionElement *

aLocation

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), LabelManager::finalize(), TPEF::AOutRelocationSectionReader::initializeRelocElement(), and TPEF::TPEFRelocSectionReader::readData().

setSize()

void TPEF::RelocElement::setSize

(

Byte

aSize

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), LabelManager::finalize(), TPEF::AOutRelocationSectionReader::initializeRelocElement(), and TPEF::TPEFRelocSectionReader::readData().

setSymbol() [1/2]

void TPEF::RelocElement::setSymbol

(

const ReferenceManager::SafePointer *

aSymbol

)

setSymbol() [2/2]

void TPEF::RelocElement::setSymbol

(

SymbolElement *

aSymbol

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), LabelManager::finalize(), TPEF::AOutRelocationSectionReader::initializeRelocElement(), and TPEF::TPEFRelocSectionReader::readData().

setType()

void TPEF::RelocElement::setType

(

RelocType

aType

)

Referenced by TTAProgram::ProgramWriter::createRelocSections(), LabelManager::finalize(), TPEF::AOutRelocationSectionReader::initializeRelocElement(), and TPEF::TPEFRelocSectionReader::readData().

size()

Byte TPEF::RelocElement::size

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData(), TTAProgram::TPEFProgramFactory::createDataMemories(), TPEF::TPEFRelocSectionReader::finalize(), and TPEFDumper::section().

symbol()

SymbolElement* TPEF::RelocElement::symbol

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData(), and TPEFDumper::section().

type()

RelocType TPEF::RelocElement::type

(

)

const

Referenced by TPEF::TPEFRelocSectionWriter::actualWriteData(), TPEF::TPEFRelocSectionReader::finalize(), and TPEFDumper::section().

Member Data Documentation

aSpace_

const ReferenceManager::SafePointer* TPEF::RelocElement::aSpace_

private

The address space of relocated element.

Definition at line 110 of file RelocElement.hh.

bitOffset_

Byte TPEF::RelocElement::bitOffset_

private

Bit offset where in whole value bits of this chunk should be.

Definition at line 106 of file RelocElement.hh.

chunked_

bool TPEF::RelocElement::chunked_

private

Does relocation refer to chunked address.

Definition at line 112 of file RelocElement.hh.

destination_

const ReferenceManager::SafePointer* TPEF::RelocElement::destination_

private

The destination element of the location to be relocated.

Definition at line 102 of file RelocElement.hh.

location_

const ReferenceManager::SafePointer* TPEF::RelocElement::location_

private

The element containing location to be relocated.

Definition at line 100 of file RelocElement.hh.

size_

Byte TPEF::RelocElement::size_

private

Bit width of value(or chunk of value) to be relocated.

Definition at line 104 of file RelocElement.hh.

symbol_

const ReferenceManager::SafePointer* TPEF::RelocElement::symbol_

private

The symbol of relocation.

Definition at line 108 of file RelocElement.hh.

type_

RelocType TPEF::RelocElement::type_

private

The type of the relocation.

Definition at line 98 of file RelocElement.hh.

---

The documentation for this class was generated from the following files:

• RelocElement.hh
• RelocElement.cc
