#include <SectionSymElement.hh>

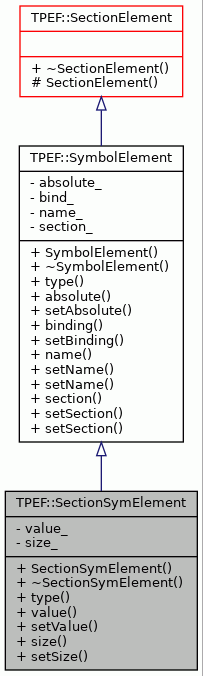

Inheritance diagram for TPEF::SectionSymElement:

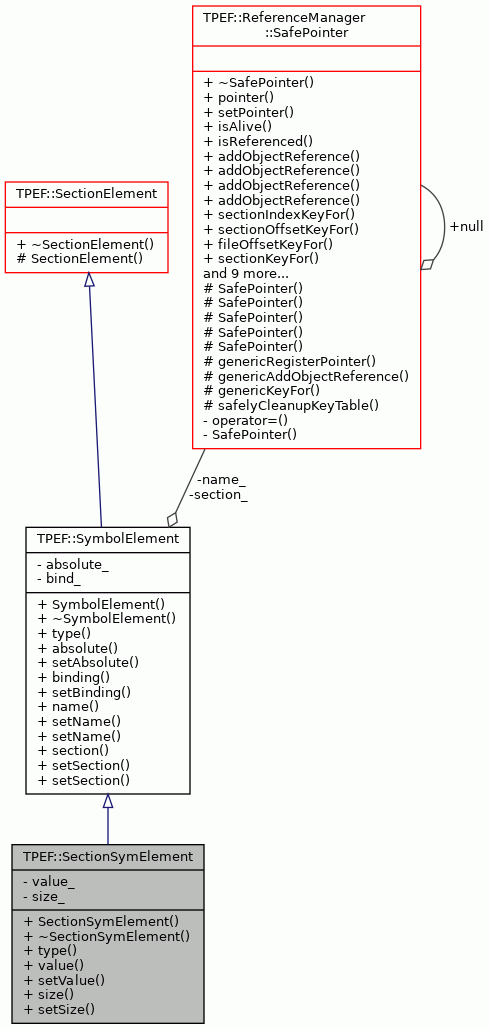

Collaboration diagram for TPEF::SectionSymElement:

Public Member Functions
	SectionSymElement ()

virtual	~SectionSymElement ()

virtual SymbolType	type () const

Word	value () const

void	setValue (Word aValue)

Word	size () const

void	setSize (Word aSize)

Public Member Functions inherited from TPEF::SymbolElement
	SymbolElement ()

virtual	~SymbolElement ()

bool	absolute () const

void	setAbsolute (bool anAbsoluteness)

SymbolBinding	binding () const

void	setBinding (SymbolBinding aBinding)

Chunk *	name () const

void	setName (Chunk *aName)

void	setName (const ReferenceManager::SafePointer *aName)

Section *	section () const

void	setSection (Section *aSect)

void	setSection (const ReferenceManager::SafePointer *aSect)

Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Private Attributes
Word	value_
	Value of the symbol. More...

Word	size_
	Size of referred object in MAUs. More...

Additional Inherited Members
Public Types inherited from TPEF::SymbolElement
enum	SymbolBinding { STB_LOCAL = 0x0, STB_GLOBAL = 0x1, STB_WEAK = 0x2 }
	Binding types of symbol. More...

enum	SymbolType { STT_NOTYPE = 0x0, STT_DATA = 0x1, STT_CODE = 0x2, STT_SECTION = 0x3, STT_FILE = 0x4, STT_PROCEDURE = 0x5 }
	Type of symbol element. More...

Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Detailed Description

Section symbol element.

Definition at line 44 of file SectionSymElement.hh.

Constructor & Destructor Documentation

◆ SectionSymElement()

TPEF::SectionSymElement::SectionSymElement ( )

Constructor.

Definition at line 41 of file SectionSymElement.cc.

                                      :
     SymbolElement(), value_(0), size_(0) {

 }

◆ ~SectionSymElement()

TPEF::SectionSymElement::~SectionSymElement ( )

virtual

Destructor.

Definition at line 49 of file SectionSymElement.cc.

49 {

50 }

Member Function Documentation

◆ setSize()

void TPEF::SectionSymElement::setSize ( Word aSize )

Sets size of referred object in MAUs.

Parameters

aSize of the referred object in MAUs.

Definition at line 102 of file SectionSymElement.cc.

                                      {
     size_ = aSize;
 }

References size_.

◆ setValue()

void TPEF::SectionSymElement::setValue ( Word aValue )

Sets value of the element.

This might be for example relocation information.

Parameters

aValue Value of the element.

Definition at line 82 of file SectionSymElement.cc.

                                        {
     value_ = aValue;
 }

References value_.

◆ size()

Word TPEF::SectionSymElement::size ( ) const

Returns size of the referred object in MAUs.

Returns: Size of the referred object in MAUs.

Definition at line 92 of file SectionSymElement.cc.

                               {
     return size_;
 }

References size_.

Referenced by TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

◆ type()

SymbolElement::SymbolType TPEF::SectionSymElement::type ( ) const

virtual

Returns type of the element.

Returns: Type of the element.

Implements TPEF::SymbolElement.

Definition at line 58 of file SectionSymElement.cc.

                               {
     return STT_SECTION;
 }

References TPEF::SymbolElement::STT_SECTION.

◆ value()

Word TPEF::SectionSymElement::value ( ) const

Returns value of the element.

This might be for example relocation information.

Returns: Value of the element.

Definition at line 70 of file SectionSymElement.cc.

                                {
     return value_;
 }

References value_.

Referenced by TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

Member Data Documentation

◆ size_

Word TPEF::SectionSymElement::size_

private

Size of referred object in MAUs.

Definition at line 61 of file SectionSymElement.hh.

Referenced by setSize(), and size().

◆ value_

Word TPEF::SectionSymElement::value_

private

Value of the symbol.

Definition at line 59 of file SectionSymElement.hh.

Referenced by setValue(), and value().

The documentation for this class was generated from the following files:
