TPEF::TPEFDataSectionReader Class Reference

#include <TPEFDataSectionReader.hh>

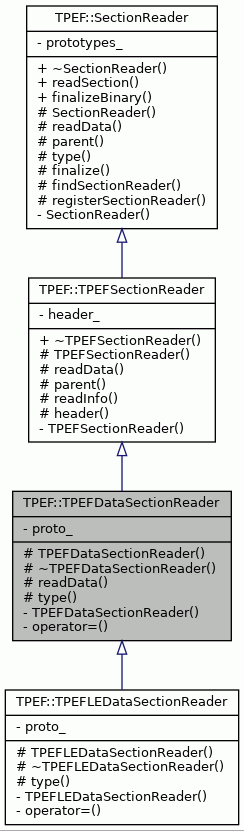

Inheritance diagram for TPEF::TPEFDataSectionReader:

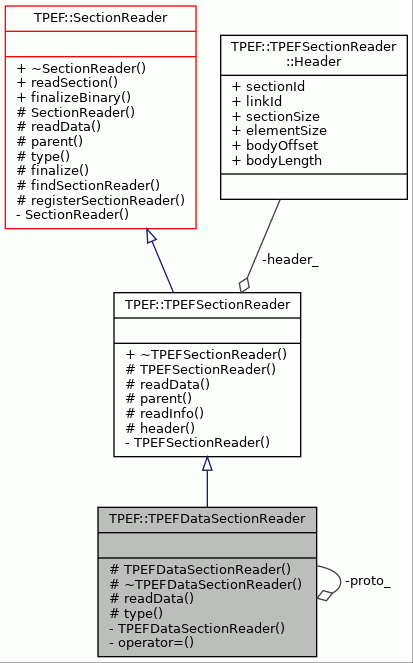

Collaboration diagram for TPEF::TPEFDataSectionReader:

Protected Member Functions
	TPEFDataSectionReader (bool reg=true)
virtual	~TPEFDataSectionReader ()
virtual void	readData (BinaryStream &stream, Section *section) const
virtual Section::SectionType	type () const
Protected Member Functions inherited from TPEF::TPEFSectionReader
	TPEFSectionReader ()
virtual BinaryReader *	parent () const
virtual void	readInfo (BinaryStream &stream, Section *sect) const
Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()
virtual void	finalize (Section *section) const

Private Member Functions
	TPEFDataSectionReader (const TPEFDataSectionReader &)
	Copying not allowed. More...
TPEFDataSectionReader &	operator= (TPEFDataSectionReader &)
	Assignment not allowed. More...

Static Private Attributes
static TPEFDataSectionReader	proto_
	Prototype instance of TPEFDataSectionReader to be registered to SectionReader. More...

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length
Public Member Functions inherited from TPEF::TPEFSectionReader
virtual	~TPEFSectionReader ()
Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()
Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section *section, BinaryReader *reader)
static void	finalizeBinary (Binary *binaryToFinalize, BinaryReader *reader)
Static Protected Member Functions inherited from TPEF::TPEFSectionReader
static const Header &	header ()
Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)
static void	registerSectionReader (const SectionReader *sReader)

Detailed Description

Reads string section from TPEF binary file.

Definition at line 46 of file TPEFDataSectionReader.hh.

Constructor & Destructor Documentation

TPEFDataSectionReader() [1/2]

TPEF::TPEFDataSectionReader::TPEFDataSectionReader ( bool  reg = true )

protected

Constructor.

Registers itself to SectionReader.

Definition at line 55 of file TPEFDataSectionReader.cc.

                                                     : TPEFSectionReader() {
    if (reg)
        SectionReader::registerSectionReader(this);
}

References TPEF::SectionReader::registerSectionReader().

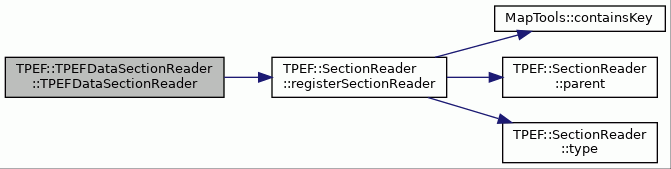

Here is the call graph for this function:

~TPEFDataSectionReader()

TPEF::TPEFDataSectionReader::~TPEFDataSectionReader ( )

protectedvirtual

Destructor.

Definition at line 63 of file TPEFDataSectionReader.cc.

                                              {
}

TPEFDataSectionReader() [2/2]

TPEF::TPEFDataSectionReader::TPEFDataSectionReader ( const TPEFDataSectionReader &  )

private

Copying not allowed.

Member Function Documentation

operator=()

TPEFDataSectionReader& TPEF::TPEFDataSectionReader::operator= ( TPEFDataSectionReader &  )

private

Assignment not allowed.

readData()

void TPEF::TPEFDataSectionReader::readData ( BinaryStream &  stream, Section *  section  ) const

protectedvirtual

Reads data section of TPEF binary file.

Parameters

stream	Stream to be read from.
section	Section where the information is to be stored.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Reimplemented from TPEF::TPEFSectionReader.

Definition at line 89 of file TPEFDataSectionReader.cc.

                                                                            {
    // base classes implementation must be called with these.
    TPEFSectionReader::readData(stream, section);

    DataSection* dataSection = dynamic_cast<DataSection*>(section);
    assert(dataSection != NULL);

    // check that link section is defined properly
    assert(header().linkId == 0);

    if (!section->noBits()) {
        while (stream.readPosition() <
               header().bodyOffset + header().bodyLength) {
            dataSection->addByte(stream.readByte());
        }

        dynamic_cast<TPEFReader*>(
            parent())->addSectionSize(section, header().bodyLength);
    }
}

References TPEF::DataSection::addByte(), assert, TPEF::TPEFSectionReader::Header::bodyLength, TPEF::TPEFSectionReader::header(), TPEF::Section::noBits(), TPEF::TPEFSectionReader::parent(), TPEF::BinaryStream::readByte(), TPEF::TPEFSectionReader::readData(), and TPEF::BinaryStream::readPosition().

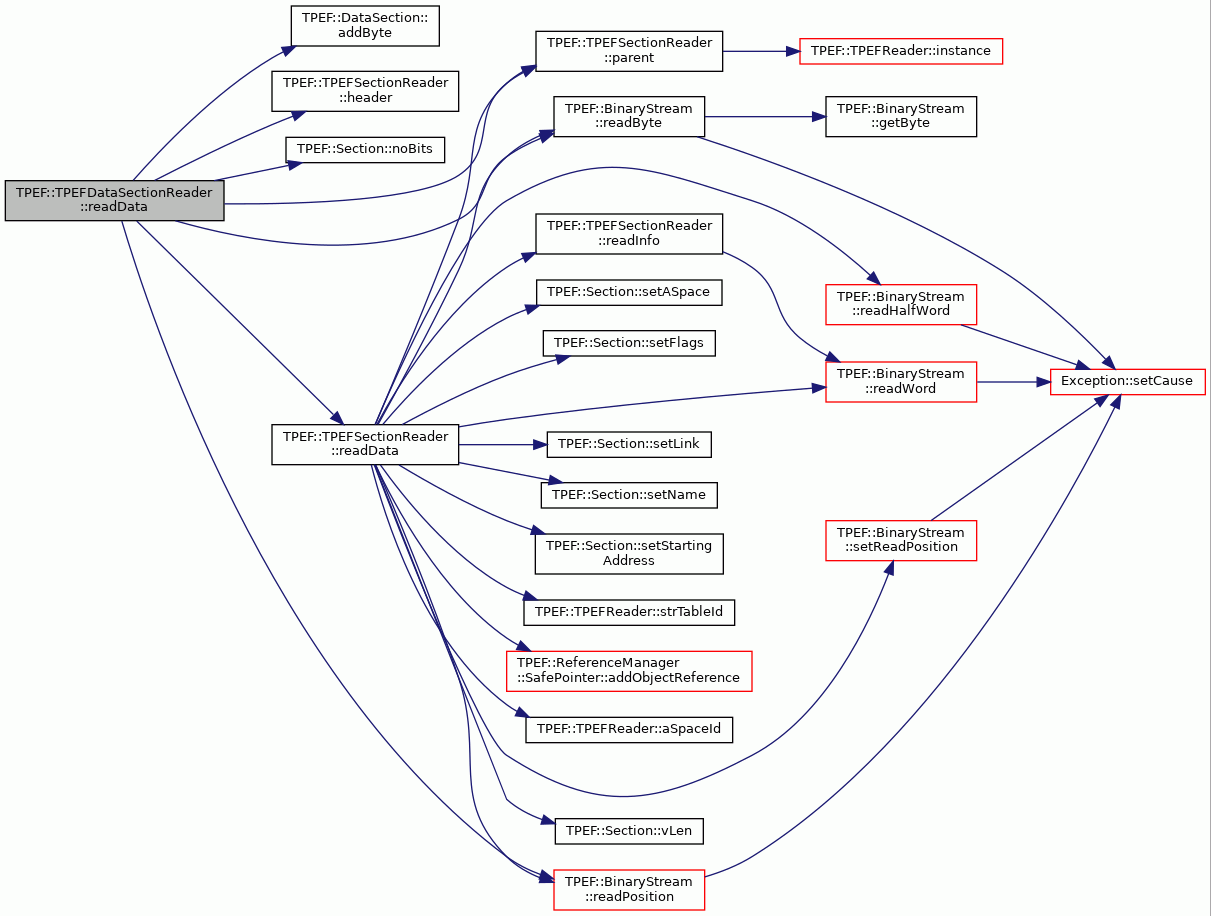

Here is the call graph for this function:

type()

Section::SectionType TPEF::TPEFDataSectionReader::type ( ) const

protectedvirtual

Returns the type of section it is meant to read.

Returns

The type of section it can read.

Implements TPEF::SectionReader.

Reimplemented in TPEF::TPEFLEDataSectionReader.

Definition at line 72 of file TPEFDataSectionReader.cc.

                                  {
    return Section::ST_DATA;
}

References TPEF::Section::ST_DATA.

Member Data Documentation

proto_

TPEFDataSectionReader TPEF::TPEFDataSectionReader::proto_

staticprivate

Prototype instance of TPEFDataSectionReader to be registered to SectionReader.

Definition at line 63 of file TPEFDataSectionReader.hh.

---

The documentation for this class was generated from the following files:

• TPEFDataSectionReader.hh
• TPEFDataSectionReader.cc
