#include <ValueReplacer.hh>

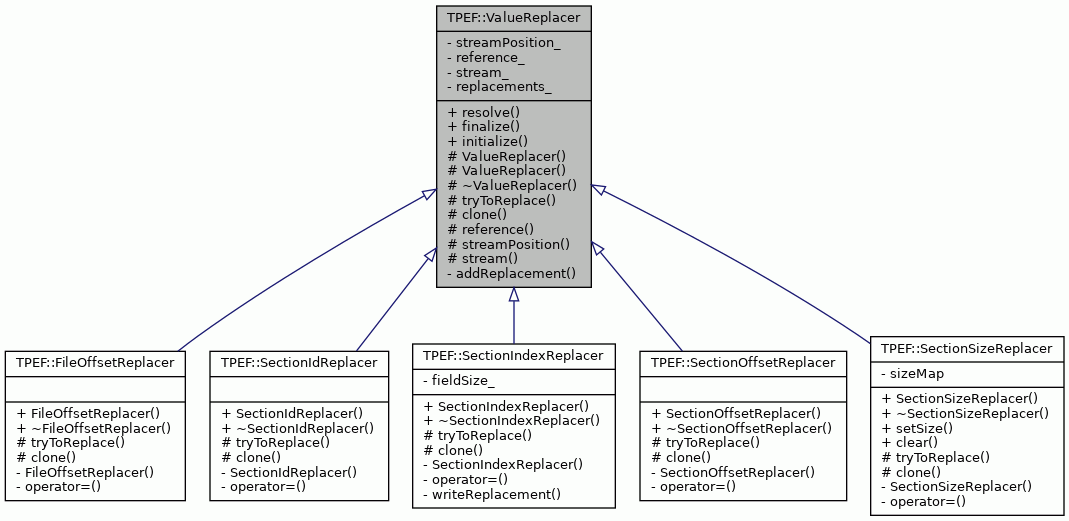

Inheritance diagram for TPEF::ValueReplacer:

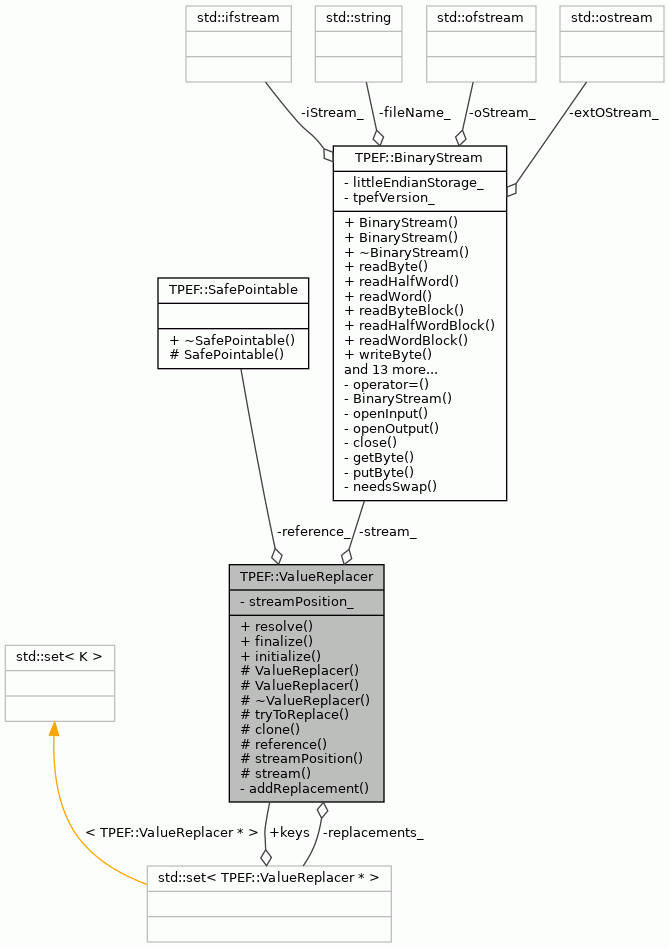

Collaboration diagram for TPEF::ValueReplacer:

Public Member Functions
void	resolve ()

Static Public Member Functions
static void	finalize ()

static void	initialize (BinaryStream &stream)

Protected Member Functions
	ValueReplacer (const SafePointable *obj)

	ValueReplacer (const ValueReplacer &replacer)

virtual	~ValueReplacer ()

virtual bool	tryToReplace ()=0
	Does replacement if can. If can't returns false. More...

virtual ValueReplacer *	clone ()=0
	Creates dynamically allocated clone of object. More...

const SafePointable *	reference () const

unsigned int	streamPosition () const

Static Protected Member Functions
static BinaryStream &	stream ()

Static Private Member Functions
static void	addReplacement (ValueReplacer *obj)

Private Attributes
unsigned int	streamPosition_
	File offset where replacement is done. More...

const SafePointable *	reference_
	Reference which to be written. More...

Static Private Attributes
static BinaryStream *	stream_ = NULL
	Stream for writing replacements. More...

static std::set< ValueReplacer * >	replacements_
	Replacements which should be done afterwards. More...

Detailed Description

Abstract base class of value replacer classes.

A value replacer class handles writing of object references into an output binary stream. An object reference is represented with a value in the stream. The order in which reference values are computed may depend on the data already written into the stream, which may include other references whose value is not yet available. When an object reference must be written out and its corresponding value is not yet available, value replacers are used.

E.g., If file offset to the body of the section should is written while writing section header, FileOffsetReplacer is used to write FileOffset of the first element of the section. When file offset of the first element is known, the FileOffsetReplacer object knows where to replace write that offset.

Value replacers defer the writing of the actual reference values. A dummy reference value is written out in stream sequential order and later replaced witht he actual value whent his becomes available.

The ValueReplacer base class is not a pure interface: it handles all bookkeeping of deferred replacements.

Each concrete value replacer handles the writing of reference to a specific object type in a specific data format.

Definition at line 71 of file ValueReplacer.hh.

Constructor & Destructor Documentation

◆ ValueReplacer() [1/2]

TPEF::ValueReplacer::ValueReplacer ( const SafePointable * obj )

protected

Constructor

Parameters

obj	Object whole key is used for replacing bytes in stream.

Definition at line 53 of file ValueReplacer.cc.

                                                      :
     reference_(obj) {

     assert(stream_ != NULL);
     assert(obj != NULL);

     try {
         streamPosition_ = stream_->writePosition();
     } catch (UnreachableStream e) {
         bool replacerConstructorBadStream = false;
         assert(replacerConstructorBadStream);
     }
 }

References assert, stream_, streamPosition_, and TPEF::BinaryStream::writePosition().

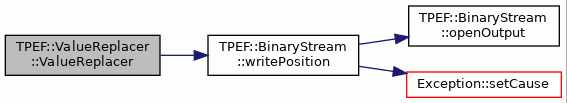

Here is the call graph for this function:

◆ ValueReplacer() [2/2]

TPEF::ValueReplacer::ValueReplacer ( const ValueReplacer & replacer )

protected

Copy constructor

@para replacer Replacer which is copied.

Definition at line 72 of file ValueReplacer.cc.

                                                           :
     streamPosition_(replacer.streamPosition_),
     reference_(replacer.reference_) {
 }

◆ ~ValueReplacer()

TPEF::ValueReplacer::~ValueReplacer ( )

protectedvirtual

Destructor

Definition at line 80 of file ValueReplacer.cc.

80 {

81 }

Member Function Documentation

◆ addReplacement()

void TPEF::ValueReplacer::addReplacement ( ValueReplacer * replacer )

staticprivate

Adds a replacement object for later writing.

Parameters

replacer Replacement that should be done later.

Definition at line 150 of file ValueReplacer.cc.

                                                      {
   replacements_.insert(replacements_.end(),replacer);
 }

References replacements_.

Referenced by resolve().

◆ clone()

virtual ValueReplacer* TPEF::ValueReplacer::clone ( )

protectedpure virtual

Creates dynamically allocated clone of object.

Implemented in TPEF::SectionSizeReplacer, TPEF::FileOffsetReplacer, TPEF::SectionIndexReplacer, TPEF::SectionIdReplacer, and TPEF::SectionOffsetReplacer.

Referenced by resolve().

◆ finalize()

void TPEF::ValueReplacer::finalize ( )

static

Tries to do those replacement which couldn't do while writing.

Deletes all remaining replacer instances after replacements were done. When method is runned and no exceptions are thrown method cleans up key tables of reference manager and unset's BinaryStream where replacements were written. So initilize() method must be called again before starting new writing. If MissingKeys exception is thrown, then those replacements are not freed, which could not be done before. Keys can be added and finalize may be called again.

Exceptions

MissingKeys	If ReferenceManager doesn't contain needed keys.
UnreachableStream	Writing can't be done, because of bad stream.
WritePastEOF	If replacer tried to write past end of file.

Definition at line 127 of file ValueReplacer.cc.

                         {
     while (!replacements_.empty()) {
         ValueReplacer* replacer = *(replacements_.begin());

         if(!replacer->tryToReplace()) {
             throw MissingKeys(
                 __FILE__, __LINE__, __func__,
                 "Can't replace object because of missing key.");
         }

         delete replacer;
         replacements_.erase(replacer);
     }

     stream_ = NULL;
 }

References __func__, replacements_, stream_, and tryToReplace().

Referenced by TPEF::BinaryWriter::writeBinary().

Here is the call graph for this function:

◆ initialize()

void TPEF::ValueReplacer::initialize ( BinaryStream & stream )

static

Initializes ValueReplacer for writing.

Sets stream which we want write to and clears up key table of reference manager so there won't be any keys with wrong values.

Parameters

stream Stream where replacements are done.

Definition at line 105 of file ValueReplacer.cc.

                                               {
     stream_ = &stream;
     assert(stream_ != NULL);
     replacements_.clear();
 }

References assert, replacements_, stream(), and stream_.

Referenced by TPEF::BinaryWriter::writeBinary().

Here is the call graph for this function:

◆ reference()

const SafePointable * TPEF::ValueReplacer::reference ( ) const

protected

Returns referenced object.

Returns: Referenced object.

Definition at line 170 of file ValueReplacer.cc.

                                {
     return reference_;
 }

References reference_.

Referenced by TPEF::SectionIdReplacer::tryToReplace(), TPEF::SectionOffsetReplacer::tryToReplace(), TPEF::FileOffsetReplacer::tryToReplace(), TPEF::SectionIndexReplacer::tryToReplace(), and TPEF::SectionSizeReplacer::tryToReplace().

◆ resolve()

void TPEF::ValueReplacer::resolve ( )

Does replacement or set it to be done later.

Exceptions

UnreachableStream	Writing can't be done, because of bad stream.
WritePastEOF	If replacer tried to write past end of file.

Definition at line 90 of file ValueReplacer.cc.

                        {
     if(!tryToReplace()) {
         addReplacement(clone());
     }
 }

References addReplacement(), clone(), and tryToReplace().

Referenced by TPEF::TPEFWriter::actualWriteBinary(), TPEF::TPEFLineNumSectionWriter::actualWriteData(), TPEF::TPEFRelocSectionWriter::actualWriteData(), TPEF::TPEFResourceSectionWriter::actualWriteData(), TPEF::TPEFDebugSectionWriter::actualWriteData(), TPEF::TPEFSymbolSectionWriter::actualWriteData(), TPEF::TPEFSectionWriter::actualWriteHeader(), TPEF::TPEFSectionWriter::writeBodyStartOffset(), TPEF::TPEFASpaceSectionWriter::writeElement(), TPEF::TPEFLineNumSectionWriter::writeInfo(), TPEF::TPEFRelocSectionWriter::writeInfo(), TPEF::TPEFSectionWriter::writeSize(), and TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

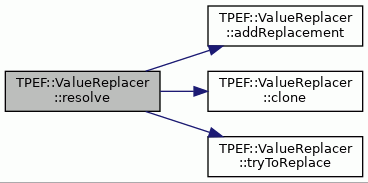

Here is the call graph for this function:

◆ stream()

BinaryStream & TPEF::ValueReplacer::stream ( )

staticprotected

Returns stream where to write.

Returns: Stream where to write reference.

Definition at line 160 of file ValueReplacer.cc.

                       {
     return *stream_;
 }

References stream_.

Referenced by initialize(), TPEF::SectionOffsetReplacer::tryToReplace(), TPEF::SectionIdReplacer::tryToReplace(), TPEF::FileOffsetReplacer::tryToReplace(), TPEF::SectionIndexReplacer::tryToReplace(), TPEF::SectionSizeReplacer::tryToReplace(), and TPEF::SectionIndexReplacer::writeReplacement().

◆ streamPosition()

unsigned int TPEF::ValueReplacer::streamPosition ( ) const

protected

Stream position where to write reference.

Returns: Position where to write reference.

Definition at line 180 of file ValueReplacer.cc.

                                     {
     return streamPosition_;
 }

References streamPosition_.

Referenced by TPEF::SectionIdReplacer::tryToReplace(), TPEF::SectionOffsetReplacer::tryToReplace(), TPEF::FileOffsetReplacer::tryToReplace(), TPEF::SectionIndexReplacer::tryToReplace(), and TPEF::SectionSizeReplacer::tryToReplace().

◆ tryToReplace()

virtual bool TPEF::ValueReplacer::tryToReplace ( )

protectedpure virtual

Does replacement if can. If can't returns false.

Implemented in TPEF::SectionSizeReplacer, TPEF::FileOffsetReplacer, TPEF::SectionIndexReplacer, TPEF::SectionIdReplacer, and TPEF::SectionOffsetReplacer.

Referenced by finalize(), and resolve().

Member Data Documentation

◆ reference_

const SafePointable* TPEF::ValueReplacer::reference_

private

Reference which to be written.

Definition at line 102 of file ValueReplacer.hh.

Referenced by reference().

◆ replacements_

std::set< ValueReplacer * > TPEF::ValueReplacer::replacements_

staticprivate

Replacements which should be done afterwards.

Definition at line 107 of file ValueReplacer.hh.

Referenced by addReplacement(), finalize(), and initialize().

◆ stream_

BinaryStream * TPEF::ValueReplacer::stream_ = NULL

staticprivate

Stream for writing replacements.

Definition at line 104 of file ValueReplacer.hh.

Referenced by finalize(), initialize(), stream(), and ValueReplacer().

◆ streamPosition_

unsigned int TPEF::ValueReplacer::streamPosition_

private

File offset where replacement is done.

Definition at line 100 of file ValueReplacer.hh.

Referenced by streamPosition(), and ValueReplacer().

The documentation for this class was generated from the following files:
