TTAMachine::ResourceVector Class Reference

#include <ResourceVector.hh>

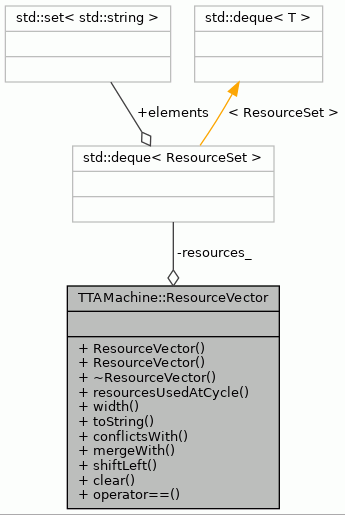

Collaboration diagram for TTAMachine::ResourceVector:

Public Types
typedef std::set< std::string >	ResourceSet
	Resources are stored in a set as strings. Normal pipeline resource usages are prefixed with "res:", port usages with "port:". More...

Public Member Functions
	ResourceVector ()
	ResourceVector (const TTAMachine::ExecutionPipeline &pipeline)
virtual	~ResourceVector ()
const ResourceSet &	resourcesUsedAtCycle (unsigned cycle) const
std::size_t	width () const
std::string	toString () const
virtual bool	conflictsWith (const ResourceVector &other, unsigned cycle) const
virtual void	mergeWith (const ResourceVector &other, unsigned cycle)
virtual void	shiftLeft ()
virtual void	clear ()
virtual bool	operator== (const ResourceVector &rightHand) const

Private Types
typedef std::deque< ResourceSet >	ResourceUsageIndex
	Each resource usage is stored as a string. More...

Private Attributes
ResourceUsageIndex	resources_
	The storage for the resource usages. More...

Detailed Description

Represents a resource vector used in building the states in case of an function unit FSA.

Definition at line 53 of file ResourceVector.hh.

Member Typedef Documentation

ResourceSet

typedef std::set<std::string> TTAMachine::ResourceVector::ResourceSet

Resources are stored in a set as strings. Normal pipeline resource usages are prefixed with "res:", port usages with "port:".

Definition at line 57 of file ResourceVector.hh.

ResourceUsageIndex

typedef std::deque<ResourceSet> TTAMachine::ResourceVector::ResourceUsageIndex

private

Each resource usage is stored as a string.

Definition at line 82 of file ResourceVector.hh.

Constructor & Destructor Documentation

ResourceVector() [1/2]

TTAMachine::ResourceVector::ResourceVector ( )

inline

Definition at line 59 of file ResourceVector.hh.

{};

ResourceVector() [2/2]

TTAMachine::ResourceVector::ResourceVector

(

const TTAMachine::ExecutionPipeline &

pipeline

)

Constructor.

Builds the resource vector out of MOM ExecutionPipeline.

Parameters

pipeline

The ExecutionPipeline to build the resource vector for.

Definition at line 52 of file ResourceVector.cc.

                                                                          {

    resources_.resize(pipeline.latency(), ResourceSet());

    for (int i = 0; i < pipeline.latency(); ++i) {
        TTAMachine::ExecutionPipeline::ResourceSet resourceUsages =
            pipeline.resourceUsages(i);
        TTAMachine::ExecutionPipeline::ResourceSet::const_iterator res =
            resourceUsages.begin();
        while (res != resourceUsages.end()) {
            resources_.at(i).insert(std::string("res:") + (*res)->name());
            ++res;
        }
        TTAMachine::ExecutionPipeline::OperandSet readOperands =
            pipeline.readOperands(i);
        TTAMachine::ExecutionPipeline::OperandSet writtenOperands =
            pipeline.writtenOperands(i);
        TTAMachine::ExecutionPipeline::OperandSet::const_iterator op =
            readOperands.begin();
        while (op != readOperands.end()) {
            const TTAMachine::FUPort* fuPort =
                pipeline.parentOperation()->port(*op);
                resources_.at(i).insert(
                    std::string("port:") + fuPort->bindingString());
            ++op;
        }

        op = writtenOperands.begin();
        while (op != writtenOperands.end()) {
            const TTAMachine::FUPort* fuPort =
                pipeline.parentOperation()->port(*op);
                resources_.at(i).insert(
                    std::string("port:") + fuPort->bindingString());
            ++op;
        }
    }
}

References TTAMachine::FUPort::bindingString(), TTAMachine::ExecutionPipeline::latency(), TTAMachine::ExecutionPipeline::parentOperation(), TTAMachine::HWOperation::port(), TTAMachine::ExecutionPipeline::readOperands(), resources_, TTAMachine::ExecutionPipeline::resourceUsages(), and TTAMachine::ExecutionPipeline::writtenOperands().

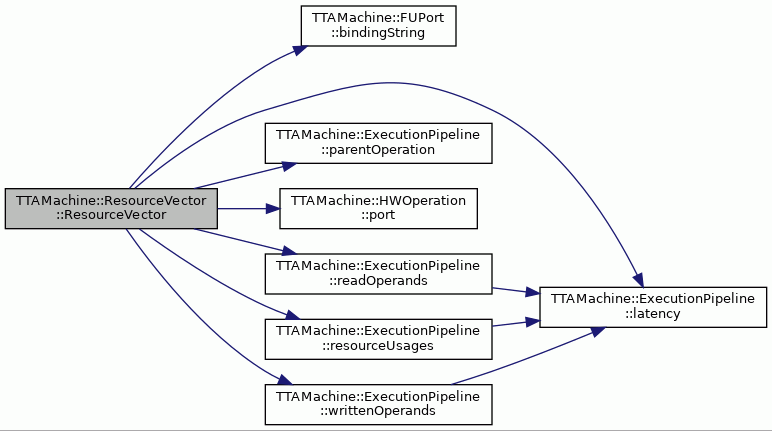

Here is the call graph for this function:

~ResourceVector()

TTAMachine::ResourceVector::~ResourceVector ( )

virtual

Destructor.

Definition at line 93 of file ResourceVector.cc.

                                {
}

Member Function Documentation

clear()

void TTAMachine::ResourceVector::clear ( )

virtual

Clears the resource vector.

Result is an empty resource vector with no columns

Definition at line 220 of file ResourceVector.cc.

                      {
    resources_.clear();
}

References resources_.

Referenced by ResourceVectorFUResourceConflictDetector::reset().

conflictsWith()

bool TTAMachine::ResourceVector::conflictsWith ( const ResourceVector &  other, unsigned  cycle  ) const

virtual

Returns true if the given resource vector has conflicting resource usages when issued after given count of cycles.

Parameters

other	The another resource vector.
cycle	The count of cycles after which the operation is issued.

Returns

True iff there is a conflict.

Definition at line 154 of file ResourceVector.cc.

          {

    for (std::size_t c = cycle; c < resources_.size(); ++c) {

        if (other.width() <= c - cycle)
            return false;

        ResourceSet conflictingResources;
        const ResourceSet& thisResources = resources_.at(c);
        const ResourceSet& otherResources =
            other.resourcesUsedAtCycle(c - cycle);

        if (thisResources.size() == 0 || otherResources.size() == 0)
            return false;

        // check if any of the resources in another resource set is
        // found in the another
        ResourceSet::const_iterator i = thisResources.begin();
        while (i != thisResources.end()) {
            if (otherResources.find(*i) != otherResources.end())
                return true;
            ++i;
        }
    }
    return false;
}

References resources_, resourcesUsedAtCycle(), and width().

Referenced by ResourceVectorFUResourceConflictDetector::issueOperation().

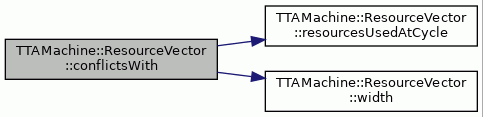

Here is the call graph for this function:

mergeWith()

void TTAMachine::ResourceVector::mergeWith ( const ResourceVector &  other, unsigned  cycle  )

virtual

Merges the resource vector with the given resource vector starting from the given cycle.

This method is used for producing the composite vector for simulation. The resulting resource vector is "stretched" in case there are no enough cycle elements in to contain the merged elements.

Parameters

other	The another resource vector.
cycle	The count of cycles after which the operation is issued.

Definition at line 194 of file ResourceVector.cc.

                                                                     {

    resources_.resize(std::max(resources_.size(), cycle + other.width()));

    for (std::size_t i = 0; i < other.width(); ++i) {
        const ResourceSet& otherResources = other.resourcesUsedAtCycle(i);
        resources_[cycle + i].insert(
            otherResources.begin(), otherResources.end());
    }
}

References resources_, resourcesUsedAtCycle(), and width().

Referenced by ResourceVectorFUResourceConflictDetector::issueOperation().

Here is the call graph for this function:

operator==()

bool TTAMachine::ResourceVector::operator== ( const ResourceVector &  rightHand ) const

virtual

Compares two ResourceVectors.

Parameters

rightHand

Right hand operand.

Returns

True is the two vectors match false otherwise.

Definition at line 232 of file ResourceVector.cc.

                                                                {

    if (toString() != rightHand.toString()) {
        return false;
    }
    return true;
}

References toString().

Here is the call graph for this function:

resourcesUsedAtCycle()

const ResourceVector::ResourceSet & TTAMachine::ResourceVector::resourcesUsedAtCycle

(

unsigned

cycle

)

const

Returns the set that contains the resources used at the given cycle.

Parameters

cycle

The cycle.

Returns

The set of resources.

Exceptions

OutOfRange

If the cycle is out of range.

Definition at line 104 of file ResourceVector.cc.

                                                         {
    if (cycle > resources_.size())
        throw OutOfRange(__FILE__, __LINE__, __func__);
    return resources_.at(cycle);
}

References __func__, and resources_.

Referenced by conflictsWith(), and mergeWith().

shiftLeft()

void TTAMachine::ResourceVector::shiftLeft ( )

virtual

Shifts the resource vector one step left, i.e., deletes the first column.

Definition at line 209 of file ResourceVector.cc.

                          {
    if (resources_.size() > 0)
        resources_.pop_front();
}

References resources_.

Referenced by ResourceVectorFUResourceConflictDetector::advanceCycle().

toString()

std::string TTAMachine::ResourceVector::toString

(

)

const

Returns a textual description of the resource vector.

Returns

A string describing the vector.

Definition at line 116 of file ResourceVector.cc.

                               {

    std::string theString = "";
    for (unsigned cycle = 0; cycle < resources_.size(); ++cycle) {
        theString += std::string("[") + Conversion::toString(cycle) + ":{";

        const ResourceSet& resSet = resources_.at(cycle);
        for (ResourceSet::const_iterator i = resSet.begin();
             i != resSet.end();) {
            theString += *i;
            ++i;
            if (i != resSet.end())
                theString += ",";
        }
        theString += "}]";
    }
    return theString;
}

References resources_, and Conversion::toString().

Referenced by operator==().

Here is the call graph for this function:

width()

std::size_t TTAMachine::ResourceVector::width

(

)

const

Returns the width of the resource vector.

Returns

The width.

Definition at line 141 of file ResourceVector.cc.

                            {
    return resources_.size();
}

References resources_.

Referenced by conflictsWith(), mergeWith(), and TTAMachine::ResourceVectorSet::ResourceVectorSet().

Member Data Documentation

resources_

ResourceUsageIndex TTAMachine::ResourceVector::resources_

private

The storage for the resource usages.

Definition at line 84 of file ResourceVector.hh.

Referenced by clear(), conflictsWith(), mergeWith(), resourcesUsedAtCycle(), ResourceVector(), shiftLeft(), toString(), and width().

---

The documentation for this class was generated from the following files:

• ResourceVector.hh
• ResourceVector.cc
