TTAMachine::UnconditionalGuard Class Reference

#include <Guard.hh>

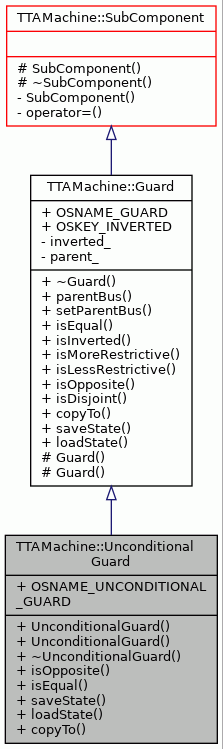

Inheritance diagram for TTAMachine::UnconditionalGuard:

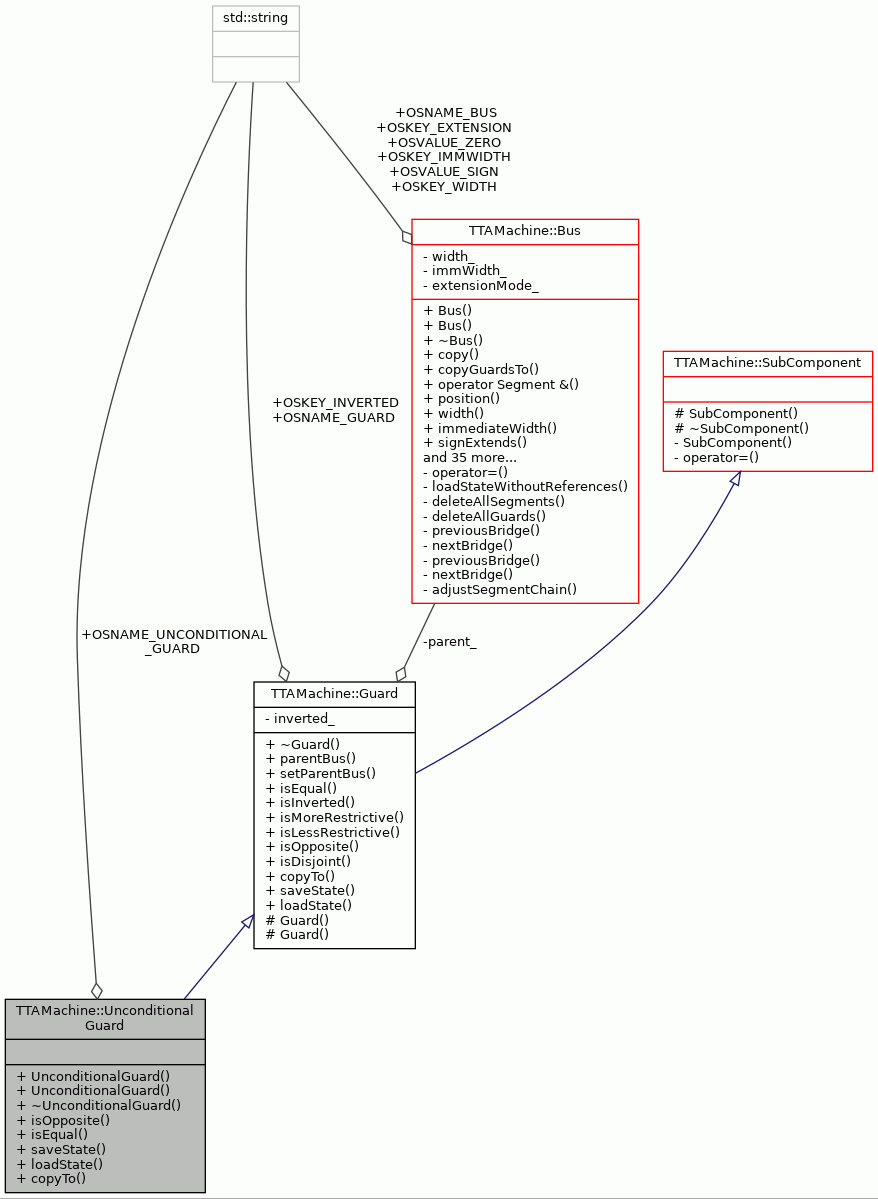

Collaboration diagram for TTAMachine::UnconditionalGuard:

Public Member Functions
	UnconditionalGuard (bool inverted, Bus &parentBus)
	UnconditionalGuard (const ObjectState *state, Bus &parentBus)
virtual	~UnconditionalGuard ()
bool	isOpposite (const Guard &) const
bool	isEqual (const Guard &guard) const
ObjectState *	saveState () const
void	loadState (const ObjectState *state)
virtual void	copyTo (Bus &parentBus) const
Public Member Functions inherited from TTAMachine::Guard
virtual	~Guard ()
virtual Bus *	parentBus () const
virtual void	setParentBus (Bus *parentBus)
virtual bool	isInverted () const
virtual bool	isMoreRestrictive (const Guard &guard) const
virtual bool	isLessRestrictive (const Guard &guard) const
virtual bool	isDisjoint (const Guard &guard) const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_UNCONDITIONAL_GUARD = "unconditional"
	ObjectState name for UnconditionalGuard.
Static Public Attributes inherited from TTAMachine::Guard
static const std::string	OSNAME_GUARD = "guard"
	ObjectState name for guard.
static const std::string	OSKEY_INVERTED = "inverted"
	ObjectState attribute key for inverted feature.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::Guard
	Guard (bool inverted, Bus *parentBus)
	Guard (const ObjectState *state, Bus &parentBus)
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Detailed Description

Always true guard term. Always false if inverted.

Definition at line 180 of file Guard.hh.

Constructor & Destructor Documentation

UnconditionalGuard() [1/2]

TTAMachine::UnconditionalGuard::UnconditionalGuard	(	bool	inverted,
		Bus &	parentBus
	)

Constructor.

Parameters

inverted	If true, the guard condition is always false and vice versa.
parentBus	Parent bus component of the guard.

Exceptions

ComponentAlreadyExists

If the parent bus already has an equal guard.

Definition at line 615 of file Guard.cc.

    : Guard(inverted, &parentBus) {
    parentBus.addGuard(*this);
}

References TTAMachine::Bus::addGuard(), and TTAMachine::Guard::parentBus().

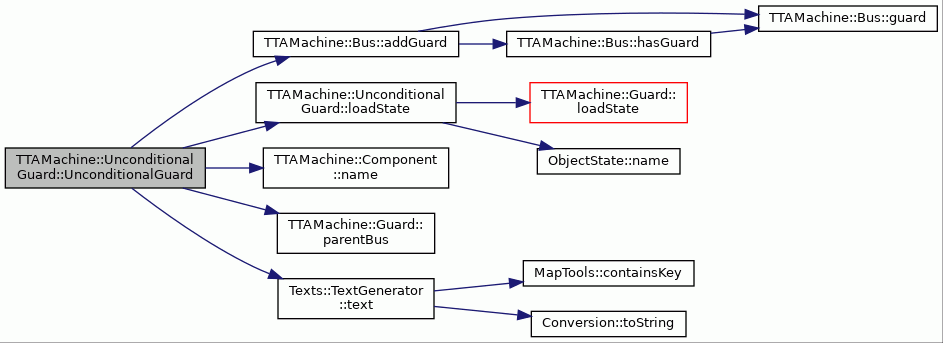

Here is the call graph for this function:

UnconditionalGuard() [2/2]

TTAMachine::UnconditionalGuard::UnconditionalGuard	(	const ObjectState *	state,
		Bus &	parentBus
	)

Constructor.

Loads its state from the given ObjectState instance.

Parameters

state	The ObjectState instance.
parentBus	The parent bus of the guard.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 630 of file Guard.cc.

    : Guard(state, parentBus) {
    loadState(state);
    try {
        parentBus.addGuard(*this);
    } catch (const ComponentAlreadyExists&) {
        const string procName = "UnconditionalGuard::UnconditionalGuard";
        MOMTextGenerator textGen;
        format errorMsg = textGen.text(
            MOMTextGenerator::TXT_EQUAL_UNCONDITIONAL_GUARDS);
        errorMsg % parentBus.name();
        throw ObjectStateLoadingException(
            __FILE__,  __LINE__, procName, errorMsg.str());
    }
}

References TTAMachine::Bus::addGuard(), loadState(), TTAMachine::Component::name(), TTAMachine::Guard::parentBus(), Texts::TextGenerator::text(), and MOMTextGenerator::TXT_EQUAL_UNCONDITIONAL_GUARDS.

Here is the call graph for this function:

~UnconditionalGuard()

TTAMachine::UnconditionalGuard::~UnconditionalGuard ( )

virtual

Destructor.

Definition at line 649 of file Guard.cc.

                                        {
}

Member Function Documentation

copyTo()

virtual void TTAMachine::UnconditionalGuard::copyTo ( Bus &  parentBus ) const

inlinevirtual

Implements TTAMachine::Guard.

Definition at line 190 of file Guard.hh.

                                              {
        new UnconditionalGuard(isInverted(), parentBus);
    }

References TTAMachine::Guard::isInverted(), and TTAMachine::Guard::parentBus().

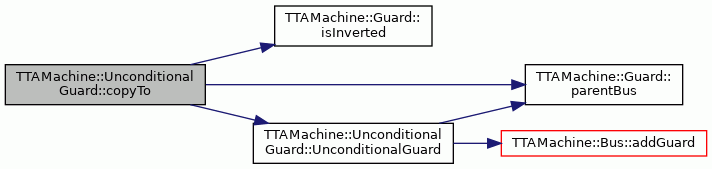

Here is the call graph for this function:

isEqual()

bool TTAMachine::UnconditionalGuard::isEqual ( const Guard &  guard ) const

virtual

Returns true if the guard is equal with the given guard.

Parameters

guard

The other guard.

Returns

True if the guard is equal with the given guard.

Implements TTAMachine::Guard.

Definition at line 660 of file Guard.cc.

                                                    {
    const UnconditionalGuard* ucGuard =
        dynamic_cast<const UnconditionalGuard*>(&guard);
    if (ucGuard == NULL) {
        return false;
    } else {
        if (isInverted() == ucGuard->isInverted()) {
            return true;
        } else {
            return false;
        }
    }
}

References TTAMachine::Guard::isInverted().

Here is the call graph for this function:

isOpposite()

bool TTAMachine::UnconditionalGuard::isOpposite ( const Guard &  ) const

inlinevirtual

Implements TTAMachine::Guard.

Definition at line 186 of file Guard.hh.

{ return false; }

loadState()

void TTAMachine::UnconditionalGuard::loadState ( const ObjectState *  state )

virtual

Loads its state from the given ObjectState instance.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Reimplemented from TTAMachine::Guard.

Definition at line 696 of file Guard.cc.

                                                      {
    string procName = "UnconditionalGuard::loadState";

    if (state->name() != OSNAME_UNCONDITIONAL_GUARD) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    Guard::loadState(state);
}

References TTAMachine::Guard::loadState(), ObjectState::name(), and OSNAME_UNCONDITIONAL_GUARD.

Referenced by UnconditionalGuard().

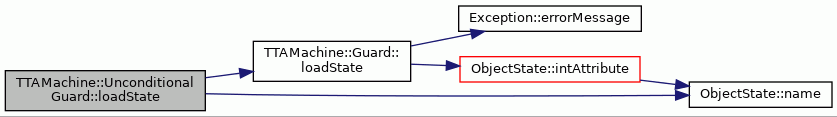

Here is the call graph for this function:

saveState()

ObjectState * TTAMachine::UnconditionalGuard::saveState ( ) const

virtual

Saves the contents to an ObjectState object.

Returns

The created ObjectState object.

Reimplemented from TTAMachine::Guard.

Definition at line 681 of file Guard.cc.

                                    {
    ObjectState* guardState = Guard::saveState();
    guardState->setName(OSNAME_UNCONDITIONAL_GUARD);
    return guardState;
}

References OSNAME_UNCONDITIONAL_GUARD, TTAMachine::Guard::saveState(), and ObjectState::setName().

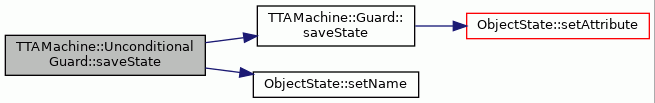

Here is the call graph for this function:

Member Data Documentation

OSNAME_UNCONDITIONAL_GUARD

const string TTAMachine::UnconditionalGuard::OSNAME_UNCONDITIONAL_GUARD = "unconditional"

static

ObjectState name for UnconditionalGuard.

Definition at line 195 of file Guard.hh.

Referenced by ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Bus::loadState(), loadState(), and saveState().

---

The documentation for this class was generated from the following files:

• Guard.hh
• Guard.cc
