#include <DataLabel.hh>

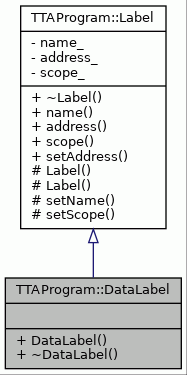

Inheritance diagram for TTAProgram::DataLabel:

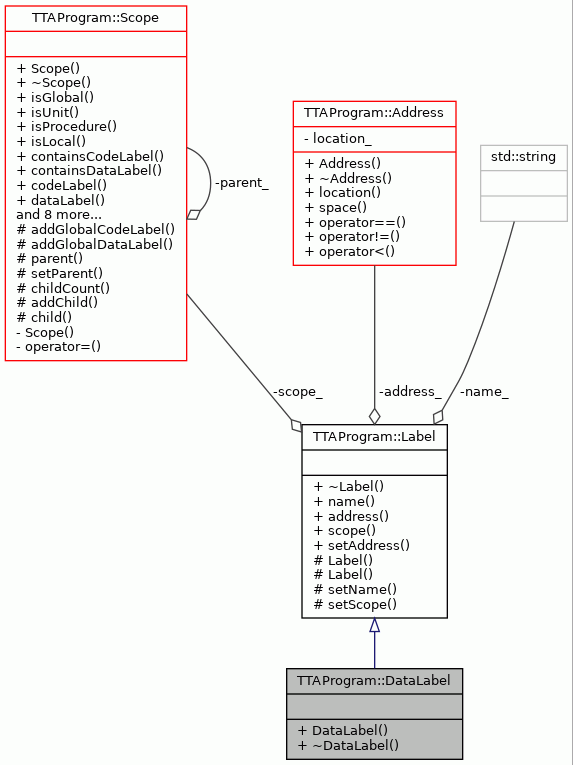

Collaboration diagram for TTAProgram::DataLabel:

Public Member Functions
	DataLabel (const std::string &name, Address address, const Scope &scope)

virtual	~DataLabel ()

Public Member Functions inherited from TTAProgram::Label
virtual	~Label ()

std::string	name () const

virtual Address	address () const

const Scope &	scope () const

void	setAddress (Address address)

Additional Inherited Members
Protected Member Functions inherited from TTAProgram::Label
	Label ()

	Label (const std::string &name, Address address, const Scope &scope)

void	setName (const std::string &name)

void	setScope (const Scope &scope)

Detailed Description

A symbol that represents a location in the data area used by the program.

Usually, a data label is the starting address of a program variable.

Definition at line 45 of file DataLabel.hh.

Constructor & Destructor Documentation

TTAProgram::DataLabel::DataLabel	(	const std::string &	name,
		Address	address,
		const Scope &	scope
	)

The constructor.

Registers this label to the owning scope.

Parameters

name	Name of the label. Must be unique within the owning scope.
address	The address of the location corresponding to this label.
scope	The innermost scope that contains this label.

Definition at line 53 of file DataLabel.cc.

                                                                 :
     Label(name, address, scope) {
 }

TTAProgram::DataLabel::~DataLabel ( )

virtual

The destructor.

Definition at line 61 of file DataLabel.cc.

61 {

62 }

The documentation for this class was generated from the following files:
