OpenASIP  2.0
Public Member Functions | Private Attributes | List of all members
TesterContext Class Reference

#include <TestOsal.hh>

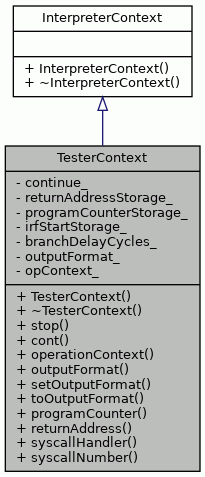

Inheritance diagram for TesterContext:
Inheritance graph

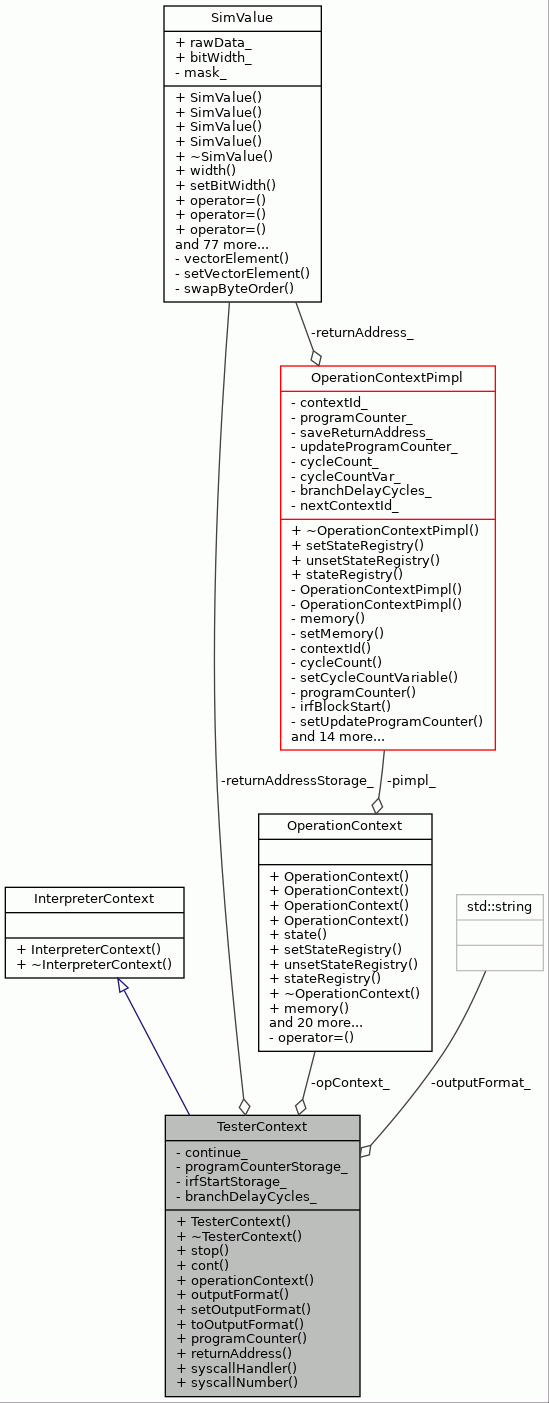

Collaboration diagram for TesterContext:
Collaboration graph

Public Member Functions

 TesterContext ()

virtual ~TesterContext ()

void stop ()

bool cont () const

OperationContext & operationContext ()

std::string outputFormat () const

void setOutputFormat (std::string outputFormat)

std::string toOutputFormat (SimValue *value)

InstructionAddress & programCounter ()

SimValue & returnAddress ()

SimValue & syscallHandler ()

SimValue & syscallNumber ()

- Public Member Functions inherited from InterpreterContext
 InterpreterContext ()

virtual ~InterpreterContext ()


Private Attributes

bool continue_
 Flag indicating whether program can continue or not. More...

SimValue returnAddressStorage_

InstructionAddress programCounterStorage_

InstructionAddress irfStartStorage_

int branchDelayCycles_

std::string outputFormat_
 Indicates which output format is used currently. More...

OperationContext opContext_
 The operation context shared with all operations invoked in the application. More...


Detailed Description

Operation context for the program.

Definition at line 212 of file TestOsal.hh.

Constructor & Destructor Documentation

◆ TesterContext()

TesterContext::TesterContext ( )

Constructor.

Definition at line 412 of file TestOsal.cc.

412  :
413  InterpreterContext(), continue_(true), programCounterStorage_(0),
414  irfStartStorage_(0), branchDelayCycles_(3),
415  outputFormat_(CmdOutput::OUTPUT_FORMAT_INT_SIGNED),
416  opContext_(NULL, programCounterStorage_, returnAddressStorage_,
417  branchDelayCycles_) {
418
419 }

◆ ~TesterContext()

TesterContext::~TesterContext ( )
virtual

Destructor.

Definition at line 424 of file TestOsal.cc.

424  {
425 }

Member Function Documentation

◆ cont()

bool TesterContext::cont ( ) const

Return true, if program can continue, false otherwise.

Returns
True if program can continue, false otherwise.

Definition at line 441 of file TestOsal.cc.

441  {
442  return continue_;
443 }

References continue_.

Referenced by main().

◆ operationContext()

OperationContext & TesterContext::operationContext ( )

Returns the operation context shared with all operations invoked in the application.

Returns
The operations context shared with all operations invoked in the application.

Definition at line 453 of file TestOsal.cc.

453  {
454  return opContext_;
455 }

References opContext_.

Referenced by main(), and OsalInterpreter::operation().

◆ outputFormat()

string TesterContext::outputFormat ( ) const

Returns the output format currently in use.

Returns
The output format currently in use.

Definition at line 463 of file TestOsal.cc.

463  {
464  return outputFormat_;
465 }

References outputFormat_.

Referenced by setOutputFormat().

◆ programCounter()

InstructionAddress & TesterContext::programCounter ( )

Returns the program counter as SimValue.

Returns
Program counter as SimValue.

Definition at line 527 of file TestOsal.cc.

527  {
528  return opContext_.programCounter();
529 }

References opContext_, and OperationContext::programCounter().

Here is the call graph for this function:

◆ returnAddress()

SimValue & TesterContext::returnAddress ( )

Returns the return address as SimValue.

Returns
Return address as SimValue.

Definition at line 537 of file TestOsal.cc.

537  {
538  return opContext_.returnAddress();
539 }

References opContext_, and OperationContext::returnAddress().

Here is the call graph for this function:

◆ setOutputFormat()

void TesterContext::setOutputFormat ( std::string  outputFormat)

Sets the output format to be used in the future.

Parameters
Theoutput format to be used in the future.

Definition at line 473 of file TestOsal.cc.

473  {
474  outputFormat_ = outputFormat;
475 }

References outputFormat(), and outputFormat_.

Here is the call graph for this function:

◆ stop()

void TesterContext::stop ( )

Sets the continue_ flag off.

Definition at line 431 of file TestOsal.cc.

431  {
432  continue_ = false;
433 }

References continue_.

Referenced by CmdQuit::execute().

◆ syscallHandler()

SimValue& TesterContext::syscallHandler ( )

◆ syscallNumber()

SimValue& TesterContext::syscallNumber ( )

◆ toOutputFormat()

string TesterContext::toOutputFormat ( SimValue *  value)

Converts given SimValue to output string.

Parameters
valueValue to be converted.
Returns
The value of SimValue as a string.

Definition at line 484 of file TestOsal.cc.

484  {
485  string output = "";
486
487  // If output format is in hex or the value is wider than 64 bits
488  // convert the SimValue to hex using the full
489  // width of the value. This means that leading zeroes are included in
490  // the output result (e.g. 32 bit value 0x15 = 0x00000015).
491  if (outputFormat_ == CmdOutput::OUTPUT_FORMAT_HEX ||
492  value->width() > 64) {
493  output = value->hexValue();
494  } else if (outputFormat_ == CmdOutput::OUTPUT_FORMAT_INT_SIGNED ||
495  outputFormat_ == CmdOutput::OUTPUT_FORMAT_LONG_SIGNED) {
496  output = Conversion::toString(value->sLongWordValue());
497
498  } else if(outputFormat_ == CmdOutput::OUTPUT_FORMAT_INT_UNSIGNED ||
499  outputFormat_ == CmdOutput::OUTPUT_FORMAT_LONG_UNSIGNED) {
500  output = Conversion::toString(value->uLongWordValue());
501
502  } else if(outputFormat_ == CmdOutput::OUTPUT_FORMAT_DOUBLE) {
503  DoubleWord doubleWord = value->doubleWordValue();
504  output = Conversion::toString(doubleWord);
505
506  } else if(outputFormat_ == CmdOutput::OUTPUT_FORMAT_FLOAT) {
507  FloatWord floatWord = value->floatWordValue();
508  output = Conversion::toString(floatWord);
509
510  } else if(outputFormat_ == CmdOutput::OUTPUT_FORMAT_HALF) {
511  HalfFloatWord halfFloatWord = value->halfFloatWordValue();
512  output = Conversion::toString(FloatWord(float(halfFloatWord)));
513
514  } else if(outputFormat_ == CmdOutput::OUTPUT_FORMAT_BIN) {
515  output = value->binaryValue();
516  output += 'b';
517  }
518  return output;
519 }

References SimValue::binaryValue(), SimValue::doubleWordValue(), SimValue::floatWordValue(), SimValue::halfFloatWordValue(), SimValue::hexValue(), CmdOutput::OUTPUT_FORMAT_BIN, CmdOutput::OUTPUT_FORMAT_DOUBLE, CmdOutput::OUTPUT_FORMAT_FLOAT, CmdOutput::OUTPUT_FORMAT_HALF, CmdOutput::OUTPUT_FORMAT_HEX, CmdOutput::OUTPUT_FORMAT_INT_SIGNED, CmdOutput::OUTPUT_FORMAT_INT_UNSIGNED, CmdOutput::OUTPUT_FORMAT_LONG_SIGNED, CmdOutput::OUTPUT_FORMAT_LONG_UNSIGNED, outputFormat_, SimValue::sLongWordValue(), Conversion::toString(), SimValue::uLongWordValue(), and SimValue::width().

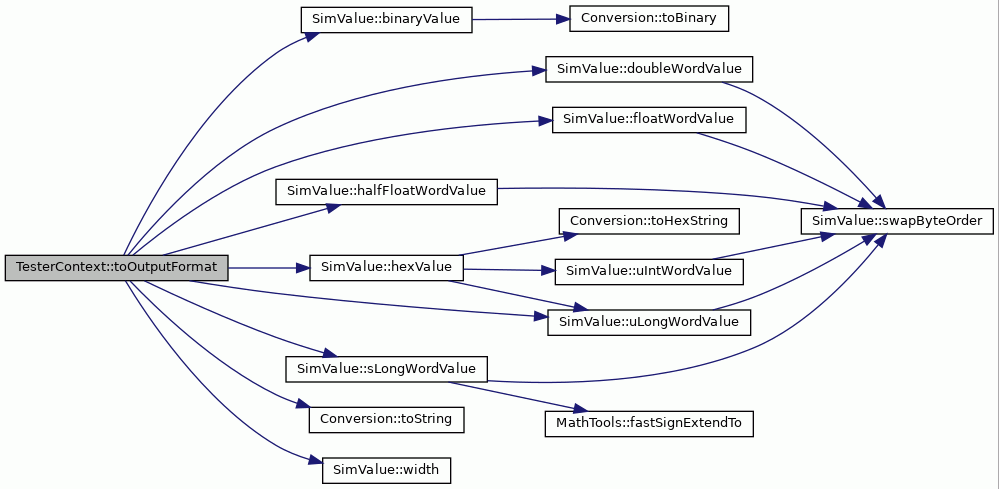

Here is the call graph for this function:

Member Data Documentation

◆ branchDelayCycles_

int TesterContext::branchDelayCycles_
private

Definition at line 234 of file TestOsal.hh.

◆ continue_

bool TesterContext::continue_
private

Flag indicating whether program can continue or not.

Definition at line 230 of file TestOsal.hh.

Referenced by cont(), and stop().

◆ irfStartStorage_

InstructionAddress TesterContext::irfStartStorage_
private

Definition at line 233 of file TestOsal.hh.

◆ opContext_

OperationContext TesterContext::opContext_
private

The operation context shared with all operations invoked in the application.

Definition at line 239 of file TestOsal.hh.

Referenced by operationContext(), programCounter(), and returnAddress().

◆ outputFormat_

std::string TesterContext::outputFormat_
private

Indicates which output format is used currently.

Definition at line 236 of file TestOsal.hh.

Referenced by outputFormat(), setOutputFormat(), and toOutputFormat().

◆ programCounterStorage_

InstructionAddress TesterContext::programCounterStorage_
private

Definition at line 232 of file TestOsal.hh.

◆ returnAddressStorage_

SimValue TesterContext::returnAddressStorage_
private

Definition at line 231 of file TestOsal.hh.

The documentation for this class was generated from the following files:
