#include <UnitPortFigure.hh>

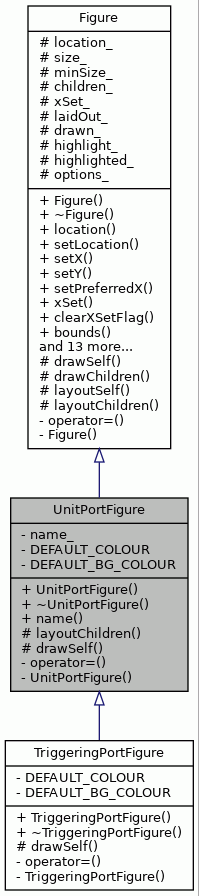

Inheritance diagram for UnitPortFigure:

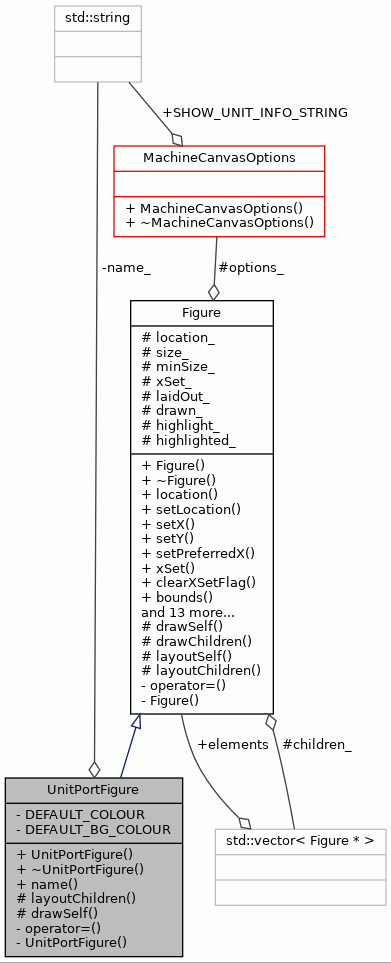

Collaboration diagram for UnitPortFigure:

Public Member Functions
	UnitPortFigure (std::string name, int bitWidth)

virtual	~UnitPortFigure ()

std::string	name () const

Public Member Functions inherited from Figure
	Figure ()

virtual	~Figure ()

wxPoint	location () const

void	setLocation (wxPoint point)

void	setX (int x)

void	setY (int y)

void	setPreferredX (int x)

bool	xSet () const

void	clearXSetFlag ()

virtual wxRect	bounds () const

virtual wxRect	virtualBounds () const

void	setBounds (wxSize bounds)

void	setWidth (int width)

void	setHeight (int height)

virtual void	addChild (Figure *child)

int	childCount () const

Figure *	child (int index) const

virtual void	layout (wxDC *dc)

virtual void	draw (wxDC *dc)

void	highlight (const wxColour &colour)

void	clearHighlight ()

void	setOptions (MachineCanvasOptions *options)

MachineCanvasOptions *	options ()

Protected Member Functions
virtual void	layoutChildren (wxDC *)

virtual void	drawSelf (wxDC *dc)

Protected Member Functions inherited from Figure
void	drawChildren (wxDC *dc)

virtual void	layoutSelf (wxDC *)

Private Member Functions
UnitPortFigure &	operator= (UnitPortFigure &old)
	Assignment not allowed. More...

	UnitPortFigure (UnitPortFigure &old)
	Copying not allowed. More...

Private Attributes
std::string	name_
	Name of the port. More...

Static Private Attributes
static const wxColour	DEFAULT_COLOUR = wxColour(0, 0, 0)
	Default colour for the figure. More...

static const wxColour	DEFAULT_BG_COLOUR = wxColour(255, 255, 255)
	Default background colour for the figure. More...

Additional Inherited Members
Protected Attributes inherited from Figure
wxPoint	location_
	Top-left location of the Figure's bounding rectangle. More...

wxSize	size_
	wxSize of the Figure's bounding rectangle. More...

wxSize	minSize_
	Figure's minimum size. More...

std::vector< Figure * >	children_
	Figure's children. More...

bool	xSet_
	Tells if x-coordinate has been fixed. More...

bool	laidOut_
	Tells whether the Figure and its children have been laid out or not. More...

bool	drawn_
	Tells whether the Figure and its children have been drawn or not. More...

wxColour	highlight_
	Highlight colour. More...

bool	highlighted_
	Tells if the figure is highlighted. More...

MachineCanvasOptions *	options_
	Options which are used for customizing figures. More...

Detailed Description

Figure of a port.

Definition at line 46 of file UnitPortFigure.hh.

Constructor & Destructor Documentation

◆ UnitPortFigure() [1/2]

UnitPortFigure::UnitPortFigure	(	std::string	name,
		int	bitWidth
	)

The Constructor.

Definition at line 51 of file UnitPortFigure.cc.

                                                           : Figure(), name_(name) {
     size_ = wxSize(std::max(
                        ((MathTools::requiredBits(bitWidth)+(bitWidth/31))<<1)+
                        (MachineCanvasLayoutConstraints::PORT_BASE_WIDTH),
                        MachineCanvasLayoutConstraints::PORT_MIN_WIDTH),
                    MachineCanvasLayoutConstraints::PORT_WIDTH);
 }

References MachineCanvasLayoutConstraints::PORT_BASE_WIDTH, MachineCanvasLayoutConstraints::PORT_MIN_WIDTH, MachineCanvasLayoutConstraints::PORT_WIDTH, MathTools::requiredBits(), and Figure::size_.

Here is the call graph for this function:

◆ ~UnitPortFigure()

UnitPortFigure::~UnitPortFigure ( )

virtual

The Destructor.

Definition at line 62 of file UnitPortFigure.cc.

62 {

63 }

◆ UnitPortFigure() [2/2]

UnitPortFigure::UnitPortFigure ( UnitPortFigure & old )

private

Copying not allowed.

Member Function Documentation

◆ drawSelf()

void UnitPortFigure::drawSelf ( wxDC * dc )

protectedvirtual

Draws the port's Figure on the given device context.

Parameters

dc	The device context.

Reimplemented from Figure.

Reimplemented in TriggeringPortFigure.

Definition at line 94 of file UnitPortFigure.cc.

                                  {
     wxPen pen = wxPen(DEFAULT_COLOUR, 1, wxSOLID);
     dc->SetPen(pen);
     wxBrush brush = wxBrush(DEFAULT_BG_COLOUR, wxSOLID);
     if (highlighted_) {
         brush = wxBrush(highlight_, wxSOLID);
     }
     dc->SetBrush(brush);
     dc->DrawRectangle(location_.x, location_.y, size_.GetWidth(),
               size_.GetHeight());
 }

References DEFAULT_BG_COLOUR, DEFAULT_COLOUR, Figure::highlight_, Figure::highlighted_, Figure::location_, and Figure::size_.

◆ layoutChildren()

void UnitPortFigure::layoutChildren ( wxDC * )

protectedvirtual

Sets the x-coordinate for its child sockets.

Reimplemented from Figure.

Definition at line 69 of file UnitPortFigure.cc.

                                     {
     int socketX = location_.x;
     bool oneSet = false;

     for (unsigned int i = 0; i < children_.size(); i++) {

         children_[i]->setWidth(size_.GetWidth());

         if (!oneSet && !children_[i]->xSet()) {
             children_[i]->setX(location_.x);
             oneSet = true;
             socketX += MachineCanvasLayoutConstraints::SOCKET_WIDTH +
                 MachineCanvasLayoutConstraints::SOCKET_MIN_SPACE;
         } else if (children_[i]->location().x == 0) {
             children_[i]->setPreferredX(socketX);
         }
     }
 }

References Figure::children_, Figure::location(), Figure::location_, Figure::size_, MachineCanvasLayoutConstraints::SOCKET_MIN_SPACE, MachineCanvasLayoutConstraints::SOCKET_WIDTH, and Figure::xSet().

Here is the call graph for this function:

◆ name()

std::string UnitPortFigure::name ( ) const

Returns name of the port.

Returns: Name of the port.

Definition at line 112 of file UnitPortFigure.cc.

                            {
     return name_;
 }

References name_.

Referenced by UnitFigure::layoutChildren().

◆ operator=()

UnitPortFigure& UnitPortFigure::operator= ( UnitPortFigure & old )

private

Assignment not allowed.

Member Data Documentation

◆ DEFAULT_BG_COLOUR

const wxColour UnitPortFigure::DEFAULT_BG_COLOUR = wxColour(255, 255, 255)

staticprivate

Default background colour for the figure.

Definition at line 65 of file UnitPortFigure.hh.

Referenced by drawSelf().

◆ DEFAULT_COLOUR

const wxColour UnitPortFigure::DEFAULT_COLOUR = wxColour(0, 0, 0)

staticprivate

Default colour for the figure.

Definition at line 63 of file UnitPortFigure.hh.

Referenced by drawSelf().

◆ name_

std::string UnitPortFigure::name_

private

Name of the port.

Definition at line 68 of file UnitPortFigure.hh.

Referenced by name().

The documentation for this class was generated from the following files:
