WidgetTools Class Reference

#include <WidgetTools.hh>

Collaboration diagram for WidgetTools:

Static Public Member Functions
static void	setWidgetLabel (wxWindow *widget, std::string text)
static void	setWidgetLabel (wxStaticBoxSizer *widget, std::string text)
static void	setLabel (Texts::TextGenerator *generator, wxWindow *widget, int textID)
static std::string	lcStringSelection (wxListCtrl *list, int column)

Detailed Description

Helper functions for handling wxWidgets controls.

Definition at line 46 of file WidgetTools.hh.

Member Function Documentation

lcStringSelection()

std::string WidgetTools::lcStringSelection ( wxListCtrl *  list, int  column  )

static

Returns wxListCtrl's first selected item as a string.

Parameters

list	List to search for selected item.
column	Column of the string to return.

Returns

Selected list item string, or empty string if no item is selected.

Definition at line 108 of file WidgetTools.cc.

                                                           {

    long item = -1;
    item = list->GetNextItem(item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    if (item == -1) {
        return "";
    }

    wxListItem info;
    info.SetId(item);
    info.SetColumn(column);
    list->GetItem(info);

    return WxConversion::toString(info.GetText());
}

References WxConversion::toString().

Referenced by BlockImplementationDialog::doOK(), OperationDialog::onBindOperand(), FUImplementationDialog::onClearOpcode(), OperationDialog::onDeleteOperand(), GCUDialog::onDeleteOperation(), FUDialog::onDeleteOperation(), RFImplementationDialog::onDeleteSourceFile(), FUImplementationDialog::onDeleteSourceFile(), OperationPropertyDialog::onModifyInputOperand(), OperationPropertyDialog::onModifyOutputOperand(), OperationPropertyDialog::onMoveInputDown(), OperationPropertyDialog::onMoveInputUp(), OperationPropertyDialog::onMoveOutputDown(), OperationPropertyDialog::onMoveOutputUp(), RFImplementationDialog::onMoveSourceFileDown(), FUImplementationDialog::onMoveSourceFileDown(), RFImplementationDialog::onMoveSourceFileUp(), FUImplementationDialog::onMoveSourceFileUp(), FUImplementationDialog::onOpcodeSelection(), OperationDialog::onOperandSelection(), OperationPropertyDialog::onSelection(), FUImplementationDialog::onSetOpcode(), RFImplementationDialog::onSourceFileSelection(), FUImplementationDialog::onSourceFileSelection(), SimulateDialog::onUpdateValue(), OSEdInfoView::selectedModule(), FUDialog::selectedOperation(), GCUDialog::selectedOperation(), OSEdInfoView::selectedOperation(), OTAFormatListDialog::selectedOperation(), OSEdInfoView::selectedPath(), FUDialog::selectedPort(), GCUDialog::selectedPort(), and TemplateListDialog::selectedSlot().

Here is the call graph for this function:

setLabel()

void WidgetTools::setLabel ( Texts::TextGenerator *  generator, wxWindow *  widget, int  textID  )

static

Sets a widget label text.

Parameters

generator	TextGenerator which provides the label text.
widget	Widget to set the label to.
textID	Text generator string ID for the label text.

Definition at line 92 of file WidgetTools.cc.

                                  {

    format fmt = generator->text(textID);
    setWidgetLabel(widget, fmt.str());
}

References setWidgetLabel(), and Texts::TextGenerator::text().

Referenced by OperationPropertyDialog::setBehaviorLabel(), GCUDialog::setLabels(), AboutDialog::setTexts(), OSEdAboutDialog::setTexts(), OSEdOptionsDialog::setTexts(), AddModuleDialog::setTexts(), IUPortDialog::setTexts(), OperationDialog::setTexts(), RFPortDialog::setTexts(), BridgeDialog::setTexts(), ImmediateSlotDialog::setTexts(), ResultDialog::setTexts(), FUPortDialog::setTexts(), OTAFormatListDialog::setTexts(), RFGuardDialog::setTexts(), SRPortDialog::setTexts(), TemplateSlotDialog::setTexts(), FUGuardDialog::setTexts(), AddressSpacesDialog::setTexts(), MemoryDialog::setTexts(), TemplateListDialog::setTexts(), RFDialog::setTexts(), OutputOperandDialog::setTexts(), SocketDialog::setTexts(), BusDialog::setTexts(), IUDialog::setTexts(), SimulateDialog::setTexts(), InputOperandDialog::setTexts(), FUDialog::setTexts(), AddressSpaceDialog::setTexts(), OperationDAGDialog::setTexts(), and OperationPropertyDialog::setTexts().

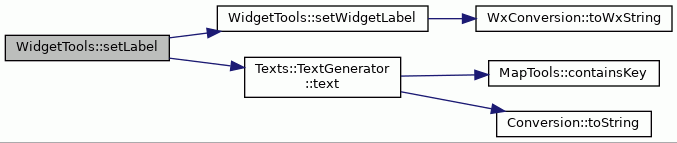

Here is the call graph for this function:

setWidgetLabel() [1/2]

void WidgetTools::setWidgetLabel ( wxStaticBoxSizer *  sizer, std::string  text  )

static

Sets a boxsizer label text.

Parameters

sizer	wxStaticBoxSizer to set the label to.
textId	Enumerated ID which identifies the text label.

Definition at line 76 of file WidgetTools.cc.

                                          {
    wxControl* box = sizer->GetStaticBox();
    wxString label = WxConversion::toWxString(text);
    box->SetLabel(label);
}

References WxConversion::toWxString().

Here is the call graph for this function:

setWidgetLabel() [2/2]

void WidgetTools::setWidgetLabel ( wxWindow *  widget, std::string  text  )

static

Sets a wxControl label text.

Parameters

widget	Widget to set the label to.
textId	Enumerated ID which identifies the text label.

Exceptions

WrongSubclass

If the widget was not a wxControl.

Definition at line 52 of file WidgetTools.cc.

                                                         {
    // wxControls
    if (widget->IsKindOf(CLASSINFO(wxControl))) {
        wxControl* control = dynamic_cast<wxControl*>(widget);
        assert(widget != NULL);
        wxString label = WxConversion::toWxString(text);
        control->SetLabel(label);
        return;
    }


    string method = "GUITextGenerator::setWidgetLabel()";
    string message = "Widget is not a wxControl, ";
    message += "unable to set the widget label.";
    throw WrongSubclass(__FILE__, __LINE__, method, message);
}

References assert, and WxConversion::toWxString().

Referenced by setLabel(), GCUDialog::setLabels(), OperationDialog::setTexts(), OTAFormatListDialog::setTexts(), RFDialog::setTexts(), TemplateListDialog::setTexts(), SocketDialog::setTexts(), BusDialog::setTexts(), IUDialog::setTexts(), SimulateDialog::setTexts(), InputOperandDialog::setTexts(), FUDialog::setTexts(), AddressSpaceDialog::setTexts(), and OperationPropertyDialog::setTexts().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• WidgetTools.hh
• WidgetTools.cc
