AboutDialog Class Reference

#include <AboutDialog.hh>

Inheritance diagram for AboutDialog:

Collaboration diagram for AboutDialog:

Public Member Functions
	AboutDialog (wxWindow *parent)
virtual	~AboutDialog ()

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	setTexts ()

Detailed Description

Dialog with editor logo, name, version and copyright information.

Definition at line 18 of file AboutDialog.hh.

Constructor & Destructor Documentation

AboutDialog()

AboutDialog::AboutDialog

(

wxWindow *

parent

)

The Constructor.

Parameters

parent

Parent window of the dialog.

Definition at line 52 of file AboutDialog.cc.

                                        :
    wxDialog(parent, -1, _T(""), wxDefaultPosition) {

    createContents(this, true, true);

    // set widget texts
    setTexts();
}

References createContents(), and setTexts().

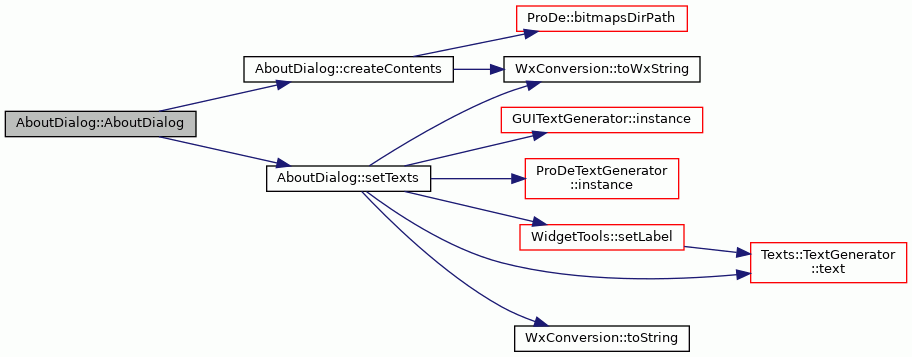

Here is the call graph for this function:

~AboutDialog()

AboutDialog::~AboutDialog ( )

virtual

The Destructor.

Definition at line 64 of file AboutDialog.cc.

                          {
}

Member Function Documentation

createContents()

wxSizer * AboutDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates contents of the dialog window. Initially generated with wxDesigner, the code will be cleaned up later.

Parameters

parent	Parent dialog of the contents.
call_fit	If true, fits sizer in dialog window.
set_sizer	If true, sets sizer as dialog's sizer.

Returns

Top level sizer of the contents.

Definition at line 98 of file AboutDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );
    wxBitmap logo;

    wxString filename = WxConversion::toWxString(
         ProDe::bitmapsDirPath() + ProDeConstants::EDITOR_LOGO_PATH);

    logo.LoadFile(filename, wxBITMAP_TYPE_PNG);
    wxStaticBitmap* dialogLogo = new wxStaticBitmap(parent, -1, logo);

    item0->Add(dialogLogo, 0, wxALIGN_CENTER|wxALL, 5 );
    wxBoxSizer *item3 = new wxBoxSizer( wxVERTICAL );
    wxStaticText *item4 =
    new wxStaticText(parent, -1, ProDeConstants::EDITOR_NAME,
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );
    wxStaticText *item5 =
    new wxStaticText(parent, -1, _T("OpenASIP ") +
                   WxConversion::toWxString(VERSION),
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );
    wxStaticText *item6 =
    new wxStaticText(parent, -1,
             ProDeConstants::EDITOR_COPYRIGHT_TEXT,
             wxDefaultPosition, wxDefaultSize, 0);
    item3->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );
    item0->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );
    wxStaticLine *item7 =
    new wxStaticLine(parent, -1, wxDefaultPosition,
             wxSize(20,-1), wxLI_HORIZONTAL);
    item0->Add( item7, 0, wxGROW|wxALL, 5 );
    wxButton *item8 =
    new wxButton(parent, wxID_OK, wxT("&OK"), wxDefaultPosition,
             wxDefaultSize, 0);
    item0->Add( item8, 0, wxALIGN_CENTER|wxALL, 5 );
    if (set_sizer) {
        parent->SetAutoLayout( TRUE );
        parent->SetSizer( item0 );
        if (call_fit)
        {
            item0->Fit( parent );
            item0->SetSizeHints( parent );
        }
    }

    return item0;
}

References ProDe::bitmapsDirPath(), ProDeConstants::EDITOR_COPYRIGHT_TEXT, ProDeConstants::EDITOR_LOGO_PATH, ProDeConstants::EDITOR_NAME, WxConversion::toWxString(), and TRUE.

Referenced by AboutDialog().

Here is the call graph for this function:

setTexts()

void AboutDialog::setTexts ( )

private

Sets texts for widgets.

Definition at line 72 of file AboutDialog.cc.

                      {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title
    format fmt = prodeTexts->text(ProDeTextGenerator::TXT_ABOUT_DIALOG_TITLE);
    string title = fmt.str();
    title.append(WxConversion::toString(ProDeConstants::EDITOR_NAME));
    SetTitle(WxConversion::toWxString(title));

    // buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);
}

References ProDeConstants::EDITOR_NAME, GUITextGenerator::instance(), ProDeTextGenerator::instance(), WidgetTools::setLabel(), Texts::TextGenerator::text(), WxConversion::toString(), WxConversion::toWxString(), ProDeTextGenerator::TXT_ABOUT_DIALOG_TITLE, and GUITextGenerator::TXT_BUTTON_OK.

Referenced by AboutDialog().

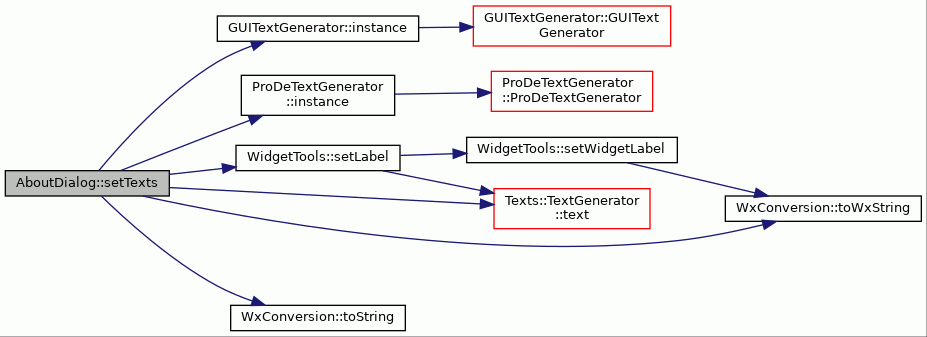

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• AboutDialog.hh
• AboutDialog.cc
