AddBreakpointDialog Class Reference

#include <AddBreakpointDialog.hh>

Inheritance diagram for AddBreakpointDialog:

Collaboration diagram for AddBreakpointDialog:

Public Member Functions
	AddBreakpointDialog (wxWindow *parent, wxWindowID id)
virtual	~AddBreakpointDialog ()

Private Types
enum	{ ID_LABEL_NEW_BP , ID_ADDRESS , ID_LINE }
	Widget IDs. More...

Private Member Functions
void	onOK (wxCommandEvent &event)
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

Detailed Description

Dialog for adding new breakpoints.

Definition at line 41 of file AddBreakpointDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Widget IDs.

Enumerator
ID_LABEL_NEW_BP
ID_ADDRESS
ID_LINE

Definition at line 50 of file AddBreakpointDialog.hh.

         {
        ID_LABEL_NEW_BP,
        ID_ADDRESS,
        ID_LINE
    };

Constructor & Destructor Documentation

AddBreakpointDialog()

AddBreakpointDialog::AddBreakpointDialog	(	wxWindow *	parent,
		wxWindowID	id
	)

The Constructor.

@paran parent Parent window of the dialog.

Parameters

id	Identifier of the window.

Definition at line 55 of file AddBreakpointDialog.cc.

                                                                        :
  wxDialog(parent, id, _T("Add Breakpoint"), wxDefaultPosition) {

    createContents(this, true, true);
}

~AddBreakpointDialog()

AddBreakpointDialog::~AddBreakpointDialog ( )

virtual

The Destructor.

Definition at line 64 of file AddBreakpointDialog.cc.

                                          {
}

Member Function Documentation

createContents()

wxSizer * AddBreakpointDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog widgets.

Definition at line 99 of file AddBreakpointDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxStaticText *item1 = new wxStaticText( parent, ID_LABEL_NEW_BP, wxT("Set Breakpoint at"), wxDefaultPosition, wxDefaultSize, 0 );
    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item2 = new wxTextCtrl( parent, ID_ADDRESS, wxT(""), wxDefaultPosition, wxSize(200,-1), 0 );
    item0->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticLine *item3 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item3, 0, wxGROW|wxALL, 5 );

    wxGridSizer *item4 = new wxGridSizer( 2, 0, 0 );

    wxButton *item5 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item6 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_ADDRESS, ID_LABEL_NEW_BP, and ID_LINE.

onOK()

void AddBreakpointDialog::onOK ( wxCommandEvent &  event )

private

Event handler for the OK-button.

Adds a breakpoint at the address defined in the address field.

Definition at line 74 of file AddBreakpointDialog.cc.

                                         {

    wxString addressString =
        dynamic_cast<wxTextCtrl*>(FindWindow(ID_ADDRESS))->GetValue();

    unsigned address = 0;
    try {
        address =
            Conversion::toUnsignedInt(WxConversion::toString(addressString));
    } catch (NumberFormatException& e) {
        wxString message = _T("Invalid address");
        ErrorDialog errorDialog(this, message);
        errorDialog.ShowModal();
        return;
    }
    std::string command = ProximConstants::SCL_SET_BREAKPOINT + " " +
        Conversion::toString(address);
    ProximToolbox::lineReader().input(command);
    EndModal(wxID_OK);
}

References ID_ADDRESS, ProximLineReader::input(), ProximToolbox::lineReader(), ProximConstants::SCL_SET_BREAKPOINT, Conversion::toString(), WxConversion::toString(), and Conversion::toUnsignedInt().

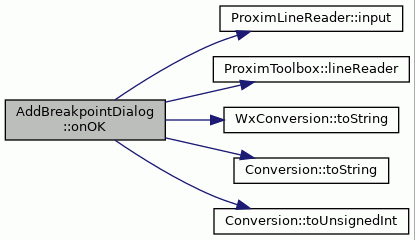

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• AddBreakpointDialog.hh
• AddBreakpointDialog.cc
