AddBusEntryCmd Class Reference

#include <AddBusEntryCmd.hh>

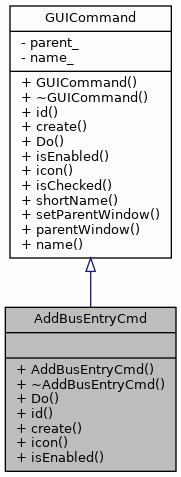

Inheritance diagram for AddBusEntryCmd:

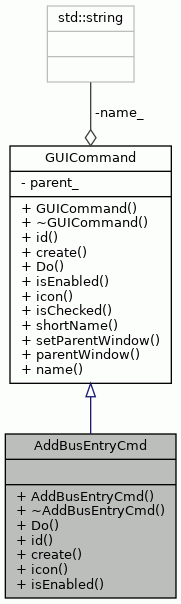

Collaboration diagram for AddBusEntryCmd:

Public Member Functions
	AddBusEntryCmd ()
virtual	~AddBusEntryCmd ()
virtual bool	Do ()
virtual int	id () const
virtual AddBusEntryCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for adding new bus entries to a HDB.

Definition at line 41 of file AddBusEntryCmd.hh.

Constructor & Destructor Documentation

AddBusEntryCmd()

AddBusEntryCmd::AddBusEntryCmd

(

)

The Constructor.

Definition at line 45 of file AddBusEntryCmd.cc.

                               :
    GUICommand(HDBEditorConstants::COMMAND_NAME_ADD_BUS_ENTRY, NULL) {
}

Referenced by create().

~AddBusEntryCmd()

AddBusEntryCmd::~AddBusEntryCmd ( )

virtual

The Destructor.

Definition at line 53 of file AddBusEntryCmd.cc.

                                {
}

Member Function Documentation

create()

AddBusEntryCmd * AddBusEntryCmd::create ( ) const

virtual

Creates and returns new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 103 of file AddBusEntryCmd.cc.

                             {
    return new AddBusEntryCmd();
}

References AddBusEntryCmd().

Here is the call graph for this function:

Do()

bool AddBusEntryCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 60 of file AddBusEntryCmd.cc.

                   {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    RowID id = manager->addBusEntry();

    wxGetApp().mainFrame().update();
    wxGetApp().mainFrame().browser()->selectBusEntry(id);

    return true;
}

References HDB::HDBManager::addBusEntry().

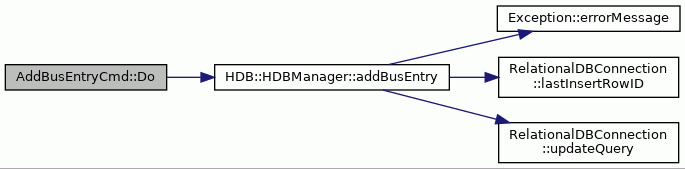

Here is the call graph for this function:

icon()

std::string AddBusEntryCmd::icon ( ) const

virtual

Returns name of the command icon file.

Returns

Command icon file name.

Implements GUICommand.

Definition at line 81 of file AddBusEntryCmd.cc.

                           {
    return "";
}

id()

int AddBusEntryCmd::id ( ) const

virtual

Returns command identifier for this command.

Returns

Command identifier of this command.

Implements GUICommand.

Definition at line 92 of file AddBusEntryCmd.cc.

                         {
    return HDBEditorConstants::COMMAND_ADD_BUS_ENTRY;
}

References HDBEditorConstants::COMMAND_ADD_BUS_ENTRY.

isEnabled()

bool AddBusEntryCmd::isEnabled ( )

virtual

Returns true, if the command should be enabled in the menu/toolbar.

Returns

True, if the command is enabled, false if not.

Implements GUICommand.

Definition at line 114 of file AddBusEntryCmd.cc.

                          {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    return true;
}

---

The documentation for this class was generated from the following files:

• AddBusEntryCmd.hh
• AddBusEntryCmd.cc
