AddModuleDialog Class Reference

#include <AddModuleDialog.hh>

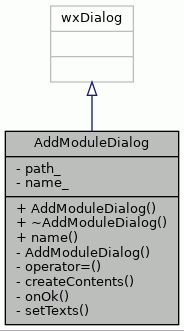

Inheritance diagram for AddModuleDialog:

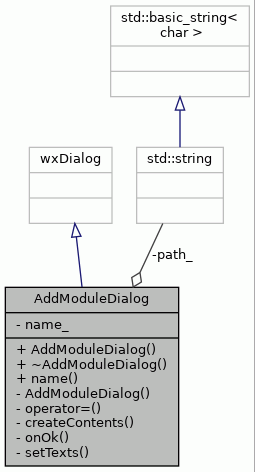

Collaboration diagram for AddModuleDialog:

Public Member Functions
	AddModuleDialog (wxWindow *parent, std::string path)
virtual	~AddModuleDialog ()
std::string	name () const

Private Types
enum	{ ID_TEXT , ID_MODULE_NAME }

Private Member Functions
	AddModuleDialog (const AddModuleDialog &)
	Copying not allowed.
AddModuleDialog &	operator= (const AddModuleDialog &)
	Assignment not allowed.
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	onOk (wxCommandEvent &event)
void	setTexts ()

Private Attributes
std::string	path_
	Path in which module is added.
wxString	name_
	Name of the module.

Detailed Description

Dialog for adding new modules.

Definition at line 42 of file AddModuleDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Widget ids.

Enumerator
ID_TEXT
ID_MODULE_NAME

Definition at line 62 of file AddModuleDialog.hh.

         {
        ID_TEXT,
        ID_MODULE_NAME
    };

Constructor & Destructor Documentation

AddModuleDialog() [1/2]

AddModuleDialog::AddModuleDialog	(	wxWindow *	parent,
		std::string	path
	)

Constructor.

@parent Parent window.

Definition at line 62 of file AddModuleDialog.cc.

                                                              :
    wxDialog(parent, -1, _T(""),
             DialogPosition::getPosition(DialogPosition::DIALOG_ADD_MODULE)),
    path_(path), name_(_T("")){

    createContents(this, true, true);
    FindWindow(ID_MODULE_NAME)->
        SetValidator(wxTextValidator(wxFILTER_ASCII, &name_));

    FindWindow(wxID_OK)->SetFocus();
    setTexts();
}

~AddModuleDialog()

AddModuleDialog::~AddModuleDialog ( )

virtual

Destructor.

Definition at line 78 of file AddModuleDialog.cc.

                                  {
    int x, y;
    GetPosition(&x, &y);
    wxPoint point(x, y);
    DialogPosition::setPosition(DialogPosition::DIALOG_ADD_MODULE, point);
}

References DialogPosition::DIALOG_ADD_MODULE, and DialogPosition::setPosition().

Here is the call graph for this function:

AddModuleDialog() [2/2]

AddModuleDialog::AddModuleDialog ( const AddModuleDialog &  )

private

Copying not allowed.

Member Function Documentation

createContents()

wxSizer * AddModuleDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the contents of the dialog.

Parameters

parent	Parent window.
call_fit	If true fits the contents inside the dialog.
set_sizer	If true sets the main sizer as the contents of the dialog.

Returns

The created sizer.

Definition at line 171 of file AddModuleDialog.cc.

                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item1 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item2 = new wxStaticText( parent, ID_TEXT, wxT("Name of the module:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item3 = new wxTextCtrl( parent, ID_MODULE_NAME, wxT(""), wxDefaultPosition, wxSize(80,-1), wxTE_PROCESS_ENTER );
    item1->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    wxBoxSizer *item4 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item5 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item6 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_MODULE_NAME, and ID_TEXT.

name()

string AddModuleDialog::name

(

)

const

Returns the name of the added module.

Returns

The name of the added module.

Definition at line 158 of file AddModuleDialog.cc.

                            {
    return WxConversion::toString(name_);
}

References name_, and WxConversion::toString().

Here is the call graph for this function:

onOk()

void AddModuleDialog::onOk ( wxCommandEvent &  event )

private

Handles the event when OK button is pushed.

Definition at line 113 of file AddModuleDialog.cc.

                                     {
    TransferDataFromWindow();
    OSEdTextGenerator& texts = OSEdTextGenerator::instance();
    if (name_ == _T("")) {
        format fmt = texts.text(OSEdTextGenerator::TXT_ERROR_NO_NAME);
        fmt % "operation module";
        ErrorDialog dialog(this, WxConversion::toWxString(fmt.str()));
        dialog.ShowModal();
        return;
    } else {
        string modName = WxConversion::toString(name_);
        // let's check that module name is legal
        const char* regExp = "\\w+";
        boost::regex expression(regExp);
        boost::match_results<string::const_iterator> what;
        if (!boost::regex_match(modName, what, expression)) {
            format fmt = texts.text(OSEdTextGenerator::TXT_ERROR_MOD_NAME);
            fmt % modName;
            ErrorDialog dialog(this, WxConversion::toWxString(fmt.str()));
            dialog.ShowModal();
            return;
        }

        // let's check there is not already a module by that name
        if (&OperationContainer::module(path_, modName) !=
            &NullOperationModule::instance()) {

            format fmt =
                texts.text(OSEdTextGenerator::TXT_ERROR_MODULE_EXISTS);
            fmt % modName;
            string msg = fmt.str();
            ErrorDialog error(this, WxConversion::toWxString(msg));
            error.ShowModal();
        } else {
            EndModal(wxID_OK);
        }
    }
}

References NullOperationModule::instance(), OSEdTextGenerator::instance(), OperationContainer::module(), name_, path_, Texts::TextGenerator::text(), WxConversion::toString(), WxConversion::toWxString(), OSEdTextGenerator::TXT_ERROR_MOD_NAME, OSEdTextGenerator::TXT_ERROR_MODULE_EXISTS, and OSEdTextGenerator::TXT_ERROR_NO_NAME.

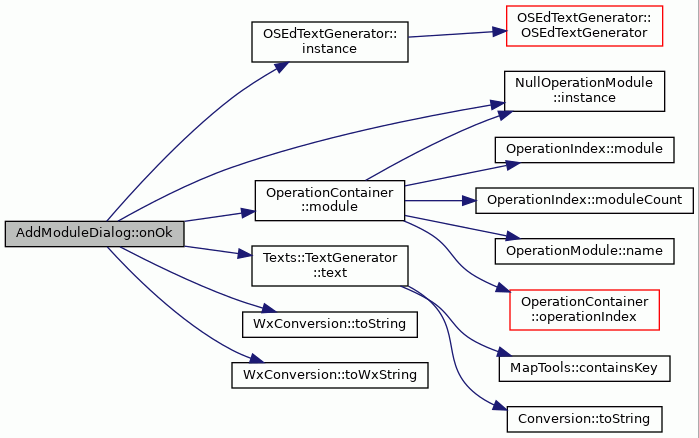

Here is the call graph for this function:

operator=()

AddModuleDialog & AddModuleDialog::operator= ( const AddModuleDialog &  )

private

Assignment not allowed.

setTexts()

void AddModuleDialog::setTexts ( )

private

Set texts to widgets.

Definition at line 89 of file AddModuleDialog.cc.

                          {

    GUITextGenerator& guiText = *GUITextGenerator::instance();
    OSEdTextGenerator& osedText = OSEdTextGenerator::instance();

    //title
    format fmt = osedText.text(OSEdTextGenerator::TXT_ADD_MODULE_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    WidgetTools::setLabel(&osedText, FindWindow(ID_TEXT),
                          OSEdTextGenerator::TXT_LABEL_MODULE_NAME);

    // buttons
    WidgetTools::setLabel(&guiText, FindWindow(wxID_OK),
                          GUITextGenerator::TXT_BUTTON_OK);

    WidgetTools::setLabel(&guiText, FindWindow(wxID_CANCEL),
                          GUITextGenerator::TXT_BUTTON_CANCEL);
}

References ID_TEXT, GUITextGenerator::instance(), OSEdTextGenerator::instance(), WidgetTools::setLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_ADD_MODULE_DIALOG_TITLE, GUITextGenerator::TXT_BUTTON_CANCEL, GUITextGenerator::TXT_BUTTON_OK, and OSEdTextGenerator::TXT_LABEL_MODULE_NAME.

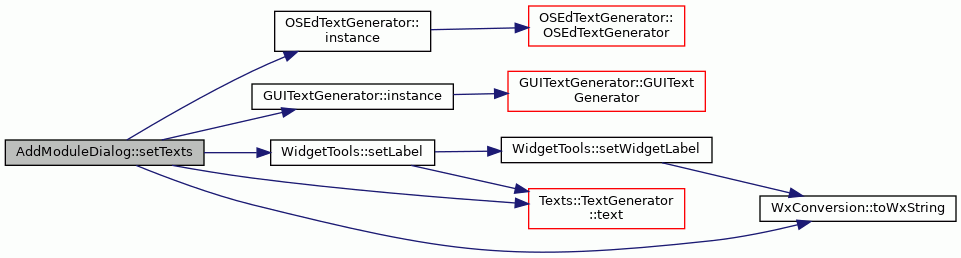

Here is the call graph for this function:

Member Data Documentation

name_

wxString AddModuleDialog::name_

private

Name of the module.

Definition at line 70 of file AddModuleDialog.hh.

Referenced by name(), and onOk().

path_

std::string AddModuleDialog::path_

private

Path in which module is added.

Definition at line 68 of file AddModuleDialog.hh.

Referenced by onOk().

---

The documentation for this class was generated from the following files:

• AddModuleDialog.hh
• AddModuleDialog.cc
