AddSocketEntryCmd Class Reference

#include <AddSocketEntryCmd.hh>

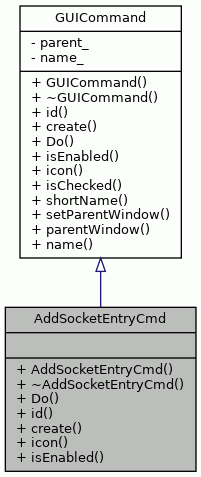

Inheritance diagram for AddSocketEntryCmd:

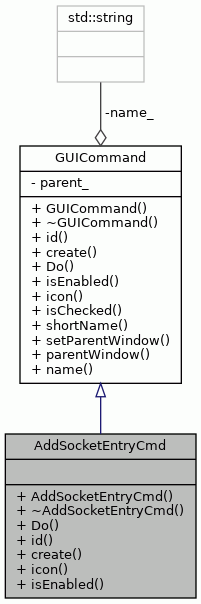

Collaboration diagram for AddSocketEntryCmd:

Public Member Functions
	AddSocketEntryCmd ()
virtual	~AddSocketEntryCmd ()
virtual bool	Do ()
virtual int	id () const
virtual AddSocketEntryCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for adding new socket entries to a HDB.

Definition at line 41 of file AddSocketEntryCmd.hh.

Constructor & Destructor Documentation

AddSocketEntryCmd()

AddSocketEntryCmd::AddSocketEntryCmd

(

)

The Constructor.

Definition at line 45 of file AddSocketEntryCmd.cc.

                                     :
    GUICommand(HDBEditorConstants::COMMAND_NAME_ADD_SOCKET_ENTRY, NULL) {
}

Referenced by create().

~AddSocketEntryCmd()

AddSocketEntryCmd::~AddSocketEntryCmd ( )

virtual

The Destructor.

Definition at line 53 of file AddSocketEntryCmd.cc.

                                      {
}

Member Function Documentation

create()

AddSocketEntryCmd * AddSocketEntryCmd::create ( ) const

virtual

Creates and returns new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 103 of file AddSocketEntryCmd.cc.

                                {
    return new AddSocketEntryCmd();
}

References AddSocketEntryCmd().

Here is the call graph for this function:

Do()

bool AddSocketEntryCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 60 of file AddSocketEntryCmd.cc.

                      {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    RowID id = manager->addSocketEntry();

    wxGetApp().mainFrame().update();
    wxGetApp().mainFrame().browser()->selectSocketEntry(id);

    return true;
}

References HDB::HDBManager::addSocketEntry().

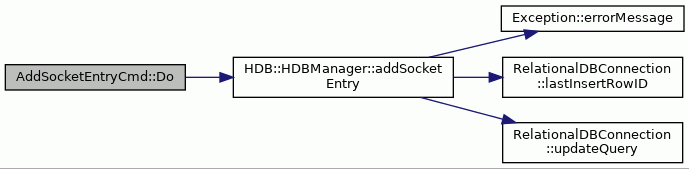

Here is the call graph for this function:

icon()

std::string AddSocketEntryCmd::icon ( ) const

virtual

Returns name of the command icon file.

Returns

Command icon file name.

Implements GUICommand.

Definition at line 81 of file AddSocketEntryCmd.cc.

                              {
    return "";
}

id()

int AddSocketEntryCmd::id ( ) const

virtual

Returns command identifier for this command.

Returns

Command identifier of this command.

Implements GUICommand.

Definition at line 92 of file AddSocketEntryCmd.cc.

                            {
    return HDBEditorConstants::COMMAND_ADD_SOCKET_ENTRY;
}

References HDBEditorConstants::COMMAND_ADD_SOCKET_ENTRY.

isEnabled()

bool AddSocketEntryCmd::isEnabled ( )

virtual

Returns true, if the command should be enabled in the menu/toolbar.

Returns

True, if the command is enabled, false if not.

Implements GUICommand.

Definition at line 114 of file AddSocketEntryCmd.cc.

                             {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    return true;
}

---

The documentation for this class was generated from the following files:

• AddSocketEntryCmd.hh
• AddSocketEntryCmd.cc
