#include <BreakpointPropertiesDialog.hh>

Inheritance diagram for BreakpointPropertiesDialog:

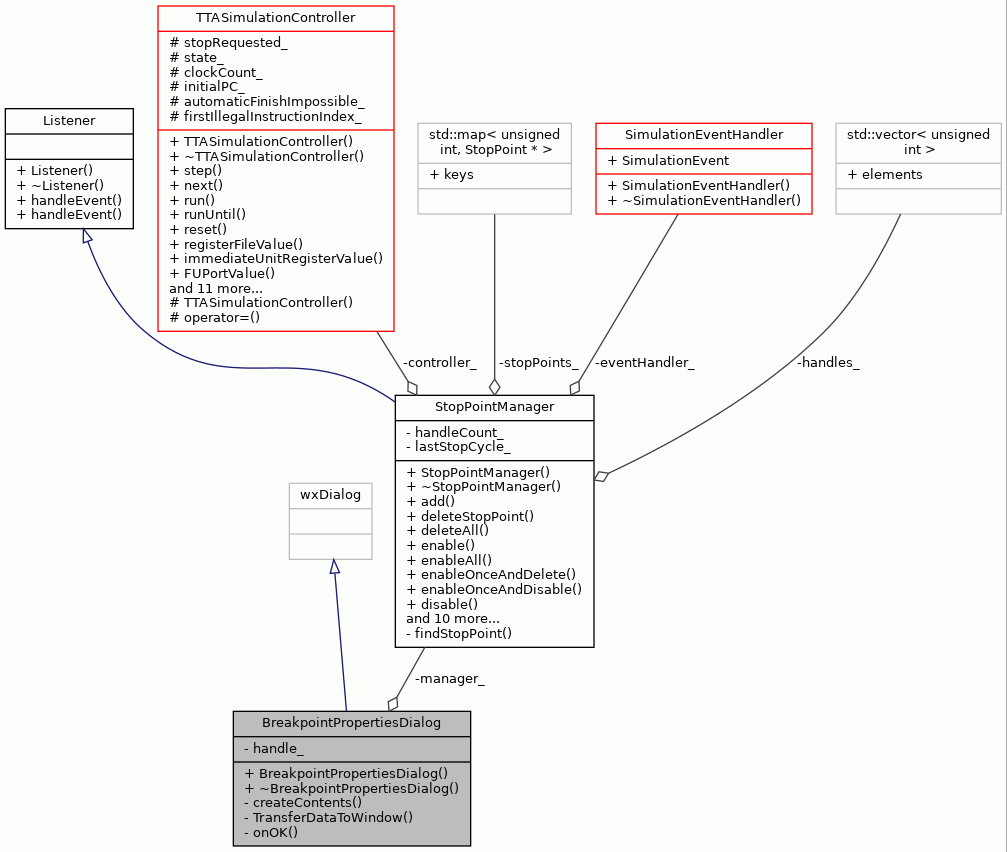

Collaboration diagram for BreakpointPropertiesDialog:

Public Member Functions
	BreakpointPropertiesDialog (wxWindow *parent, StopPointManager &manager, unsigned int handle)

virtual	~BreakpointPropertiesDialog ()

Private Types
enum	{ ID_TEXT_BREAKPOINT = 10000 , ID_TEXT_BP_ID , ID_LABEL_CONDITION , ID_CONDITION , ID_LABEL_IGNORE_COUNT , ID_IGNORE_CTRL , ID_LINE , ID_HELP , ID_CLOSE }
	Widget IDs. More...

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

virtual bool	TransferDataToWindow ()

void	onOK (wxCommandEvent &event)

Private Attributes
StopPointManager &	manager_
	Stoppoint manager containing the breakpoint,.

unsigned int	handle_
	Handle of the breakpoint to modify.

Detailed Description

Dialog for editing breakpoint properties in Proxim.

Definition at line 45 of file BreakpointPropertiesDialog.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Widget IDs.

Enumerator
ID_TEXT_BREAKPOINT
ID_TEXT_BP_ID
ID_LABEL_CONDITION
ID_CONDITION
ID_LABEL_IGNORE_COUNT
ID_IGNORE_CTRL
ID_LINE
ID_HELP
ID_CLOSE

Definition at line 56 of file BreakpointPropertiesDialog.hh.

         {
        ID_TEXT_BREAKPOINT = 10000,
        ID_TEXT_BP_ID,
        ID_LABEL_CONDITION,
        ID_CONDITION,
        ID_LABEL_IGNORE_COUNT,
        ID_IGNORE_CTRL,
        ID_LINE,
        ID_HELP,
        ID_CLOSE
    };

Constructor & Destructor Documentation

◆ BreakpointPropertiesDialog()

BreakpointPropertiesDialog::BreakpointPropertiesDialog	(	wxWindow *	parent,
		StopPointManager &	manager,
		unsigned int	handle
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
breakpoint	Breakpoint to edit.

Definition at line 57 of file BreakpointPropertiesDialog.cc.

                                                                      :
  wxDialog(parent, -1, _T("Breakpoint properties"), wxDefaultPosition),
    manager_(manager), handle_(handle) {

    createContents(this, true, true);

}

◆ ~BreakpointPropertiesDialog()

BreakpointPropertiesDialog::~BreakpointPropertiesDialog ( )

virtual

The Destructor.

Definition at line 70 of file BreakpointPropertiesDialog.cc.

70 {

71}

Member Function Documentation

◆ createContents()

wxSizer * BreakpointPropertiesDialog::createContents	(	wxWindow *	parent,
		bool	call_fit,
		bool	set_sizer
	)

private

Creates the dialog contents.

Definition at line 151 of file BreakpointPropertiesDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxFlexGridSizer *item1 = new wxFlexGridSizer( 2, 0, 0 );

    wxStaticText *item2 = new wxStaticText( parent, ID_TEXT_BREAKPOINT, wxT("Breakpoint"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item3 = new wxStaticText( parent, ID_TEXT_BP_ID, wxT(""), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item3, 0, wxALL, 5 );

    wxStaticText *item4 = new wxStaticText( parent, ID_LABEL_IGNORE_COUNT, wxT("Ignore count:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item4, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxSpinCtrl *item5 = new wxSpinCtrl( parent, ID_IGNORE_CTRL, wxT("0"), wxDefaultPosition, wxSize(-1,-1), 0, 0, 100, 0 );
    item1->Add( item5, 0, wxALL, 5 );

    wxStaticText *item6 = new wxStaticText( parent, ID_LABEL_CONDITION, wxT("Condition:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item6, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item7 = new wxTextCtrl( parent, ID_CONDITION, wxT(""), wxDefaultPosition, wxSize(250,-1));
    item1->Add( item7, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item1, 0, wxGROW, 5 );

    wxStaticLine *item8 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item8, 0, wxGROW|wxALL, 5 );

    wxGridSizer *item9 = new wxGridSizer( 2, 0, 0 );

    wxButton *item10 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item9->Add( item10, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item11 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item9->Add( item11, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item9, 0, wxGROW, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_CONDITION, ID_IGNORE_CTRL, ID_LABEL_CONDITION, ID_LABEL_IGNORE_COUNT, ID_LINE, ID_TEXT_BP_ID, and ID_TEXT_BREAKPOINT.

◆ onOK()

void BreakpointPropertiesDialog::onOK ( wxCommandEvent & event )

private

Handles the dialog OK-button event.

Breakpoint properties are checked for validity, and the breakpoint is modified if the properties are valid. An error dialog is displayed if the breakpoint properties are invalid.

Definition at line 110 of file BreakpointPropertiesDialog.cc.

                                                {

    wxTextCtrl* conditionCtrl =
        dynamic_cast<wxTextCtrl*>(FindWindow(ID_CONDITION));

    unsigned ignoreCount =
        dynamic_cast<wxSpinCtrl*>(FindWindow(ID_IGNORE_CTRL))->GetValue();

    string condition = WxConversion::toString(
        conditionCtrl->GetValue().Trim(true).Trim(false));

    // Check condition script.
    if (condition != "" && !ProximToolbox::testCondition(this, condition)) {
        // Invalid condition.
        return;
    }

    ProximLineReader& lineReader = ProximToolbox::lineReader();

    // Set ignore count.
    std::string ignoreCommand = ProximConstants::SCL_SET_IGNORE_COUNT +
        " " + Conversion::toString(handle_) +
        " " + Conversion::toString(ignoreCount);

    lineReader.input(ignoreCommand);

    // Set Condition script.
    std::string conditionCommand = ProximConstants::SCL_SET_CONDITION + " " +
        Conversion::toString(handle_);

    lineReader.input(conditionCommand);
    lineReader.input(condition);

    EndModal(wxID_OK);
}

References handle_, ID_CONDITION, ID_IGNORE_CTRL, ProximLineReader::input(), ProximToolbox::lineReader(), ProximConstants::SCL_SET_CONDITION, ProximConstants::SCL_SET_IGNORE_COUNT, ProximToolbox::testCondition(), Conversion::toString(), and WxConversion::toString().

Here is the call graph for this function:

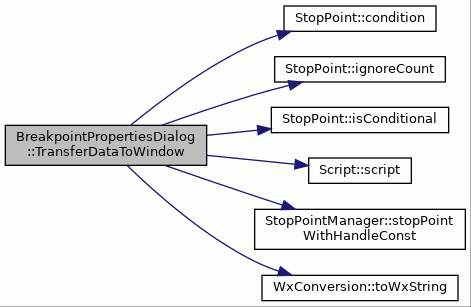

◆ TransferDataToWindow()

bool BreakpointPropertiesDialog::TransferDataToWindow ( )

privatevirtual

Sets the widget values when the dialog is opened.

Definition at line 78 of file BreakpointPropertiesDialog.cc.

                                                 {

    const Breakpoint& breakpoint = dynamic_cast<const Breakpoint&>(
        manager_.stopPointWithHandleConst(handle_));

    if (breakpoint.isConditional()) {
        wxTextCtrl* conditionCtrl =
            dynamic_cast<wxTextCtrl*>(FindWindow(ID_CONDITION));
        for (unsigned i = 0; i < breakpoint.condition().script().size(); i++) {
            string line = breakpoint.condition().script()[i];
            conditionCtrl->AppendText(WxConversion::toWxString(line));
        }
    }

    dynamic_cast<wxSpinCtrl*>(FindWindow(ID_IGNORE_CTRL))->SetValue(
        breakpoint.ignoreCount());

    dynamic_cast<wxStaticText*>(FindWindow(ID_TEXT_BP_ID))->SetLabel(
        WxConversion::toWxString(handle_));

    return wxDialog::TransferDataToWindow();
}
