BuslessExecutableMove Class Reference

#include <BuslessExecutableMove.hh>

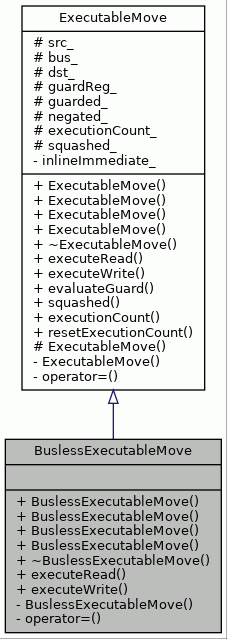

Inheritance diagram for BuslessExecutableMove:

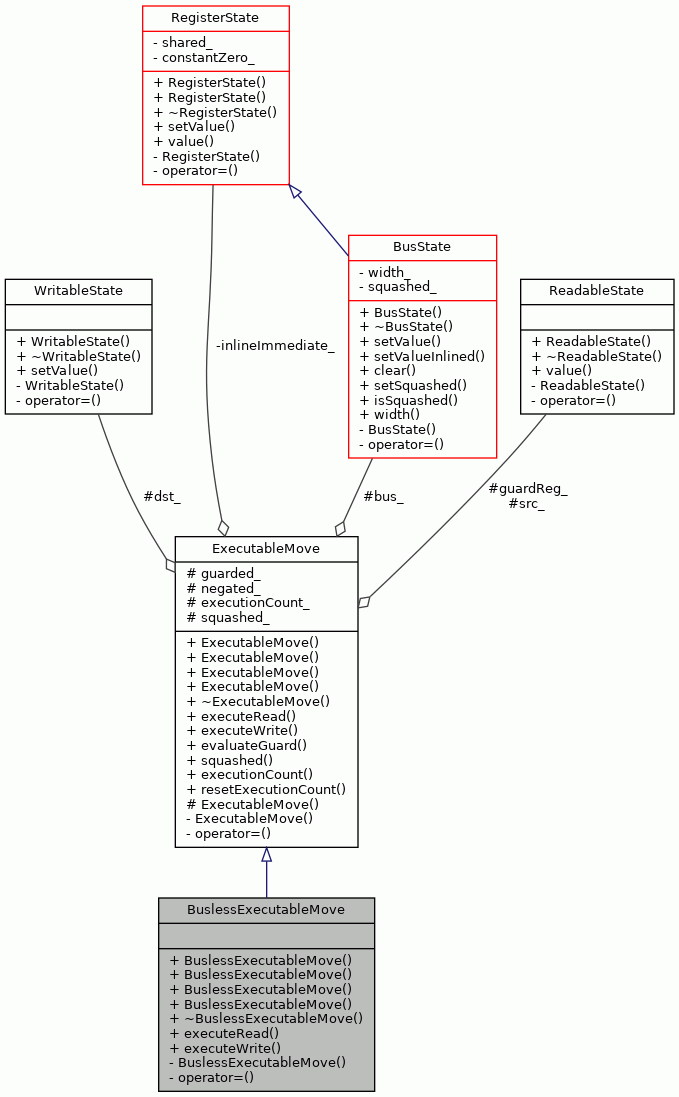

Collaboration diagram for BuslessExecutableMove:

Public Member Functions
	BuslessExecutableMove (const ReadableState &src, WritableState &dst)
	BuslessExecutableMove (const ReadableState &src, WritableState &dst, const ReadableState &guardReg, bool negated)
	BuslessExecutableMove (InlineImmediateValue *immediateSource, WritableState &dst, const ReadableState &guardReg, bool negated)
	BuslessExecutableMove (InlineImmediateValue *immediateSource, WritableState &dst)
virtual	~BuslessExecutableMove ()
virtual void	executeRead ()
virtual void	executeWrite ()
Public Member Functions inherited from ExecutableMove
	ExecutableMove (const ReadableState &src, BusState &bus, WritableState &dst)
	ExecutableMove (const ReadableState &src, BusState &bus, WritableState &dst, const ReadableState &guardReg, bool negated)
	ExecutableMove (InlineImmediateValue *immediateSource, BusState &bus, WritableState &dst, const ReadableState &guardReg, bool negated)
	ExecutableMove (InlineImmediateValue *immediateSource, BusState &bus, WritableState &dst)
virtual	~ExecutableMove ()
virtual void	evaluateGuard ()
virtual bool	squashed () const
ClockCycleCount	executionCount () const
void	resetExecutionCount ()

Private Member Functions
	BuslessExecutableMove (const BuslessExecutableMove &)
	Copying not allowed.
BuslessExecutableMove &	operator= (const BuslessExecutableMove &)
	Assignment not allowed.

Additional Inherited Members
Protected Member Functions inherited from ExecutableMove
	ExecutableMove ()
Protected Attributes inherited from ExecutableMove
const ReadableState *	src_
	Source of the move.
BusState *	bus_
	Bus of the move.
WritableState *	dst_
	Destination of the move.
const ReadableState *	guardReg_
	Guard of the move.
const bool	guarded_
	True if this is a guarded move.
const bool	negated_
	True if guard is inverted.
ClockCycleCount	executionCount_
	The count of times this move has been fully executed (without squash).
bool	squashed_
	True in case this move was squashed last time it was executed.

Detailed Description

Represents an interpreted move which does not utilize a transport bus.

Moves that utilize this class include control unit internal moves such as control flow operations (jump, call) with immediate or RA source. This class can be used also for simulating data transports of sequential code, as writing to (the universal) bus is not necessary in that case.

Definition at line 53 of file BuslessExecutableMove.hh.

Constructor & Destructor Documentation

BuslessExecutableMove() [1/5]

BuslessExecutableMove::BuslessExecutableMove	(	const ReadableState &	src,
		WritableState &	dst
	)

Constructor.

Parameters

src	Source of the move.
dst	Destination of the move.

Definition at line 45 of file BuslessExecutableMove.cc.

                        :
    ExecutableMove(src, NullBusState::instance(), dst) {
}

BuslessExecutableMove() [2/5]

BuslessExecutableMove::BuslessExecutableMove	(	const ReadableState &	src,
		WritableState &	dst,
		const ReadableState &	guardReg,
		bool	negated
	)

Constructor.

Parameters

src	Source of the move.
bus	Bus of the move.
dst	Destination of the move.
guardReg	Guard register.
negated	True if guard is reversed.

Definition at line 60 of file BuslessExecutableMove.cc.

                  :
    ExecutableMove(src, NullBusState::instance(), dst, guardReg, negated) {
}

BuslessExecutableMove() [3/5]

BuslessExecutableMove::BuslessExecutableMove	(	InlineImmediateValue *	immediateSource,
		WritableState &	dst,
		const ReadableState &	guardReg,
		bool	negated
	)

Constructor.

Used to construct a move that has an inline immediate as the source. The inline immediate becomes property of the created BuslessExecutableMove and is deleted by it.

Parameters

immediateSource	The inline immediate source of the move.
bus	Bus of the move.
dst	Destination of the move.
guardReg	Guard register.
negated	True if guard is reversed.

Definition at line 81 of file BuslessExecutableMove.cc.

                  :
    ExecutableMove(
        immediateSource, NullBusState::instance(), dst, guardReg, negated) {
}

BuslessExecutableMove() [4/5]

BuslessExecutableMove::BuslessExecutableMove	(	InlineImmediateValue *	immediateSource,
		WritableState &	dst
	)

Constructor.

Used to construct a move that has an inline immediate as the source. The inline immediate becomes property of the created BuslessExecutableMove and is deleted by it.

Parameters

immediateSource	The inline immediate source of the move.
bus	Bus of the move.
dst	Destination of the move.
guardReg	Guard register.
negated	True if guard is reversed.

Definition at line 103 of file BuslessExecutableMove.cc.

                        :
    ExecutableMove(immediateSource, NullBusState::instance(), dst) {
}

~BuslessExecutableMove()

BuslessExecutableMove::~BuslessExecutableMove ( )

virtual

Destructor.

Definition at line 113 of file BuslessExecutableMove.cc.

                                              {
}

BuslessExecutableMove() [5/5]

BuslessExecutableMove::BuslessExecutableMove ( const BuslessExecutableMove &  )

private

Copying not allowed.

Member Function Documentation

executeRead()

void BuslessExecutableMove::executeRead ( )

virtual

Does not do anything because value is transferred directly from source to destination without writing to a bus first.

Reimplemented from ExecutableMove.

Definition at line 122 of file BuslessExecutableMove.cc.

                                   {
}

executeWrite()

void BuslessExecutableMove::executeWrite ( )

virtual

Writes the value from source to the destination.

If the move is guarded, the value is written to destination only if guard expression is true.

Reimplemented from ExecutableMove.

Definition at line 132 of file BuslessExecutableMove.cc.

                                    {

    if (guarded_) {
        const SimValue& regValue = guardReg_->value();
        const bool guardTerm = (regValue.sLongWordValue() & 1l) == 1;
        if (!(( guardTerm && !negated_) ||
              (!guardTerm &&  negated_))) {
            // guard expression evaluated to false
            squashed_ = true;
            return;
        }
    }

    squashed_ = false;
    dst_->setValue(src_->value());
    executionCount_++;
}

References ExecutableMove::dst_, ExecutableMove::executionCount_, ExecutableMove::guarded_, ExecutableMove::guardReg_, ExecutableMove::negated_, WritableState::setValue(), SimValue::sLongWordValue(), ExecutableMove::squashed_, ExecutableMove::src_, and ReadableState::value().

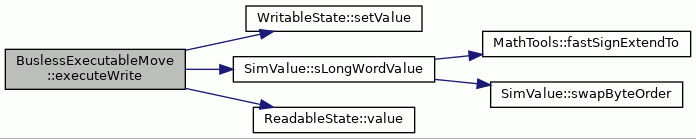

Here is the call graph for this function:

operator=()

BuslessExecutableMove & BuslessExecutableMove::operator= ( const BuslessExecutableMove &  )

private

Assignment not allowed.

---

The documentation for this class was generated from the following files:

• BuslessExecutableMove.hh
• BuslessExecutableMove.cc
