ClearDisassemblyHighlightCmd Class Reference

#include <ClearDisassemblyHighlightCmd.hh>

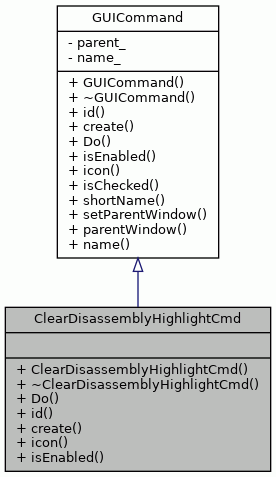

Inheritance diagram for ClearDisassemblyHighlightCmd:

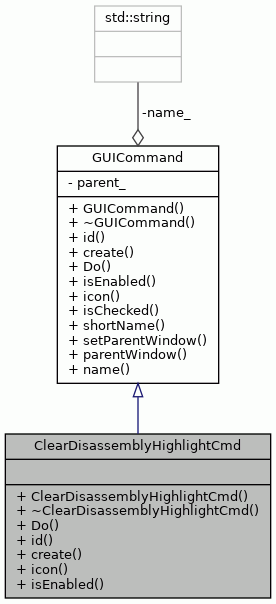

Collaboration diagram for ClearDisassemblyHighlightCmd:

Public Member Functions
	ClearDisassemblyHighlightCmd ()
virtual	~ClearDisassemblyHighlightCmd ()
virtual bool	Do ()
virtual int	id () const
virtual ClearDisassemblyHighlightCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for clearing disassembly window highlighting mode.

Definition at line 41 of file ClearDisassemblyHighlightCmd.hh.

Constructor & Destructor Documentation

ClearDisassemblyHighlightCmd()

ClearDisassemblyHighlightCmd::ClearDisassemblyHighlightCmd

(

)

The Constructor.

Definition at line 43 of file ClearDisassemblyHighlightCmd.cc.

                                                          :
    GUICommand("Clear Disassembly highlight", NULL) {

    }

Referenced by create().

~ClearDisassemblyHighlightCmd()

ClearDisassemblyHighlightCmd::~ClearDisassemblyHighlightCmd ( )

virtual

The Destructor.

Definition at line 51 of file ClearDisassemblyHighlightCmd.cc.

                                                            {
}

Member Function Documentation

create()

ClearDisassemblyHighlightCmd * ClearDisassemblyHighlightCmd::create ( ) const

virtual

Creates and returns a new isntance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 94 of file ClearDisassemblyHighlightCmd.cc.

                                           {
    return new ClearDisassemblyHighlightCmd();
}

References ClearDisassemblyHighlightCmd().

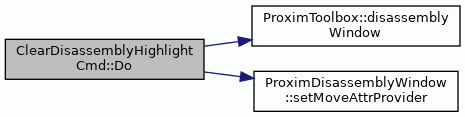

Here is the call graph for this function:

Do()

bool ClearDisassemblyHighlightCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 59 of file ClearDisassemblyHighlightCmd.cc.

                                 {
    ProximDisassemblyWindow* window = ProximToolbox::disassemblyWindow();
    assert(window != NULL);
    window->setMoveAttrProvider(NULL);
    window->Refresh();
    return true;
}

References assert, ProximToolbox::disassemblyWindow(), and ProximDisassemblyWindow::setMoveAttrProvider().

Here is the call graph for this function:

icon()

std::string ClearDisassemblyHighlightCmd::icon ( ) const

virtual

Returns full path to the command icon file.

Returns

Full path to the command icon file.

Implements GUICommand.

Definition at line 74 of file ClearDisassemblyHighlightCmd.cc.

                                         {
    return "clear_console.png";
}

id()

int ClearDisassemblyHighlightCmd::id ( ) const

virtual

Returns ID of this command.

Implements GUICommand.

Definition at line 83 of file ClearDisassemblyHighlightCmd.cc.

                                       {
    return ProximConstants::COMMAND_CLEAR_DISASSEMBLY_HIGHLIGHT;
}

References ProximConstants::COMMAND_CLEAR_DISASSEMBLY_HIGHLIGHT.

isEnabled()

bool ClearDisassemblyHighlightCmd::isEnabled ( )

virtual

Returns true if the command is enabled, false otherwise.

Returns

True if the console window exists.

Implements GUICommand.

Definition at line 105 of file ClearDisassemblyHighlightCmd.cc.

                                        {
    if (ProximToolbox::frontend()->isProgramLoaded()) {
    return true;
    } else {
    return false;
    }
}

References ProximToolbox::frontend().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ClearDisassemblyHighlightCmd.hh
• ClearDisassemblyHighlightCmd.cc
