#include <CommandRegistry.hh>

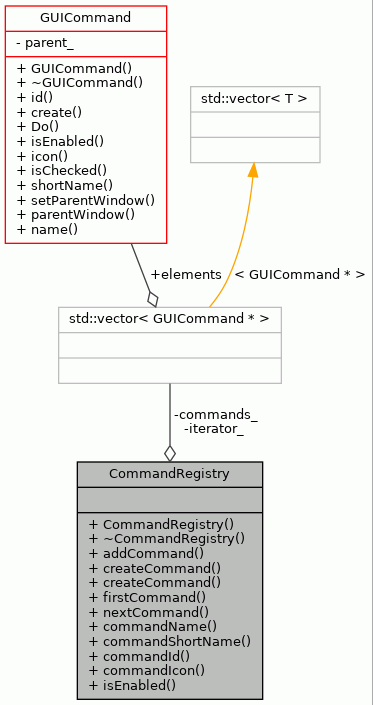

Collaboration diagram for CommandRegistry:

Public Member Functions
	CommandRegistry ()

	~CommandRegistry ()

void	addCommand (GUICommand *command)

GUICommand *	createCommand (const int id)

GUICommand *	createCommand (const std::string name)

GUICommand *	firstCommand ()

GUICommand *	nextCommand ()

std::string	commandName (int id) const

std::string	commandShortName (const std::string name) const

int	commandId (const std::string name) const

std::string	commandIcon (const std::string name) const

bool	isEnabled (const std::string command)

Private Attributes
std::vector< GUICommand * >	commands_
	Commands in the registry.

std::vector< GUICommand * >::iterator	iterator_
	The position of the iteration. Used by the firstCommand() and nextCommand().

Detailed Description

List of editor commands which can be added to the toolbar or executed using a keyboard shortcut.

Definition at line 47 of file CommandRegistry.hh.

Constructor & Destructor Documentation

◆ CommandRegistry()

CommandRegistry::CommandRegistry ( )

The Constructor.

Definition at line 44 of file CommandRegistry.cc.

44 {

45}

◆ ~CommandRegistry()

CommandRegistry::~CommandRegistry ( )

The Destructor.

Definition at line 51 of file CommandRegistry.cc.

                                  {
    // delete commands in registry
    vector<GUICommand*>::iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    delete *i;
    }
    commands_.clear();
}

References commands_.

Member Function Documentation

◆ addCommand()

void CommandRegistry::addCommand ( GUICommand * command )

Referenced by EVT_MENU_RANGE().

◆ commandIcon()

std::string CommandRegistry::commandIcon ( const std::string name ) const

Returns icon for the GUICommand.

Parameters

name	Name of the GUICommand.

Returns: Icon for the GUICommand.

Definition at line 155 of file CommandRegistry.cc.

                                                       {
    vector<GUICommand*>::const_iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->name() == name) {
        return (*i)->icon();
    }
    }
    throw InstanceNotFound(__FILE__, __LINE__, __func__, "");
    return "";
}

References __func__, and commands_.

Referenced by GUIOptions::createToolbar().

◆ commandId()

int CommandRegistry::commandId ( const std::string name ) const

Returns enumerated ID of the command.

Parameters

name	Name of the GUICommand.

Returns: Enumerated ID of the GUICommand, or -1 if no command was found.

Definition at line 137 of file CommandRegistry.cc.

                                                     {

    vector<GUICommand*>::const_iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->name() == name) {
        return (*i)->id();
    }
    }
    return -1;
}

References commands_, and GUICommand::id().

Referenced by GUIOptions::createToolbar(), and MainFrame::updateUI().

Here is the call graph for this function:

◆ commandName()

std::string CommandRegistry::commandName ( int id ) const

Returns name of the GUICommand.

Parameters

id	ID of the GUICommand.

Returns: Command name.

Definition at line 173 of file CommandRegistry.cc.

                                         {
    vector<GUICommand*>::const_iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->id() == id) {
        return (*i)->name();
    }
    }
    throw InstanceNotFound(__FILE__, __LINE__, __func__, "");
    return "";
}

References __func__, and commands_.

Referenced by ProximMainFrame::menuAccelerator(), and MainFrame::menuAccelerator().

◆ commandShortName()

std::string CommandRegistry::commandShortName ( const std::string name ) const

Returns short name of the GUICommand.

Parameters

name	Name of the GUICommand.

Returns: Short version of the command name.

Definition at line 191 of file CommandRegistry.cc.

                                                            {
    vector<GUICommand*>::const_iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->name() == name) {
        return (*i)->shortName();
    }
    }
    throw InstanceNotFound(__FILE__, __LINE__, __func__, "");
    return "";
}

References __func__, and commands_.

Referenced by GUIOptions::createToolbar().

◆ createCommand() [1/2]

GUICommand * CommandRegistry::createCommand ( const int id )

Creates a new command corresponding to the id.

Parameters

id	Enumerated ID of the GUICommand.

Returns: Created GUICommand, or NULL, if no GUICommand was found with the ID.

Definition at line 69 of file CommandRegistry.cc.

                                           {
    vector<GUICommand*>::iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->id() == id) {
        return (*i)->create();
    }
    }
    return NULL;
}

References commands_, and GUICommand::create().

Referenced by OSEdMainFrame::onCommandEvent(), HDBEditorMainFrame::onCommandEvent(), OSEdTreeView::onItemClicked(), HDBEditorMainFrame::onUpdateUI(), and MainFrame::onUpdateUI().

Here is the call graph for this function:

◆ createCommand() [2/2]

GUICommand * CommandRegistry::createCommand ( const std::string name )

Creates a new command corresponding to the command name.

Parameters

name	Name of the GUICommand.

Returns: Created GUICommand, or NULL, if no GUICommand was found with the name.

Definition at line 87 of file CommandRegistry.cc.

                                                   {
    vector<GUICommand*>::iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->name() == name) {
        return (*i)->create();
    }
    }
    return NULL;
}

References commands_, and GUICommand::create().

Here is the call graph for this function:

◆ firstCommand()

GUICommand * CommandRegistry::firstCommand ( )

Returns first command in the registry.

Returns: Pointer to the first command in the registry.

Definition at line 104 of file CommandRegistry.cc.

                              {
    iterator_ = commands_.begin();
    if (iterator_ == commands_.end()) {
    return NULL;
    }
    return (*iterator_);
}

References commands_, and iterator_.

Referenced by OptionsDialog::readCommands(), DropDownMenu::updateMenu(), and OSEdMainFrame::updateMenuBar().

◆ isEnabled()

bool CommandRegistry::isEnabled ( const std::string command )

Returns true, if command is executable and should be enabled, false if not.

Parameters

command The command which is checked for enabled/disabled state.

Returns: true, if the command is executable.

Definition at line 210 of file CommandRegistry.cc.

                                                  {
    vector<GUICommand*>::iterator i = commands_.begin();
    for (; i != commands_.end(); i++) {
    if ((*i)->name() == command) {
        return (*i)->isEnabled();
    }
    }
    throw InstanceNotFound(__FILE__, __LINE__, __func__, "");
    return false;
}

References __func__, and commands_.

Referenced by SelectTool::createDefaultMenu(), GUIOptions::createToolbar(), SelectTool::popContextMenu(), ConnectTool::rightClick(), and MainFrame::updateUI().

◆ nextCommand()

GUICommand * CommandRegistry::nextCommand ( )

Returns next command in the registry.

Returns: Pointer to the next command in the registry.

Definition at line 120 of file CommandRegistry.cc.

                             {
    iterator_++;
    if (iterator_ == commands_.end()) {
    return NULL;
    }
    return (*iterator_);
}

References commands_, and iterator_.

Referenced by OptionsDialog::readCommands(), DropDownMenu::updateMenu(), and OSEdMainFrame::updateMenuBar().

Member Data Documentation

◆ commands_

std::vector<GUICommand*> CommandRegistry::commands_

private

Commands in the registry.

Definition at line 65 of file CommandRegistry.hh.

Referenced by commandIcon(), commandId(), commandName(), commandShortName(), createCommand(), createCommand(), firstCommand(), isEnabled(), nextCommand(), and ~CommandRegistry().

◆ iterator_

std::vector<GUICommand*>::iterator CommandRegistry::iterator_

private

The position of the iteration. Used by the firstCommand() and nextCommand().

Definition at line 68 of file CommandRegistry.hh.

Referenced by firstCommand(), and nextCommand().

The documentation for this class was generated from the following files:
