#include <CompiledSimUtilizationStats.hh>

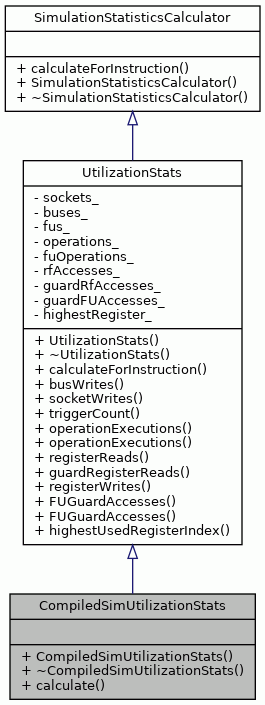

Inheritance diagram for CompiledSimUtilizationStats:

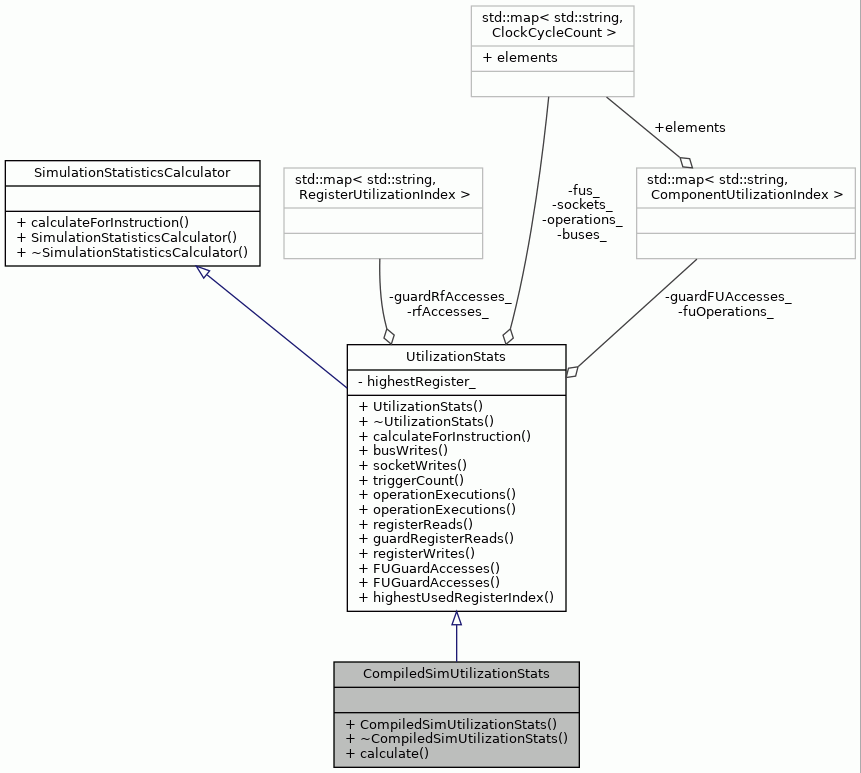

Collaboration diagram for CompiledSimUtilizationStats:

Public Member Functions
	CompiledSimUtilizationStats ()

virtual	~CompiledSimUtilizationStats ()

virtual void	calculate (const TTAProgram::Program &program, const CompiledSimulation &compiledSim)

Public Member Functions inherited from UtilizationStats
	UtilizationStats ()

virtual	~UtilizationStats ()

virtual void	calculateForInstruction (const TTAProgram::Instruction &instructionData, const ExecutableInstruction &executionCounts)

ClockCycleCount	busWrites (const std::string &busName) const

ClockCycleCount	socketWrites (const std::string &socketName) const

ClockCycleCount	triggerCount (const std::string &fuName) const

ClockCycleCount	operationExecutions (const std::string &operationName) const

ClockCycleCount	operationExecutions (const std::string &fuName, const std::string &operationName) const

ClockCycleCount	registerReads (const std::string &rfName, int registerIndex) const

ClockCycleCount	guardRegisterReads (const std::string &rfName, int registerIndex) const

ClockCycleCount	registerWrites (const std::string &rfName, int registerIndex) const

ClockCycleCount	FUGuardAccesses (const std::string &fuName, const std::string &fuPort) const

FUOperationUtilizationIndex	FUGuardAccesses () const

int	highestUsedRegisterIndex () const

Public Member Functions inherited from SimulationStatisticsCalculator
	SimulationStatisticsCalculator ()

virtual	~SimulationStatisticsCalculator ()

Additional Inherited Members
Public Types inherited from UtilizationStats
typedef std::map< std::string, ClockCycleCount >	ComponentUtilizationIndex
	Index for connecting component names to utilization counts.

typedef std::map< int, std::pair< ClockCycleCount, ClockCycleCount > >	RegisterUtilizationIndex
	Index for connecting register indices to utilization counts. The first number in the pair is the count of reads, and the second is the count of writes.

typedef std::map< std::string, ComponentUtilizationIndex >	FUOperationUtilizationIndex
	Index for connecting function unit and operations implemented in them to utilization counts.

typedef std::map< std::string, RegisterUtilizationIndex >	RFRegisterUtilizationIndex
	Index for connecting register files and register utilization indices in them.

Detailed Description

Calculates processor utilization data for compiled simulations

Definition at line 47 of file CompiledSimUtilizationStats.hh.

Constructor & Destructor Documentation

◆ CompiledSimUtilizationStats()

CompiledSimUtilizationStats::CompiledSimUtilizationStats ( )

Default constructor

Definition at line 47 of file CompiledSimUtilizationStats.cc.

47 {

48}

◆ ~CompiledSimUtilizationStats()

CompiledSimUtilizationStats::~CompiledSimUtilizationStats ( )

virtual

Default destructor

Definition at line 53 of file CompiledSimUtilizationStats.cc.

53 {

54}

Member Function Documentation

◆ calculate()

void CompiledSimUtilizationStats::calculate	(	const TTAProgram::Program &	program,
		const CompiledSimulation &	compiledSim
	)

virtual

Definition at line 57 of file CompiledSimUtilizationStats.cc.

                                           {

    // Loop all instructions of a program
    const Instruction* instr = &program.firstInstruction();

    int moveNumber = 0;

    while (instr != &NullInstruction::instance()) {

        ExecutableInstruction executableInstr;

        // Add moves and their execution counts
        for (int i = 0; i < instr->moveCount(); ++i, moveNumber++) {
            ClockCycleCount execCount = compiledSim.moveExecutionCount(
                moveNumber, instr->address().location());
            DummyExecutableMove* move = new DummyExecutableMove(execCount);
            executableInstr.addExecutableMove(move);
        }

        // Calculate execution counts so far
        UtilizationStats::calculateForInstruction(*instr, executableInstr);

        instr = &program.nextInstruction(*instr);
    }
}

References ExecutableInstruction::addExecutableMove(), TTAProgram::Instruction::address(), UtilizationStats::calculateForInstruction(), TTAProgram::NullInstruction::instance(), TTAProgram::Address::location(), TTAProgram::Instruction::moveCount(), CompiledSimulation::moveExecutionCount(), and program.

Referenced by SimulatorFrontend::utilizationStatistics().

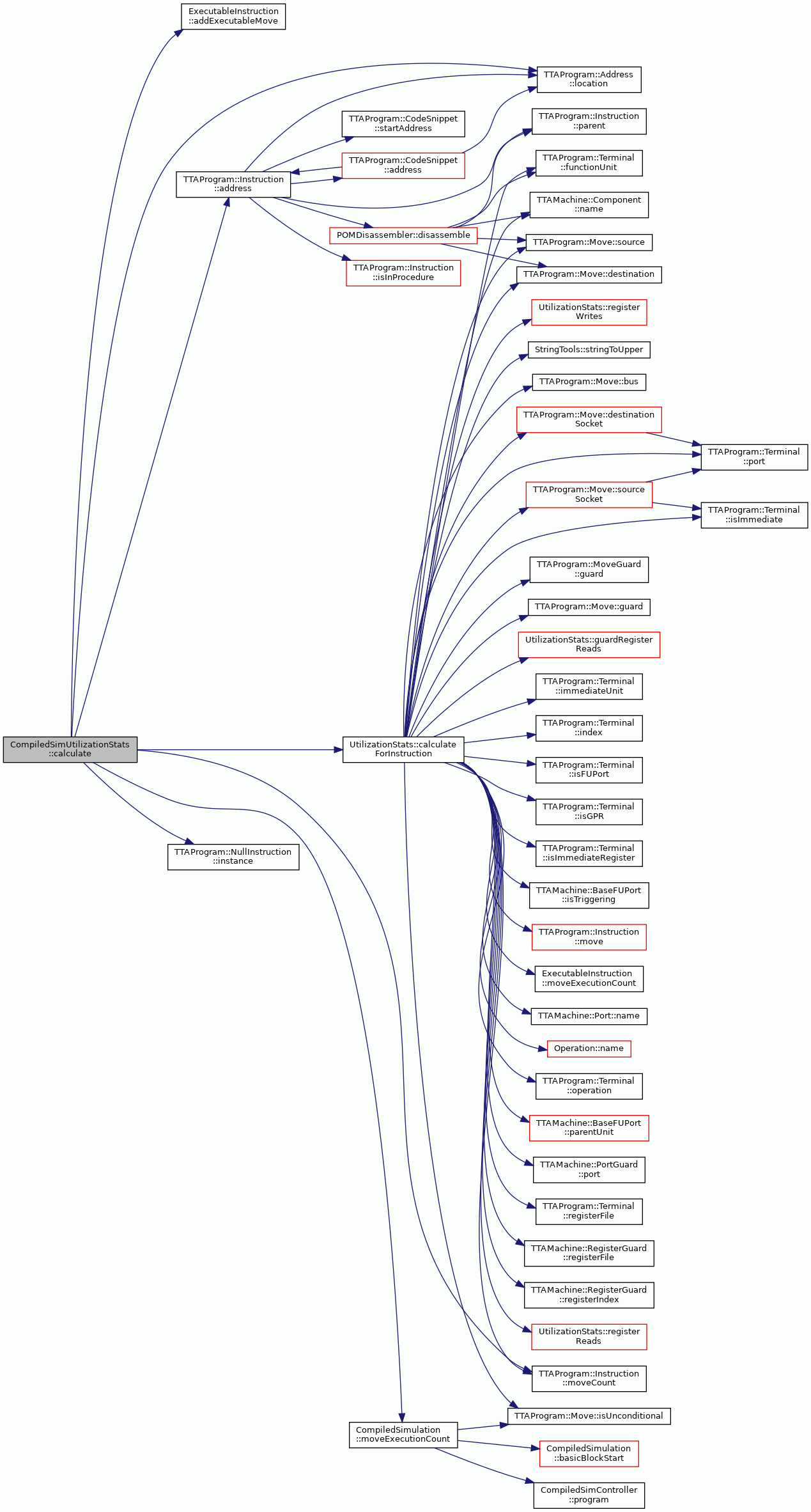

Here is the call graph for this function:

The documentation for this class was generated from the following files:
