CopyComponentCmd Class Reference

#include <CopyComponentCmd.hh>

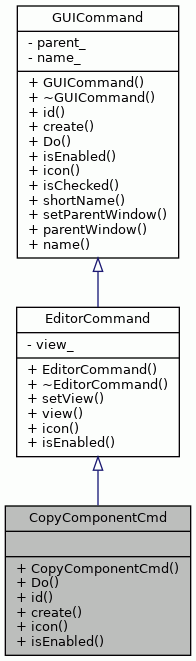

Inheritance diagram for CopyComponentCmd:

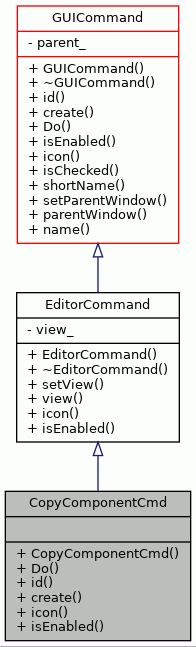

Collaboration diagram for CopyComponentCmd:

Public Member Functions
	CopyComponentCmd ()
virtual bool	Do ()
virtual int	id () const
virtual CopyComponentCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for copying machine components to the clipboard.

Definition at line 43 of file CopyComponentCmd.hh.

Constructor & Destructor Documentation

CopyComponentCmd()

CopyComponentCmd::CopyComponentCmd

(

)

The Constructor.

Definition at line 50 of file CopyComponentCmd.cc.

                                  :
    EditorCommand(ProDeConstants::CMD_NAME_COPY) {
}

Referenced by create().

Member Function Documentation

create()

CopyComponentCmd * CopyComponentCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 108 of file CopyComponentCmd.cc.

                               {
    return new CopyComponentCmd();
}

References CopyComponentCmd().

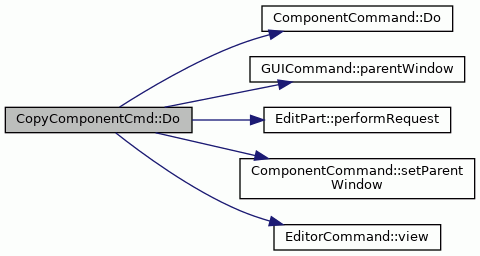

Here is the call graph for this function:

Do()

bool CopyComponentCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 62 of file CopyComponentCmd.cc.

                     {

    assert(view() != NULL);

    // send copy request to the selected EditPart
    Request* copyRequest = new Request(Request::COPY_REQUEST);
    EditPart* selected = dynamic_cast<MDFView*>(view())->selection();
    if (selected == NULL) {
        return false;
    }
    ComponentCommand* command = selected->performRequest(copyRequest);

    // execute the returned command
    if (command == NULL) {
        return false;
    } else {
        dynamic_cast<MDFView*>(view())->clearSelection();
        command->setParentWindow(parentWindow());

    // Copying component to clipboard doesn't modify model.
    // The model is not pushed into the undo stack.
        bool result = command->Do();

        return result;
    }

}

References assert, Request::COPY_REQUEST, ComponentCommand::Do(), GUICommand::parentWindow(), EditPart::performRequest(), ComponentCommand::setParentWindow(), and EditorCommand::view().

Here is the call graph for this function:

icon()

string CopyComponentCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Returns

Full path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 120 of file CopyComponentCmd.cc.

                             {
    return ProDeConstants::CMD_ICON_COPY;
}

References ProDeConstants::CMD_ICON_COPY.

id()

int CopyComponentCmd::id ( ) const

virtual

Returns command identifier of this command.

Returns

ID for this command to be used in menus and toolbars.

Implements GUICommand.

Definition at line 97 of file CopyComponentCmd.cc.

                           {
    return ProDeConstants::COMMAND_COPY;
}

References ProDeConstants::COMMAND_COPY.

isEnabled()

bool CopyComponentCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a component is selected, and the selected component can be copied.

Returns

True, if a component is selected.

Reimplemented from EditorCommand.

Definition at line 135 of file CopyComponentCmd.cc.

                            {
    wxDocManager* manager = wxGetApp().docManager();

    MDFView* mdfView = dynamic_cast<MDFView*>(manager->GetCurrentView());
    if (mdfView == NULL) {
    return false;
    }

    EditPart* selected = mdfView->selection();
    Request* copyRequest = new Request(Request::COPY_REQUEST);
    if (selected == NULL || !(selected->canHandle(copyRequest))) {
    delete copyRequest;
    return false;
    }
    delete copyRequest;
    return true;
}

References EditPart::canHandle(), Request::COPY_REQUEST, and MDFView::selection().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• CopyComponentCmd.hh
• CopyComponentCmd.cc
