#include <DisassemblyAnnotation.hh>

Inheritance diagram for DisassemblyAnnotation:

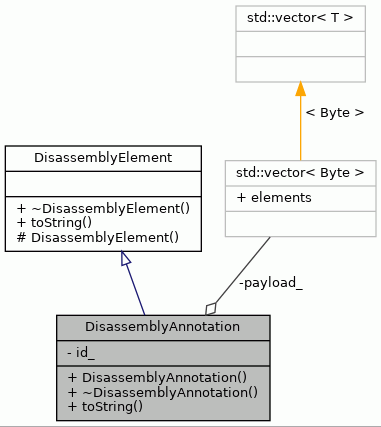

Collaboration diagram for DisassemblyAnnotation:

Public Member Functions
	DisassemblyAnnotation (Word id, const std::vector< Byte > &payload)

virtual	~DisassemblyAnnotation ()

virtual std::string	toString () const

Public Member Functions inherited from DisassemblyElement
virtual	~DisassemblyElement ()

Private Attributes
Word	id_
	Annotation id.

std::vector< Byte >	payload_
	Name of the operation.

Additional Inherited Members
Protected Member Functions inherited from DisassemblyElement
	DisassemblyElement ()

Detailed Description

Represents an annotation.

Definition at line 44 of file DisassemblyAnnotation.hh.

Constructor & Destructor Documentation

◆ DisassemblyAnnotation()

DisassemblyAnnotation::DisassemblyAnnotation	(	Word	id,
		const std::vector< Byte > &	payload
	)

Constructor.

Parameters

id	Id of the annotation.
payload	Data for the annotation.

Definition at line 45 of file DisassemblyAnnotation.cc.

                                            :
    DisassemblyElement(), id_(id), payload_(payload) {
}

◆ ~DisassemblyAnnotation()

DisassemblyAnnotation::~DisassemblyAnnotation ( )

virtual

Destructor.

Definition at line 53 of file DisassemblyAnnotation.cc.

53 {

54}

Member Function Documentation

◆ toString()

string DisassemblyAnnotation::toString ( ) const

virtual

Returns disassembly of the annotation.

Implements DisassemblyElement.

Definition at line 61 of file DisassemblyAnnotation.cc.

                                      {

    std::stringstream retVal;
    retVal << "{" << std::hex << "0x" << id_;

    for (unsigned int i = 0; i < payload_.size(); i++) {
        retVal << " " << int(payload_[i]);
    }

    retVal << "}";
    return retVal.str();
}

References id_, and payload_.

Referenced by DisassemblyImmediateAssignment::toString(), DisassemblyInstruction::toString(), and DisassemblyMove::toString().

Member Data Documentation

◆ id_

Word DisassemblyAnnotation::id_

private

Annotation id.

Definition at line 52 of file DisassemblyAnnotation.hh.

Referenced by toString().

◆ payload_

std::vector<Byte> DisassemblyAnnotation::payload_

private

Name of the operation.

Definition at line 54 of file DisassemblyAnnotation.hh.
