EPSGenerator Class Reference

#include <EPSGenerator.hh>

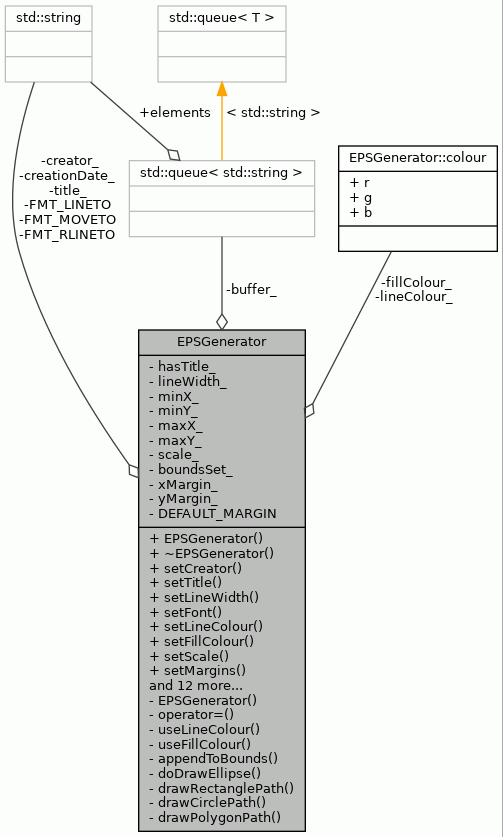

Collaboration diagram for EPSGenerator:

Classes
struct	colour

Public Member Functions
	EPSGenerator ()
	~EPSGenerator ()
void	setCreator (std::string creator)
void	setTitle (std::string title)
void	setLineWidth (unsigned width)
void	setFont (unsigned size, std::string fontName="Courier-Bold")
void	setLineColour (double r, double g, double b)
void	setFillColour (double r, double g, double b)
void	setScale (double scale)
void	setMargins (unsigned x, unsigned y)
void	drawRectangle (int x, int y, unsigned width, unsigned height)
void	drawFilledRectangle (int x, int y, unsigned width, unsigned height)
void	drawCircle (int x, int y, unsigned radius)
void	drawFilledCircle (int x, int y, unsigned radius)
void	drawEllipse (int x, int y, unsigned width, unsigned height)
void	drawFilledEllipse (int x, int y, unsigned width, unsigned height)
void	drawPolygon (const VertexList &vertices)
void	drawFilledPolygon (const VertexList &vertices)
void	drawText (int x, int y, std::string text)
void	drawLine (int llx, int lly, int urx, int ury)
void	clearBuffer ()
void	writeEPS (std::ostream &stream)

Private Member Functions
	EPSGenerator (const EPSGenerator &)
	Copying forbidden.
EPSGenerator &	operator= (const EPSGenerator &)
	Assignment forbidden.
void	useLineColour ()
void	useFillColour ()
void	appendToBounds (int x, int y)
void	doDrawEllipse (int x, int y, unsigned width, unsigned height, bool fill)
void	drawRectanglePath (int x, int y, unsigned width, unsigned height)
void	drawCirclePath (int x, int y, unsigned radius)
void	drawPolygonPath (const VertexList &vertices)

Private Attributes
bool	hasTitle_
	True, if the EPS file has a title.
std::string	title_
	Title of the EPS file.
std::string	creator_
	String describing the creator of the document.
std::string	creationDate_
	String describing the creation date of the EPS file.
std::queue< std::string >	buffer_
	Buffer for the .eps code to be written.
unsigned	lineWidth_
	Current width of the lines drawn.
int	minX_
	Minimum x-coordinate used before scaling & translation.
int	minY_
	Minimum y-coordinate used before scaling & translation.
int	maxX_
	Maximum x-coordinate used before scaling & translation.
int	maxY_
	Maximum y-coordinate used before scaling & translation.
double	scale_
	Final scaling factor for the eps file.
bool	boundsSet_
	True, if a point has been added to the bounds.
unsigned	xMargin_
	Margin to add on the left and right side of the figure in pixels.
unsigned	yMargin_
	Margin to add on the top and bottom side of the figure in pixels.
colour	lineColour_
	Current drawing colour for lines.
colour	fillColour_
	Current colour for filling shape backgrounds.

Static Private Attributes
static const unsigned	DEFAULT_MARGIN = 20
	Default margin width.
static const std::string	FMT_MOVETO = " %1% %2% moveto"
	Format string for postscript moveto command.
static const std::string	FMT_LINETO = " %1% %2% lineto"
	Format string for postscript lineto command.
static const std::string	FMT_RLINETO = " %1% %2% rlineto"
	Format string for postscript rlineto command.

Detailed Description

EPSGenerator is a tool for drawing vector graphics to an eps file.

The drawing is done into a buffer using various drawing methods. Once the drawing is done, the buffer which contains a valid .eps file can be written to an output stream.

The coordinate system used by EPSGenerator corresponds to the Postscript coordinate system. Origo is in the lower left corner of the image and one pixel corresponds to one 72th of an inch.

Definition at line 54 of file EPSGenerator.hh.

Constructor & Destructor Documentation

EPSGenerator() [1/2]

EPSGenerator::EPSGenerator

(

)

The Constructor.

Definition at line 51 of file EPSGenerator.cc.

                           :
    hasTitle_(false), title_(""), creator_("TCE EPS Generator"),
    lineWidth_(1), minX_(0), minY_(0), maxX_(0), maxY_(0),
    scale_(1) ,boundsSet_(false), xMargin_(DEFAULT_MARGIN),
    yMargin_(DEFAULT_MARGIN) {

    time_t currentTime;
    time(&currentTime);
    creationDate_ = ctime(&currentTime);

    fillColour_.r = 0;
    fillColour_.g = 0;
    fillColour_.b = 0;
    lineColour_.r = 0;
    lineColour_.g = 0;
    lineColour_.b = 0;
}

References EPSGenerator::colour::b, creationDate_, fillColour_, EPSGenerator::colour::g, lineColour_, and EPSGenerator::colour::r.

~EPSGenerator()

EPSGenerator::~EPSGenerator

(

)

The Destructor.

Definition at line 73 of file EPSGenerator.cc.

                            {
    clearBuffer();
}

References clearBuffer().

Here is the call graph for this function:

EPSGenerator() [2/2]

EPSGenerator::EPSGenerator ( const EPSGenerator &  )

private

Copying forbidden.

Member Function Documentation

appendToBounds()

void EPSGenerator::appendToBounds ( int  x, int  y  )

private

Stretches eps bounds so that the given point is inside the bounds.

Definition at line 81 of file EPSGenerator.cc.

                                         {

    if (boundsSet_) {
        minX_ = (x < minX_) ? x : minX_;
        maxX_ = (x > maxX_) ? x : maxX_;
        minY_ = (y < minY_) ? y : minY_;
        maxY_ = (y > maxY_) ? y : maxY_;
    } else {
        boundsSet_ = true;
        minX_ = x;
        maxX_ = x;
        minY_ = y;
        maxY_ = y;
    }
}

References boundsSet_, maxX_, maxY_, minX_, and minY_.

Referenced by doDrawEllipse(), drawCirclePath(), drawLine(), drawPolygonPath(), and drawRectanglePath().

clearBuffer()

void EPSGenerator::clearBuffer

(

)

Clears the eps code buffer.

Definition at line 517 of file EPSGenerator.cc.

                          {
    while(!buffer_.empty()) {
        buffer_.pop();
    }
}

References buffer_.

Referenced by EPSDC::Clear(), and ~EPSGenerator().

doDrawEllipse()

void EPSGenerator::doDrawEllipse ( int  x, int  y, unsigned  width, unsigned  height, bool  fill  )

private

Writes path of an ellipse outline to the eps buffer.

Parameters

x	X-coordinate of the ellipse bounding box lower left corner.
y	Y-coordinate of the ellipse bounding box lower left corner.
width	Width of the ellipse.
height	Height of the ellipse.
fill	True, if the ellipse shoud be filled.

Definition at line 348 of file EPSGenerator.cc.

                                                              {

    appendToBounds(x + width, y + height);
    appendToBounds(x, y);

    buffer_.push("");

    format fmtScale = format("1 %1% %2% div scale");
    format fmtTranslate = format("%1% %2% translate");
    fmtScale % width % height;
    fmtTranslate % (x + width / 2) % (y + height / 2);

    buffer_.push("gsave");
    buffer_.push(fmtTranslate.str());
    buffer_.push(fmtScale.str());


    std::string fmtEllipse = " 0 0 %4% 2 div 0 360 arc";

    boost::format ellipse = format(fmtEllipse) % x % y % width % height;
    buffer_.push("newpath");
    buffer_.push(ellipse.str());

    if (fill) {
        buffer_.push(" gsave");
        useFillColour();
        buffer_.push(" fill");
        buffer_.push(" grestore");
        useLineColour();
    }

    buffer_.push("stroke");
    buffer_.push("grestore");
}

References appendToBounds(), buffer_, useFillColour(), and useLineColour().

Referenced by drawEllipse(), and drawFilledEllipse().

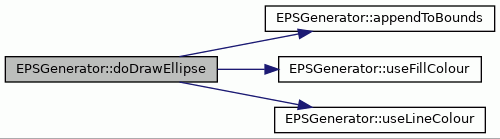

Here is the call graph for this function:

drawCircle()

void EPSGenerator::drawCircle	(	int	x,
		int	y,
		unsigned	radius
	)

Draws a circle.

Parameters

x	X-coordinate of the circle centre.
y	Y-coordinate of the circle centre.
radius	Radius of the circle.

Definition at line 262 of file EPSGenerator.cc.

                                                      {
    drawCirclePath(x, y, radius);
    buffer_.push("stroke");
}

References buffer_, and drawCirclePath().

Referenced by EPSDC::drawCircle().

Here is the call graph for this function:

drawCirclePath()

void EPSGenerator::drawCirclePath ( int  x, int  y, unsigned  radius  )

private

Writes path of a circle outline to the eps buffer.

Parameters

x	X-coordinate of the circle centre.
y	Y-coordinate of the circle centre.
radius	Radius of the circle.

Definition at line 294 of file EPSGenerator.cc.

                                                          {

    appendToBounds(x + radius, y + radius);
    appendToBounds(x - radius, y - radius);

    buffer_.push("");

    std::string fmtCircle = " %1% %2% %3% 0 360 arc";

    boost::format circle = format(fmtCircle) % x % y % radius;
    buffer_.push("newpath");
    buffer_.push(circle.str());
}

References appendToBounds(), and buffer_.

Referenced by drawCircle(), and drawFilledCircle().

Here is the call graph for this function:

drawEllipse()

void EPSGenerator::drawEllipse	(	int	x,
		int	y,
		unsigned	width,
		unsigned	height
	)

Draws outline of an ellipse.

Parameters

x	X-coordinate of the ellipse bounding box lower left corner.
y	Y-coordinate of the ellipse bounding box lower left corner.
width	Width of the ellipse.
height	Height of the ellipse.

Definition at line 318 of file EPSGenerator.cc.

                                                                       {
    doDrawEllipse(x, y, width, height, false);
}

References doDrawEllipse().

Referenced by EPSDC::DoDrawEllipse().

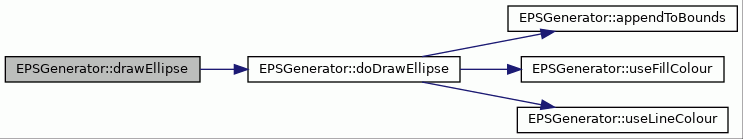

Here is the call graph for this function:

drawFilledCircle()

void EPSGenerator::drawFilledCircle	(	int	x,
		int	y,
		unsigned	radius
	)

Draws a circle filled with the fill colour.

Parameters

x	X-coordinate of the circle centre.
y	Y-coordinate of the circle centre.
radius	Radius of the circle.

Definition at line 275 of file EPSGenerator.cc.

                                                            {
    drawCirclePath(x, y, radius);
    buffer_.push(" gsave");
    useFillColour();
    buffer_.push(" fill");
    buffer_.push(" grestore");
    useLineColour();
    buffer_.push("stroke");
}

References buffer_, drawCirclePath(), useFillColour(), and useLineColour().

Referenced by EPSDC::drawCircle().

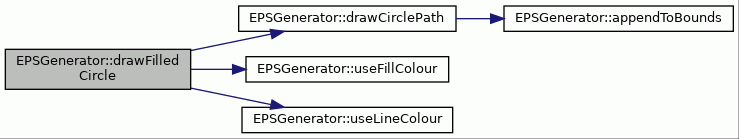

Here is the call graph for this function:

drawFilledEllipse()

void EPSGenerator::drawFilledEllipse	(	int	x,
		int	y,
		unsigned	width,
		unsigned	height
	)

Draws a filled ellipse.

Parameters

x	X-coordinate of the ellipse bounding box lower left corner.
y	Y-coordinate of the ellipse bounding box lower left corner.
width	Width of the ellipse.
height	Height of the ellipse.

Definition at line 332 of file EPSGenerator.cc.

                                                   {

    doDrawEllipse(x, y, width, height, true);
}

References doDrawEllipse().

Referenced by EPSDC::DoDrawEllipse().

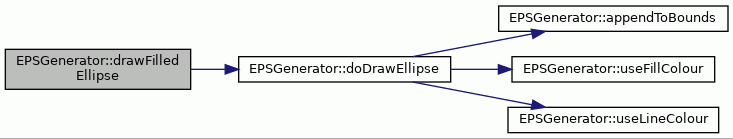

Here is the call graph for this function:

drawFilledPolygon()

void EPSGenerator::drawFilledPolygon

(

const VertexList &

vertices

)

Draws a filled polygon.

Parameters

vertices

Vector of at least three coordinate pairs which are the polygon vertices.

Definition at line 206 of file EPSGenerator.cc.

                                                          {

    assert(vertices.size() > 2);
    drawPolygonPath(vertices);
    buffer_.push(" gsave");
    useFillColour();
    buffer_.push(" fill");
    buffer_.push(" grestore");
    useLineColour();
    buffer_.push("stroke");
}

References assert, buffer_, drawPolygonPath(), VertexList::size(), useFillColour(), and useLineColour().

Referenced by EPSDC::DoDrawPolygon().

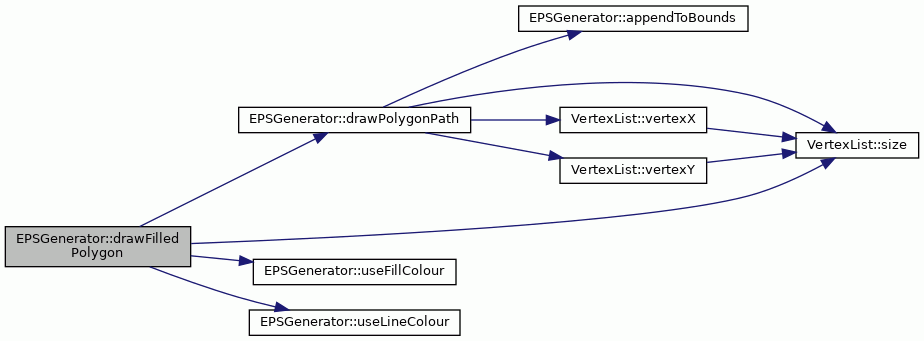

Here is the call graph for this function:

drawFilledRectangle()

void EPSGenerator::drawFilledRectangle	(	int	x,
		int	y,
		unsigned	width,
		unsigned	height
	)

Draws a rectangle fileld with the fill colour set.

Parameters

x	Lower left corner x-coordinate of the rectangle.
y	Lower left corner y-coordinate of the rectangle.
width	Width of the rectangle.
height	Height of the rectangle.

Definition at line 120 of file EPSGenerator.cc.

                                                   {

    drawRectanglePath(x, y, width, height);
    buffer_.push(" gsave");
    useFillColour();
    buffer_.push(" fill");
    buffer_.push(" grestore");
    useLineColour();
    buffer_.push("stroke");
}

References buffer_, drawRectanglePath(), useFillColour(), and useLineColour().

Referenced by EPSDC::DoDrawRectangle().

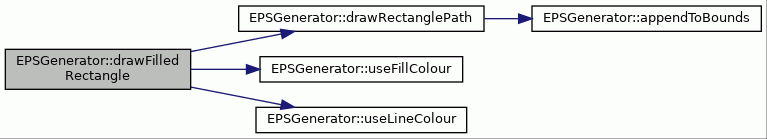

Here is the call graph for this function:

drawLine()

void EPSGenerator::drawLine	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)

Draws a line.

Parameters

x1	X-coordinate of the first end point of the line.
y1	Y-coordinate of the first end point of the line.
x2	X-coordinate of the second end point of the line.
y2	Y-coordinate of the second end point of the line.

Definition at line 171 of file EPSGenerator.cc.

                                                     {

    appendToBounds(x1, y1);
    appendToBounds(x2, y2);

    format move = format(FMT_MOVETO) % x1 % y1;
    format line = format(FMT_LINETO) % x2 % y2;
    buffer_.push("");
    buffer_.push("newpath");
    buffer_.push(move.str());
    buffer_.push(line.str() );
    buffer_.push("stroke");
}

References appendToBounds(), buffer_, FMT_LINETO, and FMT_MOVETO.

Referenced by EPSDC::DoDrawLine().

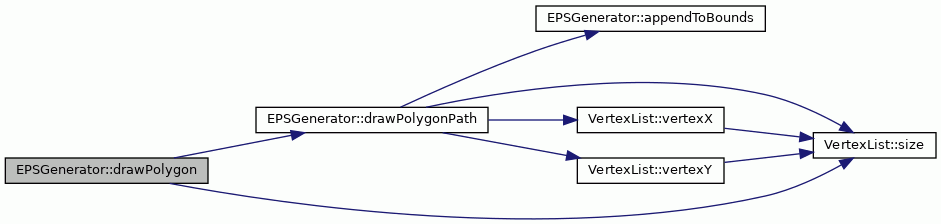

Here is the call graph for this function:

drawPolygon()

void EPSGenerator::drawPolygon

(

const VertexList &

vertices

)

Draws a polygon outline.

Parameters

vertices

Vector of at least three coordinate pairs which are the polygon vertices.

Definition at line 192 of file EPSGenerator.cc.

                                                    {
    assert(vertices.size() > 2);
    drawPolygonPath(vertices);
    buffer_.push("stroke");
}

References assert, buffer_, drawPolygonPath(), and VertexList::size().

Referenced by EPSDC::DoDrawPolygon().

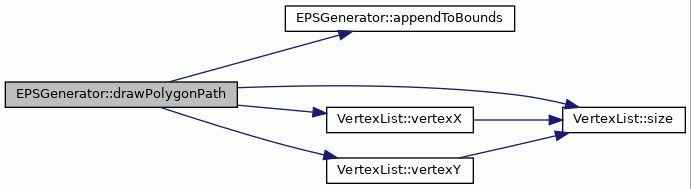

Here is the call graph for this function:

drawPolygonPath()

void EPSGenerator::drawPolygonPath ( const VertexList &  vertices )

private

Writes path of a polygon outline to the eps buffer.

Parameters

vertices

Vector of at least three coordinate pairs which are the polygon vertices.

Definition at line 225 of file EPSGenerator.cc.

                                                        {

    assert(vertices.size() > 2);

    format move(FMT_MOVETO);

    int x = vertices.vertexX(0);
    int y = vertices.vertexY(0);
    appendToBounds(x, y);
    move % x % y;

    buffer_.push("");
    buffer_.push("newpath");
    buffer_.push(move.str());

    for (unsigned i = 1; i < vertices.size(); i++) {

        x = vertices.vertexX(i);
        y = vertices.vertexY(i);
        appendToBounds(x, y);
        format lineto(FMT_LINETO);
        lineto % x % y;
        buffer_.push(lineto.str());
    }

    buffer_.push(" closepath");
}

References appendToBounds(), assert, buffer_, FMT_LINETO, FMT_MOVETO, VertexList::size(), VertexList::vertexX(), and VertexList::vertexY().

Referenced by drawFilledPolygon(), and drawPolygon().

Here is the call graph for this function:

drawRectangle()

void EPSGenerator::drawRectangle	(	int	x,
		int	y,
		unsigned	width,
		unsigned	height
	)

Draws a rectangle.

Parameters

x	Lower left corner x-coordinate of the rectangle.
y	Lower left corner y-coordinate of the rectangle.
width	Width of the rectangle.
height	Height of the rectangle.

Definition at line 106 of file EPSGenerator.cc.

                                                                         {
    drawRectanglePath(x, y, width, height);
    buffer_.push("stroke");
}

References buffer_, and drawRectanglePath().

Referenced by EPSDC::DoDrawRectangle().

Here is the call graph for this function:

drawRectanglePath()

void EPSGenerator::drawRectanglePath ( int  x, int  y, unsigned  width, unsigned  height  )

private

Writes path of a rectangle outline to the eps buffer.

Parameters

x	Lower left corner x-coordinate of the rectangle.
y	Lower left corner y-coordinate of the rectangle.
width	Width of the rectangle.
height	Height of the rectangle.

Definition at line 141 of file EPSGenerator.cc.

                                                    {

    appendToBounds(x, y);
    appendToBounds(x + width, y + height);

    format move = format(FMT_MOVETO) % x % y;
    format line1 = format(FMT_RLINETO) % width % 0;
    format line2 = format(FMT_RLINETO) % 0 % height;
    format line3 = format(FMT_RLINETO) % (-1 * (int)width) % 0;

    buffer_.push("");
    buffer_.push("newpath");
    buffer_.push(move.str());
    buffer_.push(line1.str());
    buffer_.push(line2.str());
    buffer_.push(line3.str());
    buffer_.push(" closepath");
}

References appendToBounds(), buffer_, FMT_MOVETO, and FMT_RLINETO.

Referenced by drawFilledRectangle(), and drawRectangle().

Here is the call graph for this function:

drawText()

void EPSGenerator::drawText	(	int	x,
		int	y,
		std::string	text
	)

Draws text to the eps with the current font set with setFont method.

Parameters

x	X-coordinate of the text bounds lower left corner.
y	Y-coordinate of the text bounds lower left corner.
text	Text to draw.

Definition at line 392 of file EPSGenerator.cc.

                                                   {

    format fmtMoveTo("%1% %2% moveto");
    format fmtShowText(" (%1%) show");

    fmtMoveTo % x % y;
    fmtShowText % text;

    buffer_.push("");
    buffer_.push(fmtMoveTo.str());
    buffer_.push(fmtShowText.str());

}

References buffer_.

Referenced by EPSDC::DoDrawText().

operator=()

EPSGenerator & EPSGenerator::operator= ( const EPSGenerator &  )

private

Assignment forbidden.

setCreator()

void EPSGenerator::setCreator

(

std::string

creator

)

Sets the creator string of the image.

The creator string will be set as the Creator comment of the generated eps file.

Parameters

creator

String describing the creator of the eps-file.

Definition at line 415 of file EPSGenerator.cc.

                                          {
    creator_ = creator;
}

References creator_.

Referenced by EPSDC::setCreator().

setFillColour()

void EPSGenerator::setFillColour	(	double	r,
		double	g,
		double	b
	)

Sets the shape filling colour.

Parameters

r	Red component scaled between 0 and 1.
g	Green component scaled between 0 and 1.
b	Blue component scaled between 0 and 1.

Definition at line 499 of file EPSGenerator.cc.

                                                        {
    if (r < 0 || g < 0 || b < 0 || r > 1 || g > 1 || b > 1) {
        std::string error =
            "Colour component values must be between 0 and 1.";
        std::string proc = "EPSGenerator::setFillColour";
        OutOfRange e(__FILE__, __LINE__, proc, error);
        throw e;
    }

    fillColour_.r = r;
    fillColour_.g = g;
    fillColour_.b = b;
}

References EPSGenerator::colour::b, fillColour_, EPSGenerator::colour::g, and EPSGenerator::colour::r.

Referenced by EPSDC::setFillColour().

setFont()

void EPSGenerator::setFont	(	unsigned	size,
		std::string	fontName = "Courier-Bold"
	)

Sets the font face and size.

Parameters

size	Font height in pixels.
fontName	Name of the font. The name must be valid post script font name.

Definition at line 460 of file EPSGenerator.cc.

                                                       {
    format setFont = format("/%2% findfont %1% scalefont setfont");
    setFont % size % fontName;
    buffer_.push("");
    buffer_.push(setFont.str());
}

References buffer_, and setFont().

Referenced by EPSDC::SetFont(), and setFont().

Here is the call graph for this function:

setLineColour()

void EPSGenerator::setLineColour	(	double	r,
		double	g,
		double	b
	)

Sets the line drawing colour.

Parameters

r	Red component scaled between 0 and 1.
g	Green component scaled between 0 and 1.
b	Blue component scaled between 0 and 1.

Definition at line 475 of file EPSGenerator.cc.

                                                        {
    if (r < 0 || g < 0 || b < 0 || r > 1 || g > 1 || b > 1) {
        std::string error =
            "Colour component values must be between 0 and 1.";
        std::string proc = "EPSGenerator::setLineColour";
        OutOfRange e(__FILE__, __LINE__, proc, error);
        throw e;
    }

    lineColour_.r = r;
    lineColour_.g = g;
    lineColour_.b = b;

    useLineColour();
}

References EPSGenerator::colour::b, EPSGenerator::colour::g, lineColour_, EPSGenerator::colour::r, and useLineColour().

Referenced by EPSDC::setLineColour().

Here is the call graph for this function:

setLineWidth()

void EPSGenerator::setLineWidth

(

unsigned

width

)

Sets the line width of the shapes that are drawn after this function call.

Parameters

width

Width of the lines drawn to the eps.

Definition at line 444 of file EPSGenerator.cc.

                                         {
    lineWidth_ = width;
    buffer_.push("");
    std::string setlinewidth = "%1% setlinewidth";
    buffer_.push(str(format(setlinewidth) % width));
}

References buffer_, and lineWidth_.

Referenced by EPSDC::SetPen().

setMargins()

void EPSGenerator::setMargins	(	unsigned	x,
		unsigned	y
	)

Sets the eps margins.

Parameters

x	Left and right side margin.
y	Top and bottom margin.

Definition at line 594 of file EPSGenerator.cc.

                                               {
    xMargin_ = x;
    yMargin_ = y;
}

References xMargin_, and yMargin_.

setScale()

void EPSGenerator::setScale

(

double

scale

)

Sets the coordinate system scaling factors for the coordinate axels.

This function sets only the final scaling factor of the image. Only the last scaling factor set before calling writeEPS has effect on the final eps file.

Parameters

scale

Scaling factor.

Definition at line 576 of file EPSGenerator.cc.

                                   {
    if (scale < 0) {
        std::string error = "Scaling factor must be greater than zero.";
        std::string proc = "EPSGenerator::setScale";
        OutOfRange e(__FILE__, __LINE__, proc, error);
        throw e;
    }

    scale_ = scale;
}

References scale_.

setTitle()

void EPSGenerator::setTitle

(

std::string

title

)

Sets the title of the eps file.

Title string will be set as the title comment of the generated eps file. If the title string is empty, the title comment will be omitted.

Parameters

title

Title of the eps file.

Definition at line 428 of file EPSGenerator.cc.

                                      {

    if (title.length() > 0) {
        hasTitle_ = true;
    } else {
        hasTitle_ = false;
    }
    title_ = title;
}

References hasTitle_, and title_.

Referenced by EPSDC::setTitle().

useFillColour()

void EPSGenerator::useFillColour ( )

private

Sets the eps drawing colour to the current filling colour.

Definition at line 614 of file EPSGenerator.cc.

                            {
    format setColour("%1% %2% %3% setrgbcolor");
    setColour % fillColour_.r % fillColour_.g % fillColour_.b;
    buffer_.push(setColour.str());
}

References EPSGenerator::colour::b, buffer_, fillColour_, EPSGenerator::colour::g, and EPSGenerator::colour::r.

Referenced by doDrawEllipse(), drawFilledCircle(), drawFilledPolygon(), and drawFilledRectangle().

useLineColour()

void EPSGenerator::useLineColour ( )

private

Sets the eps drawing colour to the current line drawing colour.

Definition at line 604 of file EPSGenerator.cc.

                            {
    format setColour("%1% %2% %3% setrgbcolor");
    setColour % lineColour_.r % lineColour_.g % lineColour_.b;
    buffer_.push(setColour.str());
}

References EPSGenerator::colour::b, buffer_, EPSGenerator::colour::g, lineColour_, and EPSGenerator::colour::r.

Referenced by doDrawEllipse(), drawFilledCircle(), drawFilledPolygon(), drawFilledRectangle(), and setLineColour().

writeEPS()

void EPSGenerator::writeEPS

(

std::ostream &

ostream

)

Generates an eps file which contains the graphics client drew.

Parameters

ostream

Output stream to write the eps file contents to.

Definition at line 529 of file EPSGenerator.cc.

                                          {

    int w = (int)(scale_*(maxX_ - minX_ + 2 * xMargin_));
    int h = (int)(scale_*(maxY_ - minY_ + 2 * yMargin_));

    // Write eps headers.
    ostream << "%!PS-Adobe-3.0 EPSF-3.0" << endl;
    ostream << "%%BoundingBox: 0 0 " << w << " " << h << " " << endl;
    if (hasTitle_) {
        ostream << "%%Title: (" << title_ << ")" << endl;
    }
    ostream << "%%Creator: " << creator_ << endl;
    ostream << "%%CreationDate: " << creationDate_ << endl;
    ostream << "%%EndComments" << endl;


    // Set scaling factor & translation. The coordinate system is translated
    // so that the minimum x and y coordinates are zero.
    ostream << scale_ << " " << scale_ << " scale" << endl;
    ostream << minX_ * -1 + (int)xMargin_ << " "
            << minY_ * -1 + (int)yMargin_ << " translate" << endl;


    // Write the postscript drawing code from the code buffer to the
    // output stream.
    while (!buffer_.empty()) {
        std::string line = buffer_.front();
        buffer_.pop();
        ostream << line << endl;
    }
    ostream << endl << "showpage" << endl << endl;

    // Write end of file comment.
    ostream << "%%EOF" << endl;
}

References buffer_, creationDate_, creator_, hasTitle_, maxX_, maxY_, minX_, minY_, scale_, title_, xMargin_, and yMargin_.

Referenced by EPSDC::writeToStream().

Member Data Documentation

boundsSet_

bool EPSGenerator::boundsSet_

private

True, if a point has been added to the bounds.

Definition at line 145 of file EPSGenerator.hh.

Referenced by appendToBounds().

buffer_

std::queue<std::string> EPSGenerator::buffer_

private

Buffer for the .eps code to be written.

Definition at line 127 of file EPSGenerator.hh.

Referenced by clearBuffer(), doDrawEllipse(), drawCircle(), drawCirclePath(), drawFilledCircle(), drawFilledPolygon(), drawFilledRectangle(), drawLine(), drawPolygon(), drawPolygonPath(), drawRectangle(), drawRectanglePath(), drawText(), setFont(), setLineWidth(), useFillColour(), useLineColour(), and writeEPS().

creationDate_

std::string EPSGenerator::creationDate_

private

String describing the creation date of the EPS file.

Definition at line 125 of file EPSGenerator.hh.

Referenced by EPSGenerator(), and writeEPS().

creator_

std::string EPSGenerator::creator_

private

String describing the creator of the document.

Definition at line 123 of file EPSGenerator.hh.

Referenced by setCreator(), and writeEPS().

DEFAULT_MARGIN

const unsigned EPSGenerator::DEFAULT_MARGIN = 20

staticprivate

Default margin width.

Definition at line 158 of file EPSGenerator.hh.

fillColour_

colour EPSGenerator::fillColour_

private

Current colour for filling shape backgrounds.

Definition at line 155 of file EPSGenerator.hh.

Referenced by EPSGenerator(), setFillColour(), and useFillColour().

FMT_LINETO

const std::string EPSGenerator::FMT_LINETO = " %1% %2% lineto"

staticprivate

Format string for postscript lineto command.

Definition at line 163 of file EPSGenerator.hh.

Referenced by drawLine(), and drawPolygonPath().

FMT_MOVETO

const std::string EPSGenerator::FMT_MOVETO = " %1% %2% moveto"

staticprivate

Format string for postscript moveto command.

Definition at line 161 of file EPSGenerator.hh.

Referenced by drawLine(), drawPolygonPath(), and drawRectanglePath().

FMT_RLINETO

const std::string EPSGenerator::FMT_RLINETO = " %1% %2% rlineto"

staticprivate

Format string for postscript rlineto command.

Definition at line 165 of file EPSGenerator.hh.

Referenced by drawRectanglePath().

hasTitle_

bool EPSGenerator::hasTitle_

private

True, if the EPS file has a title.

Definition at line 118 of file EPSGenerator.hh.

Referenced by setTitle(), and writeEPS().

lineColour_

colour EPSGenerator::lineColour_

private

Current drawing colour for lines.

Definition at line 153 of file EPSGenerator.hh.

Referenced by EPSGenerator(), setLineColour(), and useLineColour().

lineWidth_

unsigned EPSGenerator::lineWidth_

private

Current width of the lines drawn.

Definition at line 130 of file EPSGenerator.hh.

Referenced by setLineWidth().

maxX_

int EPSGenerator::maxX_

private

Maximum x-coordinate used before scaling & translation.

Definition at line 137 of file EPSGenerator.hh.

Referenced by appendToBounds(), and writeEPS().

maxY_

int EPSGenerator::maxY_

private

Maximum y-coordinate used before scaling & translation.

Definition at line 139 of file EPSGenerator.hh.

Referenced by appendToBounds(), and writeEPS().

minX_

int EPSGenerator::minX_

private

Minimum x-coordinate used before scaling & translation.

Definition at line 133 of file EPSGenerator.hh.

Referenced by appendToBounds(), and writeEPS().

minY_

int EPSGenerator::minY_

private

Minimum y-coordinate used before scaling & translation.

Definition at line 135 of file EPSGenerator.hh.

Referenced by appendToBounds(), and writeEPS().

scale_

double EPSGenerator::scale_

private

Final scaling factor for the eps file.

Definition at line 142 of file EPSGenerator.hh.

Referenced by setScale(), and writeEPS().

title_

std::string EPSGenerator::title_

private

Title of the EPS file.

Definition at line 120 of file EPSGenerator.hh.

Referenced by setTitle(), and writeEPS().

xMargin_

unsigned EPSGenerator::xMargin_

private

Margin to add on the left and right side of the figure in pixels.

Definition at line 148 of file EPSGenerator.hh.

Referenced by setMargins(), and writeEPS().

yMargin_

unsigned EPSGenerator::yMargin_

private

Margin to add on the top and bottom side of the figure in pixels.

Definition at line 150 of file EPSGenerator.hh.

Referenced by setMargins(), and writeEPS().

---

The documentation for this class was generated from the following files:

• EPSGenerator.hh
• EPSGenerator.cc
