ExplorerPluginParameter Class Reference

#include <ExplorerPluginParameter.hh>

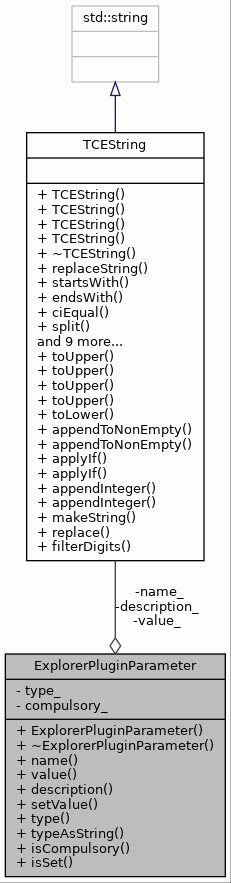

Collaboration diagram for ExplorerPluginParameter:

Public Member Functions
	ExplorerPluginParameter (const std::string &name, ExplorerPluginParameterType type, bool compulsory, const TCEString value, const TCEString description="")
virtual	~ExplorerPluginParameter ()
TCEString	name () const
TCEString	value () const
TCEString	description () const
void	setValue (const std::string &value)
ExplorerPluginParameterType	type () const
TCEString	typeAsString () const
bool	isCompulsory () const
bool	isSet () const

Private Attributes
TCEString	name_
	Parameter name.
ExplorerPluginParameterType	type_
	Parameter type.
bool	compulsory_
	Is parameter compulsory.
TCEString	value_
	The value of the parameter as a string, empty if none set.
TCEString	description_
	The description (help text).

Detailed Description

Explorer plugin parameter class. Represents a parameter that an explorer plugin can have.

Definition at line 46 of file ExplorerPluginParameter.hh.

Constructor & Destructor Documentation

ExplorerPluginParameter()

ExplorerPluginParameter::ExplorerPluginParameter	(	const std::string &	name,
		ExplorerPluginParameterType	type,
		bool	compulsory,
		const TCEString	value,
		const TCEString	description = ""
	)

The constructor.

Definition at line 43 of file ExplorerPluginParameter.cc.

                                     :
        name_(name), type_(type), compulsory_(compulsory), value_(value),
        description_(description) {
}

~ExplorerPluginParameter()

ExplorerPluginParameter::~ExplorerPluginParameter ( )

virtual

The destructor.

Definition at line 58 of file ExplorerPluginParameter.cc.

                                                  {
}

Member Function Documentation

description()

TCEString ExplorerPluginParameter::description ( ) const

inline

Definition at line 59 of file ExplorerPluginParameter.hh.

{ return description_; }

References description_.

isCompulsory()

bool ExplorerPluginParameter::isCompulsory

(

)

const

Returns boolean indicating if the parameter is always needed.

Returns

True if parameter is compulsory, false otherwise.

Definition at line 135 of file ExplorerPluginParameter.cc.

                                            {
    return compulsory_;
}

References compulsory_.

isSet()

bool ExplorerPluginParameter::isSet

(

)

const

Returns boolean indicating if the parameter is always needed.

Returns

True if parameter is compulsory, false otherwise.

Definition at line 146 of file ExplorerPluginParameter.cc.

                                     {
    return value_.empty() ? false : true;;
}

References false, and value_.

name()

TCEString ExplorerPluginParameter::name

(

)

const

Returns the parameter name.

Returns

Name of the parameter as a string.

Definition at line 86 of file ExplorerPluginParameter.cc.

                                    {
    return name_;
}

References name_.

Referenced by CallExplorerPluginWindow::doEdit(), EditParameterDialog::setTexts(), and CallExplorerPluginWindow::updateParameterList().

setValue()

void ExplorerPluginParameter::setValue

(

const std::string &

value

)

Sets the value of the parameter.

Parameters

value

The value to be set for the parameter as a string.

Definition at line 74 of file ExplorerPluginParameter.cc.

                                                        {
    value_ = value;
}

References value(), and value_.

Referenced by EditParameterDialog::onOk().

Here is the call graph for this function:

type()

ExplorerPluginParameterType ExplorerPluginParameter::type

(

)

const

Returns enum for parameter type.

Returns

ExplorerPluginParameterType enumeration for parameter type.

Definition at line 97 of file ExplorerPluginParameter.cc.

                                    {
    return type_;
}

References type_.

typeAsString()

TCEString ExplorerPluginParameter::typeAsString

(

)

const

Returns string describing the parameter type.

Returns

ExplorerPluginParameterType as a string.

Definition at line 108 of file ExplorerPluginParameter.cc.

                                            {
    switch (type_) {
        case UINT:
            return "unsigned int";
            break;
        case INT:
            return "int";
            break;
        case STRING:
            return "string";
            break;
        case BOOL:
            return "boolean";
            break;
        default:
            return "";
    }
}

References BOOL, INT, STRING, type_, and UINT.

Referenced by EditParameterDialog::setTexts(), and CallExplorerPluginWindow::updateParameterList().

value()

TCEString ExplorerPluginParameter::value

(

)

const

Definition at line 63 of file ExplorerPluginParameter.cc.

                                     {
    return value_;
}

References value_.

Referenced by CallExplorerPluginWindow::doEdit(), EditParameterDialog::setTexts(), setValue(), and CallExplorerPluginWindow::updateParameterList().

Member Data Documentation

compulsory_

bool ExplorerPluginParameter::compulsory_

private

Is parameter compulsory.

Definition at line 74 of file ExplorerPluginParameter.hh.

Referenced by isCompulsory().

description_

TCEString ExplorerPluginParameter::description_

private

The description (help text).

Definition at line 78 of file ExplorerPluginParameter.hh.

Referenced by description().

name_

TCEString ExplorerPluginParameter::name_

private

Parameter name.

Definition at line 70 of file ExplorerPluginParameter.hh.

Referenced by name().

type_

ExplorerPluginParameterType ExplorerPluginParameter::type_

private

Parameter type.

Definition at line 72 of file ExplorerPluginParameter.hh.

Referenced by type(), and typeAsString().

value_

TCEString ExplorerPluginParameter::value_

private

The value of the parameter as a string, empty if none set.

Definition at line 76 of file ExplorerPluginParameter.hh.

Referenced by isSet(), setValue(), and value().

---

The documentation for this class was generated from the following files:

• ExplorerPluginParameter.hh
• ExplorerPluginParameter.cc
