#include <ParserStructs.hh>

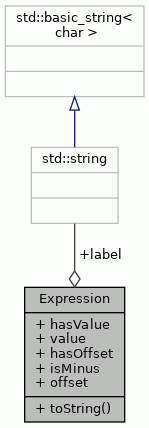

Collaboration diagram for Expression:

Public Member Functions
std::string	toString () const

Public Attributes
std::string	label
	Name of the label.

bool	hasValue
	Is resolved value defined in struct.

UValue	value
	Resolved value.

bool	hasOffset
	Is offset defined.

bool	isMinus
	Is offset minus.

UValue	offset
	Value of offset.

Detailed Description

Parsed expression.

Expression is label with possibly some additional information.

Form: name[(+|-)offset][=literal] e.g. myDataStructLabel+8=16, myCodeLabel=3, myDataStructLabel+8 or myDataStructLabel

Part after '=' sign is just value of label, if value is always resolved by compiler and it is also given by user values will be compared to match.

Offset can be used for example with structures, if one want's to refer different datafields.

Definition at line 198 of file ParserStructs.hh.

Member Function Documentation

◆ toString()

std::string Expression::toString ( ) const

inline

String representation of term for error message generation.

Definition at line 218 of file ParserStructs.hh.

                               {

        std::stringstream retVal;

        retVal << label;

        if (hasOffset) {
            if (isMinus) {
                retVal << '-';
            } else {
                retVal << '+';
            }

            retVal << std::dec << offset;
        }

        if (hasValue) {
            retVal << "=" << std::hex << value;
        }

        return retVal.str();
    }
