FUTerm Class Reference

#include <ParserStructs.hh>

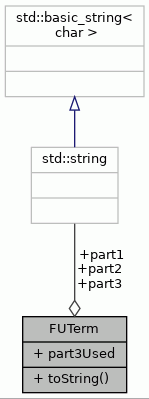

Collaboration diagram for FUTerm:

Public Member Functions
std::string	toString () const

Public Attributes
bool	part3Used
	Is operation part of the term used.
std::string	part1
	Unit name.
std::string	part2
	Port name.
std::string	part3
	Operation name.

Detailed Description

Parsed data of function unit operand port or special register reference.

Form: unit.port[.operation]

Definition at line 76 of file ParserStructs.hh.

Member Function Documentation

toString()

std::string FUTerm::toString ( ) const

inline

String representation of term for error message generation.

Definition at line 90 of file ParserStructs.hh.

                               {
        std::string retVal = part1 + "." + part2;
        if (part3Used) {
            retVal += "." + part3;
        }
        return retVal;
    }

References part1, part2, part3, and part3Used.

Referenced by RegisterTerm::toString().

Member Data Documentation

part1

std::string FUTerm::part1

Unit name.

Definition at line 81 of file ParserStructs.hh.

Referenced by AssemblerParser::definition< ScannerT >::definition(), MachineResourceManager::functionUnitPortResource(), MachineResourceManager::resourceID(), and toString().

part2

std::string FUTerm::part2

Port name.

Definition at line 83 of file ParserStructs.hh.

Referenced by AssemblerParser::definition< ScannerT >::definition(), MachineResourceManager::functionUnitPortResource(), MachineResourceManager::resourceID(), and toString().

part3

std::string FUTerm::part3

Operation name.

Definition at line 85 of file ParserStructs.hh.

Referenced by AssemblerParser::definition< ScannerT >::definition(), MachineResourceManager::functionUnitPortResource(), MachineResourceManager::resourceID(), and toString().

part3Used

bool FUTerm::part3Used

Is operation part of the term used.

Definition at line 79 of file ParserStructs.hh.

Referenced by AssemblerParser::definition< ScannerT >::definition(), MachineResourceManager::functionUnitPortResource(), MachineResourceManager::resourceID(), and toString().

---

The documentation for this class was generated from the following file:

• ParserStructs.hh
