HighlightTopExecCountsCmd Class Reference

#include <HighlightTopExecCountsCmd.hh>

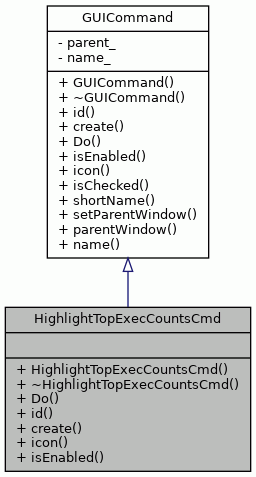

Inheritance diagram for HighlightTopExecCountsCmd:

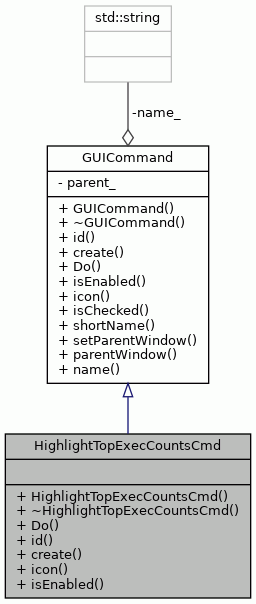

Collaboration diagram for HighlightTopExecCountsCmd:

Public Member Functions
	HighlightTopExecCountsCmd ()
virtual	~HighlightTopExecCountsCmd ()
virtual bool	Do ()
virtual int	id () const
virtual HighlightTopExecCountsCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for highlighting instructions with top execution counts in the disassembly window.

Definition at line 42 of file HighlightTopExecCountsCmd.hh.

Constructor & Destructor Documentation

HighlightTopExecCountsCmd()

HighlightTopExecCountsCmd::HighlightTopExecCountsCmd

(

)

The Constructor.

Definition at line 44 of file HighlightTopExecCountsCmd.cc.

                                                    :
    GUICommand("Highlight Top Execution Counts", NULL) {

    }

Referenced by create().

~HighlightTopExecCountsCmd()

HighlightTopExecCountsCmd::~HighlightTopExecCountsCmd ( )

virtual

The Destructor.

Definition at line 52 of file HighlightTopExecCountsCmd.cc.

                                                      {
}

Member Function Documentation

create()

HighlightTopExecCountsCmd * HighlightTopExecCountsCmd::create ( ) const

virtual

Creates and returns a new isntance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 101 of file HighlightTopExecCountsCmd.cc.

                                        {
    return new HighlightTopExecCountsCmd();
}

References HighlightTopExecCountsCmd().

Here is the call graph for this function:

Do()

bool HighlightTopExecCountsCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 60 of file HighlightTopExecCountsCmd.cc.

                              {
    ProximDisassemblyWindow* window = ProximToolbox::disassemblyWindow();
    assert(window != NULL);
    DisasmTopCountAttrProvider* attrProvider =
        new DisasmTopCountAttrProvider(*ProximToolbox::frontend(), 10);

    if (ProximToolbox::frontend()->isProgramLoaded()) {
        attrProvider->update();
    }
    window->setMoveAttrProvider(attrProvider);
    window->Refresh();
    return true;
}

References assert, ProximToolbox::disassemblyWindow(), ProximToolbox::frontend(), ProximDisassemblyWindow::setMoveAttrProvider(), and DisasmTopCountAttrProvider::update().

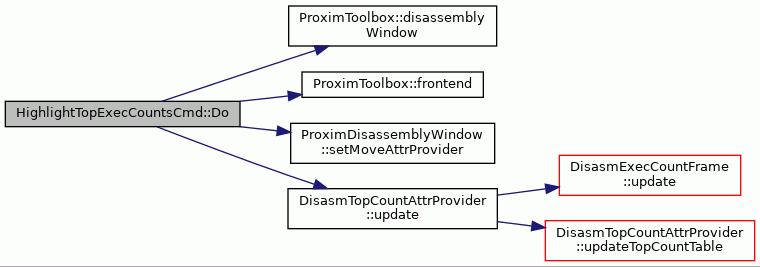

Here is the call graph for this function:

icon()

std::string HighlightTopExecCountsCmd::icon ( ) const

virtual

Returns full path to the command icon file.

Returns

Full path to the command icon file.

Implements GUICommand.

Definition at line 81 of file HighlightTopExecCountsCmd.cc.

                                      {
    return "clear_console.png";
}

id()

int HighlightTopExecCountsCmd::id ( ) const

virtual

Returns ID of this command.

Implements GUICommand.

Definition at line 90 of file HighlightTopExecCountsCmd.cc.

                                    {
    return ProximConstants::COMMAND_HIGHLIGHT_TOP_EXEC_COUNTS;
}

References ProximConstants::COMMAND_HIGHLIGHT_TOP_EXEC_COUNTS.

isEnabled()

bool HighlightTopExecCountsCmd::isEnabled ( )

virtual

Returns true if the command is enabled, false otherwise.

Returns

True if the console window exists.

Implements GUICommand.

Definition at line 112 of file HighlightTopExecCountsCmd.cc.

                                     {
    if (ProximToolbox::frontend()->isProgramLoaded()) {
    return true;
    } else {
    return false;
    }
}

References ProximToolbox::frontend().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• HighlightTopExecCountsCmd.hh
• HighlightTopExecCountsCmd.cc
