ImmediateSlotDialog Class Reference

#include <ImmediateSlotDialog.hh>

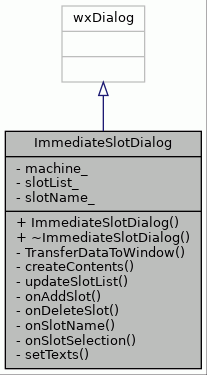

Inheritance diagram for ImmediateSlotDialog:

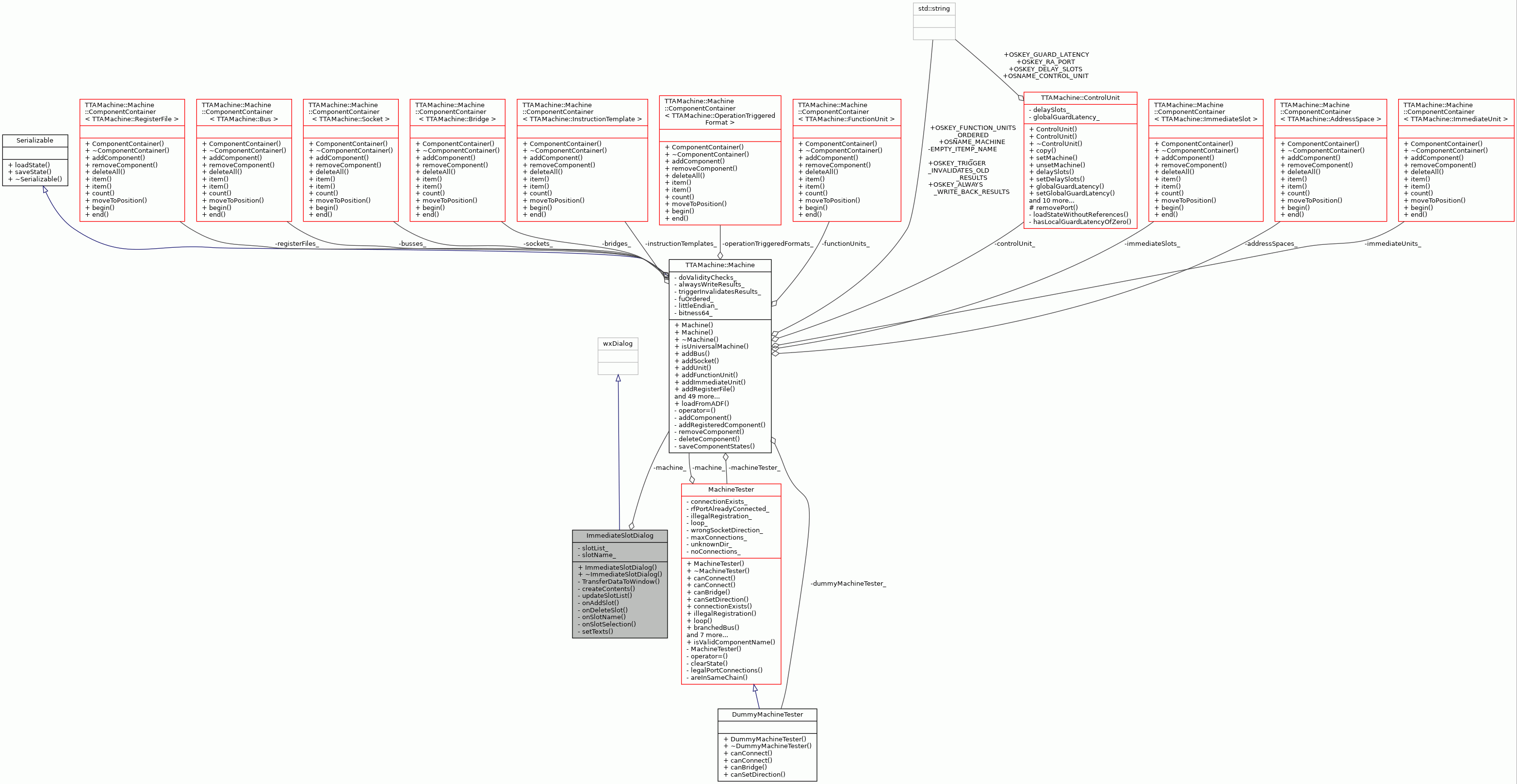

Collaboration diagram for ImmediateSlotDialog:

Public Member Functions
	ImmediateSlotDialog (wxWindow *parent, TTAMachine::Machine *machine)
virtual	~ImmediateSlotDialog ()

Private Types
enum	{   ID_SLOT_LIST = 10000 , ID_NAME , ID_LABEL_NAME , ID_LABE_NAME ,   ID_ADD_SLOT , ID_DELETE_SLOT , ID_LINE , ID_HELP }

Private Member Functions
virtual bool	TransferDataToWindow ()
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	updateSlotList ()
void	onAddSlot (wxCommandEvent &event)
void	onDeleteSlot (wxCommandEvent &event)
void	onSlotName (wxCommandEvent &event)
void	onSlotSelection (wxListEvent &event)
void	setTexts ()

Private Attributes
TTAMachine::Machine *	machine_
	Parent machine of the immediate slots.
wxListCtrl *	slotList_
	Immediate slot list widget.
wxString	slotName_
	Text in the slot name widget.

Detailed Description

Dialog for modifying immediate slots in a machine.

Definition at line 47 of file ImmediateSlotDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_SLOT_LIST
ID_NAME
ID_LABEL_NAME
ID_LABE_NAME
ID_ADD_SLOT
ID_DELETE_SLOT
ID_LINE
ID_HELP

Definition at line 69 of file ImmediateSlotDialog.hh.

         {
    ID_SLOT_LIST = 10000,
    ID_NAME,
    ID_LABEL_NAME,
    ID_LABE_NAME,
    ID_ADD_SLOT,
    ID_DELETE_SLOT,
    ID_LINE,
    ID_HELP
    };

Constructor & Destructor Documentation

ImmediateSlotDialog()

ImmediateSlotDialog::ImmediateSlotDialog	(	wxWindow *	parent,
		TTAMachine::Machine *	machine
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
machine	Parent Machine of the immediate slots.

Definition at line 67 of file ImmediateSlotDialog.cc.

                      :
    wxDialog(parent, -1, _T(""), wxDefaultPosition),
    machine_(machine) {

    createContents(this, true, true);

    slotList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_SLOT_LIST));

    FindWindow(ID_NAME)->SetValidator(
    wxTextValidator(wxFILTER_ASCII, &slotName_));

    // Disable conditional buttons.
    FindWindow(ID_ADD_SLOT)->Disable();
    FindWindow(ID_DELETE_SLOT)->Disable();

    setTexts();
}

~ImmediateSlotDialog()

ImmediateSlotDialog::~ImmediateSlotDialog ( )

virtual

The Destructor.

Definition at line 91 of file ImmediateSlotDialog.cc.

                                          {
}

Member Function Documentation

createContents()

wxSizer * ImmediateSlotDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog contents.

Parameters

parent	Parent dialog of the contents.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Returns

Top level sizer of the dialog contents.

Definition at line 276 of file ImmediateSlotDialog.cc.

                                                     {


    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxListCtrl *item1 = new wxListCtrl( parent, ID_SLOT_LIST, wxDefaultPosition, wxSize(300,200), wxLC_REPORT|wxLC_SINGLE_SEL|wxSUNKEN_BORDER );
    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item2 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item3 = new wxBoxSizer( wxHORIZONTAL );

    wxBoxSizer *item4 = new wxBoxSizer( wxHORIZONTAL );

    wxStaticText *item5 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item4->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item6 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(120,-1), 0 );
    item4->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item3->Add( item4, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item7 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item8 = new wxButton( parent, ID_ADD_SLOT, wxT("Add"), wxDefaultPosition, wxDefaultSize, 0 );
    item7->Add( item8, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item9 = new wxButton( parent, ID_DELETE_SLOT, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    item7->Add( item9, 0, wxALIGN_CENTER|wxALL, 5 );

    item3->Add( item7, 0, wxALIGN_CENTER, 5 );

    item2->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item2, 0, wxGROW|wxALL, 5 );

    wxStaticLine *item10 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item10, 0, wxGROW|wxALL, 5 );

    wxGridSizer *item11 = new wxGridSizer( 2, 0, 0 );

    wxButton *item12 = new wxButton( parent, ID_HELP, wxT("&Help"), wxDefaultPosition, wxDefaultSize, 0 );
    item11->Add( item12, 0, wxALL, 5 );

    wxBoxSizer *item13 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item14 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item13->Add( item14, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item15 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item13->Add( item15, 0, wxALIGN_CENTER|wxALL, 5 );

    item11->Add( item13, 0, 0, 5 );

    item0->Add( item11, 0, wxGROW, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_ADD_SLOT, ID_DELETE_SLOT, ID_HELP, ID_LABEL_NAME, ID_LINE, ID_NAME, and ID_SLOT_LIST.

onAddSlot()

void ImmediateSlotDialog::onAddSlot ( wxCommandEvent &  event )

private

Adds a new slot to the machine when "Add" button is pressed.

Definition at line 193 of file ImmediateSlotDialog.cc.

                                              {

    if (!TransferDataFromWindow()) {
    return;
    }

    string trimmedName =
    WxConversion::toString(slotName_.Trim(false).Trim(true));

    // Check name validity.
    if (!MachineTester::isValidComponentName(trimmedName)) {
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format message =
        prodeTexts->text(ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME);
    InformationDialog warning(
        this, WxConversion::toWxString(message.str()));
    warning.ShowModal();
    return;
    }

    if (machine_->immediateSlotNavigator().hasItem(trimmedName)) {
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format message =
        prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
    message % trimmedName;
    message % prodeTexts->text(ProDeTextGenerator::COMP_AN_IMM_SLOT).str();
    message % prodeTexts->text(ProDeTextGenerator::COMP_MACHINE).str();
    message % prodeTexts->text(ProDeTextGenerator::COMP_IMM_SLOT).str();
    WarningDialog warning(this, WxConversion::toWxString(message.str()));
    warning.ShowModal();
    return;
    }

    // Buses share namespace with immediate slots. Check that a bus with the
    // same name does not exist.
    if (machine_->busNavigator().hasItem(trimmedName)) {
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();
    format message =
        prodeTexts->text(ProDeTextGenerator::MSG_ERROR_SAME_NAME);
    message % trimmedName;
    message % prodeTexts->text(ProDeTextGenerator::COMP_A_BUS).str();
    message % prodeTexts->text(ProDeTextGenerator::COMP_MACHINE).str();
    message % prodeTexts->text(ProDeTextGenerator::COMP_IMM_SLOT).str();
    WarningDialog warning(this, WxConversion::toWxString(message.str()));
    warning.ShowModal();
    return;
    }

    new ImmediateSlot(trimmedName, *machine_);
    slotName_ = _T("");
    TransferDataToWindow();
}

References TTAMachine::Machine::busNavigator(), ProDeTextGenerator::COMP_A_BUS, ProDeTextGenerator::COMP_AN_IMM_SLOT, ProDeTextGenerator::COMP_IMM_SLOT, ProDeTextGenerator::COMP_MACHINE, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::immediateSlotNavigator(), ProDeTextGenerator::instance(), MachineTester::isValidComponentName(), machine_, ProDeTextGenerator::MSG_ERROR_ILLEGAL_NAME, ProDeTextGenerator::MSG_ERROR_SAME_NAME, slotName_, Texts::TextGenerator::text(), WxConversion::toString(), WxConversion::toWxString(), and TransferDataToWindow().

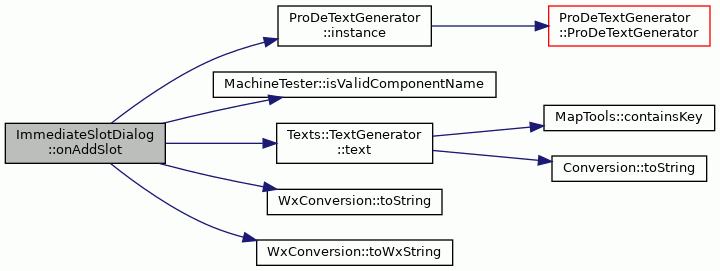

Here is the call graph for this function:

onDeleteSlot()

void ImmediateSlotDialog::onDeleteSlot ( wxCommandEvent &  event )

private

Deletes the selected immediate slot.

Definition at line 167 of file ImmediateSlotDialog.cc.

                                                 {

    // Check which slot is selected.
    long item = -1;
    item = slotList_->GetNextItem(
    item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    if (item < 0) {
    return;
    }

    ImmediateSlot* slot =
    machine_->immediateSlotNavigator().item(item);

    delete slot;

    TransferDataToWindow();
    wxListEvent dummy;
    onSlotSelection(dummy);
}

References dummy, TTAMachine::Machine::immediateSlotNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, onSlotSelection(), slotList_, and TransferDataToWindow().

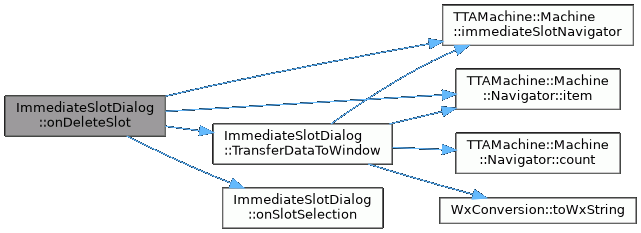

Here is the call graph for this function:

onSlotName()

void ImmediateSlotDialog::onSlotName ( wxCommandEvent &  event )

private

Enables and disables the "Add" button when text is entered in the slot name widget.

Definition at line 252 of file ImmediateSlotDialog.cc.

                                               {

    if (!TransferDataFromWindow()) {
    return;
    }

    wxString trimmedName = slotName_.Trim(false).Trim(true);
    if (trimmedName == _T("")) {
    FindWindow(ID_ADD_SLOT)->Disable();
    } else {
    FindWindow(ID_ADD_SLOT)->Enable();
    }
}

References ID_ADD_SLOT, and slotName_.

onSlotSelection()

void ImmediateSlotDialog::onSlotSelection ( wxListEvent &  event )

private

Enables and disables the delete button according to slot list selection.

Definition at line 154 of file ImmediateSlotDialog.cc.

                                                 {
    if (slotList_->GetSelectedItemCount() == 1) {
    FindWindow(ID_DELETE_SLOT)->Enable();
    } else {
    FindWindow(ID_DELETE_SLOT)->Disable();
    }
}

References ID_DELETE_SLOT, and slotList_.

Referenced by onDeleteSlot().

setTexts()

void ImmediateSlotDialog::setTexts ( )

private

Sets widget texts.

Definition at line 99 of file ImmediateSlotDialog.cc.

                              {
    GUITextGenerator* generator = GUITextGenerator::instance();
    ProDeTextGenerator* prodeTexts = ProDeTextGenerator::instance();

    // Dialog title.
    format fmt = prodeTexts->text(
    ProDeTextGenerator::TXT_IMMEDIATE_SLOT_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // Buttons
    WidgetTools::setLabel(generator, FindWindow(wxID_OK),
              GUITextGenerator::TXT_BUTTON_OK);
    WidgetTools::setLabel(generator, FindWindow(wxID_CANCEL),
              GUITextGenerator::TXT_BUTTON_CANCEL);
    WidgetTools::setLabel(generator, FindWindow(ID_HELP),
              GUITextGenerator::TXT_BUTTON_HELP);
    WidgetTools::setLabel(generator, FindWindow(ID_ADD_SLOT),
              GUITextGenerator::TXT_BUTTON_ADD);
    WidgetTools::setLabel(generator, FindWindow(ID_DELETE_SLOT),
              GUITextGenerator::TXT_BUTTON_DELETE);

    WidgetTools::setLabel(generator, FindWindow(ID_NAME),
              ProDeTextGenerator::TXT_LABEL_NAME);

    format fmtCol = prodeTexts->text(ProDeTextGenerator::TXT_COLUMN_NAME);
    slotList_->InsertColumn(0, WxConversion::toWxString(fmtCol.str()),
                wxLIST_FORMAT_LEFT, 300);

}

References ID_ADD_SLOT, ID_DELETE_SLOT, ID_HELP, ID_NAME, GUITextGenerator::instance(), ProDeTextGenerator::instance(), WidgetTools::setLabel(), slotList_, Texts::TextGenerator::text(), WxConversion::toWxString(), GUITextGenerator::TXT_BUTTON_ADD, GUITextGenerator::TXT_BUTTON_CANCEL, GUITextGenerator::TXT_BUTTON_DELETE, GUITextGenerator::TXT_BUTTON_HELP, GUITextGenerator::TXT_BUTTON_OK, ProDeTextGenerator::TXT_COLUMN_NAME, ProDeTextGenerator::TXT_IMMEDIATE_SLOT_DIALOG_TITLE, and ProDeTextGenerator::TXT_LABEL_NAME.

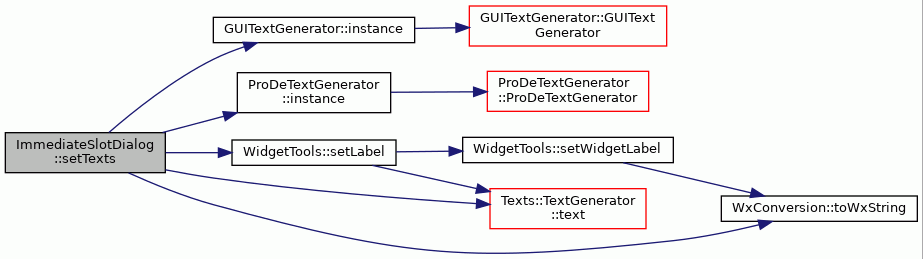

Here is the call graph for this function:

TransferDataToWindow()

bool ImmediateSlotDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the machine model to the dialog widgets.

Definition at line 134 of file ImmediateSlotDialog.cc.

                                          {

    // update slot list
    slotList_->DeleteAllItems();
    const Machine::ImmediateSlotNavigator navigator =
    machine_->immediateSlotNavigator();

    for (int i = 0; i < navigator.count(); i++) {
    slotList_->InsertItem(
        i, WxConversion::toWxString(navigator.item(i)->name()));
    }

    return wxDialog::TransferDataToWindow();
}

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::immediateSlotNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, slotList_, and WxConversion::toWxString().

Referenced by onAddSlot(), and onDeleteSlot().

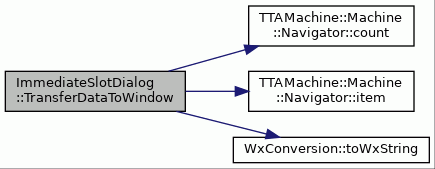

Here is the call graph for this function:

updateSlotList()

void ImmediateSlotDialog::updateSlotList ( )

private

Member Data Documentation

machine_

TTAMachine::Machine* ImmediateSlotDialog::machine_

private

Parent machine of the immediate slots.

Definition at line 63 of file ImmediateSlotDialog.hh.

Referenced by onAddSlot(), onDeleteSlot(), and TransferDataToWindow().

slotList_

wxListCtrl* ImmediateSlotDialog::slotList_

private

Immediate slot list widget.

Definition at line 65 of file ImmediateSlotDialog.hh.

Referenced by onDeleteSlot(), onSlotSelection(), setTexts(), and TransferDataToWindow().

slotName_

wxString ImmediateSlotDialog::slotName_

private

Text in the slot name widget.

Definition at line 67 of file ImmediateSlotDialog.hh.

Referenced by onAddSlot(), and onSlotName().

---

The documentation for this class was generated from the following files:

• ImmediateSlotDialog.hh
• ImmediateSlotDialog.cc
