LongImmediateRegisterState Class Reference

#include <LongImmediateRegisterState.hh>

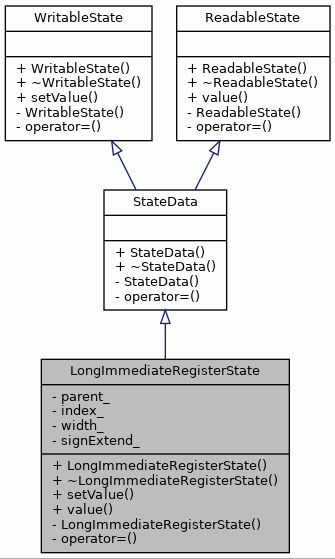

Inheritance diagram for LongImmediateRegisterState:

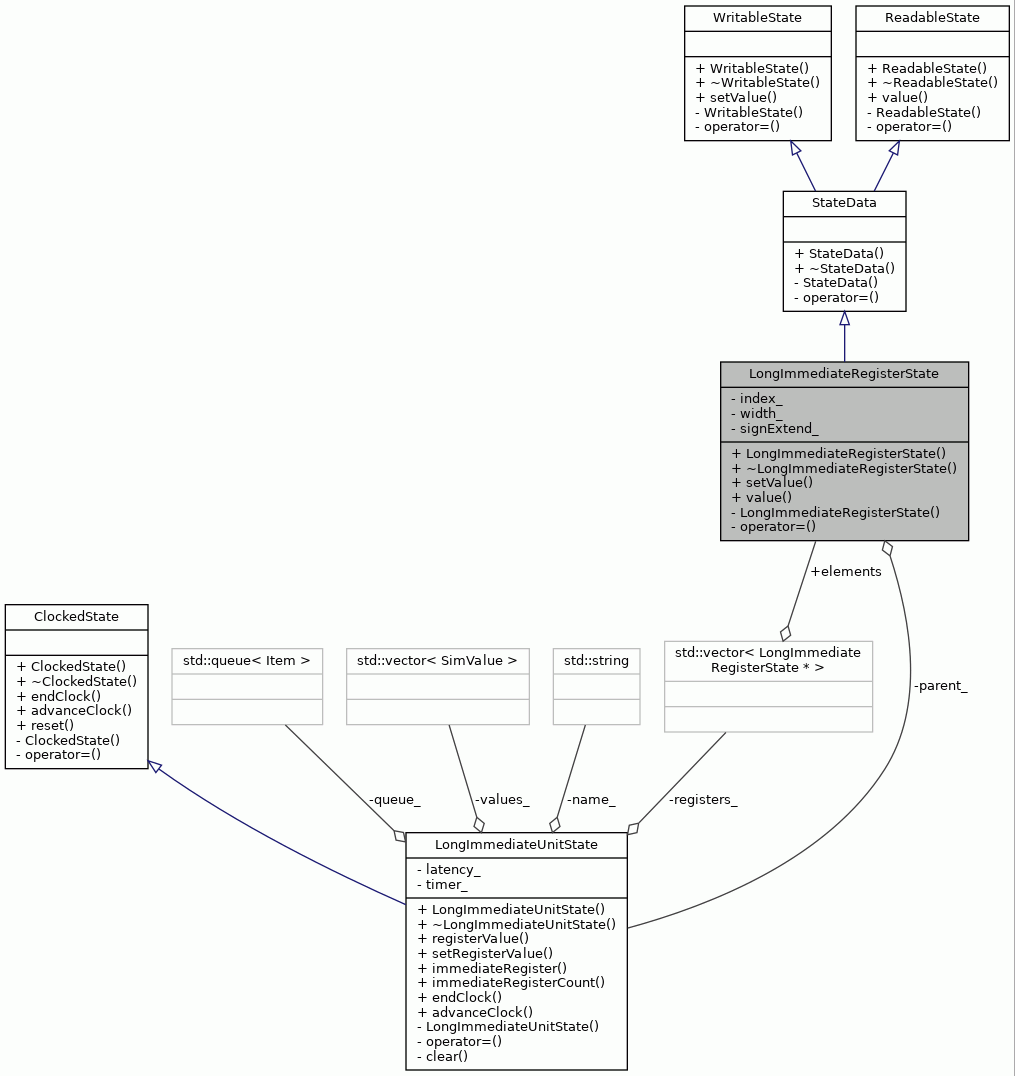

Collaboration diagram for LongImmediateRegisterState:

Public Member Functions
	LongImmediateRegisterState (LongImmediateUnitState *parent, int index, int width, bool signExtend)
virtual	~LongImmediateRegisterState ()
virtual void	setValue (const SimValue &value)
virtual const SimValue &	value () const
Public Member Functions inherited from StateData
	StateData ()
virtual	~StateData ()
Public Member Functions inherited from WritableState
	WritableState ()
virtual	~WritableState ()
Public Member Functions inherited from ReadableState
	ReadableState ()
virtual	~ReadableState ()

Private Member Functions
	LongImmediateRegisterState (const LongImmediateRegisterState &)
	Copying not allowed.
LongImmediateRegisterState &	operator= (const LongImmediateRegisterState &)
	Assignment not allowed.

Private Attributes
LongImmediateUnitState *	parent_
	Parent unit of the register state.
int	index_
	Index of the register.
int	width_
	The bit width of the register (needed only while extending).
bool	signExtend_
	True in case the written values should be sign extended.

Detailed Description

Represents a register of a long immediate unit.

Definition at line 47 of file LongImmediateRegisterState.hh.

Constructor & Destructor Documentation

LongImmediateRegisterState() [1/2]

LongImmediateRegisterState::LongImmediateRegisterState	(	LongImmediateUnitState *	parent,
		int	index,
		int	width,
		bool	signExtend
	)

Constructor.

Parameters

parent	Parent unit of the register.
index	Index of the register.
width	The bit width of the register.
signExtend	True in case written value should be sign extended (default is zero extension).

Definition at line 49 of file LongImmediateRegisterState.cc.

                                                                           :
    StateData(), parent_(parent), index_(index), width_(width),
    signExtend_(signExtend) {
}

~LongImmediateRegisterState()

LongImmediateRegisterState::~LongImmediateRegisterState ( )

virtual

Destructor.

Definition at line 58 of file LongImmediateRegisterState.cc.

                                                        {
}

LongImmediateRegisterState() [2/2]

LongImmediateRegisterState::LongImmediateRegisterState ( const LongImmediateRegisterState &  )

private

Copying not allowed.

Member Function Documentation

operator=()

LongImmediateRegisterState & LongImmediateRegisterState::operator= ( const LongImmediateRegisterState &  )

private

Assignment not allowed.

setValue()

void LongImmediateRegisterState::setValue ( const SimValue &  value )

virtual

Sets the value of the register.

Also extends the value if it's narrower than the register width.

Parameters

value

New value.

Implements WritableState.

Definition at line 69 of file LongImmediateRegisterState.cc.

                                                          {
    // The value is extended in case it's smaller than WORD_BITWIDTH,
    // which is the width of (int) otherwise we won't extend, as it's
    // probably a double. In the future when we support 64 bit or larger
    // integers, this check is not needed.
    if (value.width() < width_) {
        SimValue newValue(width_);
        int ext = width_ - value.width();

        if (signExtend_) {
            SLongWord toBeExtended = value.sLongWordValue();
            newValue = ((long)(toBeExtended << ext) >> ext);
        } else {
            // @todo: this might not be needed, we could assume the top bits
            // to be zero already
            ULongWord toBeExtended = value.uLongWordValue();
            newValue = ((toBeExtended << ext) >> ext);
        }
        parent_->setRegisterValue(index_, newValue);
    } else {
        parent_->setRegisterValue(index_, value);
    }
}

References index_, parent_, LongImmediateUnitState::setRegisterValue(), signExtend_, SimValue::sLongWordValue(), SimValue::uLongWordValue(), value(), SimValue::width(), and width_.

Referenced by LongImmUpdateAction::execute().

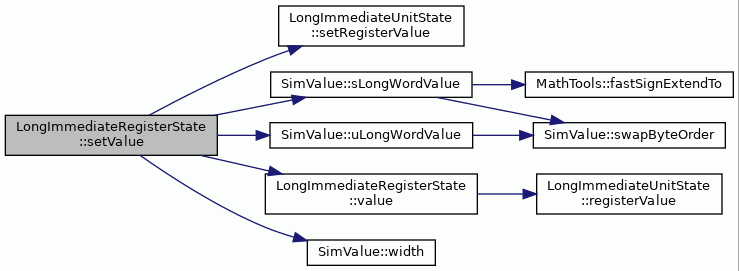

Here is the call graph for this function:

value()

const SimValue & LongImmediateRegisterState::value ( ) const

virtual

Returns the register value.

Returns

Register value.

Implements ReadableState.

Definition at line 99 of file LongImmediateRegisterState.cc.

                                        {
    return parent_->registerValue(index_);
}

References index_, parent_, and LongImmediateUnitState::registerValue().

Referenced by ProximRegisterWindow::loadImmediateUnit(), and setValue().

Here is the call graph for this function:

Member Data Documentation

index_

int LongImmediateRegisterState::index_

private

Index of the register.

Definition at line 68 of file LongImmediateRegisterState.hh.

Referenced by setValue(), and value().

parent_

LongImmediateUnitState* LongImmediateRegisterState::parent_

private

Parent unit of the register state.

Definition at line 66 of file LongImmediateRegisterState.hh.

Referenced by setValue(), and value().

signExtend_

bool LongImmediateRegisterState::signExtend_

private

True in case the written values should be sign extended.

Definition at line 72 of file LongImmediateRegisterState.hh.

Referenced by setValue().

width_

int LongImmediateRegisterState::width_

private

The bit width of the register (needed only while extending).

Definition at line 70 of file LongImmediateRegisterState.hh.

Referenced by setValue().

---

The documentation for this class was generated from the following files:

• LongImmediateRegisterState.hh
• LongImmediateRegisterState.cc
