MemoryDialog Class Reference

#include <MemoryDialog.hh>

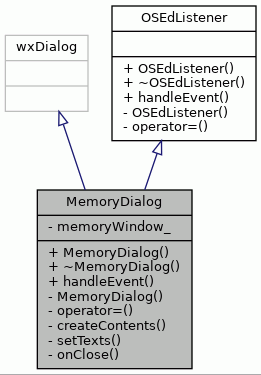

Inheritance diagram for MemoryDialog:

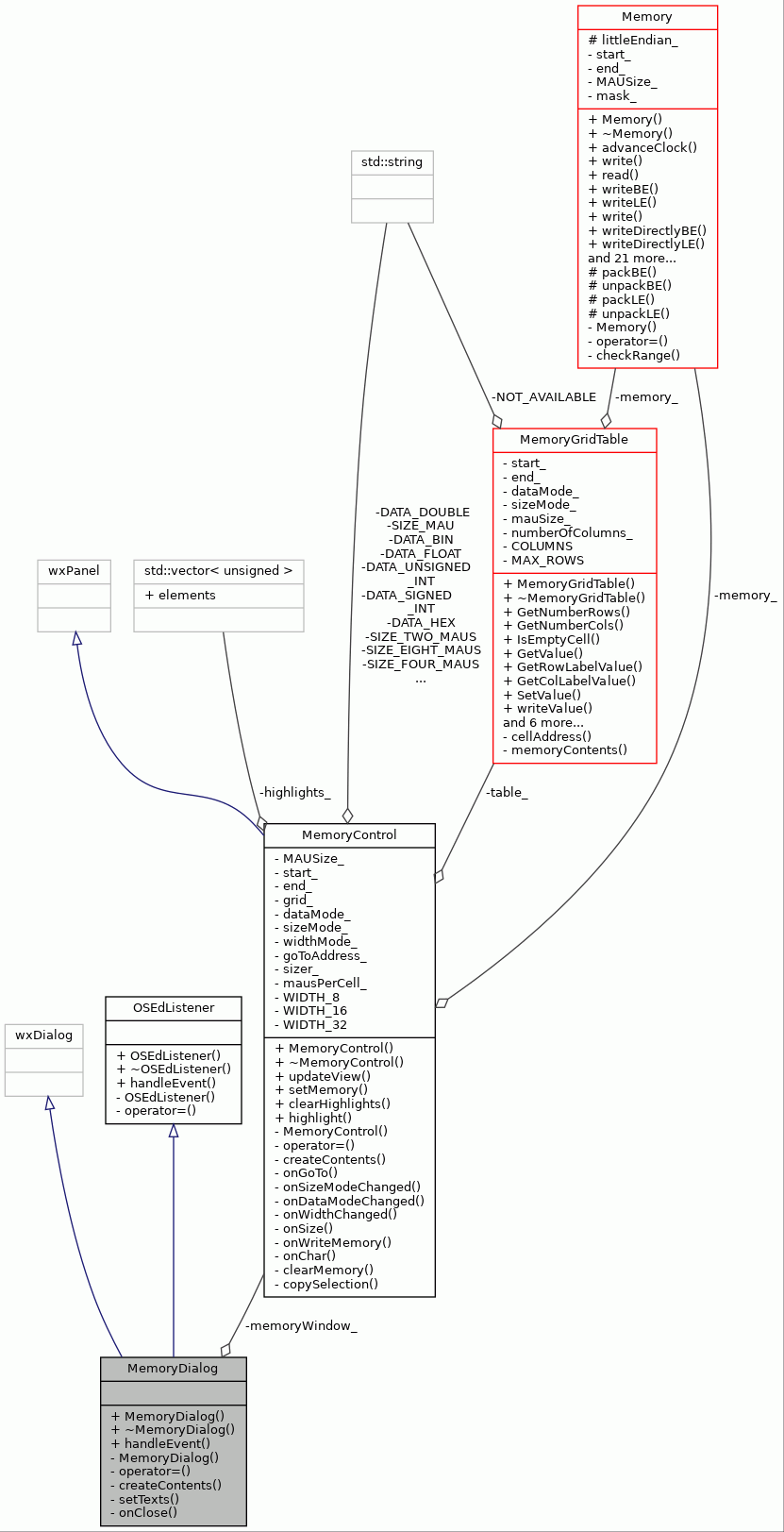

Collaboration diagram for MemoryDialog:

Public Member Functions
	MemoryDialog (wxWindow *window)
virtual	~MemoryDialog ()
virtual void	handleEvent (OSEdInformer::EventId event)
Public Member Functions inherited from OSEdListener
	OSEdListener ()
virtual	~OSEdListener ()

Private Types
enum	{ ID_BUTTON_CLOSE = 1000 , ID_CONTROL_MEMORY }

Private Member Functions
	MemoryDialog (const MemoryDialog &)
	Copying not allowed.
MemoryDialog &	operator= (const MemoryDialog &)
	Assignment not allowed.
wxSizer *	createContents (wxWindow *window, bool call_fit, bool set_sizer)
void	setTexts ()
void	onClose (wxCommandEvent &)

Private Attributes
MemoryControl *	memoryWindow_
	Memory control of the dialog.

Detailed Description

Dialog for monitoring the contents of the memory.

Definition at line 51 of file MemoryDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Component ids.

Enumerator
ID_BUTTON_CLOSE
ID_CONTROL_MEMORY

Definition at line 71 of file MemoryDialog.hh.

         {
        ID_BUTTON_CLOSE = 1000,
        ID_CONTROL_MEMORY
    };

Constructor & Destructor Documentation

MemoryDialog() [1/2]

MemoryDialog::MemoryDialog

(

wxWindow *

window

)

Constructor.

Parameters

window

Parent window.

Definition at line 58 of file MemoryDialog.cc.

                                           :
    wxDialog(window, -1, _T(""),
             DialogPosition::getPosition(DialogPosition::DIALOG_MEMORY),
             wxDefaultSize, wxRESIZE_BORDER) {

    createContents(this, true, true);
    setTexts();

    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->registerListener(OSEdInformer::EVENT_MEMORY, this);
}

References OSEdInformer::EVENT_MEMORY, and OSEdInformer::registerListener().

Here is the call graph for this function:

~MemoryDialog()

MemoryDialog::~MemoryDialog ( )

virtual

Destructor.

Definition at line 73 of file MemoryDialog.cc.

                            {
    int x, y;
    GetPosition(&x, &y);
    wxPoint point(x, y);
    DialogPosition::setPosition(DialogPosition::DIALOG_MEMORY, point);
}

References DialogPosition::DIALOG_MEMORY, and DialogPosition::setPosition().

Here is the call graph for this function:

MemoryDialog() [2/2]

MemoryDialog::MemoryDialog ( const MemoryDialog &  )

private

Copying not allowed.

Member Function Documentation

createContents()

wxSizer * MemoryDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the contents of the MemoryDialog.

Parameters

parent	Parent window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the the main sizer as dialog contents.

Returns

The created sizer.

Definition at line 130 of file MemoryDialog.cc.

                    {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    memoryWindow_ = new MemoryControl(
        parent, &OperationContainer::memory(), MemoryDialog::ID_CONTROL_MEMORY);

    item0->Add(memoryWindow_, 1, wxGROW|wxALL, 5);

    wxButton *item1 = new wxButton( parent, ID_BUTTON_CLOSE, wxT("Close"), wxDefaultPosition, wxDefaultSize, 0 );

    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;

}

References ID_BUTTON_CLOSE, ID_CONTROL_MEMORY, OperationContainer::memory(), and memoryWindow_.

Here is the call graph for this function:

handleEvent()

void MemoryDialog::handleEvent ( OSEdInformer::EventId  event )

virtual

Handles event when the contents of the memory might have changed.

Implements OSEdListener.

Definition at line 111 of file MemoryDialog.cc.

                                                   {
    switch(event) {
    case OSEdInformer::EVENT_MEMORY:
        memoryWindow_->updateView();
        break;
    default:
        break;
    }
}

References OSEdInformer::EVENT_MEMORY, memoryWindow_, and MemoryControl::updateView().

Here is the call graph for this function:

onClose()

void MemoryDialog::onClose ( wxCommandEvent &  )

private

Handles the event when dialog is closed.

Definition at line 101 of file MemoryDialog.cc.

                                     {
    OSEdInformer* informer = wxGetApp().mainFrame()->informer();
    informer->unregisterListener(OSEdInformer::EVENT_MEMORY, this);
    Close();
}

References OSEdInformer::EVENT_MEMORY, and OSEdInformer::unregisterListener().

Here is the call graph for this function:

operator=()

MemoryDialog & MemoryDialog::operator= ( const MemoryDialog &  )

private

Assignment not allowed.

setTexts()

void MemoryDialog::setTexts ( )

private

Set texts to widgets.

Definition at line 84 of file MemoryDialog.cc.

                       {

    OSEdTextGenerator& osedText = OSEdTextGenerator::instance();

    // title
    format fmt = osedText.text(OSEdTextGenerator::TXT_MEMORY_DIALOG_TITLE);
    SetTitle(WxConversion::toWxString(fmt.str()));

    // buttons
    WidgetTools::setLabel(&osedText, FindWindow(ID_BUTTON_CLOSE),
                          OSEdTextGenerator::TXT_BUTTON_CLOSE);
}

References ID_BUTTON_CLOSE, OSEdTextGenerator::instance(), WidgetTools::setLabel(), Texts::TextGenerator::text(), WxConversion::toWxString(), OSEdTextGenerator::TXT_BUTTON_CLOSE, and OSEdTextGenerator::TXT_MEMORY_DIALOG_TITLE.

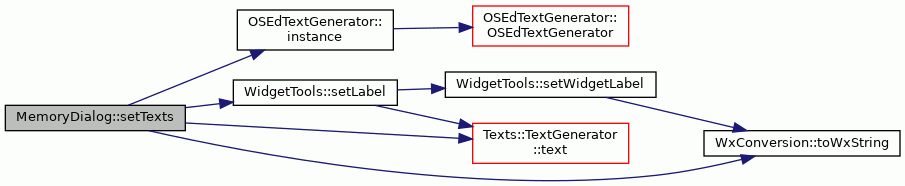

Here is the call graph for this function:

Member Data Documentation

memoryWindow_

MemoryControl* MemoryDialog::memoryWindow_

private

Memory control of the dialog.

Definition at line 77 of file MemoryDialog.hh.

Referenced by createContents(), and handleEvent().

---

The documentation for this class was generated from the following files:

• MemoryDialog.hh
• MemoryDialog.cc
