#include <ModifySocketCmd.hh>

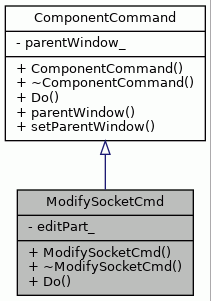

Inheritance diagram for ModifySocketCmd:

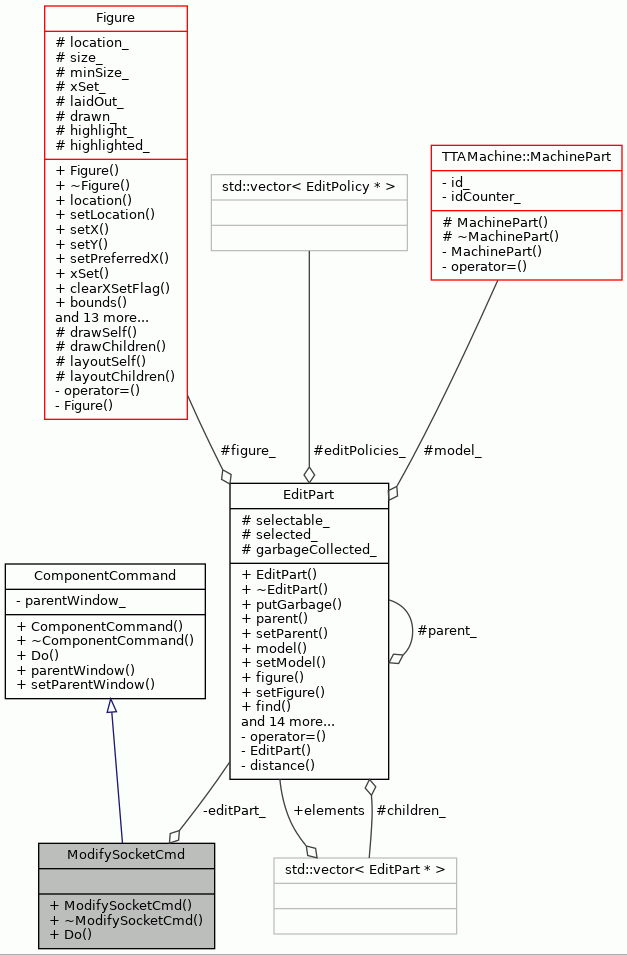

Collaboration diagram for ModifySocketCmd:

Public Member Functions
	ModifySocketCmd (EditPart *editPart)

virtual	~ModifySocketCmd ()

virtual bool	Do ()

Public Member Functions inherited from ComponentCommand
	ComponentCommand ()

virtual	~ComponentCommand ()

wxWindow *	parentWindow ()

void	setParentWindow (wxWindow *window)

Private Attributes
EditPart *	editPart_
	Socket to modify.

Detailed Description

Command which displays a socket dialog with precompleted values for modifying a socket.

Definition at line 43 of file ModifySocketCmd.hh.

Constructor & Destructor Documentation

◆ ModifySocketCmd()

ModifySocketCmd::ModifySocketCmd ( EditPart * editPart )

The Constructor.

Definition at line 44 of file ModifySocketCmd.cc.

                                                  :
    ComponentCommand(),
    editPart_(editPart) {

}

◆ ~ModifySocketCmd()

ModifySocketCmd::~ModifySocketCmd ( )

virtual

The Destructor.

Definition at line 54 of file ModifySocketCmd.cc.

54 {

55}

Member Function Documentation

◆ Do()

bool ModifySocketCmd::Do ( )

virtual

Executes the command.

Returns: true, if the command was succesfully executed, false otherwise.

Implements ComponentCommand.

Definition at line 64 of file ModifySocketCmd.cc.

                    {

    Socket* socket = dynamic_cast<Socket*>(editPart_->model());
    assert (socket != NULL);

    assert (parentWindow() != NULL);

    SocketDialog dialog(parentWindow(), socket);

    if (dialog.ShowModal() == wxID_OK) {
    // socket was modified
    return true;
    } else {
    // modification was cancelled
    return false;
    }

    return false;
}

References assert, editPart_, EditPart::model(), and ComponentCommand::parentWindow().

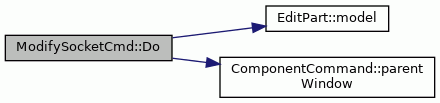

Here is the call graph for this function:

Member Data Documentation

◆ editPart_

EditPart* ModifySocketCmd::editPart_

private

Socket to modify.

Definition at line 51 of file ModifySocketCmd.hh.

Referenced by Do().

The documentation for this class was generated from the following files:
