#include <OperationDAGEdge.hh>

Inheritance diagram for OperationDAGEdge:

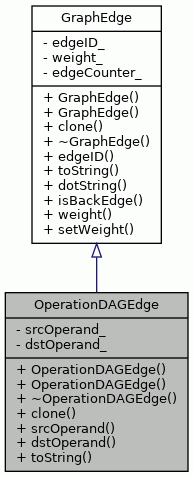

Collaboration diagram for OperationDAGEdge:

Public Member Functions
	OperationDAGEdge (int srcOperand, int dstOperand)

	OperationDAGEdge (const OperationDAGEdge &other)

virtual	~OperationDAGEdge ()

virtual GraphEdge *	clone () const

int	srcOperand () const

int	dstOperand () const

TCEString	toString () const

Public Member Functions inherited from GraphEdge
	GraphEdge ()

	GraphEdge (const GraphEdge &edge)

virtual	~GraphEdge ()

virtual int	edgeID () const

virtual TCEString	dotString () const

virtual bool	isBackEdge () const

int	weight () const

void	setWeight (int w)

Private Attributes
int	srcOperand_

int	dstOperand_

Detailed Description

Definition at line 38 of file OperationDAGEdge.hh.

Constructor & Destructor Documentation

◆ OperationDAGEdge() [1/2]

OperationDAGEdge::OperationDAGEdge	(	int	srcOperand,
		int	dstOperand
	)

Definition at line 36 of file OperationDAGEdge.cc.

36 :

37 GraphEdge(), srcOperand_(srcOperand), dstOperand_(dstOperand) {}

GraphEdge::GraphEdge

GraphEdge()

Definition GraphEdge.cc:40

OperationDAGEdge::dstOperand

int dstOperand() const

Definition OperationDAGEdge.cc:54

OperationDAGEdge::srcOperand

int srcOperand() const

Definition OperationDAGEdge.cc:49

OperationDAGEdge::srcOperand_

int srcOperand_

Definition OperationDAGEdge.hh:52

OperationDAGEdge::dstOperand_

int dstOperand_

Definition OperationDAGEdge.hh:53

◆ OperationDAGEdge() [2/2]

OperationDAGEdge::OperationDAGEdge ( const OperationDAGEdge & other )

Definition at line 39 of file OperationDAGEdge.cc.

                                                                :
    GraphEdge(other), srcOperand_(other.srcOperand()),
    dstOperand_(other.dstOperand()) {}

◆ ~OperationDAGEdge()

virtual OperationDAGEdge::~OperationDAGEdge ( )

inlinevirtual

Definition at line 42 of file OperationDAGEdge.hh.

42{}

Member Function Documentation

◆ clone()

GraphEdge * OperationDAGEdge::clone ( ) const

virtual

Clones edge. Needed for dynamic binding, when copying instances through the base class.

Returns: Dynamically allocated copy of the edge.

Reimplemented from GraphEdge.

Definition at line 44 of file OperationDAGEdge.cc.

                              {
    return new OperationDAGEdge(*this);
}

◆ dstOperand()

int OperationDAGEdge::dstOperand ( ) const

Definition at line 54 of file OperationDAGEdge.cc.

                                   {
    return dstOperand_;
}

References dstOperand_.

Referenced by TDGen::emulatingOpNodeLLVMName(), MemoryAliasAnalyzer::findTwoPartAddressOperands(), OperationDAGBehavior::OperationDAGBehavior(), TDGen::operationNodeToString(), FUGen::subOpConnection(), and OperationDAGConverter::writeNode().

◆ srcOperand()

int OperationDAGEdge::srcOperand ( ) const

Definition at line 49 of file OperationDAGEdge.cc.

                                   {
    return srcOperand_;
}

References srcOperand_.

Referenced by TDGen::emulatingOpNodeLLVMName(), OperationDAGBehavior::OperationDAGBehavior(), FUGen::subOpConnection(), and OperationDAGConverter::writeNode().

◆ toString()

TCEString OperationDAGEdge::toString ( ) const

virtual

Return the label of the edge as a string.

Used for printing graph in GraphViz .dot file.

Returns: The edge ID as a string

Reimplemented from GraphEdge.

Definition at line 59 of file OperationDAGEdge.cc.

                                 {
    return Conversion::toString(srcOperand_) + "," +
        Conversion::toString(dstOperand_);
}

References dstOperand_, srcOperand_, and Conversion::toString().

Here is the call graph for this function:

Member Data Documentation

◆ dstOperand_

int OperationDAGEdge::dstOperand_

private

Definition at line 53 of file OperationDAGEdge.hh.

Referenced by dstOperand(), and toString().

◆ srcOperand_

int OperationDAGEdge::srcOperand_
