OperationModule Class Reference

#include <OperationModule.hh>

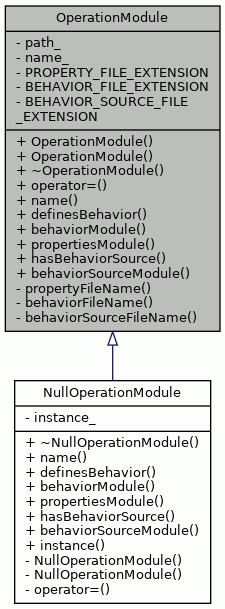

Inheritance diagram for OperationModule:

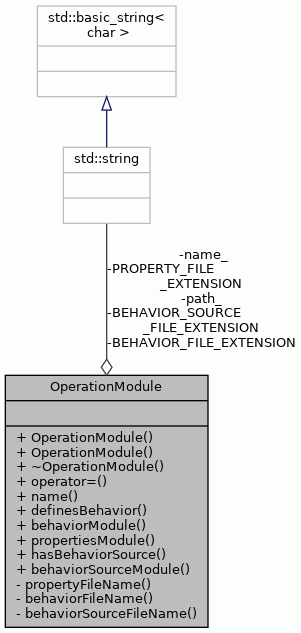

Collaboration diagram for OperationModule:

Public Member Functions
	OperationModule (const std::string &name, const std::string &path)
	OperationModule (const OperationModule &om)
virtual	~OperationModule ()
OperationModule &	operator= (const OperationModule &om)
virtual std::string	name () const
virtual bool	definesBehavior () const
virtual std::string	behaviorModule () const
virtual std::string	propertiesModule () const
virtual bool	hasBehaviorSource () const
virtual std::string	behaviorSourceModule () const

Private Member Functions
std::string	propertyFileName () const
std::string	behaviorFileName () const
std::string	behaviorSourceFileName () const

Private Attributes
std::string	path_
	The path of the module.
std::string	name_
	The name of the module.

Static Private Attributes
static const std::string	PROPERTY_FILE_EXTENSION = ".opp"
	File extension of operation property file.
static const std::string	BEHAVIOR_FILE_EXTENSION = ".opb"
	File extension of operation behavior file.
static const std::string	BEHAVIOR_SOURCE_FILE_EXTENSION = ".cc"
	File extension of operation behavior source file.

Detailed Description

Class that represents the name and the path of external files where Operation definitions are stored.

Definition at line 46 of file OperationModule.hh.

Constructor & Destructor Documentation

OperationModule() [1/2]

OperationModule::OperationModule	(	const std::string &	name,
		const std::string &	path
	)

Constructor.

Parameters

name	The name of the module.
path	The path of the module.

Definition at line 54 of file OperationModule.cc.

                           : path_(path), name_(name) {
}

OperationModule() [2/2]

OperationModule::OperationModule

(

const OperationModule &

om

)

Copy constructor.

Parameters

om	The module to be copied.

Definition at line 64 of file OperationModule.cc.

                                                          {
    name_ = om.name();
    path_ = FileSystem::directoryOfPath(om.propertiesModule());
}

References FileSystem::directoryOfPath(), name(), name_, path_, and propertiesModule().

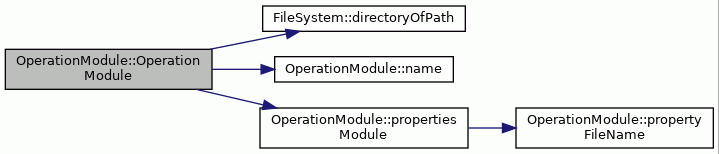

Here is the call graph for this function:

~OperationModule()

OperationModule::~OperationModule ( )

virtual

Destructor.

Definition at line 72 of file OperationModule.cc.

                                  {
}

Member Function Documentation

behaviorFileName()

std::string OperationModule::behaviorFileName ( ) const

private

Returns the name of the behavior file name.

Returns

The name of the behavior file name.

Definition at line 170 of file OperationModule.cc.

                                        {
    return name_ + BEHAVIOR_FILE_EXTENSION;
}

References BEHAVIOR_FILE_EXTENSION, and name_.

Referenced by behaviorModule(), and definesBehavior().

behaviorModule()

string OperationModule::behaviorModule ( ) const

virtual

Returns the name of the behavior module.

Returns

The name of the behavior module.

Exceptions

FileNotFound

If behavior module is not found.

Reimplemented in NullOperationModule.

Definition at line 105 of file OperationModule.cc.

                                      {
    if (!definesBehavior()) {
        std::string method = "OperationModule::behaviorModule()";
        std::string msg = "Behavior file not found: " + behaviorFileName();
        throw FileNotFound(__FILE__, __LINE__, method, msg);
    }

    return path_ + FileSystem::DIRECTORY_SEPARATOR + behaviorFileName();
}

References behaviorFileName(), definesBehavior(), FileSystem::DIRECTORY_SEPARATOR, and path_.

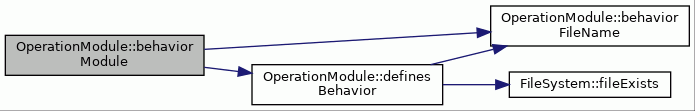

Here is the call graph for this function:

behaviorSourceFileName()

std::string OperationModule::behaviorSourceFileName ( ) const

private

Returns the name of the code file.

Returns

The name of the code file.

Definition at line 190 of file OperationModule.cc.

                                              {
    return name_ + BEHAVIOR_SOURCE_FILE_EXTENSION;
}

References BEHAVIOR_SOURCE_FILE_EXTENSION, and name_.

Referenced by behaviorSourceModule(), and hasBehaviorSource().

behaviorSourceModule()

string OperationModule::behaviorSourceModule ( ) const

virtual

Returns the name of the behavior source code file.

Returns

The name of the behavior source code file.

Exceptions

FileNotFound

If behavior source file not found.

Reimplemented in NullOperationModule.

Definition at line 144 of file OperationModule.cc.

                                            {
    if (!hasBehaviorSource()) {
        std::string method = "OperationModule::behaviorSourceModule()";
        std::string msg = "Behavior source file not found.";
        throw FileNotFound(__FILE__, __LINE__, method, msg);
    }

    return path_ + FileSystem::DIRECTORY_SEPARATOR + behaviorSourceFileName();
}

References behaviorSourceFileName(), FileSystem::DIRECTORY_SEPARATOR, hasBehaviorSource(), and path_.

Referenced by OperationPropertyDialog::onOpen().

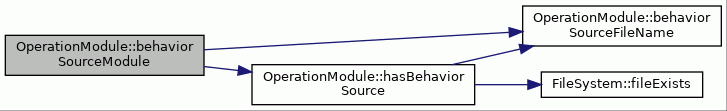

Here is the call graph for this function:

definesBehavior()

bool OperationModule::definesBehavior ( ) const

virtual

Checks whether OperationModule has behavior definition file.

Returns

True if OperationModule has behavior definition file.

Reimplemented in NullOperationModule.

Definition at line 93 of file OperationModule.cc.

                                       {
    return (FileSystem::fileExists(
                path_ + FileSystem::DIRECTORY_SEPARATOR + behaviorFileName()));
}

References behaviorFileName(), FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and path_.

Referenced by behaviorModule().

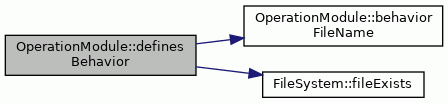

Here is the call graph for this function:

hasBehaviorSource()

bool OperationModule::hasBehaviorSource ( ) const

virtual

Checks whether module has behavior source file.

Returns

True if module has behavior source file.

Reimplemented in NullOperationModule.

Definition at line 131 of file OperationModule.cc.

                                         {
    return (FileSystem::fileExists(
                path_ + FileSystem::DIRECTORY_SEPARATOR +
                behaviorSourceFileName()));
}

References behaviorSourceFileName(), FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and path_.

Referenced by behaviorSourceModule(), OperationPropertyDialog::createContents(), OperationPropertyDialog::onOpen(), and OperationPropertyDialog::setBehaviorLabel().

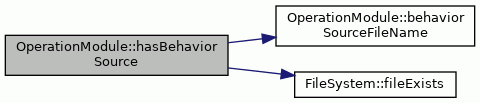

Here is the call graph for this function:

name()

std::string OperationModule::name ( ) const

virtual

Returns the name of the module.

Returns

The name of the module.

Reimplemented in NullOperationModule.

Definition at line 160 of file OperationModule.cc.

                            {
    return name_;
}

References name_.

Referenced by OSEdTreeView::constructTree(), OperationContainer::module(), OperationModule(), operator=(), and OperationPropertyDialog::updateOperation().

operator=()

OperationModule & OperationModule::operator=

(

const OperationModule &

om

)

Assignment operator.

Parameters

om	Module to be assigned.

Definition at line 81 of file OperationModule.cc.

                                                    {
    name_ = om.name();
    path_ = FileSystem::directoryOfPath(om.propertiesModule());
    return *this;
}

References FileSystem::directoryOfPath(), name(), name_, path_, and propertiesModule().

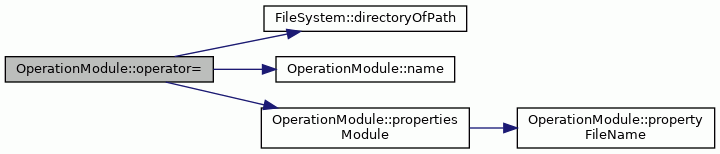

Here is the call graph for this function:

propertiesModule()

string OperationModule::propertiesModule ( ) const

virtual

Returns the name of the properties module.

Returns

The name of the properties module.

Reimplemented in NullOperationModule.

Definition at line 121 of file OperationModule.cc.

                                        {
    return path_ + FileSystem::DIRECTORY_SEPARATOR + propertyFileName();
}

References FileSystem::DIRECTORY_SEPARATOR, path_, and propertyFileName().

Referenced by OSEdTreeView::constructTree(), OperationIndex::effectiveOperation(), OperationPropertyLoader::loadModule(), OperationPropertyLoader::loadOperationProperties(), OperationPropertyDialog::onOpen(), OperationContainer::operation(), OperationIndex::operationCount(), OperationModule(), OperationIndex::operationName(), operator=(), OperationIndex::readOperations(), OperationIndex::refreshModule(), and OperationIndex::removeModule().

Here is the call graph for this function:

propertyFileName()

std::string OperationModule::propertyFileName ( ) const

private

Returns the name of the properties file.

Returns

The name of the properties file.

Definition at line 180 of file OperationModule.cc.

                                        {
    return name_ + PROPERTY_FILE_EXTENSION;
}

References name_, and PROPERTY_FILE_EXTENSION.

Referenced by propertiesModule().

Member Data Documentation

BEHAVIOR_FILE_EXTENSION

const string OperationModule::BEHAVIOR_FILE_EXTENSION = ".opb"

staticprivate

File extension of operation behavior file.

Behavior file extension.

Definition at line 70 of file OperationModule.hh.

Referenced by behaviorFileName().

BEHAVIOR_SOURCE_FILE_EXTENSION

const string OperationModule::BEHAVIOR_SOURCE_FILE_EXTENSION = ".cc"

staticprivate

File extension of operation behavior source file.

Source file extension.

Definition at line 72 of file OperationModule.hh.

Referenced by behaviorSourceFileName().

name_

std::string OperationModule::name_

private

The name of the module.

Definition at line 77 of file OperationModule.hh.

Referenced by behaviorFileName(), behaviorSourceFileName(), name(), OperationModule(), operator=(), and propertyFileName().

path_

std::string OperationModule::path_

private

The path of the module.

Definition at line 75 of file OperationModule.hh.

Referenced by behaviorModule(), behaviorSourceModule(), definesBehavior(), hasBehaviorSource(), OperationModule(), operator=(), and propertiesModule().

PROPERTY_FILE_EXTENSION

const string OperationModule::PROPERTY_FILE_EXTENSION = ".opp"

staticprivate

File extension of operation property file.

Property file extension.

Definition at line 68 of file OperationModule.hh.

Referenced by propertyFileName().

---

The documentation for this class was generated from the following files:

• OperationModule.hh
• OperationModule.cc
