#include <ProcessorConfigurationFile.hh>

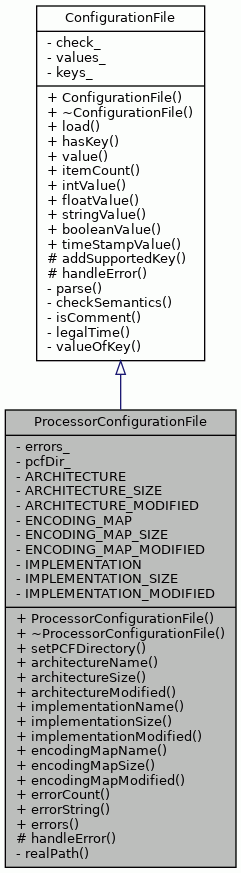

Inheritance diagram for ProcessorConfigurationFile:

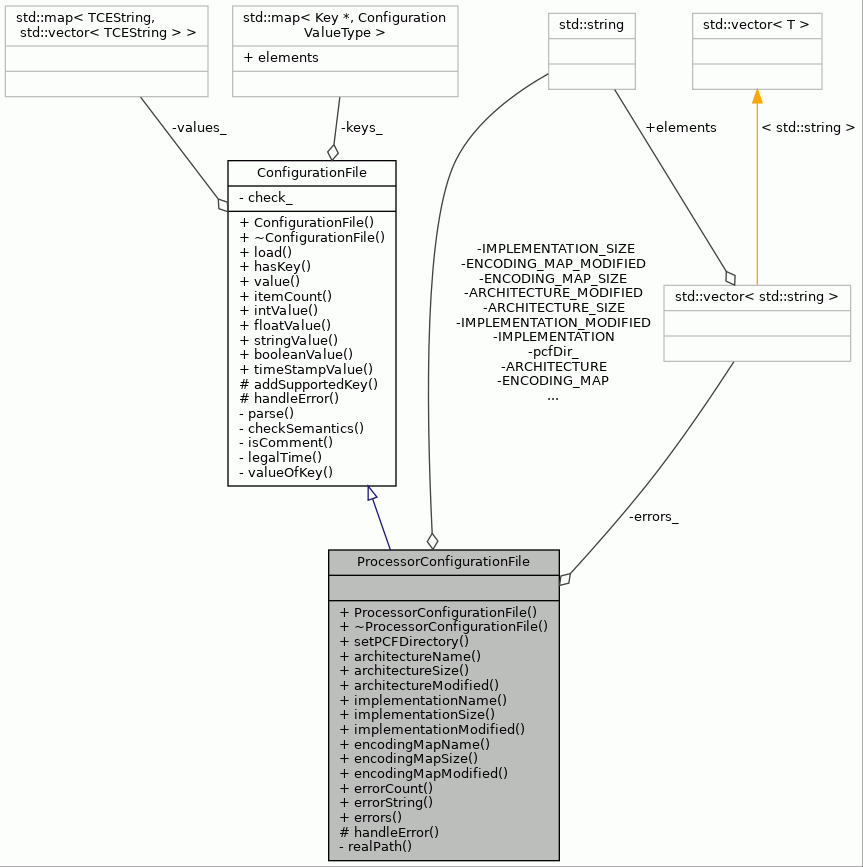

Collaboration diagram for ProcessorConfigurationFile:

Public Member Functions
	ProcessorConfigurationFile (std::istream &inputStream)

virtual	~ProcessorConfigurationFile ()

void	setPCFDirectory (const std::string &path)

std::string	architectureName ()

unsigned int	architectureSize ()

unsigned int	architectureModified ()

std::string	implementationName ()

unsigned int	implementationSize ()

unsigned int	implementationModified ()

std::string	encodingMapName ()

unsigned int	encodingMapSize ()

unsigned int	encodingMapModified ()

int	errorCount ()

std::string	errorString (int index)

bool	errors ()

Public Member Functions inherited from ConfigurationFile
	ConfigurationFile (bool doChecking=false)

virtual	~ConfigurationFile ()

void	load (std::istream &inputStream)

bool	hasKey (const std::string &key)

std::string	value (const std::string &key, int index=0)

int	itemCount (const std::string &key)

int	intValue (const std::string &key, int index=0)

float	floatValue (const std::string &key, int index=0)

std::string	stringValue (const std::string &key, int index=0)

bool	booleanValue (const std::string &key, int index=0)

unsigned int	timeStampValue (const std::string &key)

Protected Member Functions
virtual bool	handleError (int lineNumber, ConfigurationFile::ConfigurationFileError error, const std::string &line)

Protected Member Functions inherited from ConfigurationFile
void	addSupportedKey (const std::string &key, ConfigurationValueType type, bool caseSensitive=false)

Private Member Functions
std::string	realPath (const std::string &pathInPCF) const

Private Attributes
std::vector< std::string >	errors_

std::string	pcfDir_

Static Private Attributes
static const std::string	ARCHITECTURE = "Architecture"

static const std::string	ARCHITECTURE_SIZE = "ArchitectureSize"

static const std::string	ARCHITECTURE_MODIFIED

static const std::string	ENCODING_MAP = "EncodingMap"

static const std::string	ENCODING_MAP_SIZE = "EncodingSize"

static const std::string	ENCODING_MAP_MODIFIED

static const std::string	IMPLEMENTATION = "Implementation"

static const std::string	IMPLEMENTATION_SIZE

static const std::string	IMPLEMENTATION_MODIFIED

Additional Inherited Members
Protected Types inherited from ConfigurationFile
enum	ConfigurationValueType { VT_INTEGER , VT_FLOAT , VT_STRING , VT_BOOLEAN , VT_READABLE_TIME , VT_UNIX_TIMESTAMP }

enum	ConfigurationFileError { FE_SYNTAX , FE_ILLEGAL_TYPE , FE_UNKNOWN_KEY , FE_MISSING_VALUE }

Detailed Description

Has knowledge of the format of the processor configuration file.

It knows its supported keys and provides shortcut methods for querying the values of the keys.

Definition at line 46 of file ProcessorConfigurationFile.hh.

Constructor & Destructor Documentation

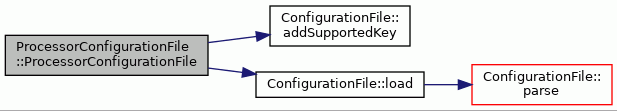

◆ ProcessorConfigurationFile()

ProcessorConfigurationFile::ProcessorConfigurationFile ( std::istream & inputStream )

explicit

Constructor.

Parameters

inputStream Stream where configuration file is read from.

Definition at line 58 of file ProcessorConfigurationFile.cc.

                             : ConfigurationFile(true), pcfDir_(".") {

    addSupportedKey(ARCHITECTURE, ConfigurationFile::VT_STRING, true);
    addSupportedKey(ARCHITECTURE_SIZE, ConfigurationFile::VT_INTEGER, true);
    addSupportedKey(ARCHITECTURE_MODIFIED, ConfigurationFile::VT_READABLE_TIME,
                    true);

    addSupportedKey(ENCODING_MAP, ConfigurationFile::VT_STRING, true);
    addSupportedKey(ENCODING_MAP_SIZE, ConfigurationFile::VT_INTEGER, true);
    addSupportedKey(ENCODING_MAP_MODIFIED, ConfigurationFile::VT_READABLE_TIME,
                    true);

    addSupportedKey(IMPLEMENTATION, ConfigurationFile::VT_STRING, true);
    addSupportedKey(IMPLEMENTATION_SIZE, ConfigurationFile::VT_INTEGER, true);
    addSupportedKey(IMPLEMENTATION_MODIFIED,
                    ConfigurationFile::VT_READABLE_TIME, true);

    load(inputStream);
}

References ConfigurationFile::addSupportedKey(), ARCHITECTURE, ARCHITECTURE_MODIFIED, ARCHITECTURE_SIZE, ENCODING_MAP, ENCODING_MAP_MODIFIED, ENCODING_MAP_SIZE, IMPLEMENTATION, IMPLEMENTATION_MODIFIED, IMPLEMENTATION_SIZE, ConfigurationFile::load(), ConfigurationFile::VT_INTEGER, ConfigurationFile::VT_READABLE_TIME, and ConfigurationFile::VT_STRING.

Here is the call graph for this function:

◆ ~ProcessorConfigurationFile()

ProcessorConfigurationFile::~ProcessorConfigurationFile ( )

virtual

Destructor.

Definition at line 82 of file ProcessorConfigurationFile.cc.

82 {

83}

Member Function Documentation

◆ architectureModified()

unsigned int ProcessorConfigurationFile::architectureModified ( )

Returns the timestamp of the architecture modified time.

Returns: Architecture modified timestamp.

Exceptions

KeyNotFound If architecture modified time is not found.

Definition at line 129 of file ProcessorConfigurationFile.cc.

                                                 {
    return timeStampValue(ARCHITECTURE_MODIFIED);
}

References ARCHITECTURE_MODIFIED, and ConfigurationFile::timeStampValue().

Here is the call graph for this function:

◆ architectureName()

string ProcessorConfigurationFile::architectureName ( )

Returns the name of the architecture.

Returns: The name of the architecture.

Exceptions

KeyNotFound If architecture is not found.

Definition at line 107 of file ProcessorConfigurationFile.cc.

                                             {
    return realPath(value(ARCHITECTURE));
}

References ARCHITECTURE, realPath(), and ConfigurationFile::value().

Referenced by ProGe::ProGeUI::loadProcessorConfiguration(), SimulatorFrontend::loadProcessorConfiguration(), and MDFDocument::openCFG().

Here is the call graph for this function:

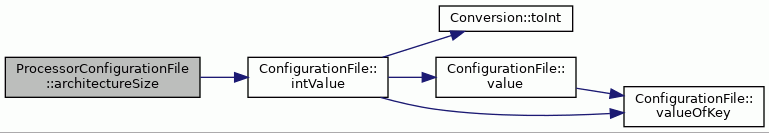

◆ architectureSize()

unsigned int ProcessorConfigurationFile::architectureSize ( )

Returns the size of the architecture.

Returns: The size of the architecture.

Exceptions

KeyNotFound If architecture size is not found.

Definition at line 118 of file ProcessorConfigurationFile.cc.

                                             {
    return intValue(ARCHITECTURE_SIZE);
}

References ARCHITECTURE_SIZE, and ConfigurationFile::intValue().

Here is the call graph for this function:

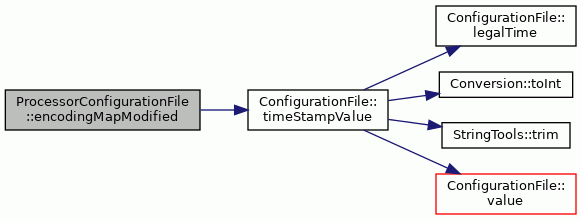

◆ encodingMapModified()

unsigned int ProcessorConfigurationFile::encodingMapModified ( )

Returns the timestamp of encoding map modified time.

Returns: The timestamp of encoding map modified time.

Exceptions

KeyNotFound If timestamp is not found.

Definition at line 195 of file ProcessorConfigurationFile.cc.

                                                {
    return timeStampValue(ENCODING_MAP_MODIFIED);
}

References ENCODING_MAP_MODIFIED, and ConfigurationFile::timeStampValue().

Here is the call graph for this function:

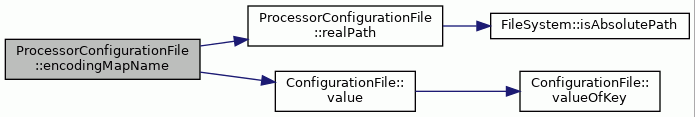

◆ encodingMapName()

string ProcessorConfigurationFile::encodingMapName ( )

Returns the name of the encoding map.

Returns: The name of the encoding map.

Exceptions

KeyNotFound If encoding map is not found.

Definition at line 173 of file ProcessorConfigurationFile.cc.

                                            {
    return realPath(value(ENCODING_MAP));
}

References ENCODING_MAP, realPath(), and ConfigurationFile::value().

Referenced by ProGe::ProGeUI::loadProcessorConfiguration().

Here is the call graph for this function:

◆ encodingMapSize()

unsigned int ProcessorConfigurationFile::encodingMapSize ( )

Returns the size of the encoding map.

Returns: The size of the encoding map.

Exceptions

KeyNotFound If encoding map size is not found.

Definition at line 184 of file ProcessorConfigurationFile.cc.

                                            {
    return intValue(ENCODING_MAP_SIZE);
}

References ENCODING_MAP_SIZE, and ConfigurationFile::intValue().

Here is the call graph for this function:

◆ errorCount()

int ProcessorConfigurationFile::errorCount ( )

Returns the number of errors.

Returns: The number of errors.

Definition at line 205 of file ProcessorConfigurationFile.cc.

                                       {
    return errors_.size();
}

References errors_.

Referenced by MDFDocument::openCFG().

◆ errors()

bool ProcessorConfigurationFile::errors ( )

Returns true if errors were found.

Returns: True if errors were found.

Definition at line 231 of file ProcessorConfigurationFile.cc.

                                   {
    return !errors_.empty();
}

References errors_.

Referenced by MDFDocument::openCFG().

◆ errorString()

string ProcessorConfigurationFile::errorString ( int index )

Returns the error string with a given index.

If such error string is not found, returns empty string.

Returns: Error string with a given index.

Definition at line 217 of file ProcessorConfigurationFile.cc.

                                                 {

    if (index < 0 || index > static_cast<int>(errors_.size()) - 1) {
        return "";
    }
    return errors_[index];
}

References errors_.

Referenced by handleError(), and MDFDocument::openCFG().

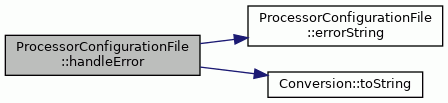

◆ handleError()

bool ProcessorConfigurationFile::handleError	(	int	lineNumber,
		ConfigurationFile::ConfigurationFileError	error,
		const std::string &	line
	)

protectedvirtual

Handles the errors.

Error string are added in internal data structure.

Parameters

lineNumber	The line number.
error	The type of the error.
line	The line in which error occurred.

Returns: True.

Reimplemented from ConfigurationFile.

Definition at line 246 of file ProcessorConfigurationFile.cc.

                           {

    string errorString;
    switch (error) {
    case ConfigurationFile::FE_SYNTAX:
        errorString += "Syntax error ";
        break;
    case ConfigurationFile::FE_ILLEGAL_TYPE:
        errorString += "Illegal type error ";
        break;
    case ConfigurationFile::FE_UNKNOWN_KEY:
        errorString += "Unknown key error ";
        break;
    case ConfigurationFile::FE_MISSING_VALUE:
        errorString += "Missing value error ";
        break;
    }
    errorString += "in line " + Conversion::toString(lineNumber) +
        ": " + line;

    errors_.push_back(errorString);
    return true;
}

References errors_, errorString(), ConfigurationFile::FE_ILLEGAL_TYPE, ConfigurationFile::FE_MISSING_VALUE, ConfigurationFile::FE_SYNTAX, ConfigurationFile::FE_UNKNOWN_KEY, and Conversion::toString().

Here is the call graph for this function:

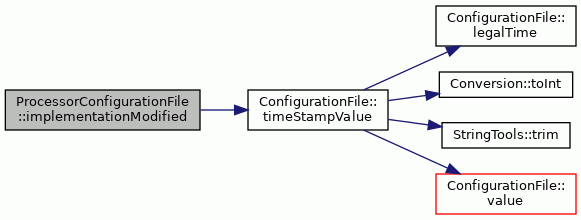

◆ implementationModified()

unsigned int ProcessorConfigurationFile::implementationModified ( )

Returns the implementation modified timestamp.

Returns: Timestamp of implementation modified time.

Exceptions

KeyNotFound If implementation modified timestamp is not found.

Definition at line 162 of file ProcessorConfigurationFile.cc.

                                                   {
    return timeStampValue(IMPLEMENTATION_MODIFIED);
}

References IMPLEMENTATION_MODIFIED, and ConfigurationFile::timeStampValue().

Here is the call graph for this function:

◆ implementationName()

string ProcessorConfigurationFile::implementationName ( )

Returns the name of the implementation.

Returns: The name of the implementation.

Exceptions

KeyNotFound If implementation is not found.

Definition at line 140 of file ProcessorConfigurationFile.cc.

                                               {
    return realPath(value(IMPLEMENTATION));
}

References IMPLEMENTATION, realPath(), and ConfigurationFile::value().

Referenced by ProGe::ProGeUI::loadProcessorConfiguration().

Here is the call graph for this function:

◆ implementationSize()

unsigned int ProcessorConfigurationFile::implementationSize ( )

Returns the size of the implementation.

Returns: The size of the implementation.

Exceptions

KeyNotFound If implementation size is not found.

Definition at line 151 of file ProcessorConfigurationFile.cc.

                                               {
    return intValue(IMPLEMENTATION_SIZE);
}

References IMPLEMENTATION_SIZE, and ConfigurationFile::intValue().

Here is the call graph for this function:

◆ realPath()

std::string ProcessorConfigurationFile::realPath ( const std::string & pathInPCF ) const

private

Creates real path to the file referred to in PCF.

The path is constructed assuming the PCF is in the directory set with setPCFDirectory method.

Parameters

pathInPCF The path that reads in the PCF.

Returns: Real path to the file.

Definition at line 284 of file ProcessorConfigurationFile.cc.

                                                                     {
    if (FileSystem::isAbsolutePath(pathInPCF) || pcfDir_ == "") {
        return pathInPCF;
    } else {
        return pcfDir_ + FileSystem::DIRECTORY_SEPARATOR + pathInPCF;
    }
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::isAbsolutePath(), and pcfDir_.

Referenced by architectureName(), encodingMapName(), and implementationName().

Here is the call graph for this function:

◆ setPCFDirectory()

void ProcessorConfigurationFile::setPCFDirectory ( const std::string & directory )

Sets the directory of PCF file itself.

Path of the ADF, IDF and BEM files are constructed relative to the PCF directory if a relative path is given in PCF.

Parameters

directory The directory of the PCF file.

Definition at line 95 of file ProcessorConfigurationFile.cc.

                                                                      {
    pcfDir_ = directory;
}

References pcfDir_.

Referenced by ProGe::ProGeUI::loadProcessorConfiguration(), SimulatorFrontend::loadProcessorConfiguration(), and MDFDocument::openCFG().

Member Data Documentation

◆ ARCHITECTURE

const string ProcessorConfigurationFile::ARCHITECTURE = "Architecture"

staticprivate

Definition at line 80 of file ProcessorConfigurationFile.hh.

Referenced by architectureName(), and ProcessorConfigurationFile().

◆ ARCHITECTURE_MODIFIED

const string ProcessorConfigurationFile::ARCHITECTURE_MODIFIED

staticprivate

Initial value:

=

"ArchitectureModified"

Definition at line 82 of file ProcessorConfigurationFile.hh.

Referenced by architectureModified(), and ProcessorConfigurationFile().

◆ ARCHITECTURE_SIZE

const string ProcessorConfigurationFile::ARCHITECTURE_SIZE = "ArchitectureSize"

staticprivate

Definition at line 81 of file ProcessorConfigurationFile.hh.

Referenced by architectureSize(), and ProcessorConfigurationFile().

◆ ENCODING_MAP

const string ProcessorConfigurationFile::ENCODING_MAP = "EncodingMap"

staticprivate

Definition at line 84 of file ProcessorConfigurationFile.hh.

Referenced by encodingMapName(), and ProcessorConfigurationFile().

◆ ENCODING_MAP_MODIFIED

const string ProcessorConfigurationFile::ENCODING_MAP_MODIFIED

staticprivate

Initial value:

=

"EncodingModified"

Definition at line 86 of file ProcessorConfigurationFile.hh.

Referenced by encodingMapModified(), and ProcessorConfigurationFile().

◆ ENCODING_MAP_SIZE

const string ProcessorConfigurationFile::ENCODING_MAP_SIZE = "EncodingSize"

staticprivate

Definition at line 85 of file ProcessorConfigurationFile.hh.

Referenced by encodingMapSize(), and ProcessorConfigurationFile().

◆ errors_

std::vector<std::string> ProcessorConfigurationFile::errors_

private

Definition at line 92 of file ProcessorConfigurationFile.hh.

Referenced by errorCount(), errors(), errorString(), and handleError().

◆ IMPLEMENTATION

const string ProcessorConfigurationFile::IMPLEMENTATION = "Implementation"

staticprivate

Definition at line 88 of file ProcessorConfigurationFile.hh.

Referenced by implementationName(), and ProcessorConfigurationFile().

◆ IMPLEMENTATION_MODIFIED

const string ProcessorConfigurationFile::IMPLEMENTATION_MODIFIED

staticprivate

Initial value:

=

"ImplementationModified"

Definition at line 90 of file ProcessorConfigurationFile.hh.

Referenced by implementationModified(), and ProcessorConfigurationFile().

◆ IMPLEMENTATION_SIZE

const string ProcessorConfigurationFile::IMPLEMENTATION_SIZE

staticprivate

Initial value:

=

"ImplementationSize"

Definition at line 89 of file ProcessorConfigurationFile.hh.

Referenced by implementationSize(), and ProcessorConfigurationFile().

◆ pcfDir_

std::string ProcessorConfigurationFile::pcfDir_

private

Directory of the PCF file, affects the path returned when ADF, IDF or BEM is requested.

Definition at line 98 of file ProcessorConfigurationFile.hh.

Referenced by realPath(), and setPCFDirectory().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ProcessorConfigurationFile()

◆ ~ProcessorConfigurationFile()

Member Function Documentation

◆ architectureModified()

◆ architectureName()

◆ architectureSize()

◆ encodingMapModified()

◆ encodingMapName()

◆ encodingMapSize()

◆ errorCount()

◆ errors()

◆ errorString()

◆ handleError()

◆ implementationModified()

◆ implementationName()

◆ implementationSize()

◆ realPath()

◆ setPCFDirectory()

Member Data Documentation

◆ ARCHITECTURE

◆ ARCHITECTURE_MODIFIED

◆ ARCHITECTURE_SIZE

◆ ENCODING_MAP

◆ ENCODING_MAP_MODIFIED

◆ ENCODING_MAP_SIZE

◆ errors_

◆ IMPLEMENTATION

◆ IMPLEMENTATION_MODIFIED

◆ IMPLEMENTATION_SIZE

◆ pcfDir_
