ProximCmdHistoryWindow Class Reference

#include <ProximCmdHistoryWindow.hh>

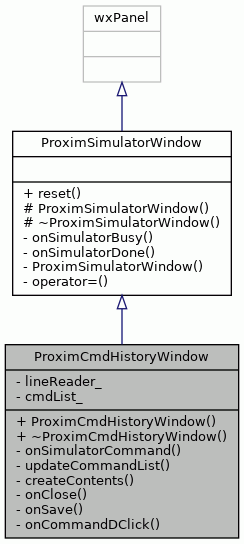

Inheritance diagram for ProximCmdHistoryWindow:

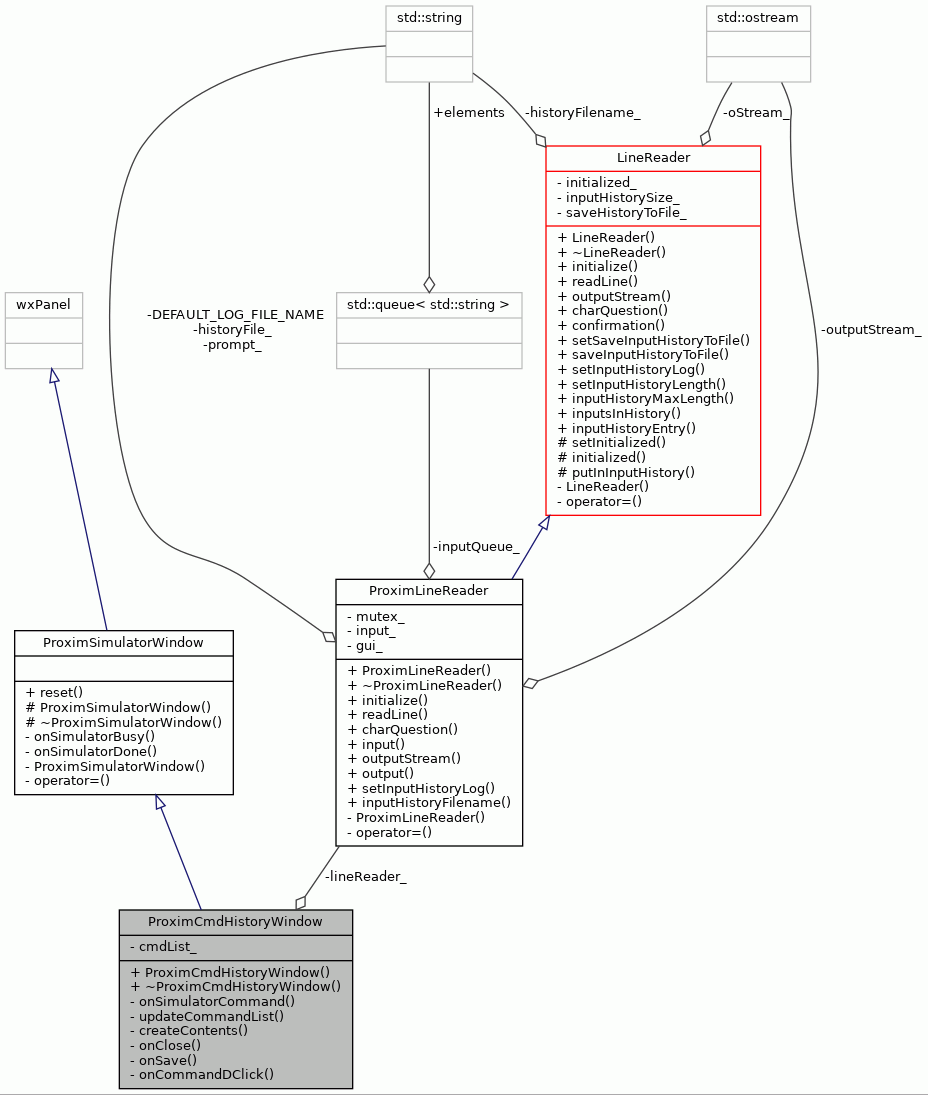

Collaboration diagram for ProximCmdHistoryWindow:

Public Member Functions
	ProximCmdHistoryWindow (ProximMainFrame *parent, wxWindowID id, ProximLineReader &lineReader)
virtual	~ProximCmdHistoryWindow ()
Public Member Functions inherited from ProximSimulatorWindow
virtual void	reset ()

Private Types
enum	{ ID_LIST = 10000 , ID_SAVE , ID_CLOSE , ID_LINE }

Private Member Functions
void	onSimulatorCommand (SimulatorEvent &event)
void	updateCommandList ()
wxSizer *	createContents (wxWindow *parent, bool set_sizer, bool call_fit)
void	onClose (wxCommandEvent &event)
void	onSave (wxCommandEvent &event)
void	onCommandDClick (wxCommandEvent &event)

Private Attributes
ProximLineReader &	lineReader_
	Line reader storing the command history.
wxListBox *	cmdList_
	ListBox widget displaying the command history.

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)
virtual	~ProximSimulatorWindow ()

Detailed Description

Window for browsing Proxim command history.

Definition at line 47 of file ProximCmdHistoryWindow.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_LIST
ID_SAVE
ID_CLOSE
ID_LINE

Definition at line 65 of file ProximCmdHistoryWindow.hh.

         {
        ID_LIST = 10000,
        ID_SAVE,
        ID_CLOSE,
        ID_LINE
    };

Constructor & Destructor Documentation

ProximCmdHistoryWindow()

ProximCmdHistoryWindow::ProximCmdHistoryWindow	(	ProximMainFrame *	parent,
		wxWindowID	id,
		ProximLineReader &	lineReader
	)

The Constructor.

Parameters

parent	Proxim main frame.
lineReader	Line reader handling the command history.

Definition at line 58 of file ProximCmdHistoryWindow.cc.

                                                                         :
    ProximSimulatorWindow(parent, id),
    lineReader_(lineReader) {

    createContents(this, true, true);
    cmdList_ = dynamic_cast<wxListBox*>(FindWindow(ID_LIST));

    updateCommandList();
}

~ProximCmdHistoryWindow()

ProximCmdHistoryWindow::~ProximCmdHistoryWindow ( )

virtual

The Destructor.

Definition at line 73 of file ProximCmdHistoryWindow.cc.

                                                {
}

Member Function Documentation

createContents()

wxSizer * ProximCmdHistoryWindow::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the window widgets.

Code generated by wxDesigner. Do not edit manually.

Parameters

parent	Parent window of the window contents.
call_fit	If true, resize the parent window to fit the created contents.
set_sizer	If true, sets the created sizer as parent window contents.

Definition at line 177 of file ProximCmdHistoryWindow.cc.

                                                     {

    wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
    item0->AddGrowableCol( 0 );
    item0->AddGrowableRow( 0 );

    wxString *strs1 = (wxString*) NULL;
    wxListBox *item1 = new wxListBox( parent, ID_LIST, wxDefaultPosition, wxSize(300,300), 0, strs1, wxLB_SINGLE );
    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxStaticLine *item2 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item2, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item3 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item4 = new wxButton( parent, ID_SAVE, wxT("&Save"), wxDefaultPosition, wxDefaultSize, 0 );
    item3->Add( item4, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticLine *item5 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(-1,20), wxLI_VERTICAL );
    item3->Add( item5, 0, wxGROW|wxALL, 5 );

    wxButton *item6 = new wxButton( parent, ID_CLOSE, wxT("&Close"), wxDefaultPosition, wxDefaultSize, 0 );
    item3->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_CLOSE, ID_LINE, ID_LIST, and ID_SAVE.

onClose()

void ProximCmdHistoryWindow::onClose ( wxCommandEvent &  event )

private

Handles the Close button events.

Closes the window.

Definition at line 111 of file ProximCmdHistoryWindow.cc.

                                               {
    GetParent()->Close();
}

onCommandDClick()

void ProximCmdHistoryWindow::onCommandDClick ( wxCommandEvent &  event )

private

Event handler for the command list double clicks.

Sends the double clicked command to the linereader input.

Parameters

event

Event of the item dclick.

Definition at line 123 of file ProximCmdHistoryWindow.cc.

                                                             {
    std::string command = WxConversion::toString(event.GetString());
    lineReader_.input(command);
}

References ProximLineReader::input(), lineReader_, and WxConversion::toString().

Here is the call graph for this function:

onSave()

void ProximCmdHistoryWindow::onSave ( wxCommandEvent &  event )

private

Displays dialog for saving command history to a file.

Definition at line 132 of file ProximCmdHistoryWindow.cc.

                                              {

    wxString title = _T("Save Command History");
    wxString filters = _T("Command history logs (*.log)|*.log|All files|*.*");
    wxFileDialog dialog(
        this, title, _T(""), _T("commands.log"), filters, wxSAVE);

    if (dialog.ShowModal() == wxID_CANCEL) {
        return;
    }

    std::string filename = WxConversion::toString(dialog.GetPath());

    std::ofstream file(filename.c_str());
    if (file.bad()) {
        wxString message = _T("Error saving file '.");
        message.Append(dialog.GetPath());
        message.Append(_T("'."));
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return;
    }

    size_t cmdCount = lineReader_.inputsInHistory();
    for (size_t i = 0; i < cmdCount; i++) {
        std::string command =
            lineReader_.inputHistoryEntry(cmdCount - 1 - i);
        file << command << std::endl;
    }

    file.close();
}

References LineReader::inputHistoryEntry(), LineReader::inputsInHistory(), lineReader_, and WxConversion::toString().

Here is the call graph for this function:

onSimulatorCommand()

void ProximCmdHistoryWindow::onSimulatorCommand ( SimulatorEvent &  event )

private

Calls history list update when a simulator event of a completed command is received.

Definition at line 99 of file ProximCmdHistoryWindow.cc.

                                                                {
    updateCommandList();
    event.Skip();
}

References updateCommandList().

Here is the call graph for this function:

updateCommandList()

void ProximCmdHistoryWindow::updateCommandList ( )

private

Updates the command history list.

Definition at line 81 of file ProximCmdHistoryWindow.cc.

                                          {
    cmdList_->Clear();
    for (size_t i = 0; i < lineReader_.inputsInHistory(); i++) {
        std::string command = lineReader_.inputHistoryEntry(i);
        cmdList_->Insert(WxConversion::toWxString(command), 0);
    }
    if (cmdList_->GetCount() > 0) {
        FindWindow(ID_SAVE)->Enable();
    } else {
        FindWindow(ID_SAVE)->Disable();
    }
}

References cmdList_, ID_SAVE, LineReader::inputHistoryEntry(), LineReader::inputsInHistory(), lineReader_, and WxConversion::toWxString().

Referenced by onSimulatorCommand().

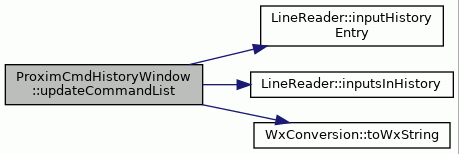

Here is the call graph for this function:

Member Data Documentation

cmdList_

wxListBox* ProximCmdHistoryWindow::cmdList_

private

ListBox widget displaying the command history.

Definition at line 75 of file ProximCmdHistoryWindow.hh.

Referenced by updateCommandList().

lineReader_

ProximLineReader& ProximCmdHistoryWindow::lineReader_

private

Line reader storing the command history.

Definition at line 73 of file ProximCmdHistoryWindow.hh.

Referenced by onCommandDClick(), onSave(), and updateCommandList().

---

The documentation for this class was generated from the following files:

• ProximCmdHistoryWindow.hh
• ProximCmdHistoryWindow.cc
