ProximOpenMachineCmd Class Reference

#include <ProximOpenMachineCmd.hh>

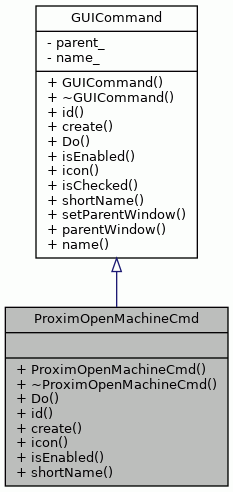

Inheritance diagram for ProximOpenMachineCmd:

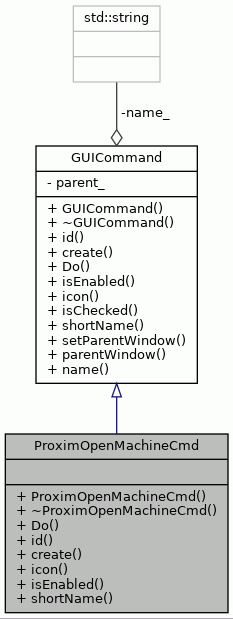

Collaboration diagram for ProximOpenMachineCmd:

Public Member Functions
	ProximOpenMachineCmd ()
virtual	~ProximOpenMachineCmd ()
virtual bool	Do ()
virtual int	id () const
virtual ProximOpenMachineCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
virtual std::string	shortName () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for opening a machine desctiption file in Proxim.

The command displays a file dialog for choosing the machine file to open.

Definition at line 43 of file ProximOpenMachineCmd.hh.

Constructor & Destructor Documentation

ProximOpenMachineCmd()

ProximOpenMachineCmd::ProximOpenMachineCmd

(

)

The Constructor.

Definition at line 48 of file ProximOpenMachineCmd.cc.

                                          :
    GUICommand(ProximConstants::COMMAND_NAME_OPEN_MACHINE, NULL) {

    }

Referenced by create().

~ProximOpenMachineCmd()

ProximOpenMachineCmd::~ProximOpenMachineCmd ( )

virtual

The Destructor.

Definition at line 56 of file ProximOpenMachineCmd.cc.

                                            {
}

Member Function Documentation

create()

ProximOpenMachineCmd * ProximOpenMachineCmd::create ( ) const

virtual

Creates and returns a new isntance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 122 of file ProximOpenMachineCmd.cc.

                                   {
    return new ProximOpenMachineCmd();
}

References ProximOpenMachineCmd().

Here is the call graph for this function:

Do()

bool ProximOpenMachineCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 64 of file ProximOpenMachineCmd.cc.

                         {
    assert(parentWindow() != NULL);

    wxString wildcard = _T("Architecture Definition Files (*.adf)|*.adf");
    wildcard.Append(_T("|Processor Configuration Files (*.pcf)|*.pcf"));
    wildcard.Append(_T("|All files|*.*"));
    wxFileDialog dialog(
    parentWindow(), _T("Choose a file."), _T(""), _T(""),
    wildcard, wxOPEN);

    if (dialog.ShowModal() == wxID_CANCEL) {
    return false;
    }

    std::string command;
    std::string file = WxConversion::toString(dialog.GetPath());
    std::string extension = FileSystem::fileExtension(file);

    // Simulator interpreter command is chose according to file extension.
    // Processor configuration files (.pcf), have to be opened using
    // 'conf' command.
    if (extension == ".pcf") {
    command = ProximConstants::SCL_LOAD_CONF + " \"" + file + "\"";
    } else {
    command = ProximConstants::SCL_LOAD_MACHINE + " \"" + file + "\"";
    }

    wxGetApp().simulation()->lineReader().input(command);
    return true;
}

References assert, FileSystem::fileExtension(), GUICommand::parentWindow(), ProximConstants::SCL_LOAD_CONF, ProximConstants::SCL_LOAD_MACHINE, and WxConversion::toString().

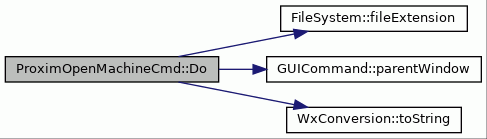

Here is the call graph for this function:

icon()

std::string ProximOpenMachineCmd::icon ( ) const

virtual

Returns full path to the command icon file.

Returns

Full path to the command icon file.

Implements GUICommand.

Definition at line 102 of file ProximOpenMachineCmd.cc.

                                 {
    return "open_machine.png";
}

id()

int ProximOpenMachineCmd::id ( ) const

virtual

Returns ID of this command.

Implements GUICommand.

Definition at line 111 of file ProximOpenMachineCmd.cc.

                               {
    return ProximConstants::COMMAND_OPEN_MACHINE;
}

References ProximConstants::COMMAND_OPEN_MACHINE.

isEnabled()

bool ProximOpenMachineCmd::isEnabled ( )

virtual

Returns true if the command is enabled, false otherwise.

Returns

Always true.

Implements GUICommand.

Definition at line 133 of file ProximOpenMachineCmd.cc.

                                {
    return true;
}

shortName()

std::string ProximOpenMachineCmd::shortName ( ) const

virtual

Returns shortened name of the command for toolbar button text.

Returns

Short version of the command name.

Reimplemented from GUICommand.

Definition at line 143 of file ProximOpenMachineCmd.cc.

                                      {
    return "Machine";
}

---

The documentation for this class was generated from the following files:

• ProximOpenMachineCmd.hh
• ProximOpenMachineCmd.cc
