ProximSimulatorSettingsCmd Class Reference

#include <ProximSimulatorSettingsCmd.hh>

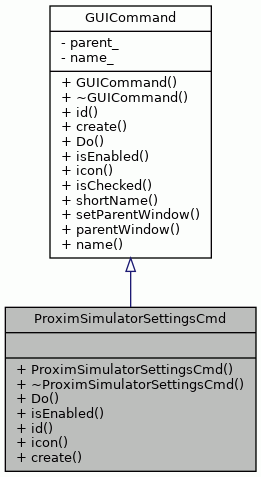

Inheritance diagram for ProximSimulatorSettingsCmd:

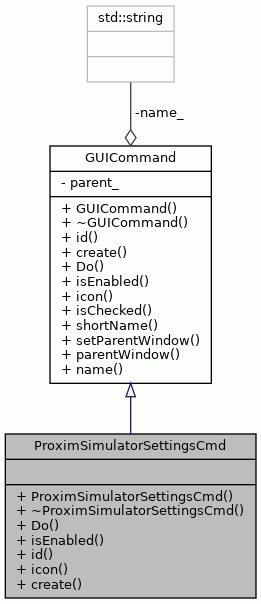

Collaboration diagram for ProximSimulatorSettingsCmd:

Public Member Functions
	ProximSimulatorSettingsCmd ()
virtual	~ProximSimulatorSettingsCmd ()
virtual bool	Do ()
virtual bool	isEnabled ()
virtual int	id () const
virtual std::string	icon () const
ProximSimulatorSettingsCmd *	create () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for opening the simulator settings dialog in Proxim.

Definition at line 41 of file ProximSimulatorSettingsCmd.hh.

Constructor & Destructor Documentation

ProximSimulatorSettingsCmd()

ProximSimulatorSettingsCmd::ProximSimulatorSettingsCmd

(

)

The Constructor.

Definition at line 43 of file ProximSimulatorSettingsCmd.cc.

                                                      :
    GUICommand(ProximConstants::COMMAND_NAME_SIMULATOR_SETTINGS, NULL) {
}

Referenced by create().

~ProximSimulatorSettingsCmd()

ProximSimulatorSettingsCmd::~ProximSimulatorSettingsCmd ( )

virtual

The Destructor.

Definition at line 51 of file ProximSimulatorSettingsCmd.cc.

                                                        {
}

Member Function Documentation

create()

ProximSimulatorSettingsCmd * ProximSimulatorSettingsCmd::create ( ) const

virtual

Creates and returns a new isntance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 95 of file ProximSimulatorSettingsCmd.cc.

                                         {
    return new ProximSimulatorSettingsCmd();
}

References ProximSimulatorSettingsCmd().

Here is the call graph for this function:

Do()

bool ProximSimulatorSettingsCmd::Do ( )

virtual

Executes the command.

@retutn True, if the command was succesfully executed.

Implements GUICommand.

Definition at line 60 of file ProximSimulatorSettingsCmd.cc.

                               {
    wxWindow* parent = parentWindow();
    assert(parent != NULL);
    SimulatorFrontend* frontend = ProximToolbox::frontend();
    ProximLineReader& lineReader = ProximToolbox::lineReader();
    SimulatorSettingsDialog dialog(parentWindow(), -1, *frontend, lineReader);
    dialog.ShowModal();
    return true;
}

References assert, ProximToolbox::frontend(), ProximToolbox::lineReader(), and GUICommand::parentWindow().

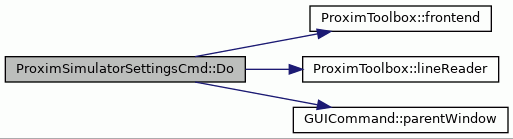

Here is the call graph for this function:

icon()

std::string ProximSimulatorSettingsCmd::icon ( ) const

virtual

Returns path to the icon file for this command.

Implements GUICommand.

Definition at line 84 of file ProximSimulatorSettingsCmd.cc.

                                       {
    return "configure.png";
}

id()

int ProximSimulatorSettingsCmd::id ( ) const

virtual

Returns ID of this command.

Implements GUICommand.

Definition at line 75 of file ProximSimulatorSettingsCmd.cc.

                                     {
    return ProximConstants::COMMAND_SIMULATOR_SETTINGS;
}

References ProximConstants::COMMAND_SIMULATOR_SETTINGS.

isEnabled()

bool ProximSimulatorSettingsCmd::isEnabled ( )

virtual

Returns true if the command is enabled, false otherwise.

Returns

Always true.

Implements GUICommand.

Definition at line 106 of file ProximSimulatorSettingsCmd.cc.

                                      {
    return true;
}

---

The documentation for this class was generated from the following files:

• ProximSimulatorSettingsCmd.hh
• ProximSimulatorSettingsCmd.cc
