QuartusProjectGenerator Class Reference

#include <QuartusProjectGenerator.hh>

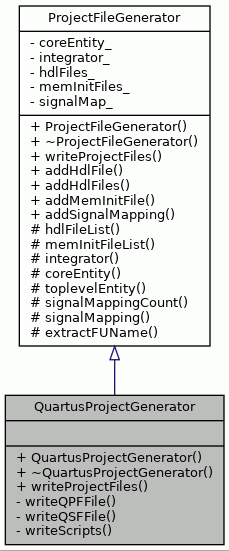

Inheritance diagram for QuartusProjectGenerator:

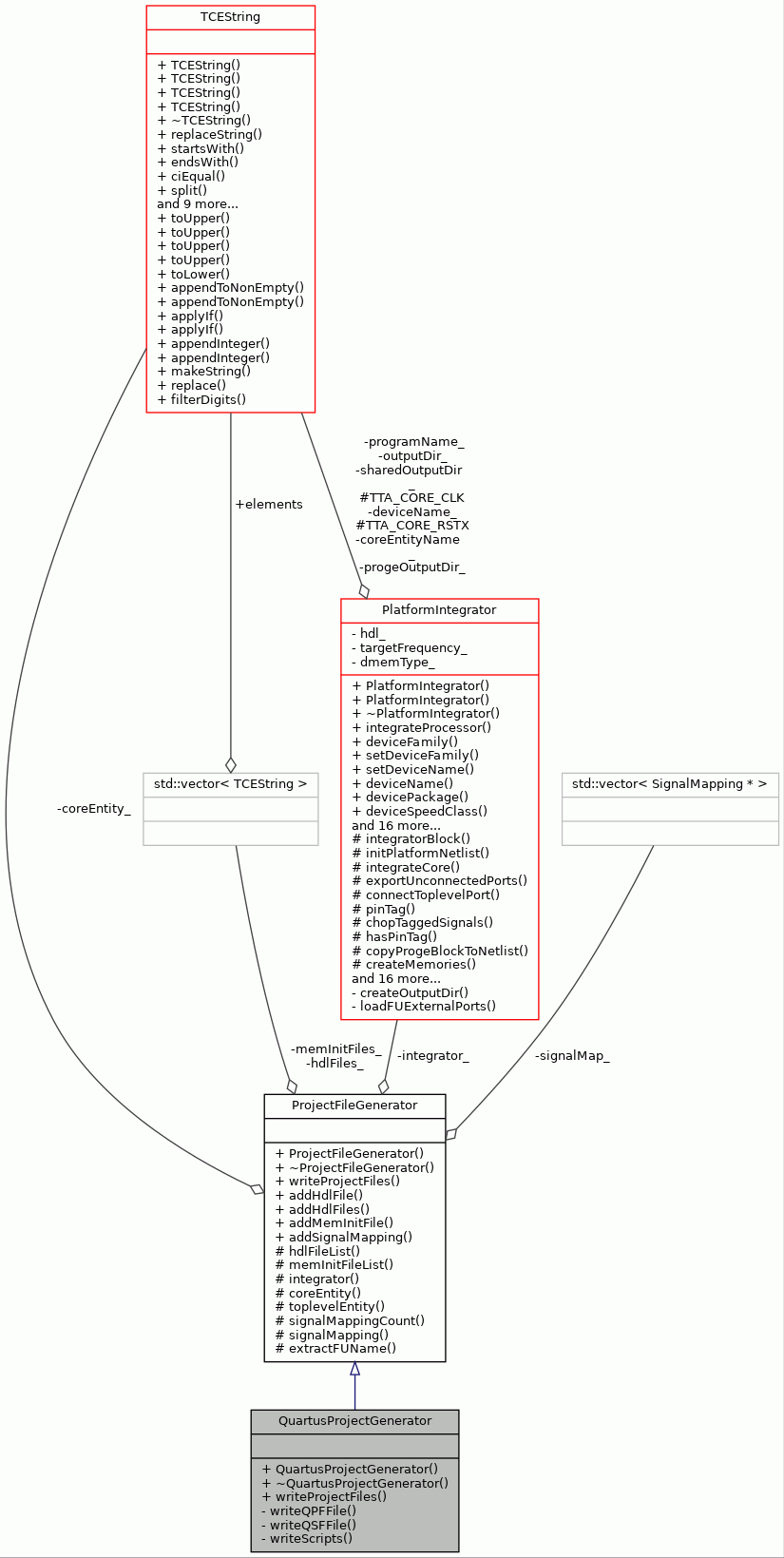

Collaboration diagram for QuartusProjectGenerator:

Public Member Functions
	QuartusProjectGenerator (TCEString toplevelEntity, const PlatformIntegrator *integrator)
virtual	~QuartusProjectGenerator ()
virtual void	writeProjectFiles ()
Public Member Functions inherited from ProjectFileGenerator
	ProjectFileGenerator (TCEString coreEntity, const PlatformIntegrator *integrator)
virtual	~ProjectFileGenerator ()
void	addHdlFile (const TCEString &file)
void	addHdlFiles (const std::vector< TCEString > &files)
void	addMemInitFile (const TCEString &memInit)
void	addSignalMapping (const PlatInt::SignalMapping &mapping)

Private Member Functions
void	writeQPFFile ()
void	writeQSFFile ()
void	writeScripts ()

Additional Inherited Members
Protected Member Functions inherited from ProjectFileGenerator
const std::vector< TCEString > &	hdlFileList () const
const std::vector< TCEString > &	memInitFileList () const
const PlatformIntegrator *	integrator () const
TCEString	coreEntity () const
TCEString	toplevelEntity () const
int	signalMappingCount () const
const PlatInt::SignalMapping *	signalMapping (int index) const
TCEString	extractFUName (const TCEString &port, const TCEString &delimiter) const

Detailed Description

Definition at line 41 of file QuartusProjectGenerator.hh.

Constructor & Destructor Documentation

QuartusProjectGenerator()

QuartusProjectGenerator::QuartusProjectGenerator	(	TCEString	toplevelEntity,
		const PlatformIntegrator *	integrator
	)

Definition at line 46 of file QuartusProjectGenerator.cc.

                                         :
    ProjectFileGenerator(coreEntity, integrator) {
}

~QuartusProjectGenerator()

QuartusProjectGenerator::~QuartusProjectGenerator ( )

virtual

Definition at line 52 of file QuartusProjectGenerator.cc.

                                                  {
}

Member Function Documentation

writeProjectFiles()

void QuartusProjectGenerator::writeProjectFiles ( )

virtual

Implements ProjectFileGenerator.

Definition at line 56 of file QuartusProjectGenerator.cc.

                                           {

    writeQPFFile();

    writeQSFFile();

    writeScripts();
}

References writeQPFFile(), writeQSFFile(), and writeScripts().

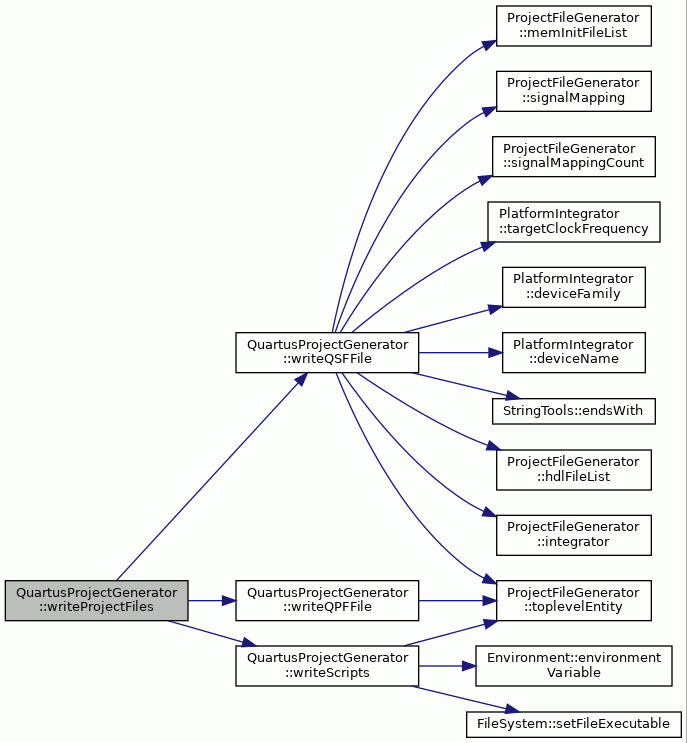

Here is the call graph for this function:

writeQPFFile()

void QuartusProjectGenerator::writeQPFFile ( )

private

Definition at line 67 of file QuartusProjectGenerator.cc.

                                      {

    TCEString qpfFileName = toplevelEntity() + ".qpf";
    ofstream qpfFile;
    qpfFile.open(qpfFileName.c_str());
    if (!qpfFile) {
        TCEString msg = "Couldn't open file " + qpfFileName + " for writing";
        IOException exc(__FILE__, __LINE__, "QuartusProjectGenerator", msg);
        throw exc;
    }
    qpfFile
        << "# Generated by QuartusProject Generator" << endl << endl
        << "QUARTUS_VERSION = \"8.0\"" << endl << endl
        << "PROJECT_REVISION = \"" << toplevelEntity() << "\"" << endl;
    qpfFile.close();
}

References ProjectFileGenerator::toplevelEntity().

Referenced by writeProjectFiles().

Here is the call graph for this function:

writeQSFFile()

void QuartusProjectGenerator::writeQSFFile ( )

private

Definition at line 86 of file QuartusProjectGenerator.cc.

                                      {

    TCEString qsfFileName = toplevelEntity() + ".qsf";
    ofstream qsfFile;
    qsfFile.open(qsfFileName.c_str());
    if (!qsfFile) {
        TCEString msg = "Couldn't open file " + qsfFileName + " for writing";
        IOException exc(__FILE__, __LINE__, "QuartusProjectGenerator", msg);
        throw exc;
    }

    TCEString deviceFamily = integrator()->deviceFamily();
    TCEString deviceName = integrator()->deviceName();
    int fmax = integrator()->targetClockFrequency();
    qsfFile
        << "# Generated by QuartusProjectGenerator" << endl << endl
        << "set_global_assignment -name FAMILY \"" << deviceFamily << "\""
        << endl
        << "set_global_assignment -name DEVICE " << deviceName << endl
        << "set_global_assignment -name TOP_LEVEL_ENTITY " << toplevelEntity()
        << endl
        << "set_global_assignment -name ORIGINAL_QUARTUS_VERSION 8.0" << endl
        << "set_global_assignment -name LAST_QUARTUS_VERSION 8.0" << endl
        << "set_global_assignment -name USE_GENERATED_PHYSICAL_CONSTRAINTS "
        << "OFF -section_id eda_palace" << endl
        << "set_global_assignment -name USE_CONFIGURATION_DEVICE ON" << endl
        << "set_global_assignment -name RESERVE_ALL_UNUSED_PINS \"AS "
        << "INPUT TRI-STATED\"" << endl
        << "set_global_assignment -name FMAX_REQUIREMENT \"" << fmax
        << " MHz\"" << endl;

    for (unsigned int i = 0; i < hdlFileList().size(); i++) {
        qsfFile << "set_global_assignment -name VHDL_FILE \""
                << hdlFileList().at(i) << "\"" << endl;
    }

    for (unsigned int i = 0; i < memInitFileList().size(); i++) {
        if (StringTools::endsWith(memInitFileList().at(i), ".mif")) {
            qsfFile << "set_global_assignment -name MIF_FILE \""
                    << memInitFileList().at(i) << "\"" << endl;
        } else if (StringTools::endsWith(memInitFileList().at(i), ".hex")) {
            qsfFile << "set_global_assignment -name HEX_FILE \""
                    << memInitFileList().at(i) << "\"" << endl;
        }
    }

    for (int i = 0; i < signalMappingCount(); i++) {
        const SignalMapping* mapping = signalMapping(i);
        qsfFile << "set_location_assignment " << mapping->first
                << " -to " << mapping->second << endl;
    }
    qsfFile.close();
}

References PlatformIntegrator::deviceFamily(), PlatformIntegrator::deviceName(), StringTools::endsWith(), ProjectFileGenerator::hdlFileList(), ProjectFileGenerator::integrator(), ProjectFileGenerator::memInitFileList(), ProjectFileGenerator::signalMapping(), ProjectFileGenerator::signalMappingCount(), PlatformIntegrator::targetClockFrequency(), and ProjectFileGenerator::toplevelEntity().

Referenced by writeProjectFiles().

Here is the call graph for this function:

writeScripts()

void QuartusProjectGenerator::writeScripts ( )

private

Definition at line 142 of file QuartusProjectGenerator.cc.

                                      {

    TCEString exportCommand = "";
    TCEString alteraLibPath =
        Environment::environmentVariable(
            "ALTERA_LIBRARY_PATH");

    if (alteraLibPath != "") {
        exportCommand << "export LD_LIBRARY_PATH=" << alteraLibPath << "\n";
    }


    TCEString synthesisScript = "quartus_synthesize.sh";
    ofstream synthesis;
    synthesis.open(synthesisScript.c_str());
    if (!synthesis) {
        TCEString msg =
            "Couldn't open file " + synthesisScript + " for writing";
        IOException exc(__FILE__, __LINE__, "QuartusProjectGenerator", msg);
        throw exc;
    }
    synthesis
        << "#!/bin/bash" << endl
        << "# Generated by QuartusProjectGenerator of TCE" << endl << endl
        << exportCommand
        << "quartus_sh --flow compile " << toplevelEntity() << endl;
    synthesis.close();
    FileSystem::setFileExecutable(synthesisScript);

    TCEString programmingScript = "quartus_program_fpga.sh";
    ofstream programming;
    programming.open(programmingScript.c_str());
    if (!programming) {
        TCEString msg = "Couldn't open file " + programmingScript
            + " for writing";
        IOException exc(__FILE__, __LINE__, "QuartusProjectGenerator", msg);
        throw exc;
    }
    programming
        << "#!/bin/bash" << endl
        << "# Generated by QuartusProjectGenerator of TCE" << endl << endl
        << exportCommand
        << "quartus_pgm -c USB-Blaster -m JTAG -o p\\;"
        << toplevelEntity() << ".sof" << endl << endl;
    programming.close();
    FileSystem::setFileExecutable(programmingScript);
}

References Environment::environmentVariable(), FileSystem::setFileExecutable(), and ProjectFileGenerator::toplevelEntity().

Referenced by writeProjectFiles().

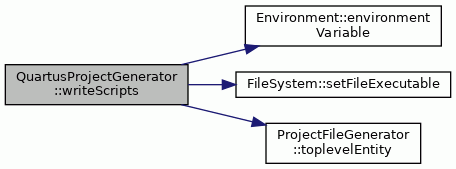

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• QuartusProjectGenerator.hh
• QuartusProjectGenerator.cc
