TPEF::DebugStabElem Class Reference

#include <DebugStabElem.hh>

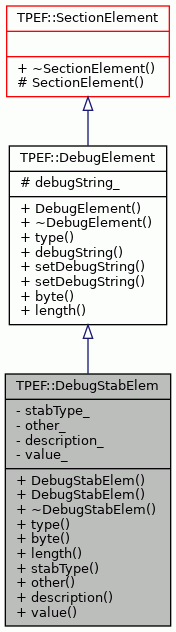

Inheritance diagram for TPEF::DebugStabElem:

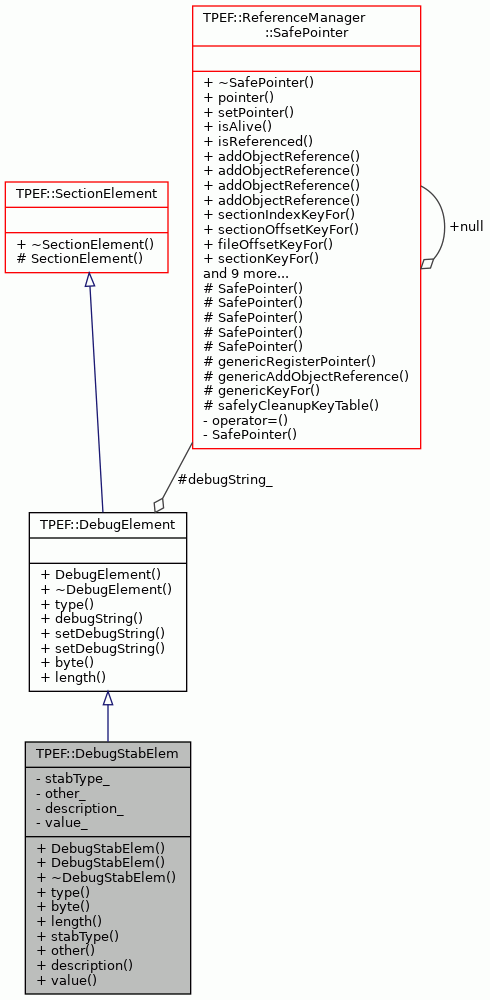

Collaboration diagram for TPEF::DebugStabElem:

Public Member Functions
	DebugStabElem (std::vector< Byte > &data)
	DebugStabElem (Byte stabType, Byte other, HalfWord description, Word value)
virtual	~DebugStabElem ()
virtual ElementType	type () const
virtual Byte	byte (Word index) const
virtual Word	length () const
Byte	stabType () const
Byte	other () const
HalfWord	description () const
Word	value () const
Public Member Functions inherited from TPEF::DebugElement
	DebugElement ()
virtual	~DebugElement ()
Chunk *	debugString () const
void	setDebugString (const ReferenceManager::SafePointer *aString)
void	setDebugString (Chunk *aString)
Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()
Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Private Attributes
Byte	stabType_
	a.out stab type.
Byte	other_
	a.out stab other field.
HalfWord	description_
	a.out stab description field.
Word	value_
	a.out stab value field.

Additional Inherited Members
Public Types inherited from TPEF::DebugElement
enum	ElementType { DE_STAB = 0x1 }
Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()
Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()
Protected Attributes inherited from TPEF::DebugElement
const ReferenceManager::SafePointer *	debugString_
	String of debug element.

Detailed Description

Stab debug element type.

Definition at line 48 of file DebugStabElem.hh.

Constructor & Destructor Documentation

DebugStabElem() [1/2]

TPEF::DebugStabElem::DebugStabElem

(

std::vector< Byte > &

data

)

Constructor.

Creates debug element out of data vector, where all the data is stored in big endian format.

This constructor is used when additional data part of debug element is read from data is read from TPEF file to table.

Parameters

data	Data vector that is used to initialize a.out stab element.

Definition at line 49 of file DebugStabElem.cc.

    : DebugElement() {

    // read element to object
    stabType_ = data[0];
    other_ = data[1];
    description_ = data[2];
    description_ = (description_ << BYTE_BITWIDTH) | data[3];
    value_ = data[4];
    value_ = (value_ << BYTE_BITWIDTH) | data[5];
    value_ = (value_ << BYTE_BITWIDTH) | data[6];
    value_ = (value_ << BYTE_BITWIDTH) | data[7];
}

References BYTE_BITWIDTH, description_, other_, stabType_, and value_.

DebugStabElem() [2/2]

TPEF::DebugStabElem::DebugStabElem	(	Byte	stabType,
		Byte	other,
		HalfWord	description,
		Word	value
	)

Constructor.

Parameters

stabType	A.out stab's type field.
other	A.out stab's other field.
desscription	A.out stab's description field.
value	A.out stab's value field.

Definition at line 72 of file DebugStabElem.cc.

                                                                 :
    DebugElement(), stabType_(stabType), other_(other),
    description_(description), value_(value) {
}

~DebugStabElem()

TPEF::DebugStabElem::~DebugStabElem ( )

virtual

Destructor.

Definition at line 82 of file DebugStabElem.cc.

                              {
}

Member Function Documentation

byte()

Byte TPEF::DebugStabElem::byte ( Word  index ) const

virtual

Returns one byte of debug element's additional data field.

Parameters

index

Which data byte is wanted.

Implements TPEF::DebugElement.

Definition at line 92 of file DebugStabElem.cc.

                                    {
    switch (index) {
    case 0:
        return stabType_;
    case 1:
        return other_;
    case 2:
        return description_ >> BYTE_BITWIDTH;
    case 3:
        return description_;
    case 4:
        return value_ >> (3*BYTE_BITWIDTH);
    case 5:
        return value_ >> (2*BYTE_BITWIDTH);
    case 6:
        return value_ >> BYTE_BITWIDTH;
    case 7:
        return value_;
    default:
        throw OutOfRange(__FILE__, __LINE__, __func__,
                         "Stab element contains less data that requested.");
    }
}

References __func__, BYTE_BITWIDTH, description_, other_, stabType_, and value_.

description()

HalfWord TPEF::DebugStabElem::description

(

)

const

Returns description field of stored a.out stab symbol.

Returns

Description field of stored a.out stab symbol.

Definition at line 170 of file DebugStabElem.cc.

                                 {
    return description_;
}

References description_.

length()

Word TPEF::DebugStabElem::length ( ) const

virtual

Returns additional data length of TPEF debug element.

TPEF debug element for sotring a.out stab symbols contains always 8 bytes of additional data. This element is described in TPEF specification.

Returns

Number of additional data bytes that are stored.

Implements TPEF::DebugElement.

Definition at line 126 of file DebugStabElem.cc.

                            {
    return 8;
}

other()

Byte TPEF::DebugStabElem::other

(

)

const

Returns other field of stored a.out stab symbol.

Returns

Other field of stored a.out stab symbol.

Definition at line 159 of file DebugStabElem.cc.

                           {
    return other_;
}

References other_.

stabType()

Byte TPEF::DebugStabElem::stabType

(

)

const

Returns type of stored a.out stab symbol.

Returns

Type of stored a.out stab symbol.

Definition at line 148 of file DebugStabElem.cc.

                              {
    return stabType_;
}

References stabType_.

type()

DebugStabElem::ElementType TPEF::DebugStabElem::type ( ) const

virtual

Returns type of TPEF debug element.

Returns

Type of TPEF debug element.

Implements TPEF::DebugElement.

Definition at line 137 of file DebugStabElem.cc.

                          {
    return DE_STAB;
}

References TPEF::DebugElement::DE_STAB.

value()

Word TPEF::DebugStabElem::value

(

)

const

Returns value field of stored a.out stab symbol.

Returns

Value field of stored a.out stab symbol.

Definition at line 181 of file DebugStabElem.cc.

                           {
    return value_;
}

References value_.

Member Data Documentation

description_

HalfWord TPEF::DebugStabElem::description_

private

a.out stab description field.

Definition at line 76 of file DebugStabElem.hh.

Referenced by byte(), DebugStabElem(), and description().

other_

Byte TPEF::DebugStabElem::other_

private

a.out stab other field.

Definition at line 74 of file DebugStabElem.hh.

Referenced by byte(), DebugStabElem(), and other().

stabType_

Byte TPEF::DebugStabElem::stabType_

private

a.out stab type.

Definition at line 72 of file DebugStabElem.hh.

Referenced by byte(), DebugStabElem(), and stabType().

value_

Word TPEF::DebugStabElem::value_

private

a.out stab value field.

Definition at line 78 of file DebugStabElem.hh.

Referenced by byte(), DebugStabElem(), and value().

---

The documentation for this class was generated from the following files:

• DebugStabElem.hh
• DebugStabElem.cc
