#include <FileSymElement.hh>

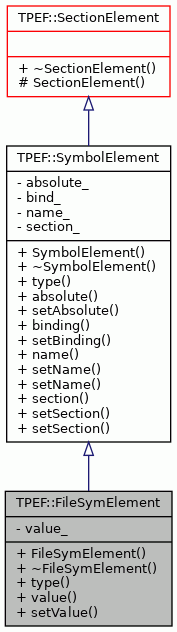

Inheritance diagram for TPEF::FileSymElement:

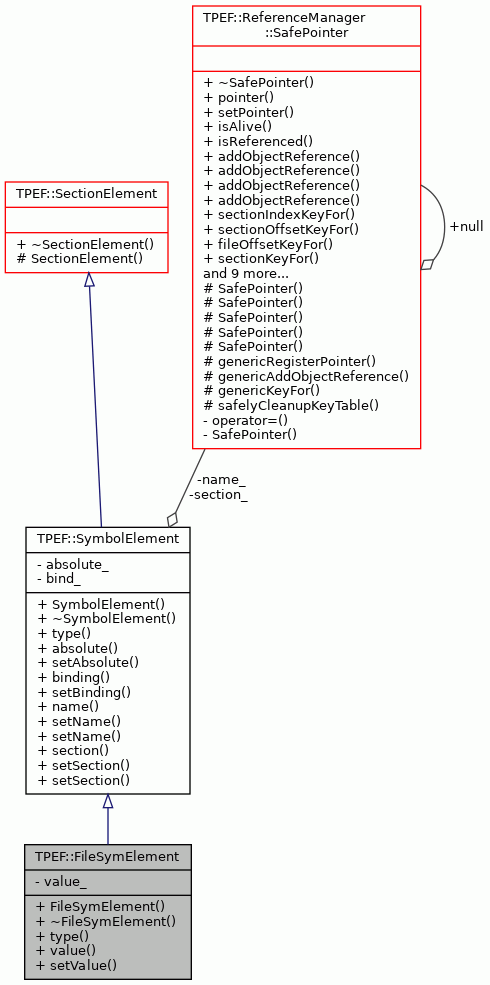

Collaboration diagram for TPEF::FileSymElement:

Public Member Functions
	FileSymElement ()

virtual	~FileSymElement ()

virtual SymbolType	type () const

Word	value () const

void	setValue (Word aValue)

Public Member Functions inherited from TPEF::SymbolElement
	SymbolElement ()

virtual	~SymbolElement ()

bool	absolute () const

void	setAbsolute (bool anAbsoluteness)

SymbolBinding	binding () const

void	setBinding (SymbolBinding aBinding)

Chunk *	name () const

void	setName (Chunk *aName)

void	setName (const ReferenceManager::SafePointer *aName)

Section *	section () const

void	setSection (Section *aSect)

void	setSection (const ReferenceManager::SafePointer *aSect)

Public Member Functions inherited from TPEF::SectionElement
virtual	~SectionElement ()

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Private Attributes
Word	value_
	Value of the symbol.

Additional Inherited Members
Public Types inherited from TPEF::SymbolElement
enum	SymbolBinding { STB_LOCAL = 0x0 , STB_GLOBAL = 0x1 , STB_WEAK = 0x2 }
	Binding types of symbol. More...

enum	SymbolType { STT_NOTYPE = 0x0 , STT_DATA = 0x1 , STT_CODE = 0x2 , STT_SECTION = 0x3 , STT_FILE = 0x4 , STT_PROCEDURE = 0x5 }
	Type of symbol element. More...

Protected Member Functions inherited from TPEF::SectionElement
	SectionElement ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Detailed Description

File Symbol element.

Definition at line 44 of file FileSymElement.hh.

Constructor & Destructor Documentation

◆ FileSymElement()

TPEF::FileSymElement::FileSymElement ( )

Constructor.

Definition at line 41 of file FileSymElement.cc.

                               :
    SymbolElement(),
    value_(0) {
}

◆ ~FileSymElement()

TPEF::FileSymElement::~FileSymElement ( )

virtual

Destructor.

Definition at line 49 of file FileSymElement.cc.

49 {

50}

Member Function Documentation

◆ setValue()

void TPEF::FileSymElement::setValue ( Word aValue )

Sets value of the element.

This might be for example relocation information.

Parameters

aValue Value of the element.

Definition at line 82 of file FileSymElement.cc.

                                    {
    value_ = aValue;
}

References value_.

◆ type()

SymbolElement::SymbolType TPEF::FileSymElement::type ( ) const

virtual

Returns type of the element.

Returns: Type of the element.

Implements TPEF::SymbolElement.

Definition at line 58 of file FileSymElement.cc.

                           {
    return STT_FILE;
}

References TPEF::SymbolElement::STT_FILE.

◆ value()

Word TPEF::FileSymElement::value ( ) const

Returns value of the element.

This might be for example relocation information.

Returns: Value of the element.

Definition at line 70 of file FileSymElement.cc.

                            {
    return value_;
}

References value_.

Referenced by TPEF::TPEFSymbolSectionWriter::writeValueAndSize().

Member Data Documentation

◆ value_

Word TPEF::FileSymElement::value_

private

Value of the symbol.

Definition at line 56 of file FileSymElement.hh.

Referenced by setValue(), and value().

The documentation for this class was generated from the following files:
