#include <InstructionElement.hh>

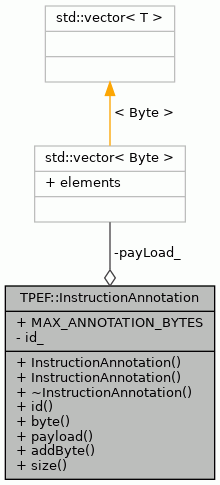

Collaboration diagram for TPEF::InstructionAnnotation:

Public Member Functions
	InstructionAnnotation (Word anId, const std::vector< Byte > &payload)

	InstructionAnnotation (Word anId)

	~InstructionAnnotation ()

Word	id () const

Byte	byte (Byte index) const

const std::vector< Byte > &	payload () const

void	addByte (Byte aByte)

Byte	size () const

Static Public Attributes
static const size_t	MAX_ANNOTATION_BYTES = 127
	Maximum number of bytes that annotation may contain.

Private Attributes
Word	id_
	Identifcation code of annotation.

std::vector< Byte >	payLoad_
	Data of annotation.

Detailed Description

Instruction annotation.

Inline annotations allow to argument an instruction element with additional application-dependent information without disrupting the normal work of application.

Definition at line 49 of file InstructionElement.hh.

Constructor & Destructor Documentation

◆ InstructionAnnotation() [1/2]

TPEF::InstructionAnnotation::InstructionAnnotation	(	Word	id,
		const std::vector< Byte > &	payload
	)

Constructor.

Parameters

id	The id of the annotation.
payload	The payload data as a char vector.

Definition at line 51 of file InstructionElement.cc.

                                             :
    id_(id), payLoad_(payload) {
}

◆ InstructionAnnotation() [2/2]

TPEF::InstructionAnnotation::InstructionAnnotation ( Word anId )

Constructor

Definition at line 60 of file InstructionElement.cc.

60 : id_(anId) {

61}

◆ ~InstructionAnnotation()

TPEF::InstructionAnnotation::~InstructionAnnotation ( )

Destructor

Definition at line 66 of file InstructionElement.cc.

66 {

67}

Member Function Documentation

◆ addByte()

void TPEF::InstructionAnnotation::addByte ( Byte aByte )

Referenced by TPEF::TPEFCodeSectionReader::readAnnotations().

◆ byte()

Byte TPEF::InstructionAnnotation::byte ( Byte index ) const

Referenced by TPEF::TPEFCodeSectionWriter::writeAnnotations().

◆ id()

Word TPEF::InstructionAnnotation::id ( ) const

Referenced by TTAProgram::TPEFProgramFactory::createInstruction(), TPEFDisassembler::createInstruction(), TTAProgram::TPEFProgramFactory::createTerminal(), and TPEF::TPEFCodeSectionWriter::writeAnnotations().

◆ payload()

const std::vector< Byte > & TPEF::InstructionAnnotation::payload ( ) const

Referenced by TTAProgram::TPEFProgramFactory::createInstruction(), TPEFDisassembler::createInstruction(), and TTAProgram::TPEFProgramFactory::createTerminal().

◆ size()

Byte TPEF::InstructionAnnotation::size ( ) const

Referenced by TPEF::TPEFCodeSectionWriter::writeAnnotations().

Member Data Documentation

◆ id_

Word TPEF::InstructionAnnotation::id_

private

Identifcation code of annotation.

Definition at line 69 of file InstructionElement.hh.

◆ MAX_ANNOTATION_BYTES

const size_t TPEF::InstructionAnnotation::MAX_ANNOTATION_BYTES = 127

static

Maximum number of bytes that annotation may contain.

Maximum number of bytes in annotation.

Definition at line 65 of file InstructionElement.hh.

Referenced by InlineAsmParser::addDebugInfoToInlineAsmBB(), llvm::LLVMTCEBuilder::debugDataToAnnotations(), TTAProgram::ProgramAnnotation::ProgramAnnotation(), and TTAProgram::ProgramAnnotation::ProgramAnnotation().

◆ payLoad_

std::vector<Byte> TPEF::InstructionAnnotation::payLoad_
