#include <RelocSection.hh>

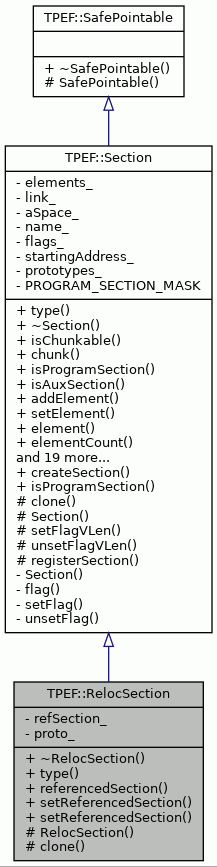

Inheritance diagram for TPEF::RelocSection:

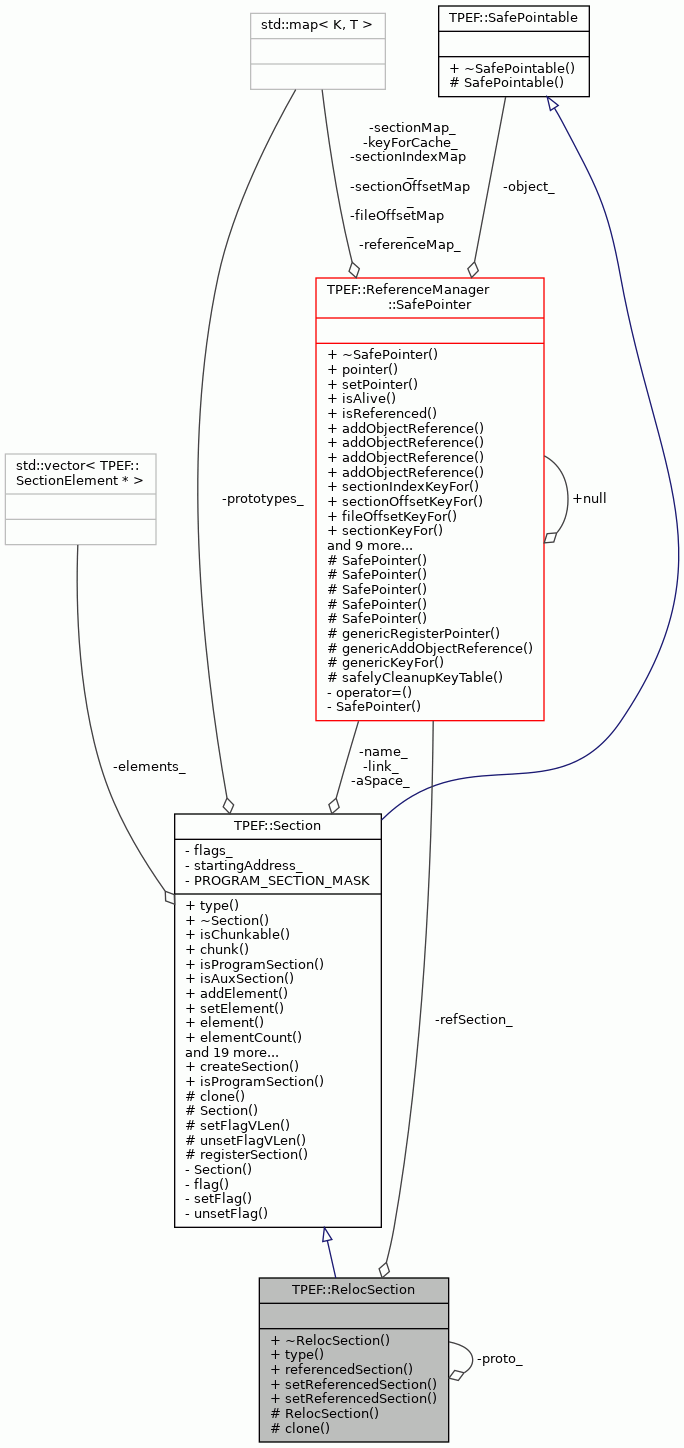

Collaboration diagram for TPEF::RelocSection:

Public Member Functions
virtual	~RelocSection ()

virtual SectionType	type () const

Section *	referencedSection () const

void	setReferencedSection (Section *section)

void	setReferencedSection (const ReferenceManager::SafePointer *section)

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isDataSection () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	RelocSection (bool init)

virtual Section *	clone () const

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Private Attributes
const ReferenceManager::SafePointer *	refSection_
	Section whose elements are being relocated by relocations of this section.

Static Private Attributes
static RelocSection	proto_
	Prototype instance of section.

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00 , ST_STRTAB = 0x01 , ST_SYMTAB = 0x02 , ST_DEBUG = 0x03 , ST_RELOC = 0x04 , ST_LINENO = 0x05 , ST_NOTE = 0x06 , ST_ADDRSP = 0x07 , ST_MR = 0x0A , ST_CODE = 0x81 , ST_DATA = 0x82 , ST_UDATA = 0x83 , ST_LEDATA = 0x84 , ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40 , SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Relocation table section.

Definition at line 47 of file RelocSection.hh.

Constructor & Destructor Documentation

◆ ~RelocSection()

TPEF::RelocSection::~RelocSection ( )

virtual

Destructor.

Definition at line 64 of file RelocSection.cc.

64 {

65}

◆ RelocSection()

TPEF::RelocSection::RelocSection ( bool init )

protected

Constructor.

Parameters

init	True if registeration is wanted.

Definition at line 49 of file RelocSection.cc.

                                    :
    Section(), refSection_(&SafePointer::null) {

    if (init) {
        Section::registerSection(this);
    }

    unsetFlagVLen();
    unsetFlagNoBits();
    setStartingAddress(0);
}

References TPEF::Section::registerSection(), TPEF::Section::setStartingAddress(), TPEF::Section::unsetFlagNoBits(), and TPEF::Section::unsetFlagVLen().

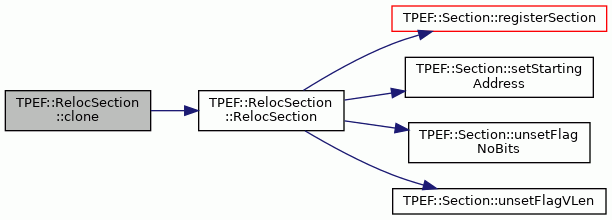

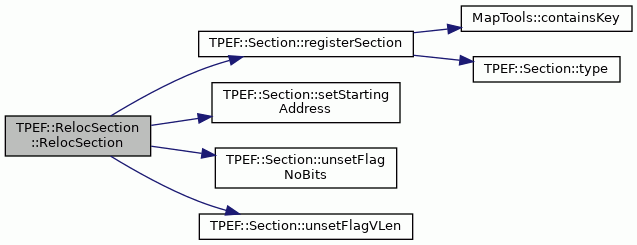

Here is the call graph for this function:

Member Function Documentation

◆ clone()

Section * TPEF::RelocSection::clone ( ) const

protectedvirtual

Creates an instance of class.

Returns: Newly created section.

Implements TPEF::Section.

Definition at line 83 of file RelocSection.cc.

                          {
    return new RelocSection(false);
}

◆ referencedSection()

Section * TPEF::RelocSection::referencedSection ( ) const

Referenced by TTAProgram::TPEFProgramFactory::createDataMemories(), TTAProgram::ProgramWriter::createRelocSections(), LabelManager::findOrCreateRelocationSection(), CodeCompressorPlugin::initializeRelocations(), TPEF::AOutRelocationSectionReader::readData(), ProgramImageGenerator::relocTarget(), and TPEFDumper::section().

◆ setReferencedSection() [1/2]

void TPEF::RelocSection::setReferencedSection ( const ReferenceManager::SafePointer * section )

◆ setReferencedSection() [2/2]

void TPEF::RelocSection::setReferencedSection ( Section * section )

Referenced by TTAProgram::ProgramWriter::createRelocSections(), LabelManager::findOrCreateRelocationSection(), and TPEF::AOutReader::readData().

◆ type()

Section::SectionType TPEF::RelocSection::type ( ) const

virtual

Returns section's type.

Returns: Type of section.

Implements TPEF::Section.

Definition at line 73 of file RelocSection.cc.

                         {
    return ST_RELOC;
}

References TPEF::Section::ST_RELOC.

Member Data Documentation

◆ proto_

RelocSection TPEF::RelocSection::proto_

staticprivate

Prototype instance of section.

Definition at line 64 of file RelocSection.hh.

◆ refSection_

const ReferenceManager::SafePointer* TPEF::RelocSection::refSection_

private

Section whose elements are being relocated by relocations of this section.

Definition at line 67 of file RelocSection.hh.

The documentation for this class was generated from the following files:
