Protected Member Functions | Private Member Functions | Static Private Attributes | List of all members
TPEF::TPEFDebugSectionWriter Class Reference

#include <TPEFDebugSectionWriter.hh>

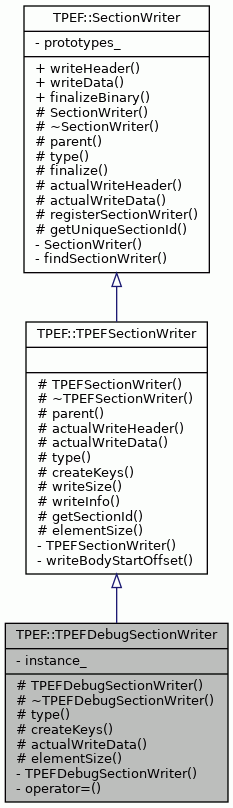

Inheritance diagram for TPEF::TPEFDebugSectionWriter:
Inheritance graph

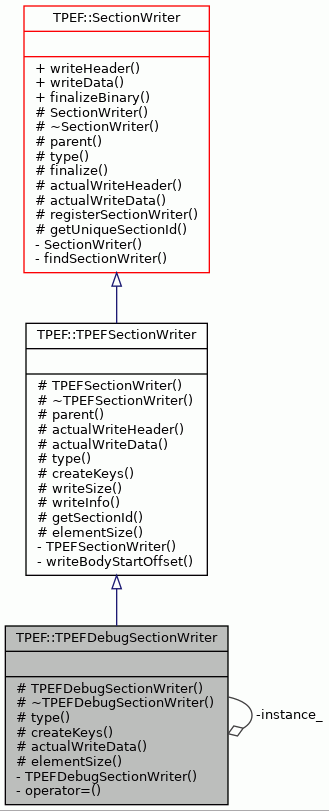

Collaboration diagram for TPEF::TPEFDebugSectionWriter:
Collaboration graph

Protected Member Functions

 TPEFDebugSectionWriter ()

virtual ~TPEFDebugSectionWriter ()

virtual Section::SectionType type () const

virtual void createKeys (const Section *sect) const

virtual void actualWriteData (BinaryStream &stream, const Section *section) const

virtual Word elementSize (const Section *section) const

- Protected Member Functions inherited from TPEF::TPEFSectionWriter
 TPEFSectionWriter ()

virtual ~TPEFSectionWriter ()

virtual const BinaryWriterparent () const

virtual void actualWriteHeader (BinaryStream &stream, const Section *sect) const

virtual void writeSize (BinaryStream &stream, const Section *sect) const

virtual void writeInfo (BinaryStream &stream, const Section *sect) const

virtual SectionId getSectionId () const

- Protected Member Functions inherited from TPEF::SectionWriter
 SectionWriter ()

virtual ~SectionWriter ()

virtual void finalize (BinaryStream &stream, Section *section) const


Private Member Functions

 TPEFDebugSectionWriter (const TPEFDebugSectionWriter &)
 Copying not allowed.

TPEFDebugSectionWriter operator= (const TPEFDebugSectionWriter &)
 Assignment not allowed.


Static Private Attributes

static const TPEFDebugSectionWriter instance_
 A unique instance of this class.


Additional Inherited Members

- Static Public Member Functions inherited from TPEF::SectionWriter
static void writeHeader (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)

static void writeData (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)

static void finalizeBinary (BinaryStream &stream, const Binary *binaryToFinalize, const BinaryWriter *writer)

- Static Protected Member Functions inherited from TPEF::SectionWriter
static void registerSectionWriter (const SectionWriter *sWriter)

static SectionId getUniqueSectionId ()


Detailed Description

Writes TPEF symbol table to stream.

Definition at line 46 of file TPEFDebugSectionWriter.hh.

Constructor & Destructor Documentation

◆ TPEFDebugSectionWriter() [1/2]

TPEF::TPEFDebugSectionWriter::TPEFDebugSectionWriter ( )
protected

Constructor.

Registers itself to SectionWriter.

Definition at line 62 of file TPEFDebugSectionWriter.cc.

64}
static void registerSectionWriter(const SectionWriter *sWriter)

References TPEF::SectionWriter::registerSectionWriter().

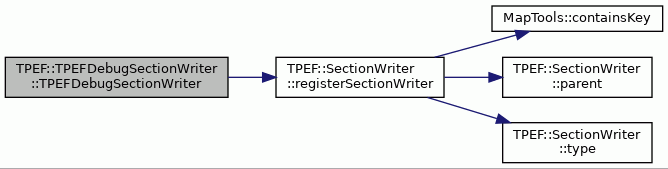

Here is the call graph for this function:

◆ ~TPEFDebugSectionWriter()

TPEF::TPEFDebugSectionWriter::~TPEFDebugSectionWriter ( )
protectedvirtual

Destructor.

Definition at line 69 of file TPEFDebugSectionWriter.cc.

69 {
70}

◆ TPEFDebugSectionWriter() [2/2]

TPEF::TPEFDebugSectionWriter::TPEFDebugSectionWriter ( const TPEFDebugSectionWriter )
private

Copying not allowed.

Member Function Documentation

◆ actualWriteData()

void TPEF::TPEFDebugSectionWriter::actualWriteData ( BinaryStream stream,
const Section sect
) const
protectedvirtual

Writes the data of the section in to stream.

Parameters
streamThe stream to be written to.
sectThe section to be written.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 89 of file TPEFDebugSectionWriter.cc.

91 {
92
93 FileOffset startOffset = stream.writePosition();
94
95 // file offset to data of section
97 FileOffsetKey(startOffset), sect->element(0));
98
99 for (Word i = 0; i < sect->elementCount(); i++) {
100
101 DebugElement* elem = dynamic_cast<DebugElement*>(sect->element(i));
102 assert(elem != NULL);
103
104 // write type
105 stream.writeHalfWord(static_cast<HalfWord>(elem->type()));
106
107 // debug string
108 assert(elem->debugString() != NULL);
109 SectionOffsetReplacer sOffReplacer(elem->debugString());
110 sOffReplacer.resolve();
111
112 // write variable data
113 stream.writeWord(elem->length());
114
115 for (unsigned int j = 0; j < elem->length(); j++) {
116 stream.writeByte(elem->byte(j));
117 }
118 }
119 SectionSizeReplacer::setSize(sect, stream.writePosition() - startOffset);
120}
#define assert(condition)
static void addObjectReference(SectionIndexKey key, const SafePointable *obj)
static void setSize(const SafePointable *obj, Word size)
Word FileOffset
Type for storing absolute file offsets.

References TPEF::ReferenceManager::SafePointer::addObjectReference(), assert, TPEF::DebugElement::byte(), TPEF::DebugElement::debugString(), TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::DebugElement::length(), TPEF::ValueReplacer::resolve(), TPEF::SectionSizeReplacer::setSize(), TPEF::DebugElement::type(), TPEF::BinaryStream::writeByte(), TPEF::BinaryStream::writeHalfWord(), TPEF::BinaryStream::writePosition(), and TPEF::BinaryStream::writeWord().

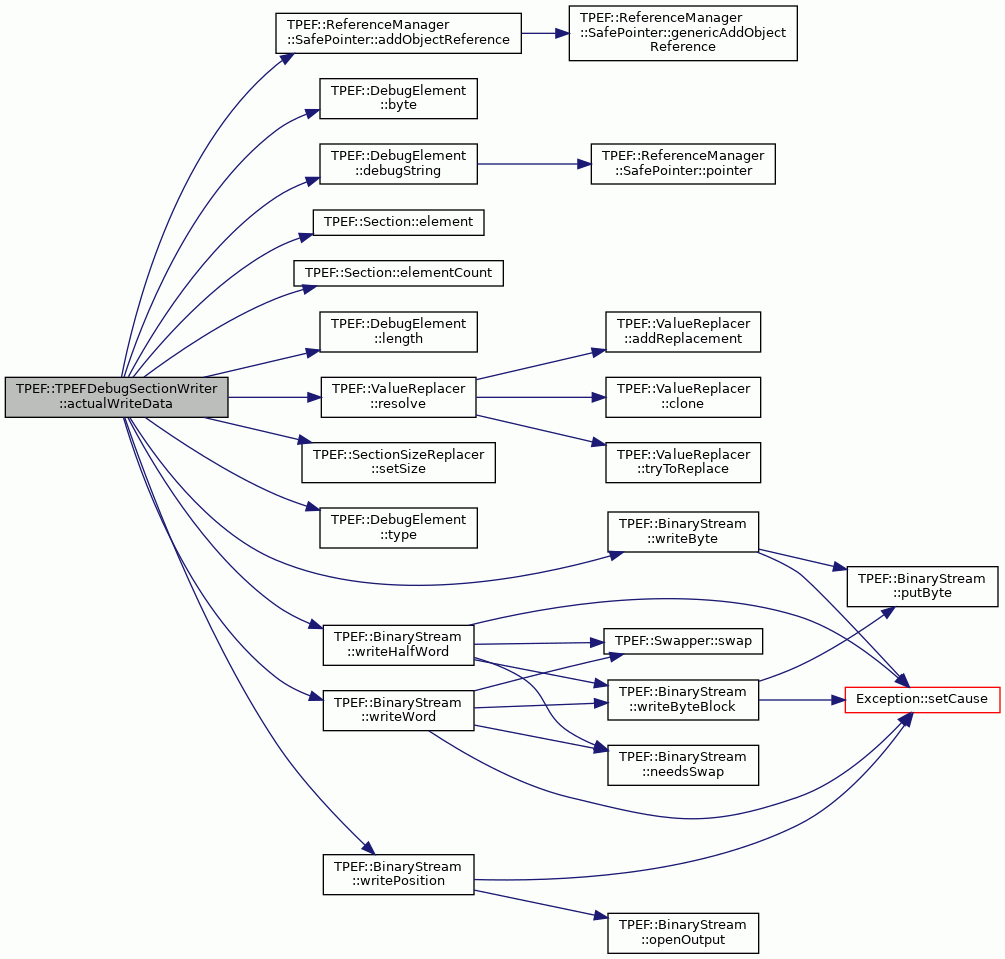

Here is the call graph for this function:

◆ createKeys()

void TPEF::TPEFDebugSectionWriter::createKeys ( const Section sect) const
protectedvirtual

Creates needed keys for section if noBits flag is set.

Parameters
sectSection which for keys will be created.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 138 of file TPEFDebugSectionWriter.cc.

138 {
140}

References TPEF::SectionSizeReplacer::setSize().

Here is the call graph for this function:

◆ elementSize()

Word TPEF::TPEFDebugSectionWriter::elementSize ( const Section section) const
protectedvirtual

Returns the fixed size length of section elements.

Returns
The fixed size length of section elements.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 128 of file TPEFDebugSectionWriter.cc.

128 {
129 return 0;
130}

◆ operator=()

TPEFDebugSectionWriter TPEF::TPEFDebugSectionWriter::operator= ( const TPEFDebugSectionWriter )
private

Assignment not allowed.

◆ type()

Section::SectionType TPEF::TPEFDebugSectionWriter::type ( ) const
protectedvirtual

Returns the section type this writer can write.

Returns
The section type writer can write.

Implements TPEF::TPEFSectionWriter.

Definition at line 78 of file TPEFDebugSectionWriter.cc.

78 {
79 return Section::ST_DEBUG;
80}
@ ST_DEBUG
Debug section.
Definition Section.hh:73

References TPEF::Section::ST_DEBUG.

Member Data Documentation

◆ instance_

const TPEFDebugSectionWriter TPEF::TPEFDebugSectionWriter::instance_
staticprivate

A unique instance of this class.

Definition at line 68 of file TPEFDebugSectionWriter.hh.


The documentation for this class was generated from the following files:
