TTAProgram::DataAddressDef Class Reference

#include <DataAddressDef.hh>

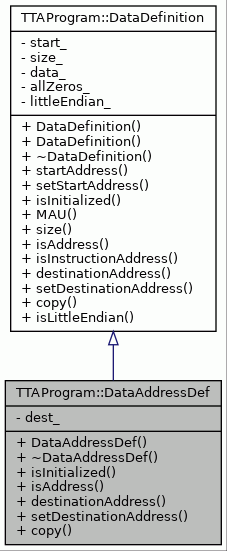

Inheritance diagram for TTAProgram::DataAddressDef:

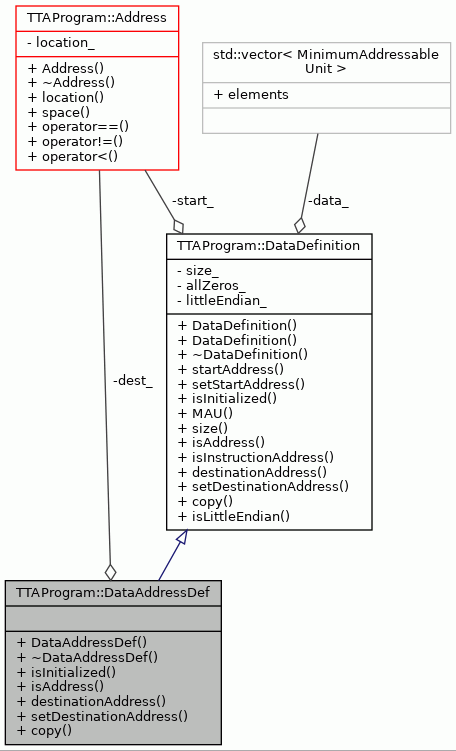

Collaboration diagram for TTAProgram::DataAddressDef:

Public Member Functions
	DataAddressDef (Address start, int size, Address dest, bool littleEndian)
virtual	~DataAddressDef ()
virtual bool	isInitialized () const
virtual bool	isAddress () const
virtual Address	destinationAddress () const
virtual void	setDestinationAddress (Address dest)
DataDefinition *	copy () const
Public Member Functions inherited from TTAProgram::DataDefinition
	DataDefinition (Address start, int size, bool littleEndian, MinimumAddressableUnit *initData=NULL, bool allZeros=false)
	DataDefinition (Address start, const std::vector< MinimumAddressableUnit > &initData, bool littleEndian)
virtual	~DataDefinition ()
virtual Address	startAddress () const
virtual void	setStartAddress (Address start)
virtual MinimumAddressableUnit	MAU (int index) const
virtual int	size () const
virtual bool	isInstructionAddress () const
bool	isLittleEndian () const

Private Attributes
Address	dest_
	Destination address of a data area.

Detailed Description

Describes characteristics of a memory area containing an address.

Definition at line 45 of file DataAddressDef.hh.

Constructor & Destructor Documentation

DataAddressDef()

TTAProgram::DataAddressDef::DataAddressDef	(	Address	start,
		int	size,
		Address	dest,
		bool	littleEndian
	)

Creates data area definition containing address.

Parameters

start	Starting address of definition.
size	Number of MAUs that area represents.
dest	Address where to data definition refers.

Definition at line 44 of file DataAddressDef.cc.

                                                  :
    DataDefinition(start, size, littleEndian), dest_(dest) {

}

~DataAddressDef()

TTAProgram::DataAddressDef::~DataAddressDef ( )

virtual

Nothing to free.

Definition at line 53 of file DataAddressDef.cc.

                                {
}

Member Function Documentation

copy()

DataDefinition * TTAProgram::DataAddressDef::copy ( ) const

virtual

POM style copy constructor, which supports dynamic binding.

Returns

Copy of the object.

Reimplemented from TTAProgram::DataDefinition.

Definition at line 102 of file DataAddressDef.cc.

                           {
    DataAddressDef* newDef = new DataAddressDef(
        startAddress(), size(), destinationAddress(), isLittleEndian());

    return newDef;
}

References destinationAddress(), TTAProgram::DataDefinition::isLittleEndian(), TTAProgram::DataDefinition::size(), and TTAProgram::DataDefinition::startAddress().

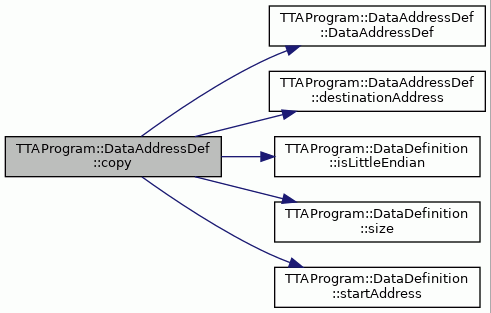

Here is the call graph for this function:

destinationAddress()

Address TTAProgram::DataAddressDef::destinationAddress ( ) const

virtual

Returns destination address, where to intialization value refers.

Returns

Destination address of initialized data area.

Reimplemented from TTAProgram::DataDefinition.

Definition at line 82 of file DataAddressDef.cc.

                                         {
    return dest_;
}

References dest_.

Referenced by copy().

isAddress()

bool TTAProgram::DataAddressDef::isAddress ( ) const

virtual

Returns true, class contains always address reference.

Returns

Always true.

Reimplemented from TTAProgram::DataDefinition.

Definition at line 72 of file DataAddressDef.cc.

                                {
    return true;
}

isInitialized()

bool TTAProgram::DataAddressDef::isInitialized ( ) const

virtual

Returns true, class defines always initialized data area.

Returns

Always true.

Reimplemented from TTAProgram::DataDefinition.

Definition at line 62 of file DataAddressDef.cc.

                                    {
    return true;
}

setDestinationAddress()

void TTAProgram::DataAddressDef::setDestinationAddress ( Address  dest )

virtual

Set new destination address for the data definition.

Parameters

dest	New destination address.

Reimplemented from TTAProgram::DataDefinition.

Definition at line 92 of file DataAddressDef.cc.

                                                  {
    dest_ = dest;
}

References dest_.

Member Data Documentation

dest_

Address TTAProgram::DataAddressDef::dest_

private

Destination address of a data area.

Definition at line 60 of file DataAddressDef.hh.

Referenced by destinationAddress(), and setDestinationAddress().

---

The documentation for this class was generated from the following files:

• DataAddressDef.hh
• DataAddressDef.cc
