TTAProgram::InstructionReference Class Reference

#include <InstructionReference.hh>

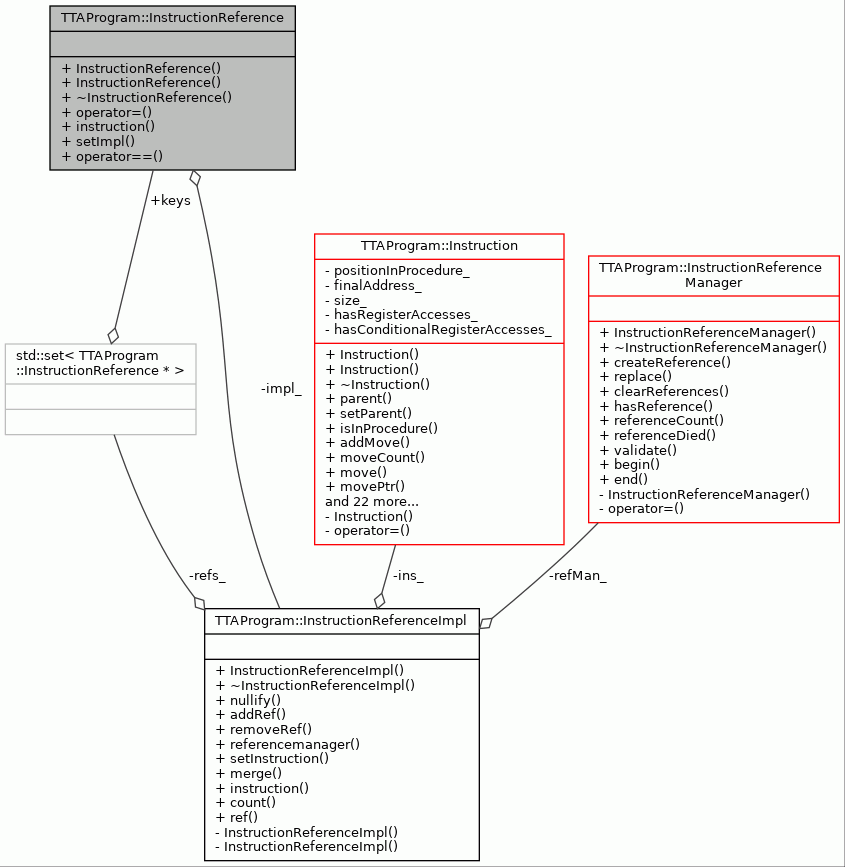

Collaboration diagram for TTAProgram::InstructionReference:

Public Member Functions
	InstructionReference (InstructionReferenceImpl *impl)
	InstructionReference (const InstructionReference &ir)
virtual	~InstructionReference ()
InstructionReference &	operator= (const InstructionReference &)
Instruction &	instruction () const
bool	setImpl (InstructionReferenceImpl *impl)
bool	operator== (const InstructionReference &other) const

Private Attributes
InstructionReferenceImpl *	impl_

Detailed Description

Represents a reference to an Instruction instance.

The target of the reference can be changed as needed.

Definition at line 49 of file InstructionReference.hh.

Constructor & Destructor Documentation

InstructionReference() [1/2]

TTAProgram::InstructionReference::InstructionReference ( InstructionReferenceImpl *  impl )

explicit

Constructor.

Note

Instruction references should be created using InstructionReferenceManager.

Parameters

ins	Referred instruction.

Definition at line 51 of file InstructionReference.cc.

                                                                        :
    impl_(impl) {
    if (impl_ != NULL) {
        impl_->addRef(*this);
    }
}

References TTAProgram::InstructionReferenceImpl::addRef(), and impl_.

Here is the call graph for this function:

InstructionReference() [2/2]

TTAProgram::InstructionReference::InstructionReference

(

const InstructionReference &

ref

)

Constructor.

Note

Instruction references should be created using InstructionReferenceManager.

Parameters

ins	Referred instruction.

Definition at line 65 of file InstructionReference.cc.

                                                                         :
    impl_(ref.impl_) {
    if (impl_ != NULL) {
        impl_->addRef(*this);
    }
}

References TTAProgram::InstructionReferenceImpl::addRef(), and impl_.

Here is the call graph for this function:

~InstructionReference()

TTAProgram::InstructionReference::~InstructionReference ( )

virtual

Destructor.

Tells the impl that we are no longer pointing to it. It may get also deleted if this was the last reference to it.

Definition at line 103 of file InstructionReference.cc.

                                            {
    if (impl_ != NULL) {
        impl_->removeRef(*this);
    }
}

References impl_, and TTAProgram::InstructionReferenceImpl::removeRef().

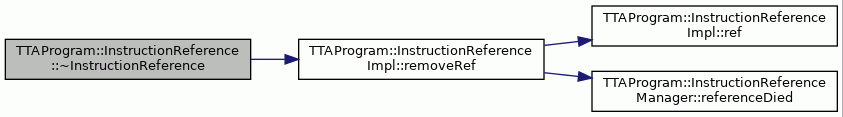

Here is the call graph for this function:

Member Function Documentation

instruction()

Instruction & TTAProgram::InstructionReference::instruction

(

)

const

Returns the referred instruction.

Returns

Referred instruction.

Definition at line 138 of file InstructionReference.cc.

                                        {
    if (impl_ == NULL) {
        return NullInstruction::instance();
    } else {
        return impl_->instruction();
    }
}

References impl_, TTAProgram::NullInstruction::instance(), and TTAProgram::InstructionReferenceImpl::instruction().

Referenced by TTAProgram::CodeLabel::address(), TTAProgram::TerminalInstructionReference::address(), TTAProgram::CodeLabel::CodeLabel(), ControlFlowGraph::computeLeadersFromJumpSuccessors(), ProcedurePass::copyCfgToProcedure(), ControlFlowGraph::createBBEdges(), ControlFlowGraph::createJumps(), TTAProgram::DataInstructionAddressDef::destinationAddress(), POMDisassembler::disassemble(), TTAProgram::TerminalBasicBlockReference::equals(), TTAProgram::TerminalInstructionReference::equals(), TTAProgram::Program::fixInstructionReferences(), TTAProgram::CodeLabel::instructionReference(), ControlFlowGraph::jumpToBBN(), TTAProgram::CodeLabel::procedure(), and ControlFlowGraph::removeJumpToTarget().

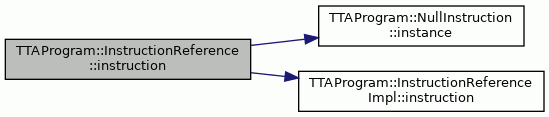

Here is the call graph for this function:

operator=()

InstructionReference & TTAProgram::InstructionReference::operator=

(

const InstructionReference &

ref

)

Assignment operator.

Changes this reference to point to another instruction. Only changes this reference, not other references pointing to same instruction.

Definition at line 79 of file InstructionReference.cc.

                                     {
    // if both point to same instruction, no need to do anything.
    if (ref.impl_ != impl_) {
        // stop pointing to old instruction
        if (impl_ != NULL) {
            impl_->removeRef(*this);
        }
        // pointing to new instruction
        impl_ = ref.impl_;
        if (impl_ != NULL) {
            impl_->addRef(*this);
        }
    }
    return *this;
}

References TTAProgram::InstructionReferenceImpl::addRef(), impl_, and TTAProgram::InstructionReferenceImpl::removeRef().

Here is the call graph for this function:

operator==()

bool TTAProgram::InstructionReference::operator==

(

const InstructionReference &

other

)

const

Definition at line 147 of file InstructionReference.cc.

                                                                         {
    return impl_ == other.impl_;
}

References impl_.

setImpl()

bool TTAProgram::InstructionReference::setImpl

(

InstructionReferenceImpl *

newImpl

)

Sets a new referred instruction.

The InstructionReferenceImpl is a "proxy object" that counts and keeps book of references

Parameters

newImpl

New referred instruction.

Returns

true if old impl stays alive, false if it is deleted.

Definition at line 119 of file InstructionReference.cc.

                                                               {
    bool staysAlive = true;
    assert(newImpl != impl_);
    if (impl_ != NULL) {
        staysAlive = impl_->removeRef(*this);
    }
    impl_ = newImpl;
    if (impl_ != NULL) {
        impl_->addRef(*this);
    }
    return staysAlive;
}

References TTAProgram::InstructionReferenceImpl::addRef(), assert, impl_, and TTAProgram::InstructionReferenceImpl::removeRef().

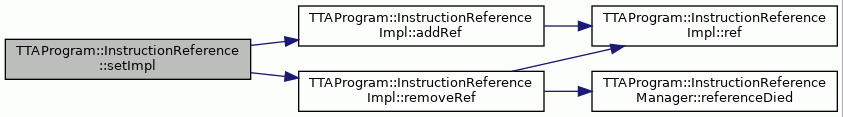

Here is the call graph for this function:

Member Data Documentation

impl_

InstructionReferenceImpl* TTAProgram::InstructionReference::impl_

private

Definition at line 64 of file InstructionReference.hh.

Referenced by instruction(), InstructionReference(), InstructionReference(), operator=(), operator==(), setImpl(), and ~InstructionReference().

---

The documentation for this class was generated from the following files:

• InstructionReference.hh
• InstructionReference.cc
