#include <Scope.hh>

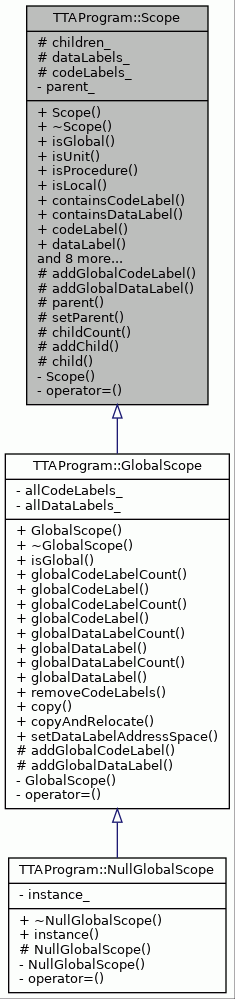

Inheritance diagram for TTAProgram::Scope:

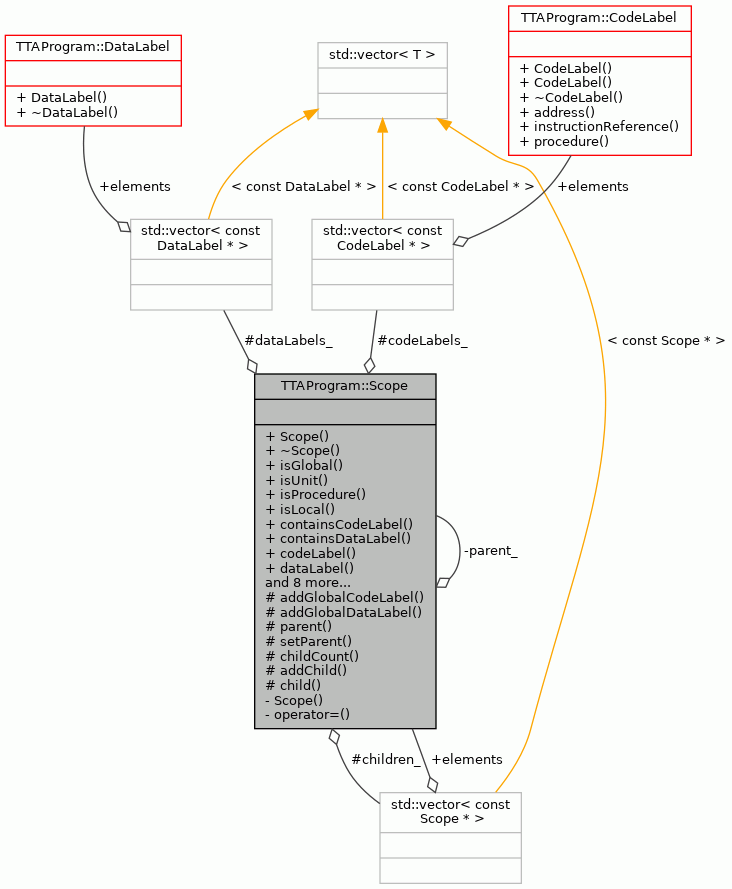

Collaboration diagram for TTAProgram::Scope:

Public Member Functions
	Scope ()

virtual	~Scope ()

virtual bool	isGlobal () const

virtual bool	isUnit () const

virtual bool	isProcedure () const

virtual bool	isLocal () const

bool	containsCodeLabel (const std::string &name) const

bool	containsDataLabel (const std::string &name) const

const CodeLabel &	codeLabel (const std::string &name) const

const DataLabel &	dataLabel (const std::string &name) const

int	codeLabelCount (Address address) const

const CodeLabel &	codeLabel (Address address, int index) const

int	dataLabelCount (Address address) const

const DataLabel &	dataLabel (Address address, int index) const

virtual void	addCodeLabel (const CodeLabel *codeLabel)

virtual void	addDataLabel (const DataLabel *dataLabel)

virtual void	removeCodeLabels (InstructionAddress address)

virtual Scope *	copy () const =0

Protected Types
typedef std::vector< const Scope * >	ScopeList
	List for child scopes.

typedef std::vector< const DataLabel * >	DataLabelList
	List of data labels.

typedef std::vector< const CodeLabel * >	CodeLabelList
	List of code labels.

Protected Member Functions
virtual void	addGlobalCodeLabel (const CodeLabel &codeLabel, const Scope &owner)=0
	Adds a code label and its owner to the global label bookkeeping.

virtual void	addGlobalDataLabel (const DataLabel &dataLabel, const Scope &owner)=0
	Adds a data label and its owner to the global label bookkeeping.

Scope &	parent () const

void	setParent (Scope &scope)

int	childCount () const

void	addChild (const Scope &scope)

const Scope &	child (int index) const

Protected Attributes
ScopeList	children_
	Child scopes.

DataLabelList	dataLabels_
	Data labels contained by this scope.

CodeLabelList	codeLabels_
	Code labels contained by this scope.

Private Member Functions
	Scope (const Scope &)
	Copying not allowed.

Scope &	operator= (const Scope &)
	Assignment not allowed.

Private Attributes
Scope *	parent_
	The smallest outer scope that contains this scope.

Detailed Description

Scopes provide containers for different visibility level labels.

Todo:: Implement rest of the Scopes (only GlobalScope is supported currently).

Definition at line 53 of file Scope.hh.

Member Typedef Documentation

◆ CodeLabelList

typedef std::vector<const CodeLabel*> TTAProgram::Scope::CodeLabelList

protected

List of code labels.

Definition at line 90 of file Scope.hh.

◆ DataLabelList

typedef std::vector<const DataLabel*> TTAProgram::Scope::DataLabelList

protected

List of data labels.

Definition at line 88 of file Scope.hh.

◆ ScopeList

typedef std::vector<const Scope*> TTAProgram::Scope::ScopeList

protected

List for child scopes.

Definition at line 83 of file Scope.hh.

Constructor & Destructor Documentation

◆ Scope() [1/2]

Scope::Scope ( )

Constructor.

Definition at line 48 of file Scope.cc.

48 : parent_(NULL) {

49}

TTAProgram::Scope::parent_

Scope * parent_

The smallest outer scope that contains this scope.

Definition Scope.hh:125

◆ ~Scope()

Scope::~Scope ( )

virtual

Destructor.

Definition at line 54 of file Scope.cc.

              {
    for (unsigned int i = 0; i < dataLabels_.size(); i++) {
        delete dataLabels_.at(i);
    }
    dataLabels_.clear();

    for (unsigned int i = 0; i < codeLabels_.size(); i++) {
        delete codeLabels_.at(i);
    }
    codeLabels_.clear();
}

References codeLabels_, and dataLabels_.

◆ Scope() [2/2]

TTAProgram::Scope::Scope ( const Scope & )

private

Copying not allowed.

Member Function Documentation

◆ addChild()

void Scope::addChild ( const Scope & scope )

protected

Adds a child scope to this scope.

Parameters

scope The child scope to be added.

Exceptions

ObjectAlreadyExists if the given scope has already been added. or a scope with the same name already exists.

Definition at line 114 of file Scope.cc.

                                  {
    if (!ContainerTools::containsValue(children_, &scope)) {
        children_.push_back(&scope);
    } else {
        throw ObjectAlreadyExists(__FILE__, __LINE__);
    }
}

References children_, and ContainerTools::containsValue().

Here is the call graph for this function:

◆ addCodeLabel()

void Scope::addCodeLabel ( const CodeLabel * codeLabel )

virtual

Adds a code label to this scope.

Parameters

codeLabel The code label to be added.

Exceptions

KeyAlreadyExists of a code label of the same name already exists.

Definition at line 376 of file Scope.cc.

                                              {
    if (containsCodeLabel(codeLabel->name())) {
        throw KeyAlreadyExists(
            __FILE__, __LINE__, "Scope::addCodeLabel()",
            "A code label already exists by this name.");

    } else {
        codeLabels_.push_back(codeLabel);

        // add label to the global bookkeeping
        Scope* scope = NULL;

        if (!isGlobal()) {
            scope = &parent();
            while (!scope->isGlobal()) {
                try {
                    scope = &scope->parent();
                } catch (WrongSubclass const&) {
                    assert(false);
                } catch (IllegalRegistration const&) {
                    assert(false);
                }
            }
        } else {
            scope = this;
        }

        scope->addGlobalCodeLabel(*codeLabel, *this);
    }
}

References addGlobalCodeLabel(), assert, codeLabel(), codeLabels_, containsCodeLabel(), isGlobal(), TTAProgram::Label::name(), and parent().

Referenced by TTAProgram::GlobalScope::copy(), TTAProgram::GlobalScope::copyAndRelocate(), TTAProgram::TPEFProgramFactory::createLabels(), and llvm::LLVMTCEBuilder::writeMachineFunction().

Here is the call graph for this function:

◆ addDataLabel()

void Scope::addDataLabel ( const DataLabel * dataLabel )

virtual

Adds a data label to this scope.

Parameters

dataLabel The data label to be added.

Exceptions

KeyAlreadyExists of a data label of the same name already exists.

Definition at line 415 of file Scope.cc.

                                              {
    if (containsDataLabel(dataLabel->name())) {
        throw KeyAlreadyExists(
            __FILE__, __LINE__, "Scope::addDataLabel()",
            "A data label already exists by this name.");
    } else {
        dataLabels_.push_back(dataLabel);

        // add label to the global bookkeeping
        Scope* scope = NULL;

        if (!isGlobal()) {
            scope = &parent();
            while (!scope->isGlobal()) {
                try {
                    scope = &scope->parent();
                } catch (WrongSubclass const&) {
                    assert(false);
                } catch (IllegalRegistration const&) {
                    assert(false);
                }
            }
        } else {
            scope = this;
        }

        scope->addGlobalDataLabel(*dataLabel, *this);
    }
}

References addGlobalDataLabel(), assert, containsDataLabel(), dataLabel(), dataLabels_, isGlobal(), TTAProgram::Label::name(), and parent().

Referenced by TTAProgram::GlobalScope::copy(), TTAProgram::GlobalScope::copyAndRelocate(), TTAProgram::TPEFProgramFactory::createLabels(), llvm::LLVMTCEBuilder::doFinalization(), and llvm::LLVMTCEBuilder::initDataSections().

Here is the call graph for this function:

◆ addGlobalCodeLabel()

virtual void TTAProgram::Scope::addGlobalCodeLabel	(	const CodeLabel &	codeLabel,
		const Scope &	owner
	)

protectedpure virtual

Adds a code label and its owner to the global label bookkeeping.

Parameters

dataLabel	The code label to be added.
owner	The owner scope of the label.

Implemented in TTAProgram::GlobalScope.

Referenced by addCodeLabel().

◆ addGlobalDataLabel()

virtual void TTAProgram::Scope::addGlobalDataLabel	(	const DataLabel &	dataLabel,
		const Scope &	owner
	)

protectedpure virtual

Adds a data label and its owner to the global label bookkeeping.

Parameters

dataLabel	The data label to be added.
owner	The owner scope of the label.

Implemented in TTAProgram::GlobalScope.

Referenced by addDataLabel().

◆ child()

const Scope & Scope::child ( int index ) const

protected

Returns the child scope at given index.

Parameters

index The index of the child scope.

Returns: The child scope at given index.

Exceptions

OutOfRange if the exceeds the number of scopes contained in this scope.

Definition at line 184 of file Scope.cc.

                            {
    if (index >= 0 && static_cast<unsigned int>(index) < children_.size()) {
        return *children_.at(index);
    } else {
        throw OutOfRange(__FILE__, __LINE__);
    }
}

References children_.

◆ childCount()

int Scope::childCount ( ) const

protected

Returns the number of contained scopes.

Only scopes directly contained in this scope are counted, not inner scopes inside one of the child scopes.

Returns: The number of contained scopes.

Definition at line 171 of file Scope.cc.

                        {
    return children_.size();
}

References children_.

◆ codeLabel() [1/2]

const CodeLabel & Scope::codeLabel	(	Address	address,
		int	index
	)		const

Returns a code label visible in this scope in the given address and index.

Parameters

address	The address of the code label.
index	The index of the label if there area many labels at this address.

Returns: A code label visible in this scope in the given address and index.

Definition at line 289 of file Scope.cc.

                                                 {
    if (index < codeLabelCount(address)) {

        int found = -1;
        for (unsigned int i = 0; i < codeLabels_.size(); i++) {

            if (&codeLabels_.at(i)->address().space() ==
                &address.space() &&
                codeLabels_.at(i)->address().location() ==
                address.location()) {

                found++;
                if (found == index) {
                    return *codeLabels_.at(i);
                }
            }
        }

        throw KeyNotFound(__FILE__, __LINE__);

    } else {
        throw OutOfRange(__FILE__, __LINE__);
    }
}

References codeLabelCount(), codeLabels_, TTAProgram::Address::location(), and TTAProgram::Address::space().

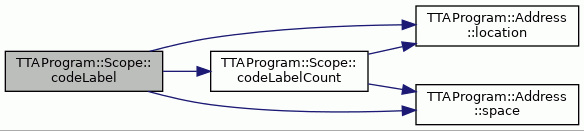

Here is the call graph for this function:

◆ codeLabel() [2/2]

const CodeLabel & Scope::codeLabel ( const std::string & name ) const

Returns the code label with the given name.

Parameters

name	The name of the label.

Exceptions

KeyNotFound if no code label with the given name exists in this scope.

Returns: The code label with the given name.

Definition at line 233 of file Scope.cc.

                                            {
    for (unsigned int i = 0; i < codeLabels_.size(); i++) {
        if (name == codeLabels_.at(i)->name()) {
            return *codeLabels_.at(i);
        }
    }
    throw KeyNotFound(__FILE__, __LINE__);
}

References codeLabels_.

Referenced by addCodeLabel(), TTAProgram::GlobalScope::addGlobalCodeLabel(), and SimControlLanguageCommand::parseInstructionAddressExpression().

◆ codeLabelCount()

int Scope::codeLabelCount ( Address address ) const

Returns the number of code labels in the given address visible in this scope.

Parameters

address The address of the label.

Returns: The number of code labels in the given address visible in this scope.

Definition at line 269 of file Scope.cc.

                                           {
    int count = 0;
    for (unsigned int i = 0; i < codeLabels_.size(); i++) {
        if (&codeLabels_.at(i)->address().space() == &address.space() &&
            codeLabels_.at(i)->address().location() == address.location()) {
            count++;
        }
    }
    return count;
}

References codeLabels_, TTAProgram::Address::location(), and TTAProgram::Address::space().

Referenced by codeLabel().

Here is the call graph for this function:

◆ containsCodeLabel()

bool Scope::containsCodeLabel ( const std::string & name ) const

Tells whether this scope contains a code label with the given name.

Parameters

The	name of the label.

Returns: True if this scope contains a code label with the given name.

Definition at line 199 of file Scope.cc.

                                                    {
    for (unsigned int i = 0; i < codeLabels_.size(); i++) {
        if (name == codeLabels_.at(i)->name()) {
            return true;
        }
    }
    return false;
}

References codeLabels_.

Referenced by addCodeLabel().

◆ containsDataLabel()

bool Scope::containsDataLabel ( const std::string & name ) const

Tells whether this scope contains a data label with the given name.

Parameters

The	name of the label.

Returns: True if this scope contains a data label with the given name.

Definition at line 215 of file Scope.cc.

                                                    {
    for (unsigned int i = 0; i < dataLabels_.size(); i++) {
        if (name == dataLabels_.at(i)->name()) {
            return true;
        }
    }
    return false;
}

References dataLabels_.

Referenced by addDataLabel().

◆ copy()

virtual Scope * TTAProgram::Scope::copy ( ) const

pure virtual

Implemented in TTAProgram::GlobalScope.

◆ dataLabel() [1/2]

const DataLabel & Scope::dataLabel	(	Address	address,
		int	index
	)		const

Returns a data label visible in this scope in the given address and index.

Parameters

address	The address of the data label.
index	The index of the label if there area many labels at this address.

Returns: A data label visible in this scope in the given address and index.

Definition at line 343 of file Scope.cc.

                                                 {
    if (index < dataLabelCount(address)) {

        int found = -1;
        for (unsigned int i = 0; i < dataLabels_.size(); i++) {

            if (&dataLabels_.at(i)->address().space() ==
                &address.space() &&
                dataLabels_.at(i)->address().location() ==
                address.location()) {

                found++;
                if (found == index) {
                    return *dataLabels_.at(i);
                }
            }
        }

        throw KeyNotFound(__FILE__, __LINE__);

    } else {
        throw OutOfRange(__FILE__, __LINE__);
    }
}

References dataLabelCount(), dataLabels_, TTAProgram::Address::location(), and TTAProgram::Address::space().

Here is the call graph for this function:

◆ dataLabel() [2/2]

const DataLabel & Scope::dataLabel ( const std::string & name ) const

Returns the data label with the given name.

Parameters

name	The name of the label.

Exceptions

KeyNotFound if no data label with the given name exists in this scope.

Returns: The data label with the given name.

Definition at line 251 of file Scope.cc.

                                            {
    for (unsigned int i = 0; i < dataLabels_.size(); i++) {
        if (name == dataLabels_.at(i)->name()) {
            return *dataLabels_.at(i);
        }
    }
    throw KeyNotFound(__FILE__, __LINE__);
}

References dataLabels_.

Referenced by addDataLabel(), TTAProgram::GlobalScope::addGlobalDataLabel(), SymbolAddressCommand::execute(), and SimControlLanguageCommand::parseDataAddressExpression().

◆ dataLabelCount()

int Scope::dataLabelCount ( Address address ) const

Returns the number of data labels in the given address visible in this scope.

Parameters

address The address of the label.

Returns: The number of data labels in the given address visible in this scope.

Definition at line 323 of file Scope.cc.

                                           {
    int count = 0;
    for (unsigned int i = 0; i < dataLabels_.size(); i++) {
        if (&dataLabels_.at(i)->address().space() == &address.space() &&
            dataLabels_.at(i)->address().location() == address.location()) {
            count++;
        }
    }
    return count;
}

References dataLabels_, TTAProgram::Address::location(), and TTAProgram::Address::space().

Referenced by dataLabel().

Here is the call graph for this function:

◆ isGlobal()

bool Scope::isGlobal ( ) const

virtual

Tells whether this is a global scope.

Returns: True if this is a global scope.

Reimplemented in TTAProgram::GlobalScope.

Definition at line 72 of file Scope.cc.

                      {
    return false;
}

Referenced by addCodeLabel(), addDataLabel(), parent(), and setParent().

◆ isLocal()

bool Scope::isLocal ( ) const

virtual

Tells whether this is a local scope.

Returns: True if this is a local scope.

Definition at line 102 of file Scope.cc.

                     {
    return false;
}

◆ isProcedure()

bool Scope::isProcedure ( ) const

virtual

Tells whether this is a procedure scope.

Returns: True if this is a procedure scope.

Definition at line 92 of file Scope.cc.

                         {
    return false;
}

◆ isUnit()

bool Scope::isUnit ( ) const

virtual

Tells whether this is a unit scope.

Returns: True if this is a unit scope.

Definition at line 82 of file Scope.cc.

                    {
    return false;
}

◆ operator=()

Scope & TTAProgram::Scope::operator= ( const Scope & )

private

Assignment not allowed.

◆ parent()

Scope & Scope::parent ( ) const

protected

Return the parent scope., that is, the scope that contains this scope.

Returns: The parent scope, that is, the scope that contains this scope.

Exceptions

WrongSubclass	if this scope has no parent scope (it is the global scope).
IllegalRegistration	if no parent has been set (and the scope is not the global scope.

Definition at line 132 of file Scope.cc.

                    {
    if (isGlobal()) {
        throw WrongSubclass(
            __FILE__, __LINE__, "Scope::parent()",
            "Global scope cannot have parent scope.");
    } else if (parent_ == NULL) {
        throw IllegalRegistration(
            __FILE__, __LINE__, "Scope::parent()", "No parent set.");
    } else {
        return *parent_;
    }
}

References isGlobal(), and parent_.

Referenced by addCodeLabel(), and addDataLabel().

Here is the call graph for this function:

◆ removeCodeLabels()

void Scope::removeCodeLabels ( InstructionAddress address )

virtual

Removes all code labels attached to the given instruction address.

Parameters

address The instruction address.

Reimplemented in TTAProgram::GlobalScope.

Definition at line 451 of file Scope.cc.

                                                  {

    for (CodeLabelList::iterator i = codeLabels_.begin();
         i != codeLabels_.end(); ) {
        CodeLabelList::iterator next = i;
        next++;
        if ((*i)->address().location() == address) {
            delete (*i);
            codeLabels_.erase(i);
        }
        i = next;
    }
}

References codeLabels_.

◆ setParent()

void Scope::setParent ( Scope & scope )

protected

Sets the parent scope.

Parameters

scope The new parent scope.

Exceptions

WrongSubclass if the scope is the global scope.

Definition at line 152 of file Scope.cc.

                             {
    if (!isGlobal()) {
        parent_ = &scope;
    } else {
        throw WrongSubclass(
            __FILE__, __LINE__, "Scope::parent()",
            "Global scope cannot have parent scope.");
    }
}

References isGlobal(), and parent_.

Here is the call graph for this function:

Member Data Documentation

◆ children_

ScopeList TTAProgram::Scope::children_

protected

Child scopes.

Definition at line 85 of file Scope.hh.

Referenced by addChild(), child(), and childCount().

◆ codeLabels_

CodeLabelList TTAProgram::Scope::codeLabels_

protected

Code labels contained by this scope.

Definition at line 95 of file Scope.hh.

Referenced by addCodeLabel(), codeLabel(), codeLabel(), codeLabelCount(), containsCodeLabel(), removeCodeLabels(), and ~Scope().

◆ dataLabels_

DataLabelList TTAProgram::Scope::dataLabels_

protected

Data labels contained by this scope.

Definition at line 93 of file Scope.hh.

Referenced by addDataLabel(), containsDataLabel(), dataLabel(), dataLabel(), dataLabelCount(), and ~Scope().

◆ parent_

Scope* TTAProgram::Scope::parent_

private

The smallest outer scope that contains this scope.

Definition at line 125 of file Scope.hh.

Referenced by parent(), and setParent().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ CodeLabelList

◆ DataLabelList

◆ ScopeList

Constructor & Destructor Documentation

◆ Scope() [1/2]

◆ ~Scope()

◆ Scope() [2/2]

Member Function Documentation

◆ addChild()

◆ addCodeLabel()

◆ addDataLabel()

◆ addGlobalCodeLabel()

◆ addGlobalDataLabel()

◆ child()

◆ childCount()

◆ codeLabel() [1/2]

◆ codeLabel() [2/2]

◆ codeLabelCount()

◆ containsCodeLabel()

◆ containsDataLabel()

◆ copy()

◆ dataLabel() [1/2]

◆ dataLabel() [2/2]

◆ dataLabelCount()

◆ isGlobal()

◆ isLocal()

◆ isProcedure()

◆ isUnit()

◆ operator=()

◆ parent()

◆ removeCodeLabels()

◆ setParent()

Member Data Documentation

◆ children_

◆ codeLabels_

◆ dataLabels_

◆ parent_
