TestApplication Class Reference

#include <TestApplication.hh>

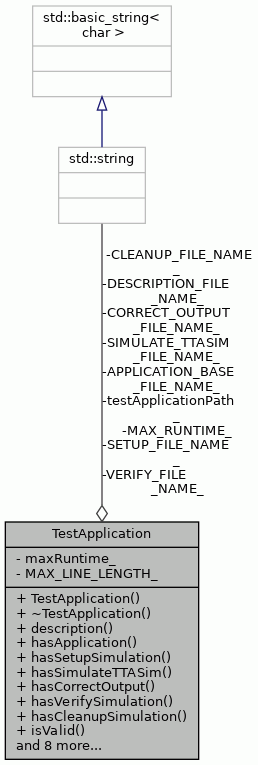

Collaboration diagram for TestApplication:

Public Types
typedef double	Runtime
typedef int	ClockCycles

Public Member Functions
	TestApplication (const std::string &testApplicationPath)
virtual	~TestApplication ()
std::vector< std::string >	description () const
bool	hasApplication () const
bool	hasSetupSimulation () const
bool	hasSimulateTTASim () const
bool	hasCorrectOutput () const
bool	hasVerifySimulation () const
bool	hasCleanupSimulation () const
bool	hasFunctionsOfInterest () const
bool	isValid () const
const std::string	applicationPath () const
void	setupSimulation () const
std::istream *	simulateTTASim () const
const std::string	correctOutput () const
bool	verifySimulation () const
void	cleanupSimulation () const
ClockCycles	cycleCount () const
Runtime	maxRuntime () const
const std::vector< TCEString > &	functionsOfInterest () const

Private Attributes
const std::string	testApplicationPath_
	Path of the test application directory.
Runtime	maxRuntime_
	Maximum runtime of the test appication in nano seconds.
std::vector< TCEString >	functionsOfInterest_
	The names of the functions of interest (in terms of cycle count).

Static Private Attributes
static const std::string	DESCRIPTION_FILE_NAME_ = "description.txt"
	File name of the description text for the application.
static const std::string	APPLICATION_BASE_FILE_NAME_ = "program"
	Name of the sequential program file. Base name of the file that contains the fully linked program. The actual file name will be formed by appending either .bc or .ll, whichever is found first.
static const std::string	SETUP_FILE_NAME_ = "setup.sh"
	Name of the file that contains setup script.
static const std::string	SIMULATE_TTASIM_FILE_NAME_ = "simulate.ttasim"
	Name of the file that runs the simulation.
static const std::string	CORRECT_OUTPUT_FILE_NAME_
	Name of the correct simulation output file.
static const std::string	VERIFY_FILE_NAME_ = "verify.sh"
	Name of the verify script file.
static const std::string	CLEANUP_FILE_NAME_ = "cleanup.sh"
	Name of the clean up file.
static const std::string	FUNCTIONS_OF_INTEREST_FILE_NAME_
	Name of the file that has a comma separated list of functions of interest for the cycle count measurements in the given app. The exclusive profile of these functions will be used as the cycle count in evaluation.
static const std::string	MAX_RUNTIME_ = "max_runtime"
	Name of the file that contains maximum runtime.
static const int	MAX_LINE_LENGTH_ = 512
	Maximum line length in a file.

Detailed Description

Class for handling files in test application directory.

Definition at line 47 of file TestApplication.hh.

Member Typedef Documentation

ClockCycles

typedef int TestApplication::ClockCycles

Definition at line 50 of file TestApplication.hh.

Runtime

typedef double TestApplication::Runtime

Definition at line 49 of file TestApplication.hh.

Constructor & Destructor Documentation

TestApplication()

TestApplication::TestApplication

(

const std::string &

testApplicationPath

)

Constructor.

Parameters

testApplicationPath

Path of the test application directory.

Definition at line 62 of file TestApplication.cc.

    : testApplicationPath_(testApplicationPath), maxRuntime_(0) {
    string maxRuntimeFile = testApplicationPath_
        + FileSystem::DIRECTORY_SEPARATOR
        + MAX_RUNTIME_;
    if (FileSystem::fileExists(maxRuntimeFile)) {
        char line[MAX_LINE_LENGTH_];
        FILE* file = fopen(maxRuntimeFile.c_str(), "r");
        if (fgets(line, MAX_LINE_LENGTH_, file) == NULL)
            abort();
        try {
            maxRuntime_ = Conversion::toDouble(line);
        } catch (const NumberFormatException& exception) {
            fclose(file);
            throw IOException(
                __FILE__, __LINE__, __func__, exception.errorMessage());
        }
        fclose(file);
    }

    if (hasFunctionsOfInterest()) {
        std::ifstream f(
            testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
            FUNCTIONS_OF_INTEREST_FILE_NAME_);
        std::string str(
            (std::istreambuf_iterator<char>(f)),
            std::istreambuf_iterator<char>());
        functionsOfInterest_ = TCEString(str).split(",");
    }
}

References __func__, FileSystem::DIRECTORY_SEPARATOR, Exception::errorMessage(), FileSystem::fileExists(), FUNCTIONS_OF_INTEREST_FILE_NAME_, functionsOfInterest_, hasFunctionsOfInterest(), MAX_LINE_LENGTH_, MAX_RUNTIME_, maxRuntime_, TCEString::split(), testApplicationPath_, and Conversion::toDouble().

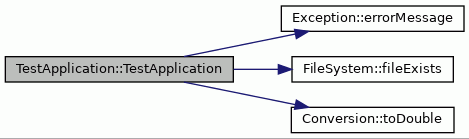

Here is the call graph for this function:

~TestApplication()

TestApplication::~TestApplication ( )

virtual

Destructor.

Definition at line 96 of file TestApplication.cc.

                                  {
}

Member Function Documentation

applicationPath()

const std::string TestApplication::applicationPath

(

)

const

Returns the application path in the test application directory.

If the file 'sequential_program' does not exists returns an empty string.

Returns

The path of the 'sequential_program' file.

Definition at line 335 of file TestApplication.cc.

                                       {

    if (hasApplication()) {
        string applicationBCFile =
            testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
            APPLICATION_BASE_FILE_NAME_ + ".bc";
        string applicationLLFile =
            testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
            APPLICATION_BASE_FILE_NAME_ + ".ll";

        // prioritize the .ll file as it's more portable across
        // LLVM versions than the bitcode
        if (FileSystem::fileExists(applicationLLFile)) {
            return applicationLLFile;
        }
        if (FileSystem::fileExists(applicationBCFile)) {
            return applicationBCFile;
        }

    }
    return "";
}

References APPLICATION_BASE_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), hasApplication(), and testApplicationPath_.

Referenced by DesignSpaceExplorer::evaluate(), and SimpleICOptimizer::explore().

Here is the call graph for this function:

cleanupSimulation()

void TestApplication::cleanupSimulation

(

)

const

Cleans up the previous simulation run.

Uses 'cleanup.sh' script if it exists.

Definition at line 220 of file TestApplication.cc.

                                         {
    string cleanupFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        CLEANUP_FILE_NAME_;
    if (FileSystem::fileExists(cleanupFile)) {
        FileSystem::runShellCommand(cleanupFile);
    }
}

References CLEANUP_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), FileSystem::runShellCommand(), and testApplicationPath_.

Here is the call graph for this function:

correctOutput()

const std::string TestApplication::correctOutput

(

)

const

Returns the correct output from file 'correct_simulation_output' as string.

Returns

Correct output as string.

Definition at line 152 of file TestApplication.cc.

                                     {

    string correctOutputFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        CORRECT_OUTPUT_FILE_NAME_;
    if (!FileSystem::fileExists(correctOutputFile)) {
        return "";
    }
    std::string buf;
    std::string line;
    std::ifstream in(correctOutputFile.c_str());

    if (std::getline(in,line)) {
        buf += line;
    }
    while(std::getline(in,line)) {
        buf += "\n";
        buf += line;
    }
    return buf;
}

References CORRECT_OUTPUT_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and testApplicationPath_.

Referenced by DesignSpaceExplorer::evaluate().

Here is the call graph for this function:

cycleCount()

ClockCycles TestApplication::cycleCount

(

)

const

description()

std::vector< std::string > TestApplication::description

(

)

const

Returns the test application description.

The description is given in the description.txt file of the test application directory.

Returns

The test application description. Returns an empty vector if the desctription.txt file was not found.

Definition at line 109 of file TestApplication.cc.

                                   {

    std::vector<string> description;
    string descriptionFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        DESCRIPTION_FILE_NAME_;
    if (FileSystem::fileExists(descriptionFile)) {
        char line[MAX_LINE_LENGTH_];
        FILE* file = fopen(descriptionFile.c_str(), "r");
        while (fgets(line, MAX_LINE_LENGTH_, file)) {
            description.push_back(line);
        }
        fclose(file);
    }
    return description;
}

References description(), DESCRIPTION_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), MAX_LINE_LENGTH_, and testApplicationPath_.

Referenced by description().

Here is the call graph for this function:

functionsOfInterest()

const std::vector< TCEString > & TestApplication::functionsOfInterest ( ) const

inline

Definition at line 78 of file TestApplication.hh.

                                {
        return functionsOfInterest_;
    }

References functionsOfInterest_.

Referenced by DesignSpaceExplorer::evaluate().

hasApplication()

bool TestApplication::hasApplication

(

)

const

Returns true if 'sequential_program' file is in the test application directory.

Definition at line 242 of file TestApplication.cc.

                                      {

    string applicationBCFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        APPLICATION_BASE_FILE_NAME_ + ".bc";
    string applicationLLFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        APPLICATION_BASE_FILE_NAME_ + ".ll";

    return FileSystem::fileExists(applicationBCFile) ||
        FileSystem::fileExists(applicationLLFile);
}

References APPLICATION_BASE_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and testApplicationPath_.

Referenced by applicationPath(), and isValid().

Here is the call graph for this function:

hasCleanupSimulation()

bool TestApplication::hasCleanupSimulation

(

)

const

Returns true if 'cleanup.sh' file is in the test application directory.

Definition at line 308 of file TestApplication.cc.

                                            {

    string cleanupFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        CLEANUP_FILE_NAME_;
    return FileSystem::fileExists(cleanupFile);
}

References CLEANUP_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and testApplicationPath_.

Here is the call graph for this function:

hasCorrectOutput()

bool TestApplication::hasCorrectOutput

(

)

const

Returns true if 'correct_simulation_output' file is in the test application directory.

Definition at line 284 of file TestApplication.cc.

                                        {

    string correctOutputFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        CORRECT_OUTPUT_FILE_NAME_;
    return FileSystem::fileExists(correctOutputFile);
}

References CORRECT_OUTPUT_FILE_NAME_, FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), and testApplicationPath_.

Referenced by DesignSpaceExplorer::evaluate(), and isValid().

Here is the call graph for this function:

hasFunctionsOfInterest()

bool TestApplication::hasFunctionsOfInterest

(

)

const

Returns

true if 'functions_of_interest' file is found in the application directory.

Definition at line 321 of file TestApplication.cc.

                                              {
    return FileSystem::fileIsReadable(
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        FUNCTIONS_OF_INTEREST_FILE_NAME_);
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileIsReadable(), FUNCTIONS_OF_INTEREST_FILE_NAME_, and testApplicationPath_.

Referenced by DesignSpaceExplorer::evaluate(), and TestApplication().

Here is the call graph for this function:

hasSetupSimulation()

bool TestApplication::hasSetupSimulation

(

)

const

Returns true if 'setup.sh' file is in the test application directory.

Definition at line 259 of file TestApplication.cc.

                                          {

    string setupFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        SETUP_FILE_NAME_;
    return FileSystem::fileExists(setupFile);
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), SETUP_FILE_NAME_, and testApplicationPath_.

Here is the call graph for this function:

hasSimulateTTASim()

bool TestApplication::hasSimulateTTASim

(

)

const

Returns true if 'simulate.ttasim' file is in the test application directory.

Definition at line 271 of file TestApplication.cc.

                                         {

    string simulateFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        SIMULATE_TTASIM_FILE_NAME_;
    return FileSystem::fileExists(simulateFile);
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), SIMULATE_TTASIM_FILE_NAME_, and testApplicationPath_.

Referenced by DesignSpaceExplorer::simulate(), and simulateTTASim().

Here is the call graph for this function:

hasVerifySimulation()

bool TestApplication::hasVerifySimulation

(

)

const

Returns true if 'verify.sh' file is in the test application directory.

Definition at line 296 of file TestApplication.cc.

                                           {

    string verifyFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        VERIFY_FILE_NAME_;
    return FileSystem::fileExists(verifyFile);
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), testApplicationPath_, and VERIFY_FILE_NAME_.

Referenced by isValid().

Here is the call graph for this function:

isValid()

bool TestApplication::isValid ( ) const

inline

Definition at line 64 of file TestApplication.hh.

                         {
        return hasApplication() &&
            (hasCorrectOutput() || hasVerifySimulation());
    }

References hasApplication(), hasCorrectOutput(), and hasVerifySimulation().

Referenced by main().

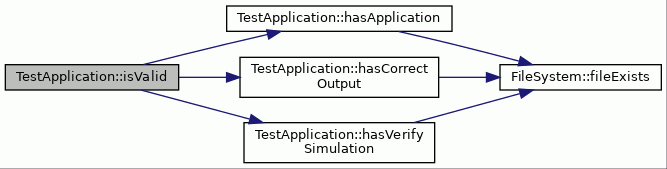

Here is the call graph for this function:

maxRuntime()

TestApplication::Runtime TestApplication::maxRuntime

(

)

const

Returns the maximum runtime that is set in file "max_runtime".

Definition at line 233 of file TestApplication.cc.

                                  {
    return maxRuntime_;
}

References maxRuntime_.

Referenced by FrequencySweepExplorer::fastEnough(), and MinimizeMachine::minimizeMachine().

setupSimulation()

void TestApplication::setupSimulation

(

)

const

Set up the simulation run.

Uses 'setup.sh' to set up the simulation run.

Definition at line 180 of file TestApplication.cc.

                                       {

    string setupFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        SETUP_FILE_NAME_;
    if (FileSystem::fileExists(setupFile)) {
        FileSystem::runShellCommand(setupFile);
    }
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), FileSystem::runShellCommand(), SETUP_FILE_NAME_, and testApplicationPath_.

Referenced by DesignSpaceExplorer::simulate().

Here is the call graph for this function:

simulateTTASim()

std::istream * TestApplication::simulateTTASim

(

)

const

Returns a istream to 'simulate.ttasim' file.

Client takes responsibility of destroying the stream.

Returns

istream to 'simulate.ttasim' file.

Definition at line 198 of file TestApplication.cc.

                                      {

    std::ifstream* ifStream = new std::ifstream;
    if (!hasSimulateTTASim()) {
        return ifStream;
    }
    delete ifStream;
    ifStream = NULL;

    string simulateFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        SIMULATE_TTASIM_FILE_NAME_;
    return new std::ifstream(simulateFile.c_str());
}

References FileSystem::DIRECTORY_SEPARATOR, hasSimulateTTASim(), SIMULATE_TTASIM_FILE_NAME_, and testApplicationPath_.

Referenced by DesignSpaceExplorer::simulate().

Here is the call graph for this function:

verifySimulation()

bool TestApplication::verifySimulation

(

)

const

Verifies the previous simulation run.

Uses 'verify.sh' to verify the previous simulation run.

Returns

True if the simulation result was verified as correct.

Definition at line 134 of file TestApplication.cc.

                                        {

    string verifyFile =
        testApplicationPath_ + FileSystem::DIRECTORY_SEPARATOR +
        VERIFY_FILE_NAME_;

    if (FileSystem::fileExists(verifyFile)) {
        return FileSystem::runShellCommand(verifyFile);
    }
    return false;
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), FileSystem::runShellCommand(), testApplicationPath_, and VERIFY_FILE_NAME_.

Here is the call graph for this function:

Member Data Documentation

APPLICATION_BASE_FILE_NAME_

const string TestApplication::APPLICATION_BASE_FILE_NAME_ = "program"

staticprivate

Name of the sequential program file. Base name of the file that contains the fully linked program. The actual file name will be formed by appending either .bc or .ll, whichever is found first.

Definition at line 96 of file TestApplication.hh.

Referenced by applicationPath(), and hasApplication().

CLEANUP_FILE_NAME_

const string TestApplication::CLEANUP_FILE_NAME_ = "cleanup.sh"

staticprivate

Name of the clean up file.

Definition at line 106 of file TestApplication.hh.

Referenced by cleanupSimulation(), and hasCleanupSimulation().

CORRECT_OUTPUT_FILE_NAME_

const string TestApplication::CORRECT_OUTPUT_FILE_NAME_

staticprivate

Initial value:

=
    "correct_simulation_output"

Name of the correct simulation output file.

Definition at line 102 of file TestApplication.hh.

Referenced by correctOutput(), and hasCorrectOutput().

DESCRIPTION_FILE_NAME_

const string TestApplication::DESCRIPTION_FILE_NAME_ = "description.txt"

staticprivate

File name of the description text for the application.

Definition at line 91 of file TestApplication.hh.

Referenced by description().

FUNCTIONS_OF_INTEREST_FILE_NAME_

const string TestApplication::FUNCTIONS_OF_INTEREST_FILE_NAME_

staticprivate

Initial value:

=
    "functions_of_interest"

Name of the file that has a comma separated list of functions of interest for the cycle count measurements in the given app. The exclusive profile of these functions will be used as the cycle count in evaluation.

Definition at line 111 of file TestApplication.hh.

Referenced by hasFunctionsOfInterest(), and TestApplication().

functionsOfInterest_

std::vector<TCEString> TestApplication::functionsOfInterest_

private

The names of the functions of interest (in terms of cycle count).

Definition at line 88 of file TestApplication.hh.

Referenced by functionsOfInterest(), and TestApplication().

MAX_LINE_LENGTH_

const int TestApplication::MAX_LINE_LENGTH_ = 512

staticprivate

Maximum line length in a file.

Definition at line 115 of file TestApplication.hh.

Referenced by description(), and TestApplication().

MAX_RUNTIME_

const string TestApplication::MAX_RUNTIME_ = "max_runtime"

staticprivate

Name of the file that contains maximum runtime.

Definition at line 113 of file TestApplication.hh.

Referenced by TestApplication().

maxRuntime_

Runtime TestApplication::maxRuntime_

private

Maximum runtime of the test appication in nano seconds.

Definition at line 86 of file TestApplication.hh.

Referenced by maxRuntime(), and TestApplication().

SETUP_FILE_NAME_

const string TestApplication::SETUP_FILE_NAME_ = "setup.sh"

staticprivate

Name of the file that contains setup script.

Definition at line 98 of file TestApplication.hh.

Referenced by hasSetupSimulation(), and setupSimulation().

SIMULATE_TTASIM_FILE_NAME_

const string TestApplication::SIMULATE_TTASIM_FILE_NAME_ = "simulate.ttasim"

staticprivate

Name of the file that runs the simulation.

Definition at line 100 of file TestApplication.hh.

Referenced by hasSimulateTTASim(), and simulateTTASim().

testApplicationPath_

const std::string TestApplication::testApplicationPath_

private

Path of the test application directory.

Definition at line 84 of file TestApplication.hh.

Referenced by applicationPath(), cleanupSimulation(), correctOutput(), description(), hasApplication(), hasCleanupSimulation(), hasCorrectOutput(), hasFunctionsOfInterest(), hasSetupSimulation(), hasSimulateTTASim(), hasVerifySimulation(), setupSimulation(), simulateTTASim(), TestApplication(), and verifySimulation().

VERIFY_FILE_NAME_

const string TestApplication::VERIFY_FILE_NAME_ = "verify.sh"

staticprivate

Name of the verify script file.

Definition at line 104 of file TestApplication.hh.

Referenced by hasVerifySimulation(), and verifySimulation().

---

The documentation for this class was generated from the following files:

• TestApplication.hh
• TestApplication.cc
