VLIWConnectICCmd Class Reference

#include <VLIWConnectICCmd.hh>

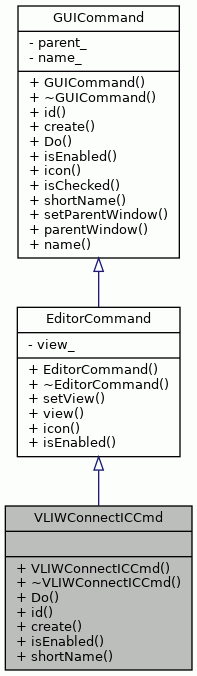

Inheritance diagram for VLIWConnectICCmd:

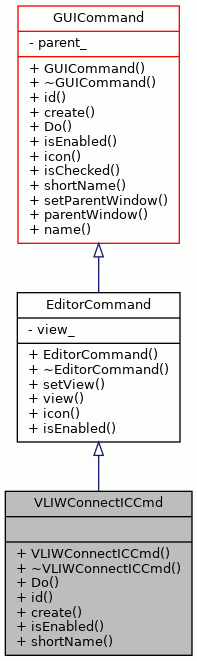

Collaboration diagram for VLIWConnectICCmd:

Public Member Functions
	VLIWConnectICCmd ()
virtual	~VLIWConnectICCmd ()
virtual bool	Do ()
virtual int	id () const
virtual VLIWConnectICCmd *	create () const
virtual bool	isEnabled ()
virtual std::string	shortName () const
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
virtual std::string	icon () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for calling VLIWConnectIC explorer plugin.

Definition at line 42 of file VLIWConnectICCmd.hh.

Constructor & Destructor Documentation

VLIWConnectICCmd()

VLIWConnectICCmd::VLIWConnectICCmd

(

)

Definition at line 51 of file VLIWConnectICCmd.cc.

                                  :
    EditorCommand(ProDeConstants::CMD_NAME_VLIW_CONNECT_IC) {
}

Referenced by create().

~VLIWConnectICCmd()

VLIWConnectICCmd::~VLIWConnectICCmd ( )

virtual

Definition at line 56 of file VLIWConnectICCmd.cc.

{}

Member Function Documentation

create()

VLIWConnectICCmd * VLIWConnectICCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Implements GUICommand.

Definition at line 123 of file VLIWConnectICCmd.cc.

                               {
    return new VLIWConnectICCmd();
}

References VLIWConnectICCmd().

Here is the call graph for this function:

Do()

bool VLIWConnectICCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 65 of file VLIWConnectICCmd.cc.

                     {

    assert(view() != NULL);

    TTAMachine::Machine* machine = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel()->getMachine();

    Model* model = dynamic_cast<MDFDocument*>(
        view()->GetDocument())->getModel();

    model->pushToStack();

    // open up a temporary dsdb
    const std::string dsdbFile = "tmp.dsdb";
    FileSystem::removeFileOrDirectory(dsdbFile);
    DSDBManager* dsdb = DSDBManager::createNew(dsdbFile);
    RowID archID = dsdb->addArchitecture(*machine);

    DSDBManager::MachineConfiguration confIn(archID, false, ILLEGAL_ROW_ID);
    RowID confID = dsdb->addConfiguration(confIn);

    // load VLIWConnectIC explorer plugin
    DesignSpaceExplorer explorer;
    DesignSpaceExplorerPlugin* plugin =
        explorer.loadExplorerPlugin("VLIWConnectIC", dsdb);
    plugin->setDSDB(*dsdb);

    try {
        std::vector<RowID> result = plugin->explore(confID, 0);
        // store the new machine
        TTAMachine::Machine& newMachine =
            *dsdb->architecture(confID+result.size());
        machine->copyFromMachine(newMachine);
    } catch (Exception const& e) {
        std::cerr << "Could not create VLIW Connect IC" << std::endl;
        FileSystem::removeFileOrDirectory(dsdbFile);
        model->popFromStack();
        return false;
    }
    FileSystem::removeFileOrDirectory(dsdbFile);
    model->notifyObservers();

    return true;
}

References DSDBManager::addArchitecture(), DSDBManager::addConfiguration(), DSDBManager::architecture(), assert, TTAMachine::Machine::copyFromMachine(), DSDBManager::createNew(), DesignSpaceExplorerPlugin::explore(), ILLEGAL_ROW_ID, DesignSpaceExplorer::loadExplorerPlugin(), machine, Model::notifyObservers(), Model::popFromStack(), Model::pushToStack(), FileSystem::removeFileOrDirectory(), DesignSpaceExplorer::setDSDB(), and EditorCommand::view().

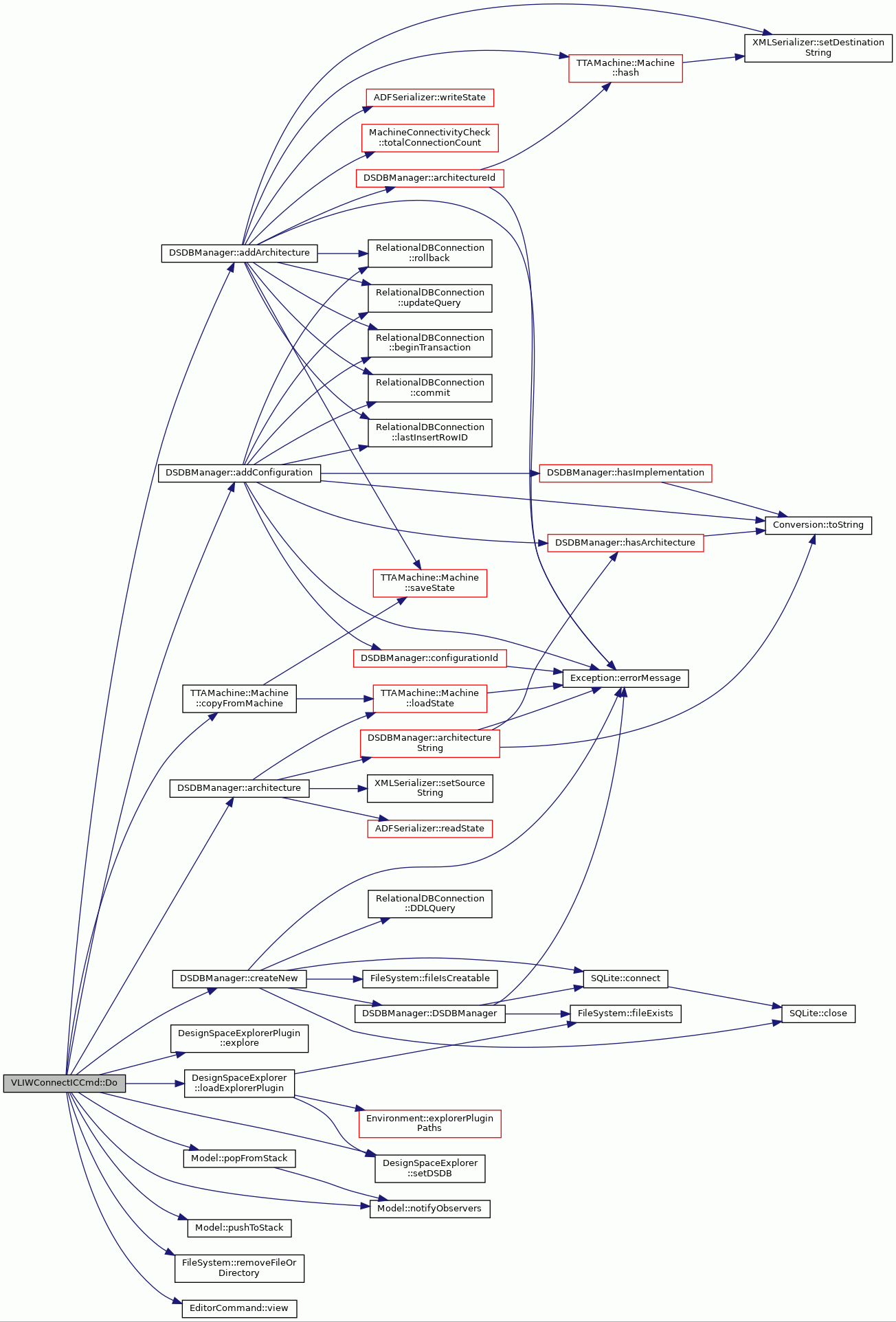

Here is the call graph for this function:

id()

int VLIWConnectICCmd::id ( ) const

virtual

Returns id of this command.

Implements GUICommand.

Definition at line 114 of file VLIWConnectICCmd.cc.

                           {
    return ProDeConstants::COMMAND_VLIW_CONNECT_IC;
}

References ProDeConstants::COMMAND_VLIW_CONNECT_IC.

isEnabled()

bool VLIWConnectICCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 145 of file VLIWConnectICCmd.cc.

                            {

    wxDocManager* manager = wxGetApp().docManager();
    wxView* view = manager->GetCurrentView();

    if (view == NULL) {
        return false;
    }

    Model* model = dynamic_cast<MDFDocument*>(
        view->GetDocument())->getModel();

    if (model == NULL) {
        return false;
    }
    return true;
}

References EditorCommand::view().

Here is the call graph for this function:

shortName()

std::string VLIWConnectICCmd::shortName ( ) const

virtual

Returns short version of the command name.

Reimplemented from GUICommand.

Definition at line 132 of file VLIWConnectICCmd.cc.

                                  {
    return ProDeConstants::CMD_SNAME_VLIW_CONNECT_IC;
}

References ProDeConstants::CMD_SNAME_VLIW_CONNECT_IC.

---

The documentation for this class was generated from the following files:

• VLIWConnectICCmd.hh
• VLIWConnectICCmd.cc
