ValidateMachineDialog Class Reference

#include <ValidateMachineDialog.hh>

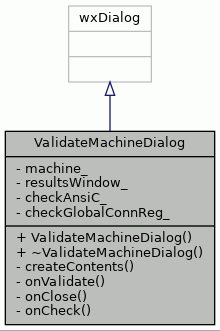

Inheritance diagram for ValidateMachineDialog:

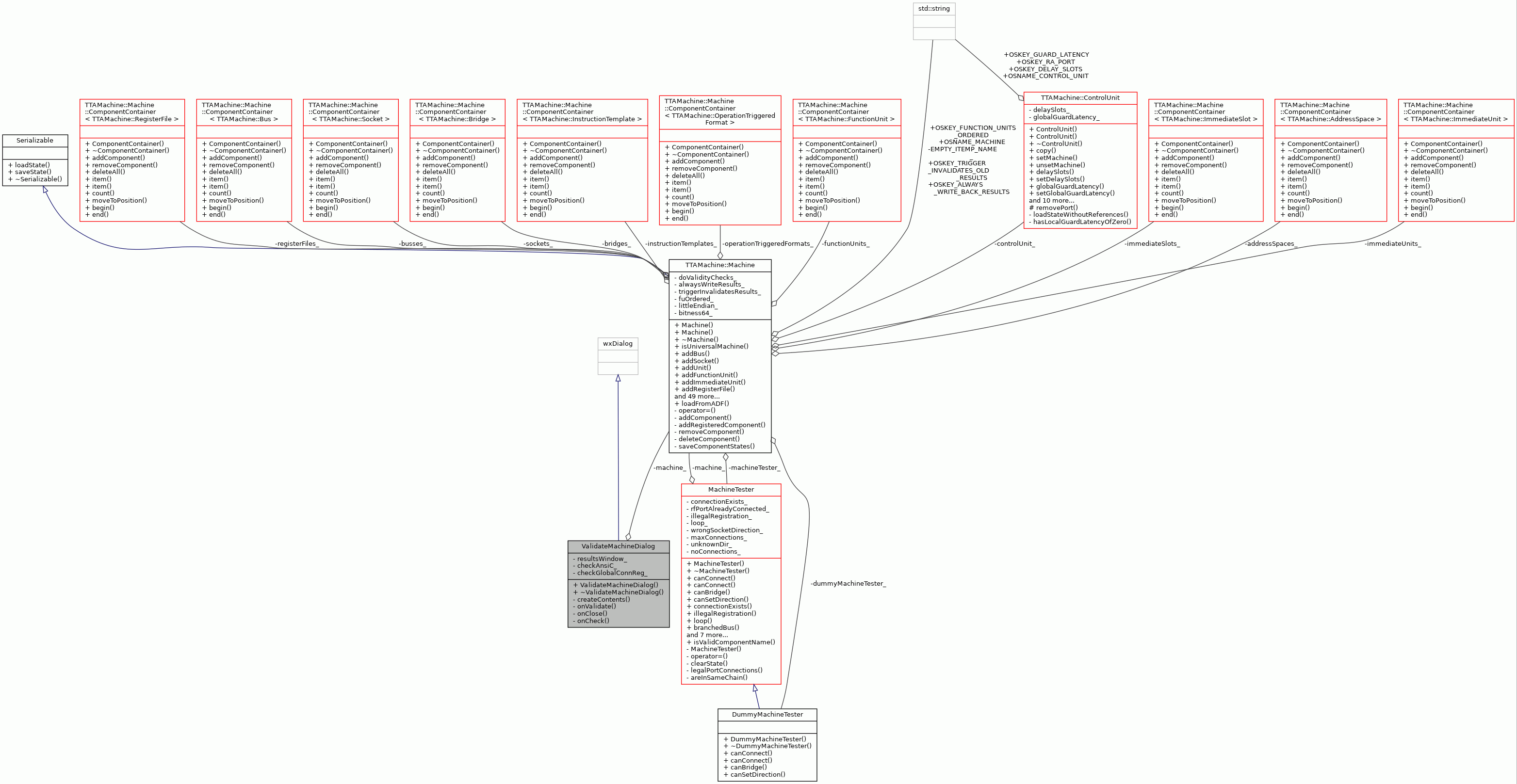

Collaboration diagram for ValidateMachineDialog:

Public Member Functions
	ValidateMachineDialog (wxWindow *parent, const TTAMachine::Machine &machine)
	~ValidateMachineDialog ()

Private Types
enum	{   ID_VALIDATE = 10000 , ID_CLOSE , ID_RESULTS , ID_LINE ,   ID_CHECK_ANSI_C , ID_CHECK_GLOBAL_CONN_REGISTER }

Private Member Functions
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	onValidate (wxCommandEvent &event)
void	onClose (wxCommandEvent &event)
void	onCheck (wxCommandEvent &event)

Private Attributes
const TTAMachine::Machine &	machine_
	Machine to be validated.
wxHtmlWindow *	resultsWindow_
	HTML-widget for validation result texts.
wxCheckBox *	checkAnsiC_
wxCheckBox *	checkGlobalConnReg_

Detailed Description

Dialog for listing and editing address spaces of the machine.

Definition at line 47 of file ValidateMachineDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_VALIDATE
ID_CLOSE
ID_RESULTS
ID_LINE
ID_CHECK_ANSI_C
ID_CHECK_GLOBAL_CONN_REGISTER

Definition at line 68 of file ValidateMachineDialog.hh.

         {
        ID_VALIDATE = 10000,
        ID_CLOSE,
        ID_RESULTS,
        ID_LINE,
        ID_CHECK_ANSI_C,
        ID_CHECK_GLOBAL_CONN_REGISTER
    };

Constructor & Destructor Documentation

ValidateMachineDialog()

ValidateMachineDialog::ValidateMachineDialog	(	wxWindow *	parent,
		const TTAMachine::Machine &	machine
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
machine	Machine containing the address spaces.

Definition at line 59 of file ValidateMachineDialog.cc.

                                     :
    wxDialog(parent, -1, _T("Validate Machine"), wxDefaultPosition),
    machine_(machine) {

    createContents(this, true, true);

    checkAnsiC_ = dynamic_cast<wxCheckBox*>(FindWindow(ID_CHECK_ANSI_C));
    checkGlobalConnReg_ = dynamic_cast<wxCheckBox*>(
        FindWindow(ID_CHECK_GLOBAL_CONN_REGISTER));

    FindWindow(ID_VALIDATE)->Disable();

    // Global connection register check in ProgrammabilityValidator
    // doesn't work for arbitrary machines yet. The global
    // connection register checkbox is therefore disabled.
    // Following disable-call can be removed when the
    // ProgrammabilityValiadtor works for all machines.
    //FindWindow(ID_CHECK_GLOBAL_CONN_REGISTER)->Disable();
}

~ValidateMachineDialog()

ValidateMachineDialog::~ValidateMachineDialog

(

)

The Destructor.

Definition at line 85 of file ValidateMachineDialog.cc.

                                              {
}

Member Function Documentation

createContents()

wxSizer * ValidateMachineDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog window contents.

This method was generated with wxDesigner, thus the ugly code and too long lines.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 181 of file ValidateMachineDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item1 = new wxBoxSizer( wxVERTICAL );

    wxStaticBox *item3 = new wxStaticBox( parent, -1, wxT("Validate:") );
    wxStaticBoxSizer *item2 = new wxStaticBoxSizer( item3, wxVERTICAL );

    wxCheckBox *item4 = new wxCheckBox( parent, ID_CHECK_ANSI_C, wxT("Check for operations needed to support ANSI C."), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item4, 0, wxALL, 5 );

    wxCheckBox *item5 = new wxCheckBox( parent, ID_CHECK_GLOBAL_CONN_REGISTER, wxT("Check for global connection register."), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item5, 0, wxALL, 5 );

    wxButton *item6 = new wxButton( parent, ID_VALIDATE, wxT("Validate"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item6, 0, wxALIGN_RIGHT|wxALL, 5 );

    item1->Add( item2, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item8 = new wxStaticBox( parent, -1, wxT("Results:") );
    wxStaticBoxSizer *item7 = new wxStaticBoxSizer( item8, wxVERTICAL );

    resultsWindow_ = new wxHtmlWindow(parent, ID_RESULTS, wxDefaultPosition, wxSize(250, 250));
    wxWindow* item9 = resultsWindow_;
    wxASSERT( item9 );
    item7->Add( item9, 0, wxGROW|wxALL, 5 );

    item1->Add( item7, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxStaticLine *item10 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item10, 0, wxGROW|wxALL, 5 );

    wxButton *item11 = new wxButton( parent, ID_CLOSE, wxT("Close"), wxDefaultPosition, wxDefaultSize, 0 );
    item0->Add( item11, 0, wxALIGN_RIGHT|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_CHECK_ANSI_C, ID_CHECK_GLOBAL_CONN_REGISTER, ID_CLOSE, ID_LINE, ID_RESULTS, ID_VALIDATE, and resultsWindow_.

onCheck()

void ValidateMachineDialog::onCheck ( wxCommandEvent &  event )

private

Event handler for the checkbox check toggles.

Disables the Validate-button if no checkboxes are checked.

Definition at line 95 of file ValidateMachineDialog.cc.

                                              {
    if (checkAnsiC_->IsChecked() ||
        checkGlobalConnReg_->IsChecked()) {

        FindWindow(ID_VALIDATE)->Enable();
    } else {
        FindWindow(ID_VALIDATE)->Disable();
    }
}

References checkAnsiC_, checkGlobalConnReg_, and ID_VALIDATE.

onClose()

void ValidateMachineDialog::onClose ( wxCommandEvent &  event )

private

Event handler for the Close-button.

Closes the dialog.

Definition at line 164 of file ValidateMachineDialog.cc.

                                              {
    Close();
}

onValidate()

void ValidateMachineDialog::onValidate ( wxCommandEvent &  event )

private

Event handler for the Validate-button.

Validates the machine using a ProgrammabilityValidator. Only checks that are selected with the checkboxes are ran.

Definition at line 113 of file ValidateMachineDialog.cc.

                                                 {

    bool valid = true;

    wxString resultPage = _T("<html><body><small>");

    std::set<ProgrammabilityValidator::ErrorCode> checks;
    if (checkGlobalConnReg_->IsChecked()) {
        checks.insert(
            ProgrammabilityValidator::GLOBAL_CONNECTION_REGISTER_NOT_FOUND);
        checks.insert(ProgrammabilityValidator::MISSING_CONNECTION);
    }
    if (checkAnsiC_->IsChecked()) {
        checks.insert(
            ProgrammabilityValidator::
            OPERATION_MISSING_FROM_THE_PRIMITIVE_OPERATION_SET);
    }

    assert(!checks.empty());

    try {
        ProgrammabilityValidator validator(machine_);

        ProgrammabilityValidatorResults* results = validator.validate(checks);
        for (int i = 0; i < results->errorCount(); i++) {
            valid = false;
            resultPage.Append(
                WxConversion::toWxString(results->error(i).second));
            resultPage.Append(_T("<hr>"));
        }
        delete results;
        results = NULL;
    } catch (IllegalMachine& e) {
        valid = false;
        resultPage.Append(WxConversion::toWxString(e.errorMessage()));
    }
    if (valid) {
        resultPage.Append(
            _T("<font color=#00c000>Validity checks passed!</font>"));
    }
    resultPage.Append(_T("</small></body></html>"));
    resultsWindow_->SetPage(resultPage);
}

References assert, checkAnsiC_, checkGlobalConnReg_, ProgrammabilityValidatorResults::error(), ProgrammabilityValidatorResults::errorCount(), Exception::errorMessage(), ProgrammabilityValidator::GLOBAL_CONNECTION_REGISTER_NOT_FOUND, machine_, ProgrammabilityValidator::MISSING_CONNECTION, resultsWindow_, WxConversion::toWxString(), and ProgrammabilityValidator::validate().

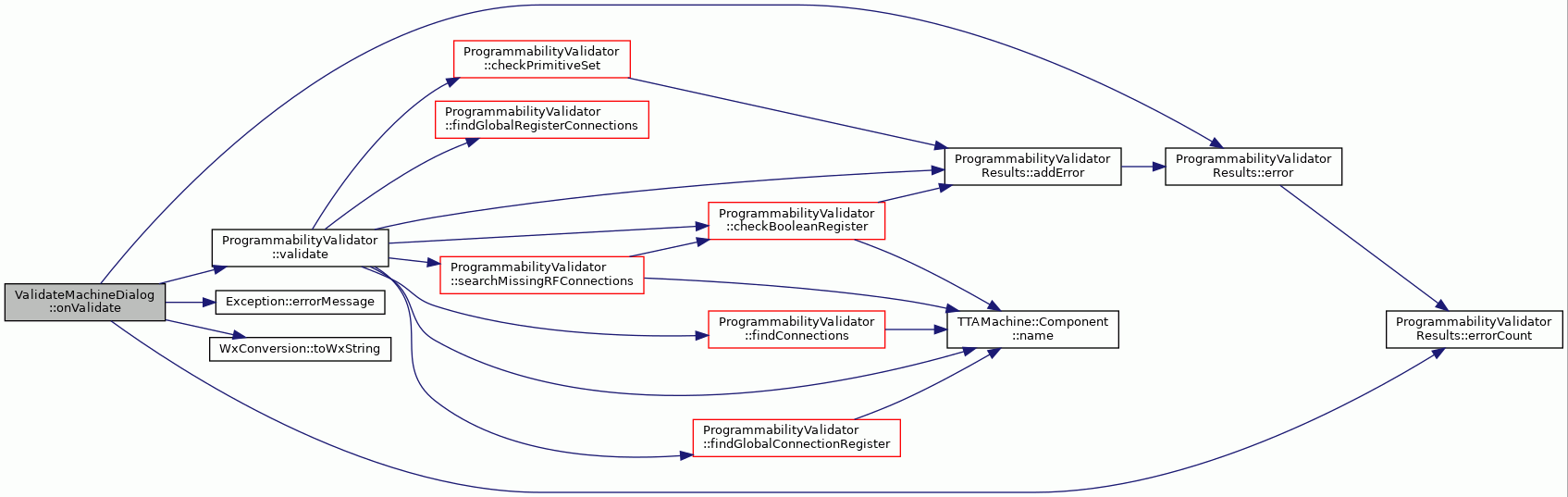

Here is the call graph for this function:

Member Data Documentation

checkAnsiC_

wxCheckBox* ValidateMachineDialog::checkAnsiC_

private

Definition at line 64 of file ValidateMachineDialog.hh.

Referenced by onCheck(), and onValidate().

checkGlobalConnReg_

wxCheckBox* ValidateMachineDialog::checkGlobalConnReg_

private

Definition at line 65 of file ValidateMachineDialog.hh.

Referenced by onCheck(), and onValidate().

machine_

const TTAMachine::Machine& ValidateMachineDialog::machine_

private

Machine to be validated.

Definition at line 60 of file ValidateMachineDialog.hh.

Referenced by onValidate().

resultsWindow_

wxHtmlWindow* ValidateMachineDialog::resultsWindow_

private

HTML-widget for validation result texts.

Definition at line 62 of file ValidateMachineDialog.hh.

Referenced by createContents(), and onValidate().

---

The documentation for this class was generated from the following files:

• ValidateMachineDialog.hh
• ValidateMachineDialog.cc
