#include <Watch.hh>

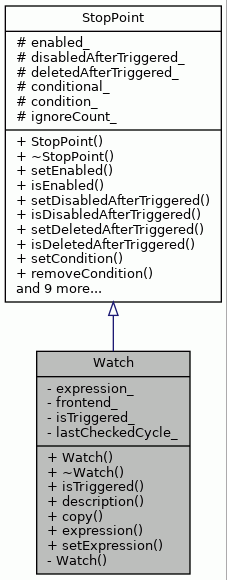

Inheritance diagram for Watch:

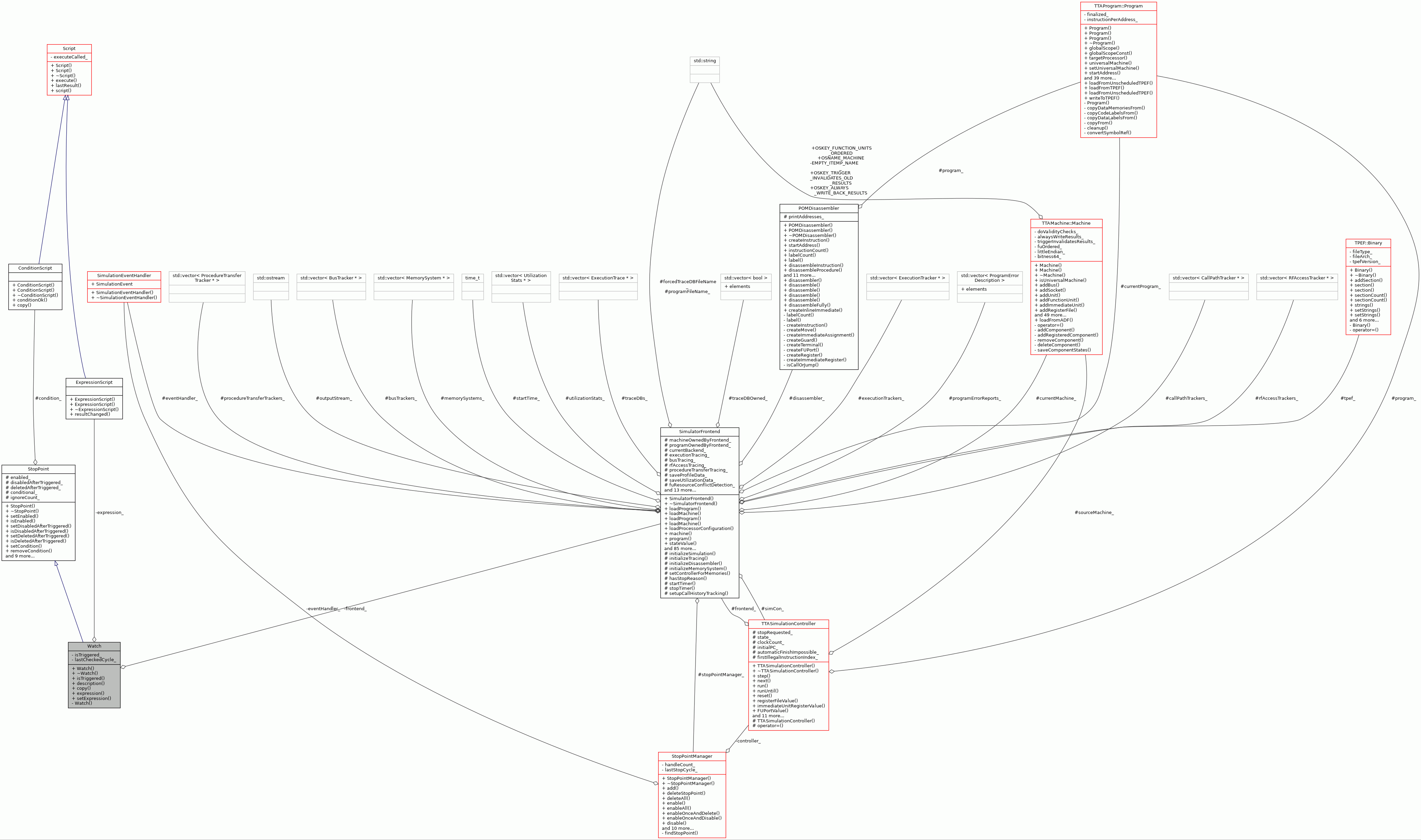

Collaboration diagram for Watch:

Public Member Functions
	Watch (const SimulatorFrontend &frontend, const ExpressionScript &expression)

virtual	~Watch ()

virtual bool	isTriggered () const

virtual std::string	description () const

virtual StopPoint *	copy () const

virtual const ExpressionScript &	expression () const

virtual void	setExpression (const ExpressionScript &expression)

Public Member Functions inherited from StopPoint
	StopPoint ()

virtual	~StopPoint ()

virtual void	setEnabled (bool flag)

virtual bool	isEnabled () const

virtual void	setDisabledAfterTriggered (bool flag)

virtual bool	isDisabledAfterTriggered () const

virtual void	setDeletedAfterTriggered (bool flag)

virtual bool	isDeletedAfterTriggered () const

virtual void	setCondition (const ConditionScript &condition)

virtual void	removeCondition ()

virtual const ConditionScript &	condition () const

virtual bool	isConditional () const

virtual void	setIgnoreCount (unsigned int count)

virtual unsigned int	ignoreCount () const

virtual bool	isConditionOK ()

virtual void	decreaseIgnoreCount ()

Private Member Functions
	Watch (const Watch &source)
	Static copying not allowed (should use copy()).

Private Attributes
ExpressionScript	expression_
	The expression that is watched.

const SimulatorFrontend &	frontend_
	The simulator frontend which is used to fetch the current PC.

bool	isTriggered_
	Flag which tells whether the watch was triggered in current simulation cycle.

ClockCycleCount	lastCheckedCycle_
	The simulation clock cycle in which the expression was checked the last time.

Additional Inherited Members
Protected Attributes inherited from StopPoint
bool	enabled_
	Tells whether the breakpoint is enabled or disabled.

bool	disabledAfterTriggered_
	Tells if the breakpoint is disabled after it is triggered the next time.

bool	deletedAfterTriggered_
	Tells if the breakpoint is deleted after it is triggered the next time.

bool	conditional_
	Tells whether the breakpoint is conditional or not.

ConditionScript *	condition_
	The condition which is used to determine whether the breakpoint should be fired or not.

unsigned int	ignoreCount_
	The number of times the condition is to be ignored before enabling the breakpoint.

Detailed Description

Represents a simulation watch point.

Watch stops simulation when user-given expression changes its value.

Definition at line 48 of file Watch.hh.

Constructor & Destructor Documentation

◆ Watch() [1/2]

Watch::Watch	(	const SimulatorFrontend &	frontend,
		const ExpressionScript &	expression
	)

Constructor.

Parameters

frontend	Used to fetch the simulation clock.
expression	The expression watched.

Definition at line 48 of file Watch.cc.

                                        :
    StopPoint(), expression_(expression), frontend_(frontend),
    isTriggered_(false), lastCheckedCycle_(0) {
}

◆ ~Watch()

Watch::~Watch ( )

virtual

Destructor.

Definition at line 58 of file Watch.cc.

58 {

59}

◆ Watch() [2/2]

Watch::Watch ( const Watch & source )

private

Static copying not allowed (should use copy()).

Member Function Documentation

◆ copy()

StopPoint * Watch::copy ( ) const

virtual

Copy method for dynamically bound copies.

Implements StopPoint.

Definition at line 65 of file Watch.cc.

                  {
    StopPoint* aCopy = new Watch(frontend_, expression_);
    if (conditional_) {
        assert(condition_ != NULL);
        ConditionScript* conditionCopy = condition_->copy();
        assert(conditionCopy != NULL);
        aCopy->setCondition(*conditionCopy);
    } else {
        aCopy->removeCondition();
    }
    aCopy->setEnabled(enabled_);
    aCopy->setDisabledAfterTriggered(disabledAfterTriggered_);
    aCopy->setDeletedAfterTriggered(deletedAfterTriggered_);
    aCopy->setIgnoreCount(ignoreCount_);
    return aCopy;
}

References assert, StopPoint::condition_, StopPoint::conditional_, ConditionScript::copy(), StopPoint::deletedAfterTriggered_, StopPoint::disabledAfterTriggered_, StopPoint::enabled_, expression_, frontend_, StopPoint::ignoreCount_, StopPoint::removeCondition(), StopPoint::setCondition(), StopPoint::setDeletedAfterTriggered(), StopPoint::setDisabledAfterTriggered(), StopPoint::setEnabled(), and StopPoint::setIgnoreCount().

Here is the call graph for this function:

◆ description()

std::string Watch::description ( ) const

virtual

Prints the description string of the stop point.

Each subclass overrides this method to construct a descripting string of itself.

Implements StopPoint.

Definition at line 134 of file Watch.cc.

                         {
    return std::string("watch for expression '") + expression_.script().at(0) +
        "' " + StopPoint::description();
}

References StopPoint::description(), expression_, and Script::script().

Here is the call graph for this function:

◆ expression()

const ExpressionScript & Watch::expression ( ) const

virtual

Returns the expression.

Returns: The expression.

Definition at line 88 of file Watch.cc.

                        {
    return expression_;
}

References expression_.

Referenced by ProximBreakpointWindow::refreshStopPoints(), setExpression(), and WatchPropertiesDialog::TransferDataToWindow().

◆ isTriggered()

bool Watch::isTriggered ( ) const

virtual

Returns true in case this watch is triggered.

Returns true in case the expression has changed in current simulation cycle.

Returns: The status of the watch.

Implements StopPoint.

Definition at line 110 of file Watch.cc.

                         {
    if (lastCheckedCycle_ != frontend_.cycleCount()) {
        // simulation clock has changed since the last expression check,
        // let's see if the watch expression value has changed
        try {
            isTriggered_ = expression_.resultChanged();
        } catch (const Exception&) {
            // for example simulation might not be initialized in every
            // check so the script throws, we'll assume that no triggering
            // should happen at that case
            isTriggered_ = false;
        }
        lastCheckedCycle_ = frontend_.cycleCount();
    }
    return isTriggered_;
}

References SimulatorFrontend::cycleCount(), expression_, frontend_, isTriggered_, lastCheckedCycle_, and ExpressionScript::resultChanged().

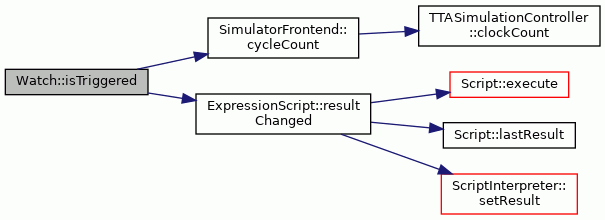

Here is the call graph for this function:

◆ setExpression()

void Watch::setExpression ( const ExpressionScript & expression )

virtual

Sets the expression the watch is watching.

Parameters

expression The new expression.

Definition at line 98 of file Watch.cc.

                                                       {
    expression_ = expression;
}

References expression(), and expression_.

Here is the call graph for this function:

Member Data Documentation

◆ expression_

ExpressionScript Watch::expression_

mutableprivate

The expression that is watched.

Definition at line 66 of file Watch.hh.

Referenced by copy(), description(), expression(), isTriggered(), and setExpression().

◆ frontend_

const SimulatorFrontend& Watch::frontend_

private

The simulator frontend which is used to fetch the current PC.

Definition at line 68 of file Watch.hh.

Referenced by copy(), and isTriggered().

◆ isTriggered_

bool Watch::isTriggered_

mutableprivate

Flag which tells whether the watch was triggered in current simulation cycle.

Definition at line 71 of file Watch.hh.

Referenced by isTriggered().

◆ lastCheckedCycle_

ClockCycleCount Watch::lastCheckedCycle_

mutableprivate

The simulation clock cycle in which the expression was checked the last time.

Definition at line 74 of file Watch.hh.

Referenced by isTriggered().

The documentation for this class was generated from the following files:
